3LPE Coating pipe
3LPE coating, or Three-Layer Polyethylene coating, is a multi-layer external coating system used to protect steel pipes and pipelines from external corrosion, moisture, soil conditions, and mechanical damage. It is particularly relevant for pipelines installed underground or in demanding environments where long-term external protection is required.
A typical 3LPE coating system consists of three functional layers: Fusion Bonded Epoxy (FBE), an adhesive layer, and an outer polyethylene (PE) layer. Each layer performs a different function, combining corrosion protection with adhesion and mechanical resistance.
For pipeline projects, selecting an appropriate 3LPE system requires consideration of pipe material, operating environment, coating requirements, application conditions, transportation, installation method, and applicable project specifications.
Spark Steel can support project-specific requirements for coated steel pipes and related pipeline products, subject to technical and commercial confirmation.
What Is 3LPE Coating?
3LPE stands for Three-Layer Polyethylene. It is an external coating system generally applied to steel pipes to provide protection against corrosion and physical damage.
The three principal layers are:
-
Fusion Bonded Epoxy (FBE) Primer
- Provides corrosion protection.
- Bonds directly to the prepared steel surface.
- Creates the primary barrier against the external environment.
-
Adhesive Layer
- Bonds the FBE layer to the polyethylene layer.
- Helps maintain the integrity of the multi-layer coating system.
-
Polyethylene Outer Layer
- Provides mechanical protection.
- Helps protect the underlying coating from impact, abrasion, moisture, and handling damage.
The final coating system is designed to work as an integrated protective layer rather than as three independent coatings.
How Does 3LPE Coating Work?
The effectiveness of a 3LPE system depends on proper surface preparation, controlled coating application, material quality, and inspection.
- Surface Preparation
The steel pipe is cleaned and prepared to remove contaminants, rust, mill scale, oil, and other substances that could affect coating adhesion. - FBE Application
Fusion Bonded Epoxy is applied to the prepared steel surface under controlled conditions. The epoxy forms the corrosion-resistant foundation of the coating system. - Adhesive Application
A polymer adhesive layer is applied over the FBE layer to establish bonding between the epoxy and polyethylene. - Polyethylene Application
The external polyethylene layer is applied to provide mechanical protection and environmental resistance. - Cooling and Inspection
After application, the coated pipe is cooled and inspected. Depending on the project specification, inspections and tests may include coating thickness measurement, visual inspection, adhesion assessment, holiday detection, and other quality-control procedures.
Key Features of 3LPE Coating
3LPE coating is selected for pipeline applications because its multilayer structure combines several protective functions.
Important characteristics include:
- Multi-layer external corrosion protection
- Strong adhesion to properly prepared steel
- Mechanical protection from the polyethylene outer layer
- Resistance to moisture and many soil environments
- Protection during transportation and installation
- Suitable for many buried pipeline applications
- Reduced direct exposure of steel to the surrounding environment
- Customizable according to project coating specifications
- Suitable for various pipeline steel grades when the coating system is properly specified
Actual coating performance depends on the coating formulation, application quality, pipe condition, service environment, and project requirements.
Where Is 3LPE Coating Used?
3LPE-coated pipes are commonly considered for applications where external corrosion and mechanical protection are important.
Major applications include:
- Oil and gas pipelines
- Water transmission pipelines
- Natural gas pipelines
- Petrochemical pipelines
- Process pipelines
- Underground utility pipelines
- Industrial fluid transportation
- Pipeline infrastructure
- Slurry and utility pipeline projects
- Buried steel pipeline systems
The suitability of the coating should be evaluated based on soil conditions, temperature, fluid service, installation method, cathodic protection requirements, and project specifications.

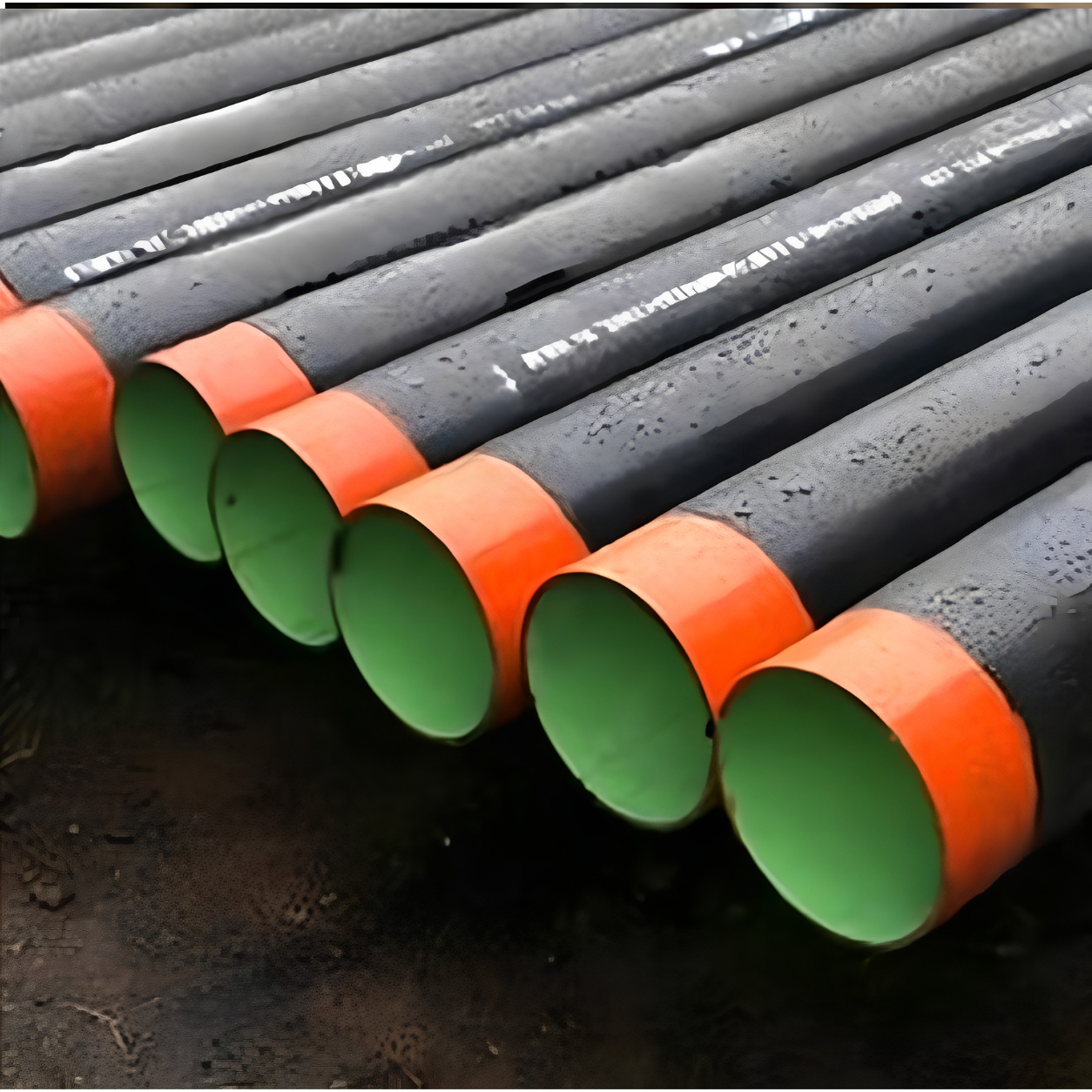

3LPE Coated Pipe
A 3LPE coated pipe is a steel pipe that has been externally protected using a three-layer polyethylene coating system.
The underlying pipe may be manufactured according to the requirements of the pipeline project. The coating specification is then selected based on the environmental and service conditions.
A 3LPE coated pipe can provide two important forms of protection:
- Corrosion protection through the FBE layer and coating system
- Mechanical protection through the polyethylene outer layer
This combination makes 3LPE coating particularly relevant for buried pipeline applications.
Advantages of 3LPE Coating
- External Corrosion Protection
The multilayer system helps isolate the steel surface from moisture, soil, and other external corrosive conditions. - Mechanical Protection
The polyethylene outer layer provides protection against physical damage during handling, transportation, and installation. - Strong Layer Integration
The adhesive layer helps bond the FBE and polyethylene layers together. - Suitable for Buried Pipelines
3LPE is widely associated with external protection of buried steel pipelines. - Reduced Environmental Exposure
The coating creates a barrier between the steel substrate and the surrounding environment. - Project-Specific Configuration
Coating systems can be specified according to pipe dimensions, service conditions, installation requirements, and applicable standards.
3LPE Coating Quality Control
Quality assurance is important because coating performance depends heavily on application quality.
A project-specific QA/QC program may include:
Surface Preparation Inspection
Checking surface cleanliness and preparation before coating.
Coating Thickness Inspection
Checking whether the applied coating meets the specified thickness requirements.
Visual Inspection
Identifying defects, discontinuities, contamination, damage, or surface irregularities.
Holiday Detection
Electrical holiday detection may be performed to identify discontinuities in the coating system.
Adhesion Testing
Where specified, adhesion tests may be performed to assess coating bonding.
Peel/Interface Testing
Project specifications may require testing of coating interfaces and bonding strength.
Documentation
Depending on the project, quality documentation can include:
- Material certificates
- Coating batch information
- Inspection reports
- Test reports
- Coating procedure documentation
- Dimensional inspection records
- Traceability records
The exact inspection plan should follow the applicable project specification and coating standard.
Why Choose Spark Steel for 3LPE Coated Pipe Requirements?
Spark Steel operates in the steel products and pipeline supply sector and can support customers requiring steel pipes and project-specific coating solutions.
The company states that it has 35+ years of industry experience, supports projects across different applications, and maintains quality-management and environmental-management certifications.
For 3LPE coated pipe requirements, customers should provide the complete technical specification so that the appropriate pipe and coating configuration can be evaluated.
Spark Steel can support requirements involving:
- Steel pipes
- Stainless steel pipes
- Alloy steel pipes
- Pipeline-related products
- Coating requirements
- Project-specific specifications
- Inspection and documentation requirements
Final product configuration, coating system, testing, and certification should be confirmed against the purchase order and applicable project specification.
