ASTM B423 Alloy 825 seamless pipe supplier in India
Table of Contents
- Incoloy 825 pipe specification
- Alloy 825 pipe types
- Alloy 825 seamless pipe sizes
- Weight chart of SB 163 N08825 welded pipes
- Inconel 825 pipe standards
- Incoloy 825 seamless pipe poisson ratio
- Price list of Incoloy 825 pipe
- SB 423 UNS N08825 ERW pipe temperature range
- Schedule chart of ASTM B423 UNS N08825 clad pipe
- WERKSTOFF NR. 2.4858 cold rolled pipes pressure rating
- Application of 825 pipe
- Nickel alloy 825 round pipe dimension
- Chemical composition of DIN 2.4858 rectangular pipe
- Mechanical properties of Nicrofer 4241 square pipe
- Nickel alloy 825 hot finished pipe equivalent grades
- Inconel 825 exhaust pipes physical properties
Alloy 825 pipe supplier and SB 163 N08825 welded pipes are available in size range up to 26″
01
Seamless pipe sizes
- Thickness: 0.5 - 20mm
- Size: 4 - 219mm
02
Dimensional Specification
ANSI/ ASME B36.19, B36.10, B2.1
03
Welded pipe sizes
- Thickness: 0.5 - 20mm
- Size: 5.0 - 1219.2 mm
04
EFW pipe size
OD: 5.0 - 1219.2 mm
05
Welding material
AWS A5.11 ENiCrMo-3, AWS A5.14 ERNiFeCr-1, AWS A5.14 ERNiCrMo-3
06
Length
6 meters, 12 meters

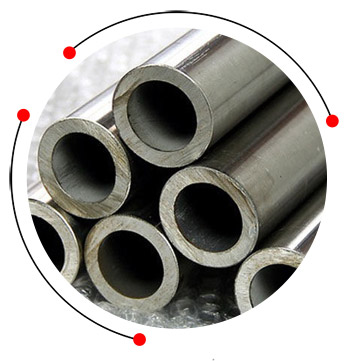

Incoloy 825 pipe

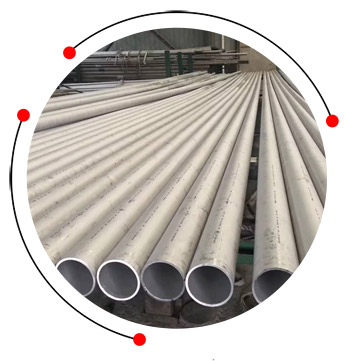

Alloy 825 seamless pipe

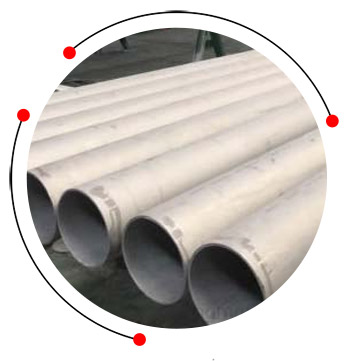

SB 163 N08825 welded pipes

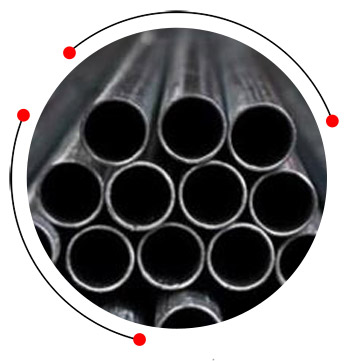

SB 423 UNS N08825 ERW pipe

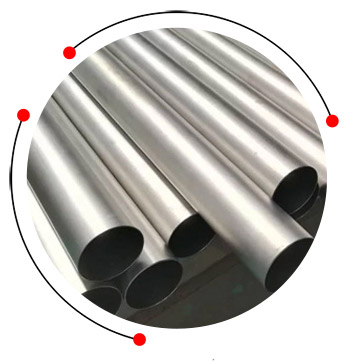

ASTM B423 UNS N08825 clad pipe

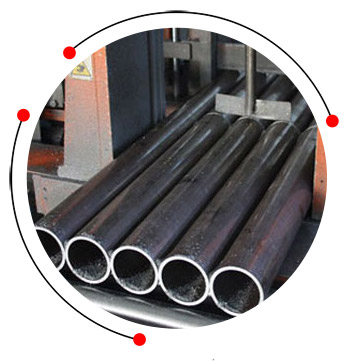

WERKSTOFF NR. 2.4858 cold rolled pipes
| Size (in.) | WT (mm) | WT (in.) | OD (mm) | OD (in.) |
|---|---|---|---|---|
| 4" NPS 100 | 6.02 | 0.237 | 114.3 | 4.5 |
| 3 1/2" NPS 90 | 5.74 | 0.226 | 101.6 | 4.0 |
| 5" NPS 125 | 6.55 | 0.258 | 141.3 | 5.563 |
| 8" NPS 200 | 8.18 | 0.322 | 219.1 | 8.625 |
| 6" NPS 150 | 7.11 | 0.28 | 168.3 | 6.625 |
| 10" NPS 250 | 9.27 | 0.365 | 273.0 | 10.75 |
| 14" NPS 350 | 11.13 | 0.437 | 355.6 | 14.0 |
| 12" NPS 300 | 10.31 | 0.406 | 323.8 | 12.75 |
| 1/4" NPS 8 | 2.24 | 0.088 | 13.7 | 0.54 |
| 1/2" NPS 15 | 2.77 | 0.109 | 21.3 | 0.84 |
| 3/8" NPS 10 | 2.31 | 0.091 | 17.1 | 0.68 |
| 3/4" NPS 20 | 2.87 | 0.113 | 26.7 | 1.05 |
| 1 1/4" NPS 32 | 3.56 | 0.14 | 42.2 | 1.66 |
| 1" NPS 25 | 3.38 | 0.133 | 33.4 | 1.32 |
| 1 1/2" NPS 40 | 3.68 | 0.145 | 48.3 | 1.9 |
| 2 1/2" NPS 65 | 5.16 | 0.203 | 73.0 | 2.875 |
| 2" NPS 50 | 3.91 | 0.154 | 60.3 | 2.375 |
| 3" NPS 80 | 5.49 | 0.216 | 88.9 | 3.5 |
| 1/8" NPS 6 | 1.73 | 0.068 | 10.3 | 0.41 |
| 16" NPS 400 | 12.7 | 0.5 | 406.4 | 16.0 |
| 20" NPS 500 | 15.09 | 0.594 | 508.0 | 20.0 |
| 18" NPS 450 | 14.27 | 0.562 | 457.0 | 18.0 |
Call us for Inconel 825 pipe Price List, View Incoloy 825 seamless pipe Specification ad weight chart.
| NPS | Weight | Weight | Wall Thickness | Outside Diameter | |||
|---|---|---|---|---|---|---|---|
| Sched | Lb/ft | kg/Mtr | in | mm | in | mm | |
| 3″ | 40 STD | 7.576 | 11.284 | 0.216 | 5.486 | 3.500 | 89 |
| - | 80 STD | 10.253 | 15.272 | 0.300 | 7.620 | - | - |
| 3/4″ | 40 STD | 1.131 | 1.684 | 0.113 | 2.870 | 1.050 | 27 |
| - | 80 STD | 1.474 | 2.195 | 0.154 | 3.912 | - | - |
| 1/2″ | 40 STD | 0.851 | 1.268 | 0.109 | 2.769 | 0.840 | 21 |
| - | 80 STD | 1.088 | 1.621 | 0.147 | 3.734 | - | - |
| 1 1/4″ | 40 STD | 2.273 | 3.385 | 0.140 | 3.556 | 1.660 | 42 |
| - | 80 STD | 2.997 | 4.464 | 0.191 | 4.851 | - | - |
| 1″ | 40 STD | 1.679 | 2.501 | 0.133 | 3.378 | 1.315 | 33 |
| - | 80 STD | 2.172 | 3.325 | 0.179 | 4.547 | - | - |
| 2″ | 40 STD | 3.653 | 5.441 | 0.154 | 3.912 | 2.375 | 60 |
| - | 80 STD | 5.022 | 7.480 | 0.218 | 5.537 | - | - |
| 1 1/2″ | 40 STD | 2.718 | 4.048 | 0.145 | 3.683 | 1.900 | 48 |
| - | 80 STD | 3.361 | 5.409 | 0.200 | 5.080 | - | - |
| 2 1/2″ | 40 STD | 5.793 | 8.629 | 0.203 | 5.516 | 2.875 | 73 |
| - | 80 STD | 7.661 | 11.411 | 0.276 | 7.010 | - | - |
| 6″ | - | 12.924 | 19.252 | 0.188 | 4.775 | 6.625 | 168 |
| - | - | 14.983 | 22.318 | 0.219 | 5.563 | - | - |
| - | - | 13.923 | 20.739 | 0.203 | 5.516 | - | - |
| - | 40 STD | 18.974 | 58.263 | 0.280 | 7.112 | - | - |
| - | - | 17.021 | 25.354 | 0.250 | 6.350 | - | - |
| - | - | 21.036 | 31.334 | 0.312 | 7.925 | - | - |
| - | 80 XHY | 28.573 | 42.561 | 0.432 | 10.973 | - | - |
| - | - | 25.031 | 37.285 | 0.375 | 9.525 | - | - |
| - | - | 32.708 | 48.719 | 0.500 | 12.700 | - | - |
| Specification | ASTM B163, B751, B423, B704, B705, B829, B775 |
|---|---|
| International Specification | DIN 17751, ISO 6207, VdTüV 432 |
| UNS | N08825 |
| Temperature | Tensile Modulus | Shear Modulus | Poisson's Ratioᵇ |
|---|---|---|---|
| °C | GPa | GPa | Poisson's Ratioᵇ |
| 20 | 196.5 | 73.4 | 0.339 |
| -190 | 210.6 | 78.9 | 0.334 |
| 200 | 184.8 | 68.5 | 0.349 |
| 100 | 191.3 | 71.2 | 0.343 |
| 300 | 178.3 | 66.1 | 0.357 |
| 500 | 165.0 | 60.3 | 0.367 |
| 400 | 171.6 | 63.0 | 0.362 |
| 600 | 157.7 | 57.4 | 0.373 |
| 800 | 141.3 | 50.7 | 0.394 |
| 700 | 150.1 | 54.3 | 0.381 |
| °F | 10³ ksi | 10³ ksi | - |
| 75 | 28.50 | 10.64 | 0.339 |
| -310 | 30.55 | 11.45 | 0.334 |
| 400 | 26.81 | 9.91 | 0.353 |
| 200 | 27.82 | 10.37 | 0.341 |
| 600 | 25.71 | 9.47 | 0.357 |
| 1000 | 23.52 | 8.60 | 0.367 |
| 800 | 24.64 | 9.04 | 0.363 |
| 1200 | 22.37 | 8.12 | 0.377 |
| 1600 | 19.20 | 6.82 | 0.408 |
| 1400 | 21.06 | 7.58 | 0.389 |
PED approved Alloy 825 pipe supplier in India. Ready stock of SB 423 UNS N08825 ERW pipe and WERKSTOFF NR. 2.4858 cold rolled pipes in Mumbai
| Description | Price in USD | Price in Unit (INR) |
|---|---|---|
| Incoloy 800 pipe Size 4NB x sch 40s | $ 212.98 | 18,337 |
| Incoloy 800 Seamless pipe Size 6NB x sch 40s | $ 410.47 | 35,340 |
| Property | Temperature Range |
|---|---|
| Max. for Oxidizing Acids | Up to ~540°C (1000°F) |
| Operating Temp (General) | -196°C to 540°C (–320°F to 1000°F) |
| O.D. Inches | Nominal | 40 | 40s & Std | 160 | 80 | 80s & E.H. | 10 | 10s |
|---|---|---|---|---|---|---|---|---|
| 5.000 | 4 1/2 | - | .247 | - | - | .355 | - | - |
| 4.500 | 4 | .237 | .237 | .531 | .337 | .337 | .120 | .120 |
| 5.563 | 5 | .258 | .258 | .625 | .375 | .375 | .134 | .134 |
| 7.625 | 7 | - | .301 | - | - | .500 | - | - |
| 6.625 | 6 | .280 | .280 | .718 | .432 | .432 | .134 | .134 |
| 8.625 | 8 | .322 | .322 | .906 | .500 | .500 | .148 | .148 |
| 18.000 | 18 | .562 | .375 | 1.781 | .937 | .500 | .250 | .188 |
| 10.750 | 10 | .365 | .365 | 1.125 | .593 | .500 | .165 | .165 |
| 9.625 | 9 | - | .342 | - | - | .500 | - | - |
| 12.750 | 12 | .406 | .375 | 1.312 | .687 | .500 | .180 | .180 |
| 14.000 | 14 | .437 | .375 | 1.406 | .750 | .500 | .250 | .188 |
| .540 | 1/4 | .088 | .088 | - | .119 | .119 | .065 | .065 |
| .405 | 1/8 | .068 | .068 | - | .095 | .095 | .049 | .049 |
| .675 | 3/8 | .091 | .091 | - | .126 | .126 | .065 | .065 |
| 1.050 | 3/4 | .113 | .113 | .218 | .154 | .154 | .083 | .083 |
| .840 | 1/2 | .109 | .109 | .187 | .147 | .147 | .083 | .083 |
| 1.315 | 1 | .133 | .133 | .250 | .179 | .179 | .109 | .109 |
| 1.900 | 1 1/2 | .145 | .145 | .281 | .200 | .200 | .109 | .109 |
| 1.660 | 1 1/4 | .140 | .140 | .250 | .191 | .191 | .109 | .109 |
| 2.375 | 2 | .154 | .154 | .343 | .218 | .218 | .109 | .109 |
| 3.500 | 3 | .216 | .216 | .437 | .300 | .300 | .120 | .120 |
| 2.875 | 2 1/2 | .203 | .203 | .375 | .276 | .276 | .120 | .120 |
| 4.000 | 3 1/2 | .226 | .226 | - | .318 | .318 | .120 | .120 |
| 11.750 | 11 | - | .375 | - | - | .500 | - | - |
| 16.000 | 16 | .500 | .375 | 1.593 | .843 | .500 | .250 | .188 |
| OD (In.) | Wall Thickness (Inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .065 | .035 | .028 | .049 | .095 | .083 | .120 | .109 | |
| - | Working Pressure | |||||||
| 1/4 | 9500 | 4800 | 3700 | 7000 | - | - | - | - |
| 1/2 | 4400 | 2300 | - | 3200 | - | - | - | - |
| 1 | 2200 | - | - | - | 3400 | 2900 | 4300 | 3900 |
| 1/8 | - | 10100 | 7900 | - | - | - | - | - |
| 3/8 | 6100 | 3100 | - | 4400 | - | - | - | - |
| 5/16 | 7300 | 3700 | - | 5400 | - | - | - | - |
| 3/4 | 3000 | - | - | 2200 | 4600 | 4000 | - | - |
| Marine exhaust systems | Radioactive waste handling | Oil and gas recovery |
| Nuclear fuel reprocessing | Pollution control | Calorifiers |
| Hot vessels for water, food, and seawater | Chemical processing | Acid production |
Get ASTM B423 UNS N08825 clad pipe from SCH10 - SCH XXS, Know Nickel alloy 825 round pipe standard dimensions.
| NPS (inches) | Wall Thickness in MM (SCH 80) | Outside Diameter in MM (OD) | Wall Thickness in MM (SCH 40) |
|---|---|---|---|
| 1-1/2" | 5.08 | 48.3 | 3.68 |
| 2" | 5.54 | 60.3 | 3.91 |
| 3" | 7.62 | 88.9 | 5.49 |
| 4" | 8.56 | 114.3 | 6.02 |
| 1/2" | 3.73 | 21.3 | 2.77 |
| 3/4" | 3.91 | 26.7 | 2.87 |
| 1" | 4.55 | 33.4 | 3.38 |
| 6" | 10.97 | 168.3 | 7.11 |
| 8" | 12.7 | 219.1 | 8.18 |
| 10" | 15.09 | 273.0 | 9.27 |
| Grade | Fe | S | C | Mn | Si | Cr | Cu | Ti | |
| 825 | min. | 22.0 | - | - | - | - | 19.5 | 1.5 | 0.6 |
| max. | - | 0.015 | 0.05 | 1.0 | 0.5 | 23.5 | 3.0 | 1.2 | |
| Element | Yield Strength (0.2%Offset) | Elongation | Tensile Strength |
|---|---|---|---|
| Incoloy 825 | Psi – 32,000 , MPa – 220 | 30 % | Psi – 80,000 , MPa – 550 |
| STANDARD | EN | GOST | WERKSTOFF NR. | UNS | AFNOR | OR | JIS | BS |
|---|---|---|---|---|---|---|---|---|
| Incoloy 825 | NiCr21Mo | ЭП703 | 2.4858 | N08825 | NFE30C20DUM | XH38BT | NCF 825 | NA 16 |
| Density | Specific Heat | Melting Range | Electrical Resistivity | ||
|---|---|---|---|---|---|
| g/cm3 | J/kg.k | Btu/lb. °F | °C | °F | µΩ·m |
| 8.14 | 440 | 0.105 | 1370-1400 | 2500-2550 | 1130 |
