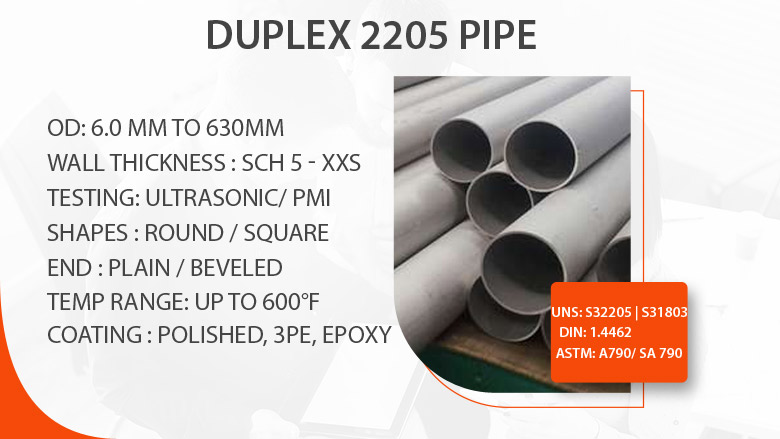

Duplex 2205 pipe supplier in India

Duplex 2205 pipe supplier in India

Buy Alloy 2205 seamless pipe at factory price in Mumbai

Table of Contents

Buy ASME SA790 DIN 1.4462 ERW pipe and 2205 duplex stainless steel pipe With OD Ranging From 6.35 mm to 219 mm Or Custom sizes

Specification of Alloy 2205 pipe

01

Seamless Pipe Sizes

  • Length:Double Random, Cut Length & Single
  • OD: 6.0 mm to 630mm
  • Wall Thickness:0.3 mm to 50 mm

02

Welded Pipe Size

  • OD: 6.0 mm to 630mm
  • Length:Double Random ,Single & Cut Length
  • Wall Thickness: 0.5 - 20mm

03

Standards

  • UNS : S32205 | S31803
  • ASME SA 790 | ASTM A790
  • DIN, UNS, EN, API



04

Finish

  • Annealing
  • Polished
  • Bright

05

Testing

  • Ultrasonic
  • Chemical
  • Mechanical and PMI

06

Manufacturing Process

  • Hot Formed
  • Precision Rolled
  • Cold Formed

2205 stainless steel pipe types

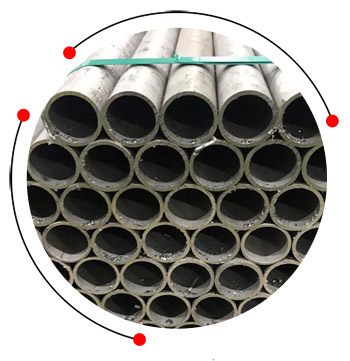

Duplex 2205 pipe

Duplex 2205 pipe

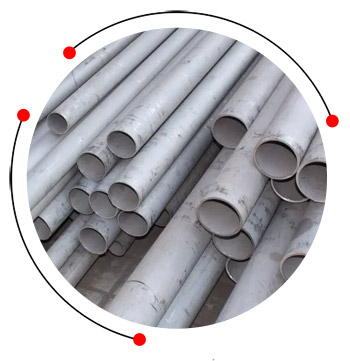

Alloy 2205 seamless pipe

Alloy 2205 seamless pipe

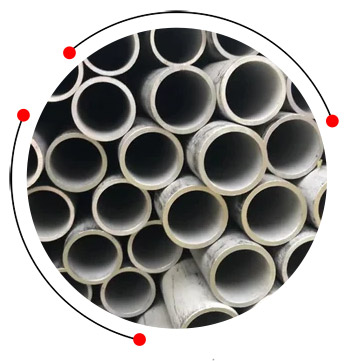

ASME SA790 DIN 1.4462 ERW pipe

ASME SA790 DIN 1.4462 ERW pipe

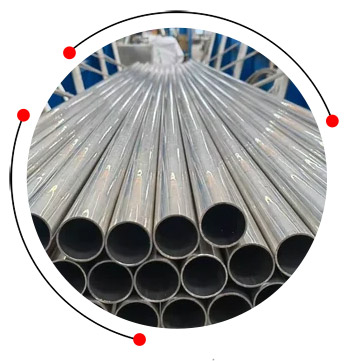

2205 duplex stainless steel pipe

2205 duplex stainless steel pipe

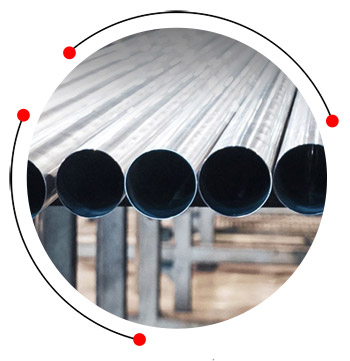

ASTM A790 Alloy 2205 welded pipe

ASTM A790 Alloy 2205 welded pipe

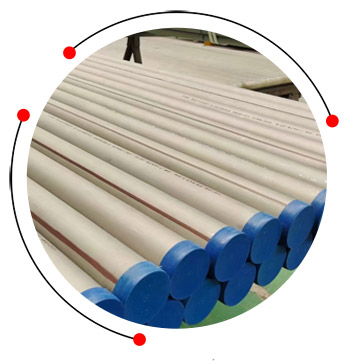

Duplex 2205 cold drawn pipe

Duplex 2205 cold drawn pipe

Duplex 2205 pipe price

Description Price in USD Price in Kilogram (INR)
2205 Duplex Seamless Pipe, 1 inch $ 7.59 ₹ 650
Duplex 2205 Pipe, 4 inches $ 6.43 ₹ 550
Duplex 2205 Round Pipe, 3 meter $ 7.01 ₹ 600
Powder Coated Duplex 2205 Pipe, Thickness: 18 mm $ 8.18 ₹ 700

SAF 2205 pipe sizes

OD
mm 		Sch WT
mm 		Kg/m in.
88.090 160 11.0132 21.067 3
42.016 40S 3.056 3.044 1¼
73.003 40S 5.016 8.077 2½
13.072 80S 3.002 0.081 1/4
88.090 40S 5.049 11.047 3
17.015 80S 3.020 1.012 3/8
21.034 40S 2.077 1.029 1/2
60.033 160 8.0742 11.029 2
26.067 80S 3.091 2.023 3/4
48.026 80S 5.008 5.049 1½
13.072 40S 2.024 0.064 1/4
219.008 160 23.0012 112.097 8
17.015 40S 2.031 0.086 3/8
168.028 40S 7.011 28.069 6
21.034 80S 3.073 1.065 1/2
141.030 40S 6.055 22.010 5
26.067 40S 2.087 1.071 3/4
101.060 40S 5.074 13.078 3½
33.040 80S 4.055 3.029 1
33.040 40S 3.038 2.054 1
114.030 40S 6.002 16.032 4
42.016 160 6.0352 5.069 1¼
73.003 80S 7.001 11.059 2½
48.026 40S 3.068 4.011 1½
219.008 80S 12.07 65.063 8
60.033 40S 3.091 5.052 2
101.060 80S 8.008 18.092 3½

Supplier Of 2205 stainless steel pipe in Round, Square, Rectangle Form. Refer SAF 2205 pipe Schedule Chart

Alloy 2205 seamless pipe schedule chart

OD (mm) Schedule 120 (mm) Schedule 10 (mm) Schedule 40 (mm) Schedule 80 (mm) Schedule 160 (mm)
168.3 10.1 4.0 7.1 8.0 10.3
48.3 4.1 1.5 2.8 3.2 4.5
139.7 9.1 3.6 6.0 7.6 10.3
60.3 4.7 2.3 3.2 4.0 5.0
88.9 6.6 2.9 4.5 6.0 7.6
21.3 2.9 1.2 2.0 2.6 3.4
219.1 11.2 4.6 8.2 9.5 12.7
33.4 3.6 1.2 2.3 2.8 4.0
114.3 8.4 3.4 5.6 7.1 9.5
73.0 5.3 2.6 3.7 4.8 6.0

ASME SA790 DIN 1.4462 ERW pipe chemical composition

C Si N P Mn Fe Mo Cr Ni S
1.0 2.0 0.03 0.02 3.0 - 3.5 0.03 22.0 - 23.0 4.5 - 6.5 Bal 0.14 - 0.2

2205 duplex stainless steel pipe mechanical properties

Density Yield Strength (0.2%Offset) Melting Point Elongation Tensile Strength
7.8 g/cm3 Psi - 80000 , MPa - 550 1350 °C (2460 °F) 15 % Psi - 116000 , MPa - 800
Compare our price and quality with other Duplex pipe manufacturer in India. Refer Duplex 2205 seamless pipe specifications

Duplex 2205 seamless pipe equivalent grade

STANDARD UNS WERKSTOFF NR.
Duplex 2205 S31803 / S32205 1.4462 / 1.4462

Duplex 2205 pipe weight chart

NPS Outside diameter weights Wall thickness (WT) weight
Inch MM Schedule kg / M Inch MM Lb /feer
2 1/2 2.875 73 40 STD 8.629 0.203 5.516 5.793
80 STD 11.411 0.276 7.010 7.661
3 3.500 89 40 STD 11.284 0.216 5.486 7.576
4 4.500 114 16.073 0.237 6.020 10.790
22.318 0.337 8.560 14.983
6 6.625 168 19.252 0.188 4.775 12.924
20.739 0.203 5.516 13.923
22.318 0.219 5.563 14.983
25.354 0.250 6.350 17.021
80 STD 15.272 0.300 7.620 10.253
40 STD 58.263 0.280 7.112 18.974
31.334 0.312 7.925 21.036
37.285 0.375 9.525 25.031
80 XHY 42.561 0.432 10.973 28.573
48.719 0.500 12.700 32.708
1/2 0.840 21 40 STD 1.268 0.109 2.769 0.851
1 1/4 1.660 42 40 STD 3.385 0.140 3.556 2.273
80 STD 1.621 0.147 3.734 1.088
80 STD 2.195 0.154 3.912 1.474
1 1.315 33 40 STD 2.501 0.133 3.378 1.679
3/4 1.050 27 40 STD 1.684 0.113 2.870 1.131
80 STD 3.325 0.179 4.547 2.172
80 STD 4.464 0.191 4.851 2.997
1 1/2 1.900 48 40 STD 4.048 0.145 3.683 2.718
80 STD 5.409 0.200 5.080 3.361
2 2.375 60 40 STD 5.441 0.154 3.912 3.653
80 STD 7.480 0.218 5.537 5.022
8 8.625 219 25.233 0.188 4.775 16.940
29.286 0.219 5.563 19.661
20 33.308 0.250 6.350 22.361
30 36.786 0.277 7.036 24.696
40 42.352 0.322 8.179 28.554
49.216 0.375 9.525 33.041
60 53.085 0.406 10.312 35.638
27.198 0.203 5.156 18.259
80 XHY 64.627 0.500 12.700 43.388
12 12.750 324 37.570 0.188 4.775 25.222
43.657 0.219 5.563 29.309
49.713 0.250 6.350 33.375
55.739 0.281 7.137 37.420
61.735 0.312 7.925 41.445
73.824 0.375 9.525 49.562
79.727 0.406 10.312 53.525
97.438 0.500 12.700 65.415
108.966 0.562 14.275 73.154
14 14.000 356 41.308 0.188 4.775 27.732
48.012 0.219 5.563 32.233
20 54.685 0.250 6.350 36.713
61.327 0.281 7.137 41.172
67.939 0.312 7.925 45.611
STD 81.281 0.375 9.525 54.568
40 94.498 0.438 11.125 63.441
XHY 107.381 0.500 12.700 72.090
132.983 0.625 15.875 89.278
10 10.750 273 31.588 0.188 4.775 21.207
36.689 0.219 5.563 24.631
20 41.759 0.250 6.350 28.035
30 51.002 0.307 7.798 34.240
56.946 0.344 8.738 38.231
40 STD 63.301 0.365 9.271 40.483
71.852 0.438 11.125 48.238
60 XHY 81.530 0.500 12.700 54.735
80 95.969 0.594 15.088 64.429
16” 16.000 406 47.290 0.188 4.775 21.748
54.980 0.219 5.563 36.910
10 62.639 0.250 6.350 42.053
70.268 0.281 7.137 47.174
20 77.866 0.312 7.925 52.275
85.677 0.344 8.738 57.519
30 STD 93.213 0.375 9.525 62.578
108.433 0.438 11.125 72.797
40 XHY 123.289 0.500 12.700 82.770
18 18.000 457 61.948 0.219 5.563 41.588
70.593 0.250 6.350 47.393
79.208 0.281 7.137 53.176
20 87.792 0.312 7.925 58.939
STD 105.144 0.375 9.525 70.588
30 122.369 0.438 11.125 82.152
XHY 139.198 0.500 12.700 93.450
40 155.904 0.562 14.275 104.666
172.754 0.625 15.875 115.978
20 20.000 508 78.547 0.250 6.350 52.733
88.458 0.282 7.163 59.386
97.719 0.312 7.925 65.604
20 STD 117.075 0.375 9.525 78.598
136.305 0.438 11.125 91.508
30 XHY 155.106 0.500 12.700 104.130
40 183.378 0.594 15.088 123.110
192.640 0.625 15.875 129.328
211.368 0.688 17.475 141.901
24 24.000 610 94.456 0.250 6.350 63.413
106.029 0.281 7.137 71.183
117.573 0.312 7.925 18.932
20 STD 140.938 0.375 9.525 64.618
164.176 0.438 11.125 110.219
XHY 186.923 0.500 12.700 125.490
232.410 0.625 15.875 156.028
40 255.148 0.688 17.475 171.293
277.401 0.750 19.050 186.233
30 30.000 762 118.318 0.250 6.350 79.433
132.851 0.281 7.137 89.189
10 147.353 0.312 7.925 98.925
STD 176.731 0.375 9.525 118.648
205.983 0.438 11.125 138.286
20 XHY 234.647 0.500 12.700 157.530
30 292.066 0.625 15.875 196.078
320.817 0.688 17.475 215.380
348.988 0.750 19.050 234.293
36 36.000 914 142.180 0.250 6.350 95.453
159.672 0.281 7.137 107.196
10 177.133 0.312 7.925 118.918
STD 215.525 0.375 9.525 142.678
247.790 0.438 11.125 166.353
20 XHY 282.372 0.500 12.700 198.570
351.723 0.625 15.875 236.128
386.487 0.688 17.475 259.467
420.576 0.750 19.050 282.353
48 48.000 1219 STD 284.112 0.375 9.525 190.738
331.404 0.438 11.125 222.487
XHY 377.822 0.500 12.700 253.650
563.750 0.750 19.050 378.473
655.969 0.875 22.225 440.383
42 42.000 1067 206.914 0.312 7.925 138.911
STD 248.319 0.375 9.525 166.708
XHY 33.097 0.500 12.700 221.610
492.163 0.750 19.050 330.413

ASTM A790 Alloy 2205 welded pipe pressure rating

Pipe O.D.
(In.) 		Wall Thickness Of Pipe (Inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (Psig)
3/8 3100 4400 6100
1/2 2300 3200 4400
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16 3700 5400 7300
3/4 2200 3000 4000 4600
1 2200 2900 3400 3900 4300
Check ASTM A790 Alloy 2205 welded pipe, Duplex 2205 cold drawn pipe and DSS EFW pipe in custom length and wall thickness

Duplex 2205 cold drawn pipe wall thickness

Pipe Size (Nominal Diameter) Wall Thickness (mm)
6 inch (DN 150) 4.0 - 10.0
12 inch (DN 300) 5.0 - 16.0
1/2 inch (DN 15) 1.2 - 3.0
10 inch (DN 250) 4.5 - 15.0
1 inch (DN 25) 1.2 - 3.0
8 inch (DN 200) 4.0 - 12.0
2 inch (DN 50) 1.6 - 5.0
4 inch (DN 100) 3.0 - 8.0

DSS EFW pipe length

Type of Length Length Range (Feet) Length Range (Meters)
Double Random Length (DRL) 33 - 39 ft 10 - 12 m
Single Random Length (SRL) 16 - 23 ft 5 - 7 m

2205 duplex stainless pipe application

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Heat exchangers
  • Cooling pipe
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Pipe for Sea Water Equipment

Roughness of Duplex 2205 round pipe

Inside surface roughness Outside surface roughnes
RA 20 defect level max: 20 μm RA 20 defect level max: 50 μm

Testing of Alloy 2205 pipe

  • Flaring Test
  • Chemical Analysis
  • Micro and MacroTest
  • Pitting Resistance Test
  • Flattening Test
  • Mechanical Testing
  • PMI Testing
  • IGC Test
  • Hardness Test

Alloy 2205 welded pipe Hs code

Material HS code
2205 Pipe 73041110

Duplex 2205 pipe welding methods

  • Submerged Arc Welding
  • MAG Welding
  • MIG Welding
  • Flux-Cored Arc Welding
  • TIG Welding
  • Stick Welding
