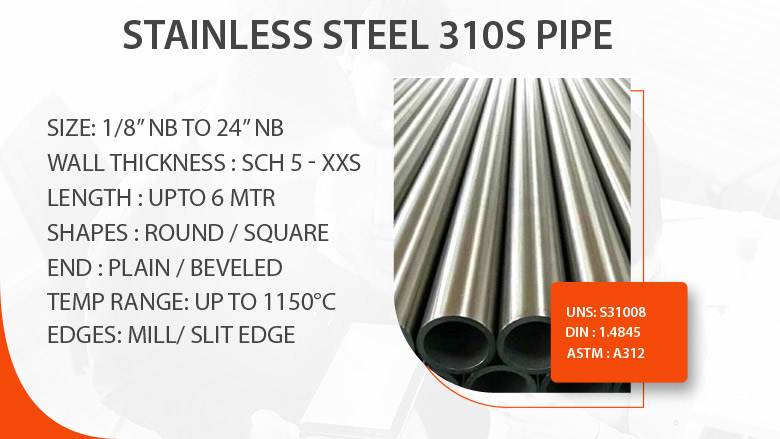

Stainless steel 310S pipe

Stainless steel 310S pipe manufacturer in India

PED Approved ASTM A312 TP310S seamless pipe manufacturer in India

Table of Contents

Buy 310S stainless steel pipe from reliable suppliers in India with Test Certificates, check SS 310S pipe price per kg in Mumbai

Stainless steel 310S pipe specifications

01

Sizes

  • Sch : SCH 5, 60 , 10 , 120 , XXS
  • Size: ½ to 6 Inch NB
  • Thickness : 0.1 To 60 mm

02

Shapes

  • Rectangular
  • Square
  • Round

03

Documentation

  • Mill Test Certificates
  • Visual Inspection
  • PMI Test Reports



04

Finish

  • Polished
  • Bright
  • Annealing

05

types

ERW, seamless, welded

06

Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps

310S SS pipe types

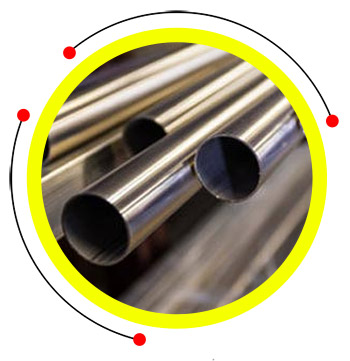

Stainless steel 310S pipe

Stainless steel 310S pipe

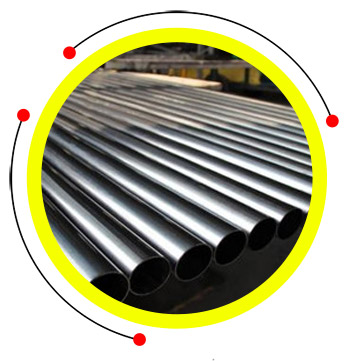

ASTM A312 TP310S seamless pipe

ASTM A312 TP310S seamless pipe

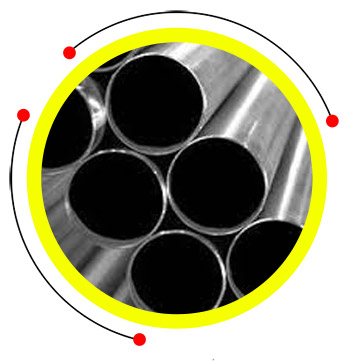

UNS S31008 welded pipes

UNS S31008 welded pipes

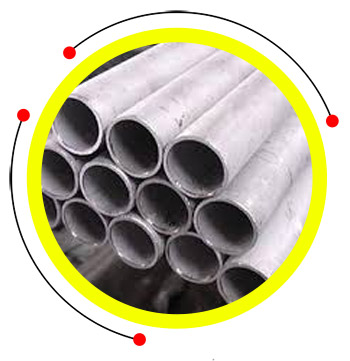

DIN 1.4845 ERW pipe

DIN 1.4845 ERW pipe

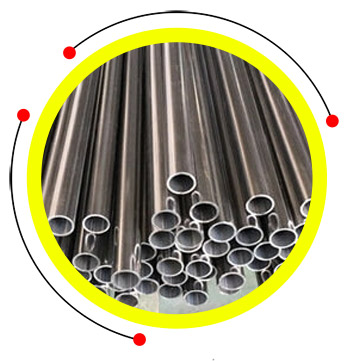

SUS 310S EFW pipes

SUS 310S EFW pipes

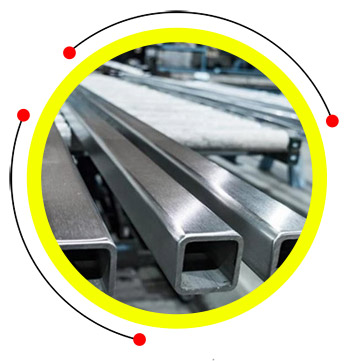

310S SS square pipe

310S SS square pipe

Pressure rating of ASTM A312 TP310S seamless pipe

Pipe Size
(inches) 		Pipe Schedule Temperature (°F)
100 200 300 400 500 600 650 700 750
1.5" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
2" 80 2747 2369 2129 1957 1820 1734 1682 1648 1631
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
3" 80 2553 2202 1979 1819 1691 1612 1564 1532 1516
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1" 80 4213 3634 3265 3002 2791 2659 2580 2528 2501
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
1.5" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
1.5" 80 3182 2744 2466 2267 2108 2009 1949 1909 1889
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
4" 40 1531 1321 1187 1091 1014 967 938 919 909
4" 80 2213 1909 1715 1577 1466 1397 1355 1328 1314
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
5" 40 1342 1158 1040 956 889 847 822 805 797
5" 80 1981 1709 1535 1411 1312 1250 1213 1189 1176
8" 40 1073 926 832 765 711 678 657 644 637
8" 80 1692 1459 1311 1205 1121 1068 1036 1015 1005
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 40 1219 1052 945 869 808 770 747 732 724
6" 80 1913 1650 1483 1363 1267 1208 1172 1148 1136
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
10" 40 974 840 755 694 945 615 596 584 578
10" 80 1609 1388 1247 1147 1066 1016 986 966 956
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868

Stockist of UNS S31008 welded pipes and DIN 1.4845 ERW pipe stock range from 1/2 to 24 inch NB in India

DIN 1.4845 ERW pipe price list

Description Price in kg (INR) Price in USD
1/4" -12"SS 310S Round Pipe, tdickness: 3mm -17mm, 6 meter ₹ 700 $ 8.16
Stainles steel 310 Hollow Pipe, 6 meter, 4 inches ₹ 1,117 $ 13.02
Round 310S SS ERW Pipe, 3 meter ₹ 150 $ 1.75

310S stainless steel pipe sizes

Pipe OD
milimeter 		Pipe WT
mm 		in. Sch Kg/m
26.67 3.91 3/4 80S 2.23
219.08 18.23 8 120 91.30
33.40 4.55 1 80S 3.29
168.28 10.97 6 80S 43.21
42.16 6.352) 1¼ 160 5.69
114.30 13.492) 4 160 34.05
13.72 3.02 1/4 80S 0.81
42.16 4.85 1¼ 80S 4.53
17.15 3.20 3/8 80S 1.12
88.90 7.62 3 80S 15.51
21.34 3.73 1/2 80S 1.65
141.30 15.882) 5 160 49.87
60.33 5.54 2 80S 7.60
168.28 14.27 6 120 54.75
73.03 5.16 2½ 40S 8.77
219.08 23.012) 8 160 112.97
141.30 6.55 5 40S 22.10

Chemical composition of Stainless steel 310 pipe

Grade Cr C Si Mn P S Mo Ni N
SS 310S 24.00 – 26.00 0.08 max 1.00 max 2.0 max 0.045 max 0.030 max 0.75 max 19.00 – 21.00 53.095 min
SUS 310S EFW pipes and 310S SS square pipe available in threaded, plain and beveled end

Mechanical properties of SUS 310S EFW pipes

Density Yield Strength (0.2%Offset) Melting Point Tensile Strength Elongation
7.9 g/cm3 Psi – 30000, MPa – 205 1402 °C (2555 °F) Psi – 75000, MPa – 515 40 %

310S stainless pipe physical properties

Properties Values
Modulus of Elasticity 190 - 200 GPa
Thermal Expansion 16.5 × 10⁻⁶/°C
Poisson's Ratio 0.30
Electrical Resistivity 0.72 μΩ·cm at 20°C
Specific Heat Capacity 0.50 J/g·°C
Thermal Conductivity 14 W/m·K at 100°C
Hardness Rockwell B 85

Equivalent grades of SS 310S seamless pipe

STANDARD JIS WERKSTOFF NR. UNS BS AFNOR GOST EN
SS 310S SUS 310S 1.4845 S31008 310S16 – 20Ch23N18 X8CrNi25-21

AISI 310S rectangular pipes heat treatment

1000-1150°c followed by rapid quenching

Creep properties of UNS S31008 welded pipes

1% Elongation1) for Rupture2) for
Temperature °C 1,000 h N/mm2 10,000 h N/mm2 1,000 h N/mm2 10,000 h N/mm2 100,000 h N/mm2
800 18 10 35 18 7
600 100 90 170 130 80
700 45 30 80 40 18
900 10 4 15 8.5 3
ASME SA312 SS 310S schedule 40 pipes and AISI 310S rectangular pipes with ultrasonic and radiography test reports

310S SS square pipe temperature range

up to 1150°C (2100°F)

Hsn code of 310 stainless steel pipe

Material HS code
SS 310S 73063010

ASME SA312 SS 310S schedule 40 pipes finish

Finish
Raw Finish Electropolished Finish
Bead Blast Finish Matte Finish
Brushed Finish Polished Finish
Mirror Finish Satin Finish

Weight chart of SS 310S pipe

Nominal size in inches Outside diameter in milimeter Wall thickness in inch Weight [lb/ft] Weight [Kg/M] Wall thickness in milimeter Outside diameter in inch
1 1/2 48.3 0.065 1.28 1.91 1.65 1.900
8 219.1 0.109 9.99 14.87 2.77 8.625
2 60.3 0.065 1.61 2.40 1.65 2.375
12 323.9 0.156 21.13 31.44 3.96 12.750
2 1/2 73.0 0.083 2.49 3.71 2.11 2.875
16 406.4 0.165 28.11 41.83 4.19 16.000
4 114.3 0.083 3.95 5.88 2.11 4.500
1 1/4 42.2 0.065 1.12 1.66 1.65 1.660
1/2 21.3 0.065 0.54 0.80 1.65 0.840
3 88.9 0.083 3.05 4.54 2.11 3.500
3/4 26.7 0.065 0.69 1.03 1.65 1.050
3 1/2 101.6 0.083 3.50 5.21 2.11 4.000
1 33.4 0.065 0.87 1.30 1.65 1.315
6 168.3 0.109 7.65 11.38 2.77 6.625
20 508.0 0.188 40.12 59.70 4.78 20.000
5 141.3 0.109 6.40 9.52 2.77 5.563
18 457.0 0.165 31.64 47.09 4.19 18.000
10 273.1 0.134 15.29 22.76 3.4 10.750
22 559.0 0.188 44.18 65.75 4.78 22.000
14 355.6 0.156 23.22 34.56 3.96 14.000
30 762.0 0.250 80.02 119.09 6.35 30.000
24 610.0 0.218 55.85 83.11 5.54 24.000

310S stainless steel seamless pipes dimensions

Qty/B OD 0.7 0.6 0.9 0.8 1.2 1.0 2.0 1.5 4.0 3.0 6.0 5.0
Lgh Inches milimeter Kilogram
50 11/8″ 28.6 2.97 2.55 3.79 3.38 5.00 4.19 6.18
50 11/4″ 31.8 3.31 2.84 4.23 3.77 5.58 4.68 6.91
50 11/2″ 38.1 3.98 3.42 5.09 4.53 6.73 5.64 8.34
50 15/8″ 41.3 4.32 3.71 5.52 4.92 7.31 6.12 9.07
100 3/8″ 9.5 0.94 0.81 1.18 1.06 1.51 1.29 1.82
100 1/2″ 12.7 1.28 1.10 1.61 1.45 2.10 1.78 2.55
100 5/8″ 15.9 1.62 1.39 2.05 1.84 2.68 2.26 3.28
100 3/4″ 19.1 1.96 1.69 2.49 2.22 3.26 2.75 4.01
100 7/8″ 22.2 2.29 1.97 2.91 2.60 3.83 3.22 4.72
100 1″ 25.4 2.63 2.26 3.35 2.99 4.41 3.71 5.45
50 13/4″ 44.5 4.66 4.00 5.96 5.31 7.90 6.61 9.80
10 2″ 50.8 6.82 6.08 9.04 7.57 14.83 11.24 21.79
10 21/2″ 63.5 8.56 7.62 11.36 9.50 18.69 14.13 27.58
10 3″ 76.2 10.30 9.17 13.68 11.43 22.55 17.03 43.88 33.37
10 31/2″ 88.9 12.03 10.71 15.99 13.36 26.41 19.92 51.60 39.16
10 4″ 101.6 18.31 30.27 22.82 59.32 44.95 87.16 73.39

310 vs 310s stainless steel pipe

Category SS 310S (UNS S31008 / DIN 1.4845) SS 310 (UNS S31000 / DIN 1.4840)
Carbon Content (%) ≤ 0.08% ≤ 0.25%
Best Used For High-temperature welded applications Non-welded, high-temperature applications
Weldability Excellent Moderate
Cost Slightly higher Slightly lower
Carbide Precipitation Risk Low High
