Check SA 333 Gr 6 material and A333 Grade 6 pipe specification, weight chart and dimension as per ASME B36.19/ B36.10 standards

A333 Gr 6 pipe specification

04

Pipe End

  • Beveled Ends
  • Plain Ends
  • Threaded Ends

05

Tolerance

  • Cold Drawn: +/-0.1 mm
  • Cold Rolled: +/-0.05 mm
  • OD: +/-1%

06

Form

  • Rectangle
  • Round
  • Square



01

Welding Procedure

  • FCAW
  • SMAW
  • GMAW
  • GTAW

02

Length

  • 18 m
  • 3 m
  • Custom length

03

Manufacturing Methods

  • Fabricated
  • ERW
  • Extrusion



07

Sizes

  • Diameter: 25 to 750 mm
  • Pipe: 1/2” to 36”

08

ASME Code

ASME B36.10m/B36.19m

09

Schedule

Sch 5 to Sch 160

Types of ASTM A333 Gr 6 pipe

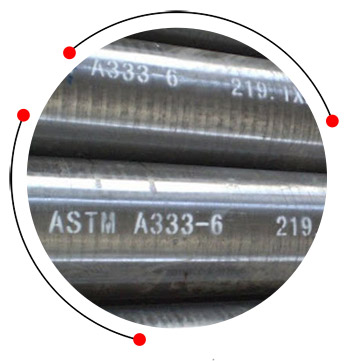

ASTM A333 Grade 6 pipe

ASTM A333 Grade 6 pipe

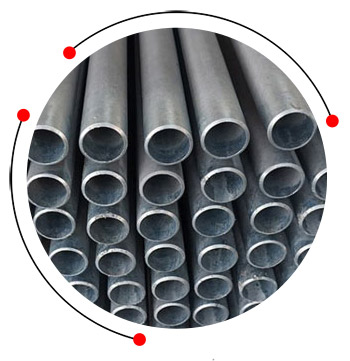

A333 seamless pipe

A333 seamless pipe

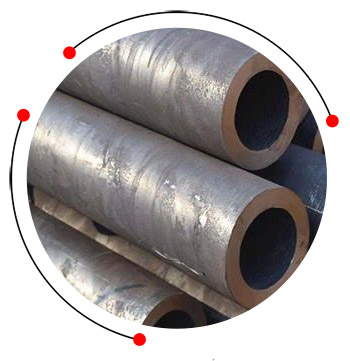

SA 333 Gr 6 welded pipe

SA 333 Gr 6 welded pipe

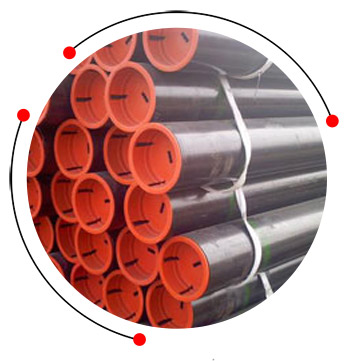

A333 Gr 6 erw pipe

A333 Gr 6 ERW pipe

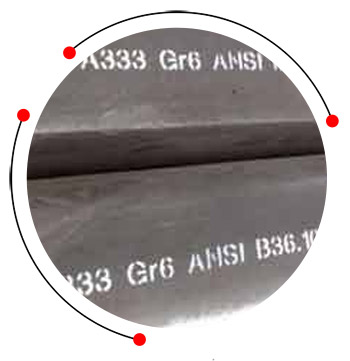

SA 333 Gr 6 material

SA 333 Gr 6 material

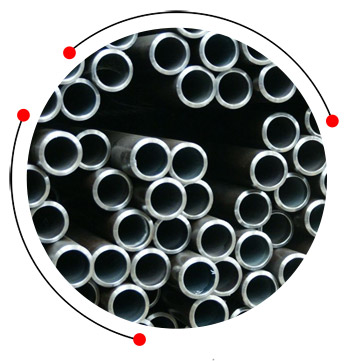

A333 Grade 6 pipe

A333 Grade 6 pipe

ASTM A333 Grade 6 pipe weight chart

Pipe size ID OD Standard to XXHY Sched WT Weight Section Modulus Gallon
2 2.157 2.375 10 0.109 2.64 .4205 .1898
1.939 XHY 80 0.218 5.03 .7309 .1534
1.813 0.281 6.29 .8666 .1344
2 1/2 2.635 2.875 10 0.120 3.53 .6870 .2833
2.443 0.216 6.14 1.1169 .2435
2.323 XHY 80 0.276 7.67 1.3386 .2202
3 3.260 3.50 0.120 4.34 1.0411 .4336
3.156 0.172 6.12 1.4265 .4064
3.068 STD. 40 0.216 7.58 1.7241 .3840
2.938 0.281 9.67 2.1207 .3521
3 1/2 3.760 4.0 10 0.120 4.98 1.3776 .5768
3.500 0.250 10.02 2.6001 .4998
3.364 XHY 80 0.318 12.52 3.1400 .4617
1/2 0.622 0.84 STD 40 0.109 0.85 .0407 .0158
3/4 0.824 1.05 STD 40 0.113 1.13 .0705 .0277
0.612 160 0.219 1.95 .1006 .0153
1 1.049 1.315 STD 40 0.133 1.68 .1328 .0449
0.815 160 0.250 2.85 .1904 .0271
1 1/4 1.380 1.66 STD 40 0.140 2.27 .2346 .0777
1.160 160 0.250 3.77 .3421 .0549
1 1/2 1.610 1.90 STD 40 0.145 2.72 .3262 .1058
1.338 160 0.281 4.86 .5079 .0730
4 4.260 4.5 10 0.120 5.62 1.7612 .7404
4.124 0.188 8.67 2.6296 .6942
4.062 0.219 10.02 3.0184 .6725
4.000 0.250 11.36 3.3611 .6528
3.876 0.312 13.97 4.0273 .6126
3.624 120 0.438 19.02 5.1790 .5361
5 5.187 5.563 0.188 10.80 4.1161 1.0979
5.047 STD. 40 0.258 14.63 5.4500 1.0391
4.939 0.312 17.51 6.4074 .99647
4.813 XHY 80 0.375 20.80 7.4300 .9449
6 6.407 6.625 5 0.109 7.59 3.5769 1.6748
6.313 0.156 10.79 5.0107 1.6260
6.219 0.203 13.94 6.3804 1.5780
6.125 0.250 17.04 7.6905 1.5306
6.001 0.312 21.06 9.3416 1.4688
5.875 0.375 25.05 10.893 1.4082
5.625 0.500 32.74 13.711 1.2909
5.375 0.625 40.09 16.1821 1.1787
4.897 XXHY 0.864 53.21 20.025 .9784
4.375 1.125 66.14 23.1237 .7809

A333 Gr 6 smls pipe standards

ASTM BS DIN EN NFA ASME
ASME SA 333 Grade 6 NFA A 36-2051) Grade A 42 AP DIN 17178 Grade FGP 28 EN P265NL Grade 10216-4 ASTM A333 Grade6 UNI C20

A333 Gr 6 allowable stress

  • 18.9ksi to 500 °F
  • 20Ksi to 400 °F

ASTM A333 Grade 6 pipe dimensions

NB OD Size in inches S10 S20 S40 S80 S120 S160
milimeter milimeter milimeter milimeter milimeter milimeter milimeter
90 101.6 3 1/2” 5.74 8.08
125 141.3 5” 6.55 9.53 12.7 15.9
200 219.1 8” 6.4 8.18 12.7 19.3 23
300 323.9 12” 6.4 10.3 17.5 25.4 33.3
400 406.4 16” 6.4 7.9 12.7 21.4 31 40.5
13.72 1/4” 2.24 3.02
15 21.34 1/2” 2.77 3.73 4.78
25 33.4 1” 3.38 4.55 6.35
40 48.26 1 1/2” 3.68 5.08 7.14
65 73.03 2 1/2” 5.16 7.01 9.53
500 508 20” 6.4 9.5 15.1 26.2 38.1 50
600 609.6 24” 6.4 9.5 17.5 31 46 59.5
700 711.2 28” 7.9 13
800 812.8 32” 7.9 13 17.5
900 914.4 36” 7.9 13 19.1

A333 Gr 6 erw pipe are External coated with FBE, check LTCS pipe temperature range and wall thickness

Coating of A333 Gr 6 seamless pipe

  • FBE coating
  • Galvanised Finish
  • Zinc coating
  • 3PE coating
  • Black Painting
  • Anti-Corrosion Oil

A333 Grade 6 pipe wall thickness

Wall Thickness ASTM A333 Grade 6
in. mm Longitudinal Transverse
3/16 (.188) 4.8 24
5/32 (.156) 4 22
1/8 (.125) 3.2 21
5/16 (0.312) 8 30 16
9/32 (.281) 7.2 28 15
1/4 (.250) 6.4 27 15
7/32 (.219) 5.6 26
3/32 (.094) 2.4 20
1/16 (.063) 1.6 18

ASTM A333 Grade 6 temperature range

Grades The Low Temp for strike tests
℉ ℃
A333 Gr 6 -50 -45

Applications of A333 Gr 6 pipe

  • Condensers
  • Pulp and Paper Industry
  • Sea Water Equipment
  • Specialty Chemicals
  • Pharmaceutical Equipment
  • Power Generation
  • Petrochemicals
SA333 Gr 6 material, A333 Grade 6 seamless pipe and SA 333 Gr 6 welded pipe in Sch 5S, Sch 40S, Sch 10S, Sch 80S and STD

ASTM A333 Grade 6 pipe schedule

DN milimeter Inches Schedule 10 Schedule 10S Schedule 160 XS Sth Schedule 80 Schedule 120 Schedule 20 Schedule 40 XXS
50 60.3 2 2.77 8.74 5.54 3.91 5.54 3.91 11.07
80 88.9 3 3.05 11.13 7.52 5.49 7.62 5.49 15.24
100 114.3 4 3.05 13.49 8.56 6.02 8.58 11.13 6.02 17.12
150 168.3 6 3.4 18.26 10.97 7.11 10.97 14.27 7.11 21.95
250 273.1 10 4.19 28.58 12.7 9.27 15.09 21.44 6.35 9.27 25.4
350 355.5 14 6.35 4.78 35.71 12.7 9.53 19.05 27.79 7.92 11.13
450 457.2 18 6.35 4.78 45.24 23.83 34.93 7.92 14.27
550 558.8 22 6.35 5.54 53.98 28.58 41.28 9.53
600 609.6 24 6.35 6.35 59.54 30.96 46.02 9.53 17.48

ASME SA 333 Grade 6 carbon steel pipes pressure rating

NPS Schedule OD
(inch) 20 10 30 STD 40 XXS XS 60 80 100 120 140 160 (inch)
10 1140 1399 1664 1664 4558 2279 2279 2708 3277 3847 4558 5128 10.075
12 961 1268 1441 1560 3843 1922 2160 2644 3244 3843 4324 5042 12.075
14 1092 875 1313 1313 1533 1750 2079 2625 3283 3829 4375 4921 14
1/4 7985 7985 10798 10798 0.054
3/8 6606 6606 9147 9147 0.0675
1/2 6358 6358 17150 8575 8575 10908 0.084
3/4 5273 5273 14373 7187 7187 10220 1.005
1 4956 4956 13340 6670 6670 9316 1.0315
2 3177 3177 8995 4498 4498 7097 2.0375
2 1/2 3460 3460 9408 4704 4704 6391 2.0875
3 3024 3024 8400 4200 4200 6132 3.05
3 1/2 2769 2769 3896 3896 4
4 2581 2581 7339 3670 3670 4769 5782 4.05
5 2273 2273 6606 3303 3303 4404 5505 5.0563
6 2071 2071 6390 3195 3195 4157 5318 6.0625
8 1420 1574 1829 1829 4971 2841 2307 2841 3375 4085 4613 5147 8.0625
1 1/4 4133 4133 11276 5638 5638 7380 1.066
1 1/2 3739 3739 10316 5158 5158 7247 1.09
16 956 766 1148 1148 1531 1531 2009 2585 3157 3733 4404 4882 16
18 849 681 1192 1021 1530 1361 2042 2553 3147 3743 4252 4848 18
20 919 613 1225 919 1455 1225 1989 2526 3138 3675 4288 4824 20
22 835 557 1114 835 1114 1949 2506 3063 3619 4176 4733 22
24 766 510 1147 766 1405 1021 1978 2489 3126 3700 4210 4786 24
30 817 510 1021 613 817 30
32 766 478 957 574 1054 32
34 721 450 901 540 992 34
36 681 425 851 510 1021 36
42 583 729 438 875 42

ASTM A333 Gr 6 impact test

Size of Specimen, min J 10 by 3.33 10 by 2.5 10 by 7.5 10 by 5 10 by 10
7 5 14 9 18
Min Impact Value of a Set ft-lbf 3 3 8 5 10
Min. Avgerage Impact Value ft-lbf 5 4 10 7 13
J 4 4 11 7 14
Impact Temperature Grade 1 6
Min Impact Test Temp -50 -50 F
-45 -45 C

A333 Gr 6 welded pipe sizes

Nominal Bore Sizes Outside Dia 40S 5S 10S S10 S20 S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
Milimeter
200 8” 219.1 8.2 2.8 3.8 6.4 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
250 10” 273.1 9.3 3.4 4.2 6.4 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
300 12” 323.9 9.5 4 4.6 6.4 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
350 14” 355.6 9.5 4 4.8 6.4 7.9 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7
400 16” 406.4 9.5 4.2 4.8 6.4 7.9 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5
450 18” 457.2 9.5 4.2 4.8 6.4 7.9 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2
500 20” 508 9.5 4.8 5.5 6.4 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50
1/8” 10.29 1.2 1.73 2.41
1/4” 13.72 1.7 2.24 3.02
3/8” 17.15 1.7 2.31 3.2
90 3 1/2” 101.6 5.7 2.1 3.1 5.74 8.08 8.08
100 4” 114.3 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
125 5” 141.3 6.6 2.8 3.4 6.55 9.53 9.53 12.7 15.9 19.1
150 6” 168.3 7.1 2.8 3.4 7.11 10.97 11 14.3 18.3 22
550 22” 558.8 9.5 4.8 5.5 6.4 9.5 22.2 12.7 28.6 34.9 41.3 47.6 54
600 24” 609.6 9.5 5.5 6.4 6.4 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5
15 1/2” 21.34 2.8 1.7 2.1 2.77 3.73 3.73 4.78 7.47
20 3/4” 26.67 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
25 1” 33.4 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
32 1 1/4” 42.16 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
40 1 1/2” 48.26 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
50 2” 60.33 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
65 2 1/2” 73.03 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
80 3” 88.9 5.5 2.1 3.1 5.49 7.62 7.62 11.1 15.2
650 26” 660.4 9.5 7.9 13 12.7
700 28” 711.2 9.5 7.9 13 12.7
750 30” 762 9.5 6.4 7.9 7.9 13 12.7
800 32” 812.8 9.5 7.9 13 17.5 12.7
850 34” 863.6 9.5 7.9 13 17.5 12.7
900 36” 914.4 9.5 7.9 13 19.1 12.7
A333 pipe manufacturer in India. View A333 low temp pipe and A333 Gr 6 material chemical composition and price per kg in India

A333 Grade 6 chemical composition

Grade Ni Mn C,max P,max Cr S,max Al Si Cu Co Mo,max V,max
6 – 0.29-1.06 0.3 0.025 – 0.025 – 0.1,min – – – –

SA 333 Gr 6 mechanical properties

Grade Yield strength, min Tensile strength, min Elongation(s≥8 mm)
6 240 Mpa 415 Mpa 30 %

A333 Gr 6 material equivalent

New Former
Execution Standard Material Standard Material
Seamless EN 10216-4 P265NL ASTM A333 GRADE 6



ASTM DIN BS EN NFA ASME
ASME SA 333 Grade 6 DIN 17178 Grade FGP 28 NFA A 36-2051) Grade A 42 AP EN P265NL Grade 10216-4 ASTM A333 Grade6 UNI C20

ASTM A333 Grade 6 pipe price list

Description Price in USD Price in Kilogram (INR)
Carbon Steel ASTM A333 Gr 6 Pipe, Thickness: 10 mm, Size: 2 inch $ 0.88 ₹ 75
Carbon Steel ASTM A333 Grade6 Pipe, Thickness: 2mm To 50mm $ 0.94 ₹ 80
Polished CS ASTM A 333 Gr 6 Pipe, Wall Thickness: 1 mm $ 1.17 ₹ 100

ASTM A333 Gr.6 material tolerance chart

Tolerance (%) OD (inch)
+20.00/-12.05 1/8 ≤ OD ≤ 2-1/2
+22.05/-12.05 3 ≤ OD ≤ 18, WT/ OD ≤ 5%
+15.00/-12.05 3 ≤ OD ≤ 18, WT/ OD >5%
+22.05/-12.05 OD ≥ 20, WT/ OD ≤ 5%
+15.0/-12.05 OD ≥ 20, WT/ OD >5%

ASME SA333 Grade 6 thermal conductivity

Property Value Temperature
Melting point 1370 - 1530 °C
Coefficient of thermal expansion 1E-5 - 1.5E-5 1/K 23.0 °C
Thermal conductivity 14 - 31 W/(m·K) 23.0 °C
Specific heat capacity 460 J/(kg·K) 23.0 °C

ASTM A333 Grade 6 density

Density (lb / cu. in.) 0.284
