Stainless steel 316L pipe supplier

Stainless steel 316L pipe manufacturer in India

Check best SS 316L seamless pipe price for high-temperature applications

Table of Contents

Find accurate ASTM A312 TP316L welded pipe weight charts and 316L stainless steel pipe specifications as per ASME B36.19 standard

316L stainless steel pipe specifications

01

Shapes

Square, round, rectangle

02

Sizes

1/2 inch – 24 inch NB

03

Tolerance

±10%



04

Length

1/2 to 12 meter

05

Wall Thickness

0.8 - 12.7 mm

06

Surface Finish

Bright, Annealing, Polished



07

Pipe End

Beveled, Plain

08

Packaging

Wooden Box, Bubble Wraps, Bundled

09

Standards

ASTM A312 | ASME SA312



10

Testing

  • Third party inspection
  • Hardness test
  • Impact test
  • Fatigue mechanics test
  • PMI test
  • Tensile test

11

Documentation

  • Mill Test Certificates
  • PMI Test Reports
  • Visual Inspection

12

Services

  • Cutting
  • Heat Treatment
  • Shearing

Stainless steel 316L pipe types

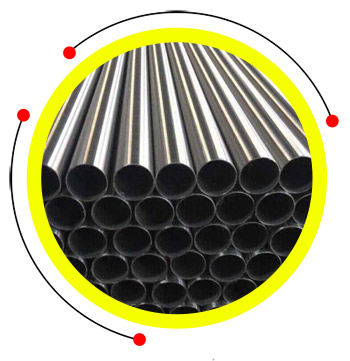

Stainless steel 316L pipe

Stainless steel 316L pipe

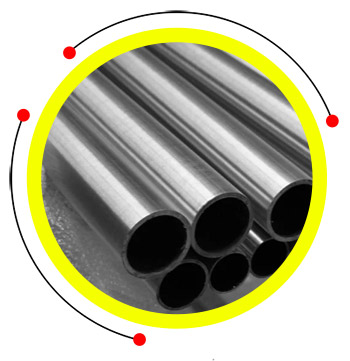

SS 316L seamless pipe

SS 316L seamless pipe

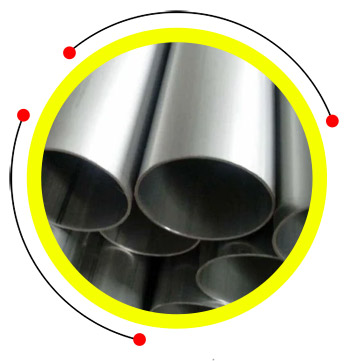

ASTM A312 TP316L welded pipe

ASTM A312 TP316L welded pipe

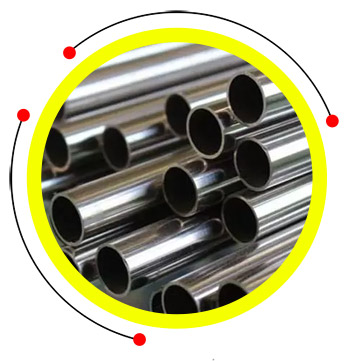

SA312 TP316L hollow pipe

SA312 TP316L hollow pipe

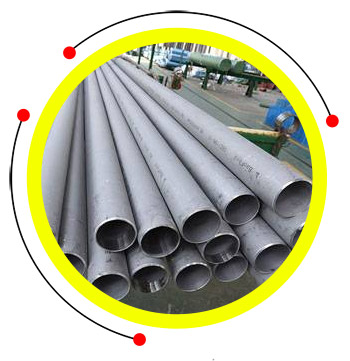

SS 316L ERW pipes

SS 316L ERW pipes

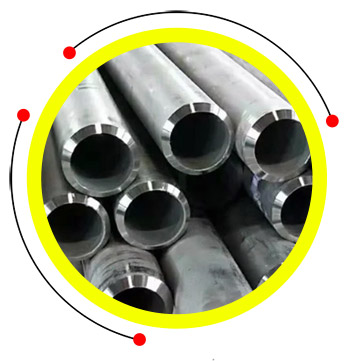

UNS S31603 round pipe

UNS S31603 round pipe

SS 316L seamless pipe applications

  • Construction
  • Power Plants sector
  • Oil and Gas Processing
  • Textile Machinery
  • Pulp and Paper sector

Buy directly from SS 316L pipe manufacturer in India and check SA312 tp316L hollow pipe for corrosion resistance

SS 316L pipe weight chart

Nominal size [inches] Weight [lb/ft] Outside diameter [inches] Wall thickness [inches] Wall thickness [mm] Outside diameter [mm] Weight [kg/m]
1 1/4″ DN32 2.29 1.66 0.14 3.56 42.2 3.41
1″ DN25 1.69 1.32 0.133 3.38 33.4 2.52
10″ DN250 40.79 10.75 0.365 9.27 273.1 60.7
2″ DN50 3.68 2.375 0.154 3.91 60.3 5.47
3 1/2″ 9.18 4.0 0.226 5.74 101.6 13.66
1/2″ DN15 0.85 0.84 0.109 2.77 21.3 1.27
1 1/2″ DN40 2.74 1.9 0.145 3.68 48.3 4.08
12″ DN300 49.91 12.75 0.375 9.53 323.9 74.28
3/4″ DN20 1.14 1.05 0.113 2.87 26.7 1.7
4″ DN100 10.87 4.5 0.237 6.02 114.3 16.18
2 1/2″ DN65 5.84 2.875 0.203 5.16 73.0 8.69
3″ DN80 7.64 3.5 0.216 5.49 88.9 11.36
6″ DN150 19.11 6.625 0.28 7.11 168.3 28.44
5″ DN125 14.72 5.563 0.258 6.55 141.3 21.91
8″ DN200 28.77 8.625 0.322 8.18 219.1 42.82

316L stainless steel pipe pressure rating

Pipe Size
(inches) 		Pipe Schedule Temperature (°F)
750 100 600 200 500 300 700 400 650
8" 160 1885 3175 2004 2738 2103 2460 1905 2262 1944
2" 40 1129 1902 1201 1640 1260 1474 1141 1355 1165
5" 40 797 1342 847 1158 889 1040 805 956 822
2" 160 2671 4499 2840 3880 2980 3486 2699 3205 2755
5" 80 1176 1981 1250 1709 1312 1535 1189 1411 1213
1" 80 2501 4213 2659 3634 2791 3265 2528 3002 2580
10" 40 578 974 615 840 945 755 584 694 596
1" 160 3646 6140 3876 5296 4068 4759 3684 4375 3761
10" 160 1868 3147 1986 2714 2085 2439 1880 2242 1927
1.5" 80 1889 3182 2009 2744 2108 2466 1909 2267 1949
8" 80 1005 1692 1068 1459 1121 1311 1015 1205 1036
1.5" 160 2743 4619 2916 3984 3060 3580 2772 3291 2829
3" 40 1072 1806 1140 1558 1196 1400 1084 1287 1106
4" 80 1314 2213 1397 1909 1466 1715 1328 1577 1355
6" 40 724 1219 770 1052 808 945 732 869 747
3" 80 1516 2553 1612 2202 1691 1979 1532 1819 1564
6" 160 1953 3289 2076 2836 2179 2549 1973 2343 2014
4" 40 909 1531 967 1321 1014 1187 919 1091 938

SS 316L schedule 40 pipe thickness

Nominal Pipe Size (NPS) SCH 40 Wall Thickness (mm) SCH 40 Wall Thickness (inches)
1/2" 2.77 0.109"
3/4" 2.87 0.113"
1" 3.38 0.133"
1 1/2" 3.68 0.145"
2" 3.91 0.154"
3" 5.49 0.216"
4" 6.02 0.237"
6" 7.11 0.280"
8" 8.18 0.322"

SS 316L pipe schedule chart

NB inch 1 1/2 2 2 1/2 3 4 1/8 1/4 3/8 1/2 3/4 1 1 1/4 5 6 8 10 12 14 16 18 20 24
mm 40 50 65 80 100 3 6 10 15 20 25 32 125 150 200 250 300 350 400 450 500 600
Sch 40S mm 3.68 3.91 5.16 5.49 6.02 1.73 2.24 2.31 2.77 2.87 3.38 3.56 6.55 7.11 8.18 9.27 9.52 11.13 12.7 14.27 15.09 17.48
Sch 80S mm 5.08 5.54 7.01 7.62 8.56 2.41 3.02 3.2 3.75 3.91 4.55 4.85 9.53 10.97 12.7 12.7 12.7 19.05 21.41 23.8 26.19 30.96
OD mm 48.3 60.3 73 88.9 114.3 10.3 13.7 17.1 21.3 26.7 33.4 42.2 141.3 168.3 219.1 273.1 323.9 355.6 406.4 457.2 508 609.6
Sch 5S mm 1.65 1.65 2.11 2.11 2.11 1.24 1.24 1.24 1.65 1.65 1.65 1.65 2.77 2.77 2.77 3.4 3.96 3.96 4.19 4.19 4.78 5.54
Sch 10S mm 2.77 2.77 3.05 3.05 3.05 1.24 1.65 1.65 2.11 2.11 2.77 2.77 3.4 3.4 3.76 4.19 4.57 4.78 4.78 4.78 5.54 6.35
Sch 160S mm 7.14 8.74 9.53 11.1 13.49 4.75 5.54 6.35 6.35 15.88 18.2 23 28.6 33.32 35.71 40.46 45.71 49.99 59.54
Sch XXS mm 10.16 11.07 14.2 15.24 17.12 7.47 7.82 9.09 9.7 19.05 21.95 22.23 25.4 25.4

Stainless steel 316L pipe sizes

Nominal Pipe Size (NPS) Outside Diameter (OD)
inch milimeter milimeter
5" 125 141.3
1" 25 33.4
14" 350 355.6
1.1/4" 32 42.2
3" 80 88.9
1.1/2" 40 48.3
4" 100 114.3
2" 50 60.3
10" 250 273.1
1/8" 3 10.3
6" 150 168.3
1/4" 6 13.7
18" 450 457.2
3/8" 10 17.1
8" 200 219.1
1/2" 15 21.3
12" 300 323.8
3/4" 20 26.7
20" 500 508.0
2.1/2" 65 73.0
24" 600 610.0
16" 400 406.4
Find SS 316L ERW pipes with 3.1 MTC certification and detailed AISI 316L pipe dimensions in Mumbai

316L SS pipe dimensions

Outside
Diameter 		Qty/B 1.5 0.9 2.0 0.6 6.0 0.7 5.0 0.8 1.0 3.0 1.2 4.0
mm Inches Lgh Kgs
63.5 21/2" 10 14.13 8.56 18.69 7.62 9.50 27.58 11.36
25.4 1" 100 5.45 3.35 2.26 2.63 2.99 3.71 4.41
50.8 2" 10 11.24 6.82 14.83 6.08 7.57 21.79 9.04
152.4 6" 10
9.5 3/8" 100 1.82 1.18 0.81 0.94 1.06 1.29 1.51
22.2 7/8" 100 4.72 2.91 1.97 2.29 2.60 3.22 3.83
12.7 1/2" 100 2.55 1.61 1.10 1.28 1.45 1.78 2.10
38.1 11/2" 50 8.34 5.09 3.42 3.98 4.53 5.64 6.73
15.9 5/8" 100 3.28 2.05 1.39 1.62 1.84 2.26 2.68
31.8 11/4" 50 6.91 4.23 2.84 3.31 3.77 4.68 5.58
19.1 3/4" 100 4.01 2.49 1.69 1.96 2.22 2.75 3.26
28.6 11/8" 50 6.18 3.79 2.55 2.97 3.38 4.19 5.00
88.9 31/2" 10 19.92 12.03 26.41 10.71 13.36 39.16 15.99 51.60
41.3 15/8" 50 9.07 5.52 3.71 4.32 4.92 6.12 7.31
76.2 3" 10 17.03 10.30 22.55 9.17 11.43 33.37 13.68 43.88
44.5 13/4" 50 9.80 5.96 4.00 4.66 5.31 6.61 7.90
127 5" 10
101.6 4" 10 22.82 30.27 87.16 73.39 44.95 18.31 59.32

Mechanical properties of UNS s31603 round pipe

Grade Tensile Strength (MPa) min Elongation (% in 50mm) min Yield Strength (MPa) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316L 485 40% 170 95 217

SS 316L pipe chemical composition

Grade Mn Cr Si C S P Ni Mo N
316L min. - 16.0 - - - - 10.0 2.00 -
max. 2.00 18.0 0.75 0.08 0.03 0.045 14.0 3.00 0.10

316L stainless steel pipe price

Description Price per kg ( USD) Price per kg (INR)
Ss 316L Welded Pipe, Size: 2 inch $ 4.08 ₹ 350
Stainless steel 316L pipes, Thickness: 0.5 To 50 Mm $ 2.91 ₹ 250
1/2 inchSs 316L round pipe, 6 meter $ 3.26 ₹ 280

SA312 Tp316L hollow pipe equivalent grades

STANDARD UNS BS WERKSTOFF NR. JIS GOST AFNOR EN
SS 316L S31603 316S11 / 316S13 1.4404 / 1.4435 SUS 316L 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Physical properties of ASTM A312 Tp316L welded pipe

Grade Density (kg/m3) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m) Mean Coefficient of Thermal Expansion (m/m/0C) Elastic Modulus (GPa) Thermal Conductivity (W/m.K)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
316L 8000 500 740 15.9 16.2 17.5 193 16.3 21.5
Buy Stainless steel pipe 316L seamless and UNS S31603 round pipe in SCH 20, SCH 40, SCH 30 as per ANSI/ASME B36.19 standard

SS 316L pipe hsn code

Material HS code
SS 316L 73041110

316L stainless steel pipe roughness

MATERIAL SURFACE ABSOLUTE ROUGHNESS COEFFICIENT
Ε MM
Drawn Brass / Copper 0.0015
SS 316L 0.015
Lead, Aluminum Alloy 0.001 to 0.002

SS 316L schedule 10 pipe thickness

Nominal Pipe Size (NPS) Schedule 10 Wall Thickness (mm) Schedule 10 Wall Thickness (inches)
1/2" 2.11 0.083"
3/4" 2.11 0.083"
1" 2.77 0.109"
1 1/2" 2.77 0.109"
2" 2.77 0.109"
3" 3.05 0.120"
4" 3.05 0.120"
6" 3.40 0.134"
8" 3.76 0.148"

SS 316L erw pipe temperature range

Condition Temperature Range
Cryogenic Applications -196°C to 0°C (-320°F to 32°F)
Normal Operating Range 0°C to 425°C (32°F to 797°F)
High-Temperature Resistance 425°C to 870°C (797°F to 1600°F)
Maximum Service Temperature Up to 870°C (1600°F)

AISI 316L pipe welding process

Sl. No. Abbreviation Welding Process
1 GTAW (TIG) Gas Tungsten Arc Welding
2 GMAW (MIG) Gas Metal Arc Welding
3 SMAW (Stick) Shielded Metal Arc Welding
4 FCAW Flux-Cored Arc Welding
5 PAW Plasma Arc Welding
