Stainless steel 316TI pipe

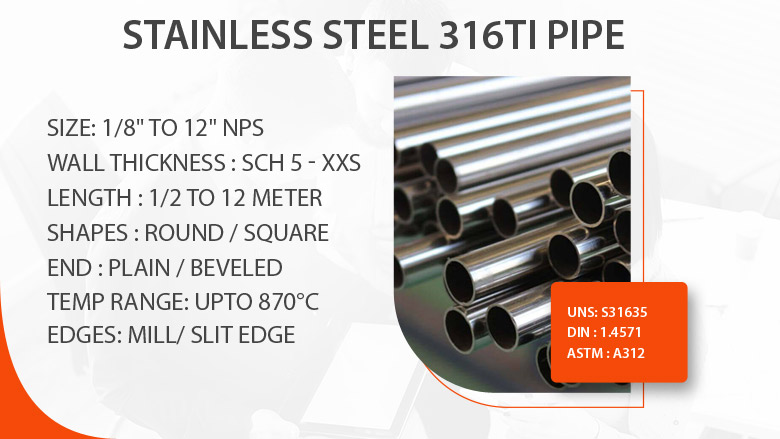

Stainless steel 316TI pipe manufacturer in India

SS 316TI Seamless Pipe suppliers in India

Table of Contents

Manufacturer of 316TI Stainless steel pipe and SS 316TI pipe for oil and gas industry

Stainless steel 316TI pipe specification

01

Seamless pipe size

  • OD: 4 to 219mm
  • Thickness : 0.5 to 20mm

02

Welded pipe size

  • Size : 5.0 to 1219.2 mm
  • Thickness: 0.5 mm to 20mm

03

ERW pipe size

  • OD : 5.0 to 1219.2 mm
  • Schedule : SCH 5 - SCH XXS



04

Testing

  • Impact test/ Tensile test
  • Third party inspection
  • Hardness test

05

Documentation

  • Visual Inspection
  • PMI Test Reports
  • Mill Test Certificates

06

Services

  • Cutting
  • Heat Treatment
  • Shearing

Types of SS 316TI pipe

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

ppppppppppppp

vvvvvvvvvv

316TI Stainless steel pipe application

  • food industry
  • Oil and Gas
  • Control lines
  • High temperature
  • Decorations
  • Chemical processes
  • Automotive
  • Automotive
  • constructions

SS 316TI seamless Pipe sizes

310S Stainless Steel Pipe OD
mm 		Pipe WT
mm 		Kg/m Sch in.
17.15 3.20 1.12 80S 3/8
219.08 18.23 91.30 120 8
141.30 15.88 49.87 160 5
42.16 6.35 5.69 160 1¼
33.40 4.55 3.29 80S 1
26.67 3.91 2.23 80S 3/4
13.72 3.02 0.81 80S 1/4
88.90 7.62 15.51 80S 3
42.16 4.85 4.53 80S 1¼
21.34 3.73 1.65 80S 1/2
168.28 14.27 54.75 120 6
114.30 13.49 34.05 160 4
60.33 5.54 7.60 80S 2
168.28 10.97 43.21 80S 6
219.08 23.01 112.97 160 8
73.03 5.16 8.77 40S 2½
141.30 6.55 22.10 40S 5

Check Weight Chart & pressure rating of UNS S31703 ERW Pipe and ASTM A312 Type 316Ti Welded pipes

UNS S31703 ERW pipe welding material

  • TIG-Welding
  • Arc Welding (E)
  • Submerged Arc Welding (SAW)
  • Laser Beam Welding
  • MAG-Welding Solid Wire

Weight chart of SS 316TI pipe

NPS Wall Thickness (WT) Outside Diameter (OD) Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
3" 0.216 5.486 3.500 89 40 STD 11.284 7.576
0.300 7.620 80 STD 15.272 10.253
4" 0.237 6.020 4.500 114 16.073 10.790
0.337 8.560 22.318 14.983
6" 0.188 4.775 6.625 168 19.252 12.924
0.203 5.516 20.739 13.923
0.219 5.563 22.318 14.983
0.250 6.350 25.354 17.021
0.280 7.112 40 STD 58.263 18.974
0.312 7.925 31.334 21.036
0.375 9.525 37.285 25.031
0.432 10.973 80 XHY 42.561 28.573
0.500 12.700 48.719 32.708
1/2" 0.109 2.769 0.840 21 40 STD 1.268 0.851
0.147 3.734 80 STD 1.621 1.088
3/4" 0.113 2.870 1.050 27 40 STD 1.684 1.131
0.154 3.912 80 STD 2.195 1.474
1" 0.133 3.378 1.315 33 40 STD 2.501 1.679
0.179 4.547 80 STD 3.325 2.172
1 1/4" 0.140 3.556 1.660 42 40 STD 3.385 2.273
0.191 4.851 80 STD 4.464 2.997
1 1/2" 0.145 3.683 1.900 48 40 STD 4.048 2.718
0.200 5.080 80 STD 5.409 3.361
2" 0.154 3.912 2.375 60 40 STD 5.441 3.653
0.218 5.537 80 STD 7.480 5.022
2 1/2" 0.203 5.516 2.875 73 40 STD 8.629 5.793
0.276 7.010 80 STD 11.411 7.661
8" 0.188 4.775 8.625 219 25.233 16.940
0.203 5.156 27.198 18.259
0.219 5.563 29.286 19.661
0.250 6.350 20 33.308 22.361
0.277 7.036 30 36.786 24.696
0.322 8.179 40 42.352 28.554
0.375 9.525 49.216 33.041
0.406 10.312 60 53.085 35.638
0.500 12.700 80 XHY 64.627 43.388
10" 0.188 4.775 10.750 273 31.588 21.207
0.219 5.563 36.689 24.631
0.250 6.350 20 41.759 28.035
0.307 7.798 30 51.002 34.240
0.344 8.738 56.946 38.231
0.365 9.271 40 STD 63.301 40.483
0.438 11.125 71.852 48.238
0.500 12.700 60 XHY 81.530 54.735
0.594 15.088 80 95.969 64.429
16” 0.188 4.775 16.000 406 47.290 21.748
0.219 5.563 54.980 36.910
0.250 6.350 10 62.639 42.053
0.281 7.137 70.268 47.174
0.312 7.925 20 77.866 52.275
0.344 8.738 85.677 57.519
0.375 9.525

30

STD

 93.213 62.578
0.438 11.125 108.433 72.797
0.500 12.700

40

XHY

 123.289 82.770
18" 0.219 5.563 18.000 457 61.948 41.588
0.250 6.350 70.593 47.393
0.281 7.137 79.208 53.176
0.312 7.925 20 87.792 58.939
0.375 9.525 STD 105.144 70.588
0.438 11.125 30 122.369 82.152
0.500 12.700 XHY 139.198 93.450
0.562 14.275 40 155.904 104.666
0.625 15.875 172.754 115.978
20" 0.250 6.350 20.000 508 78.547 52.733
0.282 7.163 88.458 59.386
0.312 7.925 97.719 65.604
0.375 9.525 20 STD 117.075 78.598
0.438 11.125 136.305 91.508
0.500 12.700 30 XHY 155.106 104.130
0.594 15.088 40 183.378 123.110
0.625 15.875 192.640 129.328
0.688 17.475 211.368 141.901
12" 0.188 4.775 12.750 324 37.570 25.222
0.219 5.563 43.657 29.309
0.250 6.350 49.713 33.375
0.281 7.137 55.739 37.420
0.312 7.925 61.735 41.445
0.375 9.525 73.824 49.562
0.406 10.312 79.727 53.525
0.500 12.700 97.438 65.415
0.562 14.275 108.966 73.154
14" 0.188 4.775 14.000 356 41.308 27.732
0.219 5.563 48.012 32.233
0.250 6.350 20 54.685 36.713
0.281 7.137 61.327 41.172
0.312 7.925 67.939 45.611
0.375 9.525 STD 81.281 54.568
0.438 11.125 40 94.498 63.441
0.500 12.700 XHY 107.381 72.090
0.625 15.875 132.983 89.278
24" 0.250 6.350 24.000 610 94.456 63.413
0.281 7.137 106.029 71.183
0.312 7.925 117.573 18.932
0.375 9.525 20 STD 140.938 64.618
0.438 11.125 164.176 110.219
0.500 12.700 XHY 186.923 125.490
0.625 15.875 232.410 156.028
0.688 17.475 40 255.148 171.293
0.750 19.050 277.401 186.233
30" 0.250 6.350 30.000 762 118.318 79.433
0.281 7.137 132.851 89.189
0.312 7.925 10 147.353 98.925
0.375 9.525 STD 176.731 118.648
0.438 11.125 205.983 138.286
0.500 12.700 20 XHY 234.647 157.530
0.625 15.875 30 292.066 196.078
0.688 17.475 320.817 215.380
0.750 19.050 348.988 234.293
36" 0.250 6.350 36.000 914 142.180 95.453
0.281 7.137 159.672 107.196
0.312 7.925 10 177.133 118.918
0.375 9.525 STD 215.525 142.678
0.438 11.125 247.790 166.353
0.500 12.700 20 XHY 282.372 198.570
0.625 15.875 351.723 236.128

0.688

 17.475 386.487 259.467

0.750

 19.050 420.576 282.353
42" 0.312 7.925 42.000 1067 206.914 138.911
0.375 9.525 STD 248.319 166.708
0.500 12.700 XHY 33.097 221.610
0.750 19.050 492.163 330.413
48" 0.375 9.525 48.000 1219 STD 284.112 190.738
0.438 11.125 331.404 222.487
0.500 12.700 XHY 377.822 253.650
0.750 19.050 563.750 378.473
0.875 22.225 655.969 440.383

ASTM A312 Type 316TI welded pipes pressure rating

Pressure Rating (psig)
Pipe Size
(inches) 		SCH Outside
Diameter
(OD) (in)
 Wall
Thickness
(in)
 Temperature (°F)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi)
16700 16700 16700 15500 14400 13500 13200 12900 12600
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052 1028 1005 982
80 3.500 0.300 1844 1844 1844 1712 1590 1491 1458 1425 1391
160 3.500 0.438 2787 2787 2787 2587 2403 2253 2203 2153 2103
4" 40 4.500 0.237 1102 1102 1102 1023 950 891 871 851 831
80 4.500 0.337 1596 1596 1596 1482 1377 1291 1262 1233 1204
160 4.500 0.531 2611 2611 2611 2424 2552 2111 2064 2017 1970
5" 40 5.563 0.258 965 965 965 896 832 780 763 746 728
80 5.563 0.375 1428 1428 1428 1325 1231 1154 1129 1103 1077
160 5.563 0.625 2474 2474 2474 2296 2133 2000 1955 1911 1866
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783 1743 1703 1664
80 1.315 0.179 3061 3061 3061 2841 2640 2475 2420 2365 2310
160 1.315 0.250 4493 4493 4493 4170 3874 3632 3552 3471 3390
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317 1287 1258 1229
80 1.900 0.200 2303 2303 2303 2138 1986 1862 1821 1779 1738
160 1.900 0.281 3362 3362 3362 3120 2899 2717 2657 2597 2536
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108 1083 1059 1034
80 2.375 0.218 1985 1985 1985 1843 1712 1605 1569 1534 1498
160 2.375 0.344 3283 3283 3283 3047 2831 2654 2595 2536 2477
6" 40 6.625 0.280 877 877 877 814 756 709 693 677 661
80 6.625 0.432 1379 1379 1379 1280 1189 1115 1090 1065 1040
160 6.625 0.719 2382 2382 2382 2211 2054 1925 1883 1840 1797
8" 40 8.625 0.322 771 771 771 716 665 623 610 596 582
80 8.625 0.500 1218 1218 1218 1131 1050 985 963 941 919
160 8.625 0.906 2298 2298 2298 2133 1982 1858 1817 1775 1734
10" 40 10.750 0.365 699 699 699 649 603 565 553 540 528
80 10.750 0.594 1159 1159 1159 1075 999 937 916 895 874
160 10.750 1.125 2289 2289 2289 2124 1974 1850 1809 1768 1727

Temperature range of ASTM A312 TP316TI Pipe

Test Temperature
/ °F/°C 		Elongation in 2-inch gauge
/ % 		Yield Strength 0.2% Offset
ksi / MPa 		Tensile Strength
ksi / MPa
1200 or 649 19.5 21.1 / 146 54.4 / 375
1000 or 538 23.0 21.0 / 145 61.3 / 423
1600 or 871 48.0 16.2 / 112 22.5 / 155
600 or 316 26.0 23.1 / 159 64.2 / 443
200 or 93 39.5 30.2 / 208 75.2 / 518
800 or 427 25.0 21.2 / 146 62.7 / 433
400 or 204 28.0 26.0 / 179 66.0 / 455
1400 or 760 23.0 21.1 / 146 37.9 / 261
1800 or 982 41.0 8.0 / 55 11.3 / 78

316TI Stainless steel pipe tolerances

NPS SS 316Ti pipe OD Tolerance
+ –
inch milimeter inch milimeter
1/8~1 1 /2
> 1 1 /2~4
> 4~8
> 8~18
> 18~26
> 26~34
> 34~48 		1/64(0.015)
1/32(0.031)
1/16(0.062)
3/32(0.093)
1/8(0.125)
5/32(0.156)
3/16(0.187) 		0.4
0.8
1.6
2.4
3.2
4.0
4.8 		1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031) 		0.8
0.8
0.8
0.8
0.8
0.8
0.8
ASTM A312 TP316Ti Pipe and UNS S31703 schedule 40 pipes stock in SCH 10 to SCH XS as per ASME B36.19 standard

SS 316TI pipe schedule chart

Nominal O.D. Inches 10 10s 80s & E.H. 40s & Std 40 80 160
1 1/2 1.900 .109 .109 .200 .145 .145 .200 .281
2 2.375 .109 .109 .218 .154 .154 .218 .343
2 1/2 2.875 .120 .120 .276 .203 .203 .276 .375
3 3.500 .120 .120 .300 .216 .216 .300 .437
3 1/2 4.000 .120 .120 .318 .226 .226 .318
4 4.500 .120 .120 .337 .237 .237 .337 .531
4 1/2 5.000 .355 .247
1/8 .405 .049 .049 .095 .068 .068 .095
1/4 .540 .065 .065 .119 .088 .088 .119
3/8 .675 .065 .065 .126 .091 .091 .126
1/2 .840 .083 .083 .147 .109 .109 .147 .187
3/4 1.050 .083 .083 .154 .113 .113 .154 .218
1 1.315 .109 .109 .179 .133 .133 .179 .250
1 1/4 1.660 .109 .109 .191 .140 .140 .191 .250
5 5.563 .134 .134 .375 .258 .258 .375 .625
6 6.625 .134 .134 .432 .280 .280 .432 .718
7 7.625 .500 .301
8 8.625 .148 .148 .500 .322 .322 .500 .906
9 9.625 .500 .342
10 10.750 .165 .165 .500 .365 .365 .593 1.125
11 11.750 .500 .375
12 12.750 .180 .180 .500 .375 .406 .687 1.312
14 14.000 .250 .188 .500 .375 .437 .750 1.406
16 16.000 .250 .188 .500 .375 .500 .843 1.593
18 18.000 .250 .188 .500 .375 .562 .937 1.781

Chemical composition of 316TI SS pipe

Element Min Max
Cr 16 18
S - 0.03
N - 0.1
Mo 2 3
P - 0.45
C - 0.08
Mn - 2
Si - 0.75
Ni 10 14
Fe Balance Balance
Ti 5x%(C+N) 5x%(C+N)

Mechanical properties of UNS S31703 schedule 40 pipes

Temper Annealed
Tensile Rm 75 ksi min
R.p. 0.2 Yield 205 MPa min
Tensile Rm 515 MPa min
R.p. 0.2 percent Yield 30 ksi min
Elongation 35 % min

SA 312 Gr 316TI square pipe physical properties

Density 7.99 g/cm3
Thermal Expansion 16.5 μm/μm/°C
Thermal Conductivity 14.6 W.m -1.°K-1
Specific Heat (0-100°C) 500 J.kg-1.°K-1
Electrical Resistivity 7.4 μohm/cm
Modulus Elasticity 193 GPa
SA 312 Gr 316TI square Pipe stockist, Before Buy Check AISI 316TI rectangular pipes price in Mumbai

AISI 316TI rectangular pipes equivalent grades

SS Grade UNS No Old British GOST JIS - Japanese Euronorm
BS En - European WNR. No AFNOR
316Ti UNS S31635 320S31 X6CrNiMoTi17-12-2 08Ch17N13M2T SUS 316Ti 1.4571 Z6CNDT17‐12

Stainless steel 316TI pipe price list

Description Price per kg (INR) Price per kg ( USD)
Round 3 inch 316Ti SS Pipes, 6 meter ₹ 365 $ 4.26

Stainless Steel 316TI Pipe, Thickness: 1 Mm To 12.7 Mm

 ₹ 255 $ 2.97
SS 316 Ti Grade pipes, Size: 1/4''-1'' ₹ 300 $ 3.50

316TI vs 316 pipe

Property 316Ti 316
Composition Mo (2-3%) + Ti (0.5%) Mo (2-3%)
Heat Resistance Up to 900°C (better) Up to 870°C
Corrosion Slightly better Excellent
Weldability Excellent (no annealing process needed) Good (needs annealing process)
Applications High-temp, heat exchangers Marine, pharma, food

WhatsApp Chat
