Stainless steel 316 pipe

Stainless steel 316 pipe manufacturer in India

SS 316 seamless pipe manufacturer in India

Table of Contents

Explore 316 stainless steel pipe sizes and get SS 316 welded pipe price per kg for your needs

316 stainless steel pipe specifications

01

Sizes

  • OD : 0.35 to 6.35 mm
  • Size: : 1/8 upto 30" NB
  • Thickness : 0.1 to 1.2mm

02

ERW pipe sizes

  • Wall Thickness: 12.7 - 0.8 mm
  • OD: 6.35 - 114.3 mm
  • Length : 26 meter

03

Shapes

  • Round
  • Square
  • Rectangular



04

Welded pipe sizes

  • OD: 36 to 1/4 inch
  • Wall Thickness: 20 to 1 mm

05

Seamless pipe sizes

  • OD: 12 to 1/8 inches
  • Wall Thk : 12.7 to 0.6 mm

06

Manufacturing process

  • Cold Formed
  • Hot Formed
  • Precision Rolled



07

Application

  • Gas Tube
  • Heat Exchanger
  • Boiler
  • Fluid Tube

08

Packing

  • Plastic Bags
  • Bundled
  • Wooden Boxes

09

Documentation

  • PMI Test Reports
  • Mill Test Certificates
  • Visual Inspection



10

Shapes

  • Honed
  • U Bend
  • Square
  • Round
  • Hex
  • Hydraulic
  • Precision
  • Rectangle
  • Coil

11

Tolerance

  • Outer Dia +/-0.05mm
  • Inner Dia +/-0.05mm

Edges

  • Slit Edges
  • Mill Edges

Pipe End

  • Beveled
  • Plain

12

Manufacturing standard

  • DIN 17456
  • DIN 17458
  • BS
  • ASME B36.19M
  • EN 10216 – 2
  • ASME SA 312/ ASTM A312

SS 316 pipe types

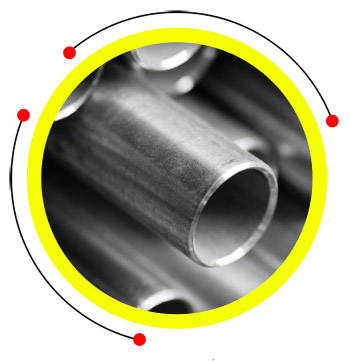

Stainless steel 316 pipe

Stainless steel 316 pipe

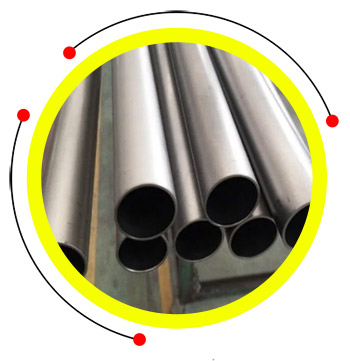

SS 316 seamless pipe

SS 316 seamless pipe

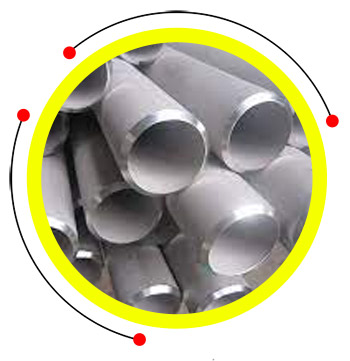

ASTM A312 tp316 hollow pipe

ASTM A312 tp316 hollow pipe

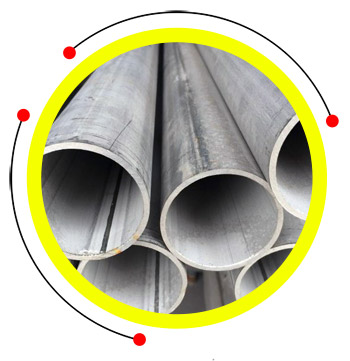

SS 316 welded pipe

SS 316 welded pipe

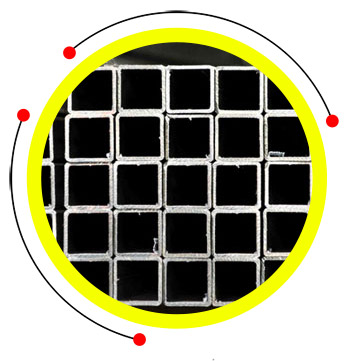

UNS S31600 square pipe

UNS S31600 square pipe

SS 316 ERW pipesquare pipe

SS 316 ERW pipesquare pipe

SS 316 pipe suppliers in Mumbai offering ASTM A312 TP316 hollow pipe dimensions for consistent performance.

316 SS pipe dimensions

NPS(Inches) OD (milimeter) Wall Thick (milimeter) Wall Thick (Inches) Weight (lb/ft)
31/2 1016 3.05 0.120 5.01
6 1683 3.40 0.134 9.35
18 4570 4.78 0.188 36.05
3/4 257 211 0.083 0.87
4 114.3 3.05 0.120 5.66
8 219.1 3.76 0.148 13.50
1 1/2 483 11/2 0.109 21
1 334 2.77 0.109 141
1/2 213 2.11 0.083 0.68
21/2 73.0 3.05 0.120 3.56
2 60.3 277 0.109 2.66
11/4 42.2 277 0.109 1.82
3 88.9 3.05 0.120 4.37
16 406.4 4.78 0.188 32.02
10 2731 4.19 0.165 18.79
14 355.6 4.78 0.188 27.97
30 7620 7.92 0.312 99.60
5 141.3 340 0.134 7.82
12 3239 4.57 0.180 24.34

316 stainless steel pipe sizes

Size in Milimeter Kilogram per meter
25 x 25 x 1.05 1.015
40 x 40 x 2.00 2.045
20 x 20 x 2.00 0.018
30 x 30 x 1.02 1.011
30 x 30 x 2.00 1.084
15 x 15 x 1.05 0.066
12 x 12 x 1.05 0.059
20 x 20 x 1.05 0.090
25 x 25 x 1.02 0.093
40 x 40 x 1.02 1.050
15 x 15 x 1.02 0.054
30 x 30 x 1.05 1.037
20 x 20 x 1.02 0.073
40 x 40 x 1.05 1.086
25 x 25 x 2.00 1.050
40 x 40 x 3.00 3.076
25 x 25 x 3.00 2.022
30 x 30 x 3.00 2.072

316 SS pipe pressure rating

OD (inches) Collapse Pressure (PSI) Yield Strength (PSI) Minimum Average Wall thickess (inches) Tensile Strength (PSI) Minimum Theoretical Burst Pressure (PSI) Working Pressure (PSI) 25% of Burst Theoretical Yield Point (PSI)
.750 2669 30000 .035 75000 7721 1930 3088
.750 4749 30000 .065 75000 15726 3931 6290
.750 6637 30000 .095 75000 25446 6362 10179
.750 8064 30000 .120 75000 35294 8824 14118
.875 1859 30000 .028 75000 5128 1282 2051
.875 3172 30000 .049 75000 9459 2365 3784
.875 5152 30000 .083 75000 17560 4390 7024
.875 6543 30000 .109 75000 24886 6221 9954
1 1633 30000 .028 75000 4449 1112 1780
1 2796 30000 .049 75000 8149 2037 3259
1 4567 30000 .083 75000 14928 3732 5971
1 5827 30000 .109 75000 20908 5227 8363
.250 5967 30000 .028 75000 21649 5412 8660
.250 9455 30000 .049 75000 48355 12089 19342
.375 3029 30000 .020 75000 8955 2239 3582
.375 5077 30000 .035 75000 17213 4303 6885
.375 8597 30000 .065 75000 39796 9949 15918
.500 3172 30000 .028 75000 9459 2365 3784
.500 5316 30000 .049 75000 18284 4571 7313
.500 8307 30000 .083 75000 37275 9319 14910
.625 2568 30000 .028 75000 7381 1845 2953
.625 4335 30000 .049 75000 13947 3487 5579
.625 6910 30000 .083 75000 27124 6781 10850
.625 8639 30000 .109 75000 40172 10043 16069
1 6963 30000 .134 75000 27459 6865 10984
1.250 2260 30000 .049 75000 6380 1595 2552
1.250 3719 30000 .083 75000 11485 2871 4594
1.250 4776 30000 .109 75000 15843 3961 6337
1.250 5742 30000 .134 75000 20468 5117 8187
1.500 1896 30000 .049 75000 5243 1311 2097
1.500 3136 30000 .083 75000 9333 2333 3733
1.500 4043 30000 .109 75000 12754 3188 5101
1.500 4881 30000 .134 75000 16315 4079 6526
1.750 1176 30000 .035 75000 3125 781 1250
1.750 2146 30000 .065 75000 6019 1505 2407
1.750 3080 30000 .095 75000 9135 2284 3654
1.750 3832 30000 .120 75000 11921 2980 4768
1.750 4645 30000 .148 75000 15268 3817 6107
2 1032 30000 .035 75000 2720 680 1088
2 1887 30000 .065 75000 5214 1303 2086
2 2715 30000 .095 75000 7873 1968 3149
2 3384 30000 .120 75000 10227 2557 4091
2 4111 30000 .148 75000 13028 3257 5211
SS 316 ERW pipe thickness and stainless steel 316 schedule 40 pipe sizes as per as per ANSI/ASME B36.19 standard

SS 316 schedule 40 pipe thickness

Nominal Pipe Size (NPS) Sch 40 Wall Thickness (inches) Outside Diameter (OD) (inches)
1-1/4" 0.140 1.660
1-1/2" 0.145 1.900
2" 0.154 2.375
2-1/2" 0.203 2.875
3" 0.216 3.500
3-1/2" 0.226 4.000
4" 0.237 4.500
1/8" 0.068 0.405
1/4" 0.088 0.540
3/8" 0.091 0.675
1/2" 0.109 0.840
3/4" 0.113 1.050
1" 0.133 1.315
5" 0.258 5.563
6" 0.280 6.625
8" 0.322 8.625
10" 0.365 10.750
12" 0.375 12.750
14" 0.437 14.000
16" 0.500 16.000
18" 0.562 18.000
20" 0.593 20.000
24" 0.687 24.000

Stainless steel 316 schedule 80 pipe thickness

Nominal Pipe Size (NPS) Schedule 80 Wall Thickness (inches) Outside Diameter (OD) (inches)
3" 0.300 3.500
3-1/2" 0.318 4.000
4" 0.337 4.500
5" 0.375 5.563
6" 0.432 6.625
8" 0.500 8.625
10" 0.593 10.750
1/8" 0.095 0.405
1/4" 0.119 0.540
3/8" 0.126 0.675
1/2" 0.147 0.840
3/4" 0.154 1.050
1" 0.179 1.315
1-1/4" 0.191 1.660
1-1/2" 0.200 1.900
2" 0.218 2.375
2-1/2" 0.276 2.875
12" 0.687 12.750
14" 0.750 14.000
16" 0.843 16.000
18" 0.937 18.000
20" 1.031 20.000
24" 1.218 24.000

ASTM A312 TP316 welded pipe testing methods

  • Hydrostatic Test
  • PMI Test
  • 100% RT
  • Ultrasonic Test

Temperature range of SS 316 ERW pipe

Description Temperature Range
ASTM A312 TP316 -40°F to 1600°F

SA 312 TP316 EFW Pipe standards

  • EN 10216 – 2
  • ASME B36.19M
  • EN 10216 – 5, NSF 61
  • EN 10217-7
  • EN 10088-2
  • ASME B36.19, DIN 17456

316 stainless steel pipe price list

Description Price per kg ( USD) Price per kg (INR)
SS 316 Round Pipes, 12 meter $ 1.75 ₹ 150
1/4 " To 24 " round Stainless steel 316 pipe, 6 meterThickness: 1 Mm To 20 Mm $ 4.37 ₹ 375
SS 316 seamless pipe, 6 meter $ 4.78 ₹ 410
Stainless steel 316 seamless pipe specification and SS 316 square pipe weight chart for customized orders

Stainless steel 316 pipe weight

NPS Wall thickness [milimeter] OD [milimeter] Wall thickness in inches OD in inches Weight [kilogram/meter] Weight [lb/ft]
1 1/2 “ 3.68 48.3 0.145 1.900 4.05 2.72
2 1/2″ 5.16 73.0 0.203 2.875 8.63 5.79
1/8″ 1.73 10.3 0.068 0.405 0.37 0.24
1/2″ 2.77 21.3 0.109 0.840 1.27 0.85
1″ 3.38 33.4 0.133 1.315 2.50 1.68
3 1/2″ 5.74 101.6 0.226 4.000 13.57 9.11
5″ 6.55 141.3 0.258 5.563 21.77 14.62
8″ 8.18 219.1 0.322 8.625 42.55 28.55
12″ 10.31 323.8 0.406 12.750 79.73 53.52
16″ 12.70 406.4 0.500 16 123.30 82.77
20″ 15.09 508.0 0.594 20 183.42 123.11
32″ 17.48 813.0 0.688 32 342.91 230.08

SS 316 pipe chemical composition

Element C UNS Mn P S Cr Si Ni
TP316 0.08 S30400 2 0.045 0.03 18.0-20.0 1 8.0-11.0

SS316 pipe mechanical properties

Material Heat Tensile Strength Temperature Elongation %, Minimum Yield Strength
Treatment Ksi (MPa), Minimum. Minimum. Ksi (MPa), Minimum.
º F(º C)
TP316 Solution 75(515) 1900 (1040) 35 30(205)

316 stainless steel exhaust pipe equivalent grade

Grade Swedish SS UNS No Euronorm Old British Japanese JIS
No Name BS En
316 2332 S31600 1.4301 X5CrNi18-10 304S31 58E SUS 316

Physical properties of 316 stainless steel seamless pipe

Grade Density (kg/m3) Mean Coefficient of Thermal Expansion (m/m/0C) Elastic Modulus (GPa) Specific Heat 0-1000C (J/kg.K) Thermal Conductivity (W/m.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304L 8000 17.2 17.8 18.4 193 500 16.2 21.5 720

SS 316 pipe hsn code

grade HSN code
316 73041110

Stainless steel 316 pipe roughness

Finish Average Roughness (Ra)
As Fabricated 0.2 to 0.5 µm
Polished 0.05 to 0.2 µm
Electropolished 0.02 to 0.1 µm

SS 316 pipe schedule chart

NPS Inner DIa Outer Dia Schedules Wall LBS per Ft
3/8" .545 .675 10, 10S .065 .4235
.493 40, STD, 40S .091 .5676
.423 80, XS, 80S .126 .7388
3/4" .884 1.050 10, 10S .083 .8572
.742 80, XS, 80S .154 1.474
.824 40, STD, 40S .113 1.131
.434 XX .308 2.441
.614 160 .218 1.937
1 1/4" 1.442 1.660 10, 10S .109 1.806
1.380 40, STD, 40S .140 2.273
1.278 80, XS, 80S .191 2.997
1.160 160 .250 3.765
.896 XX .382 5.214
1/4" .410 .540 10, 10S .065 .3297
.302 80, XS, 80S .119 .5351
.364 40, STD, 40S .088 .4248
1/8" .307 .405 10, 10S .049 .1863
.215 80, XS, 80S .095 .3145
.269 40, STD, 40S .068 .2447
4 1/2" 4.290 5.000 XS, 80S .355 17.61
4.506 STD, 40S .247 12.54
1/2" .622 .840 40, STD, 40S .109 .8510
.466 160 .187 1.304
.546 80, XS, 80S .147 1.088
.674 10, 10S .083 .6710
.252 XX .294 1.714
1 1/2" 1.610 1.900 40, STD, 40S .145 2.718
1.337 160 .281 4.859
1.500 80, XS, 80S .200 3.631
1.682 10, 10S .109 2.085
1.100 XX .400 6.408
1" 1.097 1.315 10, 10S .109 1.404
1.049 40, STD, 40S .133 1.679
.957 80, XS, 80S .179 2.172
.815 160 .250 2.844
.599 XX .358 3.659
3" 3.260 3.500 10, 10S .120 4.332
3.068 40, STD, 40S .216 7.576
2.624 160 .438 14.32
2.900 80, XS, 80S .300 10.25
2.300 XX .600 18.58
2" 2.157 2.375 10, 10S .109 2.638
2.067 40, STD, 40S .154 3.853
1.939 80, XS, 80S .218 5.022
1.687 160 .344 7.462
1.503 XX .436 9.029
6" 6.065 6.625 40, STD, 40S .280 18.97
5.501 120 .562 35.39
5.761 80, XS, 80S .432 28.57
6.357 10, 10S .134 9.290
5.189 160 .719 43.35
4.897 XX .864 53.16
3 1/2" 3.760 4.000 10, 10S .120 4.937
3.364 80, XS, 80S .318 12.51
3.548 40, STD, 40S .226 9.109
2.728 XX .636 22.85
2 1/2" 2.635 2.875 10, 10S .120 3.531
2.469 40, STD, 40S .203 5.793
2.323 80, XS, 80S .276 7.651
2.125 160 .375 10.01
1.771 XX .552 13.70
4" 4.260 4.500 10, 10S .120 5.613
3.826 80, XS, 80S .337 14.98
3.438 160 .531 22.51
3.624 120 .438 19
4.026 40, STD, 40S .237 10.790
3.152 XX .674 27.54

316 stainless steel pipe diameters

NPS (Inches) Outside Diameter (OD) (milimeter) SCH 40 (STD) milimeter SCH 10 milimeter SCH 160 milimeter SCH 80 (XS) milimeter SCH XXS milimeter)
1/8" 10.3 1.73 1.24 — 2.41 —
1/4" 13.7 2.24 1.65 — 3.02 —
3/8" 17.1 2.31 1.65 — 3.20 —
1/2" 21.3 2.77 1.65 4.78 3.73 7.47
3/4" 26.7 2.87 1.65 5.56 3.91 7.82
1" 33.4 3.38 2.11 6.35 4.55 9.09
1-1/4" 42.2 3.56 2.77 6.91 4.85 9.70
2" 60.3 3.91 2.77 8.74 5.54 11.07
2-1/2" 73.0 5.16 3.05 9.53 7.01 14.02
3" 88.9 5.49 3.05 11.13 7.62 15.24
4" 114.3 6.02 3.05 13.49 8.56 17.12
5" 141.3 6.55 3.40 15.88 9.53 19.05
6" 168.3 7.11 3.40 18.26 10.97 21.95
8" 219.1 8.18 3.76 23.01 12.70 27.79
1-1/2" 48.3 3.68 2.77 7.14 5.08 10.15
10" 273.0 9.27 4.19 28.58 15.09 34.93
12" 323.8 10.31 4.57 33.32 17.48 40.49
14" 355.6 11.13 4.78 35.71 19.05 43.56
16" 406.4 12.70 4.78 40.49 21.41 48.61
18" 457.2 14.27 4.78 45.24 23.83 53.98
20" 508.0 15.09 5.54 50.01 26.19 59.54
24" 609.6 17.48 6.35 59.54 31.75 70.87
