SA 213 T11 tube

ASTM A213 T11 seamless tube supplier in India

Table of Contents

SA 213 Gr T11 specifications
SA 213 T11 tube types
SA213 T11 material price list
ASTM A213 T11 seamless tube tolerance
SA213 T11 chemical composition
Mechanical properties of UNS K11597 T11 boiler tube
ASTM A213 GR T11 IBR tube equivalent grades

SA 213 GR T11 tubing weight chart
Temperature range of SA 213 T11 heat exchanger tube
Alloy steel T11 tubes application
Low alloy A213 T11 large diameter tube heat treatment
SA213 T11 superheater tubes diameter

Check SA 213 Gr T11 material composition and T11 boiler tube specifications

Sizes

1/2″ OD up to 5″ OD

Outer Diameter

6.2500mm; WT:1-200mm

Equivalent Standards

GOST 550-75, EN 10216-2, WN 1.7335

Material

T11, K11597

Testing

Bend, Hardness, Flattening, Hydrostatic

Length

max 1~12m

Tolerance

Cold rolled: +/-0.05mm
Cold drawn : +/-0.1mm

Standards

ASTM A213, ASME SA213

Material

12ChM, P11, 12CrMo

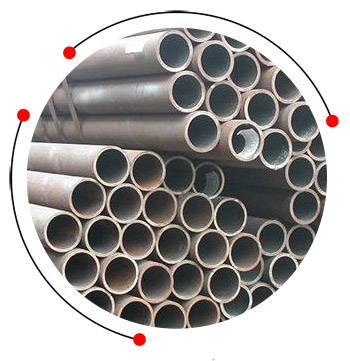

SA 213 T11 tube

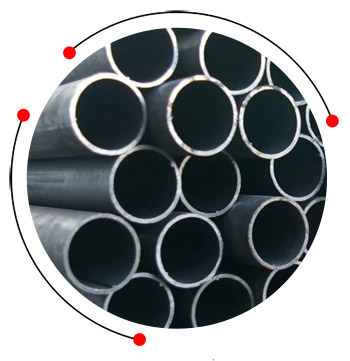

T11 boiler tube

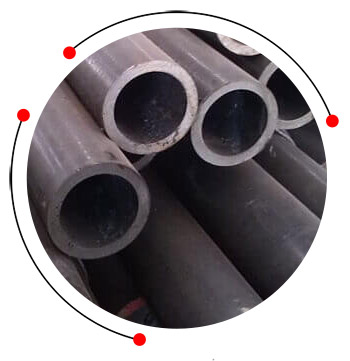

ASTM A213 T11 seamless tube

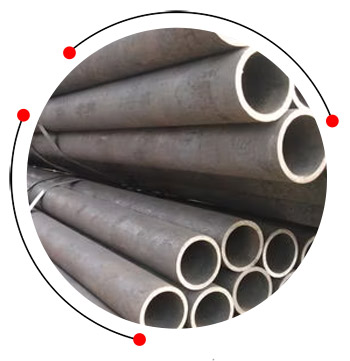

ASTM A213 GR T11 IBR tube

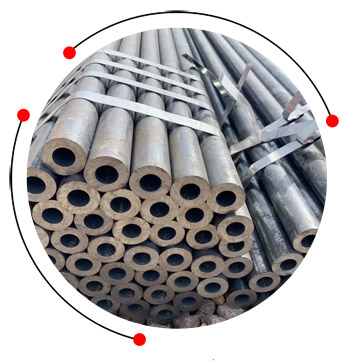

SA 213 GR T11 tubing

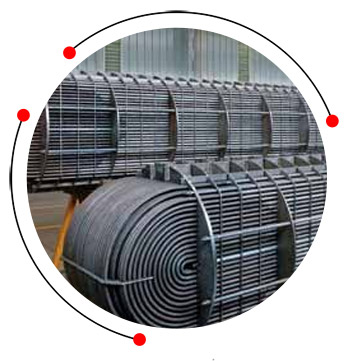

SA 213 T11 heat exchanger tube

T11 Tube manufacturer in India, Buy Alloy steel T11 tubes and UNS K11597 T11 IBR tube at dealer price in Mumbai

Description	Price in USD	Price in Kilogram (INR)
ASTM A213 T11Tubes, Size: 4 Inch	$ 2.34	₹ 200
ASTM A213 T11 Alloy Steel Seamless Tube, Diameter: 0.75 Inch	$ 1.80	₹ 154

Cold Drawn	Tolerance, %	Outside Dia, mm
	+20/-0	OD≤38.1
	+22/-0	OD>38.1
Hot rolled	Tolerance, %	Outside Dia, mm
	+40/-0	OD≤101.6, WT≤2.4
	+35/-0	OD≤101.6, 2.4＜WT≤3.8
	+33/-0	OD≤101.6, 3.8＜WT≤4.6
	+28/-0	OD≤101.6, WT>4.6
	+35/-0	OD>101.6, 2.4＜WT≤3.8
	+33/-0	OD>101.6, 3.8＜WT≤4.6
	+28/-0	OD>101.6, WT>4.6

Stockist of SA 213 gr T11 tubing in Mumbai. Check SA213 T11 material composition and Low alloy A213 T11 superheater tube weight chart

C, %	P, %	Mn, %	S, %	Cr, %	Si, %	Mo, %
0.15 max	0.025 max	0.30-0.60	0.025 max	1.00-1.50	0.50-1.00	0.44-0.65

Tensile Strength , MPa	Elongation, %	Yield Strength, MPa	Hardness, HB
415 min	30 min	205 min	179 max

STANDARD	WERKSTOFF NR.	UNS
A213 T11	1.7335	K11597

Nominal Pipe Size	Pipe Outer Diameter	Weight per Foot	Standard to XXHY	Schedule Pipe #	Wall Thickness	Pipe Inner Diameter	Section Modulus	Gallon Capacity Per Linear Foot
2	2.375	2.64		10	0.109	2.157	.4205	.1898
		3.66	STD	40	0.154	2.067	.5606	.1743
		5.03	XHY	80	0.218	1.939	.7309	.1534
		5.68			0.250	1.875	.8045	.1434
		6.29			0.281	1.813	.8666	.1344
		7.47		160	0.344	1.687	.9806	.1161
		9.04	XXHY		0.436	1.503	1.1043	.0922
2 1/2	2.875	3.53		10	0.120	2.635	.6870	.2833
		5.80	STD.	40	0.203	2.469	1.0640	.2487
		6.14			0.216	2.443	1.1169	.2435
		7.02			0.250	2.375	1.2468	.2301
		7.67	XHY	80	0.276	2.323	1.3386	.2202
		10.02		160	0.375	2.125	1.6371	.1842
		13.71	XXXHY		0.552	1.771	1.9971	.1280
3	3.50	4.34			0.120	3.260	1.0411	.4336
		5.58			0.156	3.188	1.3122	.4147
		6.12			0.172	3.156	1.4265	.4064
		6.66			0.188	3.124	1.5342	.3984
		7.58	STD.	40	0.216	3.068	1.7241	.3840
		8.69			0.250	3.000	1.9372	.3672
		9.67			0.281	2.938	2.1207	.3521
		10.26	XHY	80	0.300	2.900	2.2253	.3431
		14.34		160	0.438	2.624	2.8774	.2811
		18.6	XXHY		0.600	2.300	3.4243	.2158
1/2	0.84	0.85	STD	40	0.109	0.622	.0407	.0158
		1.09	XHY	80	0.147	0.546	.0478	.0122
		1.31		160	0.188	0.464	.0528	.0088
		1.72	XXHY		0.294	0.252	.0577	.0026
3/4	1.05	1.13	STD	40	0.113	0.824	.0705	.0277
		1.48	XHY	80	0.154	0.742	.0853	.0225
		1.95		160	0.219	0.612	.1006	.0153
		2.44	XXHY		0.308	0.434	.1103	.0077
1	1.315	1.68	STD	40	0.133	1.049	.1328	.0449
		2.17	XHY	80	0.179	0.957	.1606	.0374
		2.85		160	0.250	0.815	.1904	.0271
		3.66	XXHY		0.358	0.599	.2136	.0146
1 1/4	1.66	2.27	STD	40	0.140	1.380	.2346	.0777
		3.00	XHY	80	0.191	1.278	.2913	.0666
		3.77		160	0.250	1.160	.3421	.0549
		5.22			0.382	0.896	.4110	.0328
1 1/2	1.90	2.72	STD	40	0.145	1.610	.3262	.1058
		3.63	XHY	80	0.200	1.500	.4118	.0918
		4.86		160	0.281	1.338	.5079	.0730
		6.41			0.400	1.100	.5977	.0494
3 1/2	4.0	4.98		10	0.120	3.760	1.3776	.5768
		9.12	STD.	140	0.226	3.548	2.3939	.5136
		10.02			0.250	3.500	2.6001	.4998
		11.17			0.281	3.438	2.8562	.4821
		12.52	XHY	80	0.318	3.364	3.1400	.4617
		22.87	XXHY		0.636	2..728	4.8795	.3085
4	4.5	5.62		10	0.120	4.260	1.7612	.7404
		7.24			0.156	4.188	2.2354	.7156
		8.67			0.188	4.124	2.6296	.6942
		9.32			0.203	4.094	2.8173	.6838
		10.02			0.219	4.062	3.0184	.6725
		10.80	STD.	40	0.237	4.026	3.2145	.6613
		11.36			0.250	4.000	3.3611	.6528
		12.67		60	0.281	3.938	3.7021	.6326
		13.97			0.312	3.876	4.0273	.6126
		15.00	XHY	80	0.337	3.826	4.2713	.5972
		19.02		120	0.438	3.624	5.1790	.5361
		22.53		160	0.531	3.438	5.8997	.4822
		27.57	XXHY		0.674	3.152	6.7927	.4054
5	5.563	10.80			0.188	5.187	4.1161	1.0979
		12.51			0.219	5.125	4.7279	1.0716
		14.63	STD.	40	0.258	5.047	5.4500	1.0391
		15.87			0.281	5.001	5.8644	1.0204
		17.51			0.312	4.939	6.4074	.99647
		19.19			0.344	4.875	6.9358	.9696
		20.80	XHY	80	0.375	4.813	7.4300	.9449
		27.06		120	0.500	4.563	9.2534	.8495
		32.99		160	0.625	4.313	10.7976	.7590
		38.59	XXHY		0.750	4.063	12.0954	.6734
6	6.625	7.59		5	0.109	6.407	3.5769	1.6748
		9.30		10	0.134	6.357	4.3475	1.6488
		10.79			0.156	6.313	5.0107	1.6260
		12.94			0.188	6.249	5.9351	1.5937
		13.94			0.203	6.219	6.3804	1.5780
		15.00			0.219	6.187	6.8261	1.5620
		17.04			0.250	6.125	7.6905	1.5306
		18.99	STD.	40	0.280	6.065	8.4958	1.5008
		21.06			0.312	6.001	9.3416	1.4688
		23.10			0.344	5.937	10.111	1.4391
		25.05			0.375	5.875	10.893	1.4082
		28.60	XHY	80	0.432	5.761	12.224	1.3541
		32.74			0.500	5.625	13.711	1.2909
		36.43		120	0.562	5.501	14.9806	1.2346
		40.09			0.625	5.375	16.1821	1.1787
		45.39		160	0.719	5.187	17.8243	1.0977
		53.21	XXHY		0.864	4.897	20.025	.9784
		60.13			1.000	4.625	21.7719	.8727
		66.14			1.125	4.375	23.1237	.7809

T11 steel cold drawn tube and ASTM A213 gr T11 heat exchanger tube tube for high-temperature applications

Parameter	Value
Temperature Range (°C)	-29 to 600
Common Service Temp (°C)	400 to 550

Power Generation	Oil & Gas Industry	Petrochemical Industry
Refining Industry	Chemical Processing Plants	Boiler Manufacturing
Heat Exchanger Fabrication	Fertilizer Industry	Pulp and Paper Industry
Marine Engineering	Aerospace

Grade	UNS Number	Heat Treat Type	Austenitizing/ Solutioning, min or range ºF [ºC]	Subcritical Annealing or Tempering, min or range ºF [ºC]	Cooling Media
T11	K11597	Full or Isothermal anneal	…	…	…
T11	K11597	normalize and temper	…	1200 [650]	…

Cold Drawn	Tolerance, mm	Outside Diameter, mm
	±0.10	OD＜25.4
	±0.15	25.4≤OD≤38.1
	±0.20	38.1＜OD＜50.8
	±0.25	50.8≤OD＜63.5
	±0.30	63.5≤OD＜76.2
	±0.38	76.2≤OD≤101.6
	+0.38/-0.64	101.6＜OD≤190.5
	+0.38/-1.14	190.5＜OD≤228.6
Hot rolled	Tolerance, mm	Outside Diameter, mm
	+0.4/-0.8	OD≤101.6
	+0.4/-1.2	101.6＜OD≤190.5
	+0.4/-1.6	190.5＜OD≤228.6

SA 213 T11 tube

ASTM A213 T11 seamless tube supplier in India

Check SA 213 Gr T11 material composition and T11 boiler tube specifications

T11 Tube manufacturer in India, Buy Alloy steel T11 tubes and UNS K11597 T11 IBR tube at dealer price in Mumbai

Stockist of SA 213 gr T11 tubing in Mumbai. Check SA213 T11 material composition and Low alloy A213 T11 superheater tube weight chart

T11 steel cold drawn tube and ASTM A213 gr T11 heat exchanger tube tube for high-temperature applications
