Super duplex 2507 pipe

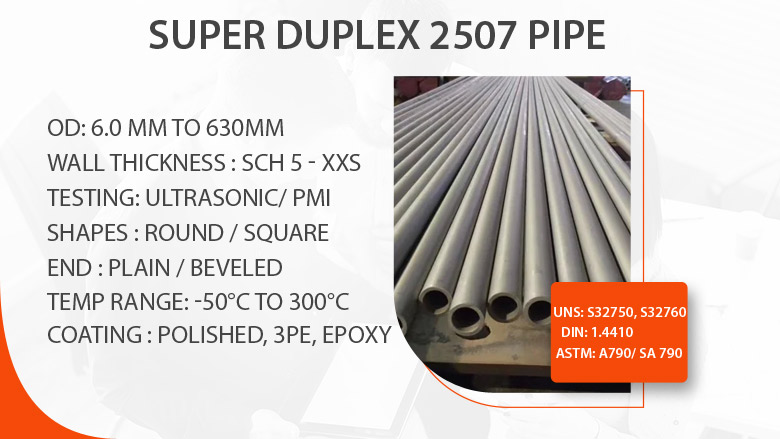

Super duplex 2507 pipe manufacturer in India

Alloy 2507 seamless pipe suppliers in India

Table of Contents

Buy Duplex 2507 pipe and Super Duplex 2507 ERW pipe in SCH 5- SCH XXS as per ASME SA790 standard

Specification of 2507 pipe

01

Welded Pipe Size

  • OD: 6.0 mm to 630mm
  • Length:Double Random ,Single & Cut Length
  • Wall Thickness: 0.5 - 20mm

02

Seamless Pipe Sizes

  • Length:Double Random, Cut Length & Single
  • OD: 6.0 mm to 630mm
  • Wall Thickness:0.3 mm to 50 mm

03

Forms

  • Rectangular
  • Clad
  • Hexagon
  • Square
  • Exhaust
  • Round



04

Standards

  • UNS : S32750, S32760
  • ASME SA 790 | ASTM A790
  • WNR: 1.4410

05

Manufacturing Process

  • Hot Formed
  • Precision Rolled
  • Cold Formed

06

Testing

  • Ultrasonic
  • Chemical
  • Mechanical and PMI



07

Finish

  • Annealing
  • Polished
  • Mill
  • Bright

08

Packaging

  • Bundle
  • Shear Box
  • Wooden Pallets
  • Bubble wraps

09

Properties

  • Melting Point: 2660°F (1460°C)
  • Temp.: 300°C (572°F)
  • Density: 7.8 g/cm3

Super duplex 2507 pipe types

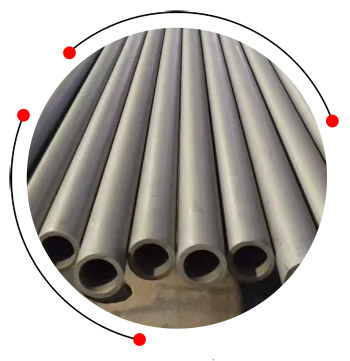

Super duplex 2507 pipe

Super duplex 2507 pipe

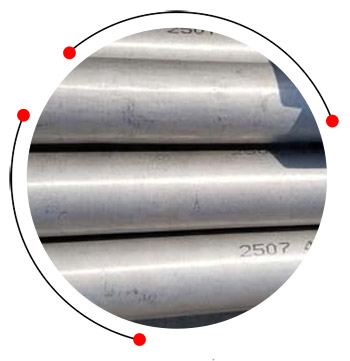

Alloy 2507 seamless Pipe

Alloy 2507 seamless Pipe

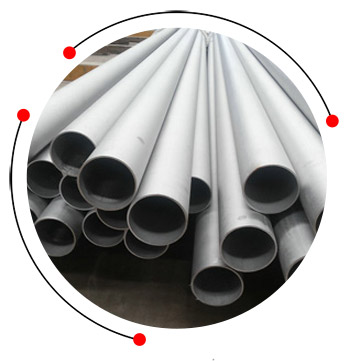

SAF 2507 welded pipe

SAF 2507 welded pipe

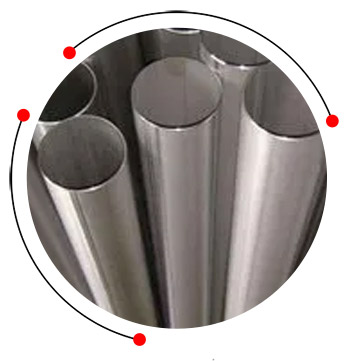

DIN 1.4410 hollow pipe

DIN 1.4410 hollow pipe

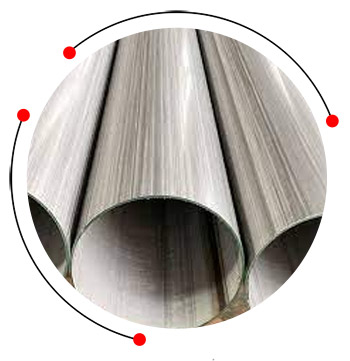

Super Duplex 2507 ERW pipe

Super Duplex 2507 ERW pipe

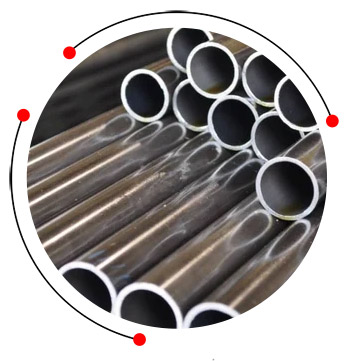

2507 Super Duplex EFW pipe

2507 Super Duplex EFW pipe

2507 duplex SS pipe schedule chart

NPS (inches) Schedule 40S (mm) Schedule 5S (mm) Schedule 10S (mm) Schedule 80S (mm) XXS (mm) Schedule 160 (mm)
2 ½" (DN 65) 5.16 2.11 2.11 7.01 14.02 9.52
3" (DN 80) 5.49 2.11 2.11 7.62 15.24 11.13
4" (DN 100) 6.02 2.11 2.11 8.56 19.05 13.49
5" (DN 125) 6.55 2.77 2.77 9.53 21.34 15.88
6" (DN 150) 7.11 2.77 2.77 11.13 23.01 18.26
½" (DN 15) 2.77 1.65 1.65 3.73 6.35 4.78
¾" (DN 20) 2.87 1.65 1.65 3.91 7.82 5.56
1" (DN 25) 3.38 1.65 1.65 4.55 9.09 6.35
1 ¼" (DN 32) 3.56 1.65 1.65 4.85 9.70 6.35
1 ½" (DN 40) 3.68 1.65 1.65 5.08 10.16 7.14
2" (DN 50) 3.91 1.65 1.65 5.54 11.07 8.71
8" (DN 200) 8.18 2.77 2.77 12.70 28.58 23.01
10" (DN 250) 9.27 3.40 3.40 15.09 31.75 28.58
12" (DN 300) 10.31 3.96 3.96 17.48 38.10 33.32

Alloy 2507 seamless pipe testing

  • Chemical Test
  • Destructive Test
  • Third Party Inspection
  • Non Destructive Test
  • Moisture testing
  • Visual Inspection
  • Surface roughness Test
  • PMI Test
  • 100% Radiography Test

Buy 2507 stainless steel pipe and SAF 2507 welded pipe with Radiography and Eddy Current testing

Super duplex 2507 pipe pressure rating

Pipe Grade ASTM/ UNS 300°F
150°C 		400°F
200°C 		100°F
40°C 		200°F
90°C 		500°F
260°C 		700°F
370°C 		600°F
320°C
Sanicro® 70:1*4) N06600:1 16.7 16.7 16.7 16.7 16.7 16.7 16.7
Sanicro® 70:2*5) N06600:2 20.0 20.0 20.0 20.0 20.0 20.0 20.0
Sanicro® 70:3*6) N06600:3 23.3 23.3 23.3 23.3 23.3 23.3 23.3
Sanicro® 30 CF*7) N08800 CF 20.0 20.0 20.0 20.0 20.0 20.0 20.0
Sanicro® 30 HF*8) N08800 HF 16.7 16.7 16.7 16.7 16.7 16.7 16.7
LDX 2304 Pipe*1) S32304 26.1 24.7 29.0 27.9 22.9 - 19.2
Duplex 2507 Pipe*3) S32750 34.8 34.0 38.7 36.3 33.9 - 33.9
Sanicro® Pipe 60 N06625 39.6 39.2 40.0 40.0 38.6 37 37.8
2RK65™*9) N08904 15.1 13.8 20.3 16.7 12.7 11.4 11.9
Sanicro® 28 Pipe *10) N08028 17.7 16.5 20.7 18.9 15.4 13.6 14.4

Tolerance chart of duplex 2507 pipe

OD Lengths Wall
±0.005" (0.127 mm) Coils to 80,000' (24,384 m) ±10%
1-1/2" (38.1 mm) ±0.005" (0.13 mm)
1-1/2" (38.1 mm) to 3" (76.2 mm) ±0.010" (0.25 mm)
3-1/2" (88.9 mm) to 4" (101.6 mm) ±0.015" (0.38 mm)

Randoms up to +2" (50.8 mm)

Cuts +1/8" (3 mm) -0"

Coils to 80,000' (24,384 m)

 ±10%

Super duplex 2507 pipe price list

Description Price in USD Price in Kilogram (INR)
Super Duplex 2507 Seamless Pipe, Size: 2 inches $ 5.28 ₹ 452
Super Duplex 2507 Pipe, 3 inches $ 7.60 ₹ 650
Super Duplex 2507 Pipes,Size: 2 inch Thickness: 10 mm $ 6.43 ₹ 550
Stockist of DIN 1.4410 Hollow pipe according to ASTM A790, view Alloy 2507 pipe grade and specification

Chemical composition of SAF 2507 pipe

Grade Super Duplex 2507
Silicon (Si) Max. 0.80
Chromium (Cr) 24.0–26.0
Nickel (Ni) 6.0–8.0
Molybdenum (Mo) 3.0–5.0
Nitrogen (N) 0.24–0.32
Carbon (C) Max. 0.030
Manganese (Mn) Max. 1.20
Phosphorous (P) Max. 0.035
Sulphur (S) Max. 0.020
Iron (Fe) Bal.
Copper (Cu) 0.50
Other Elements -

Mechanical properties of super duplex 2507 pipe

2507 Density Yield Strength (0.2%Offset) Melting Point Elongation Tensile Strength
7.8 g/cm3 Psi - 80000 , MPa - 550 1350 °C (2460 °F) 15 % Psi - 116000 , MPa - 800

2507 super duplex EFW pipe equivalent grades

Alloy UNS Designation Specifications Werkstoff NR. AFNOR DIN Grade EN SS
2507 S32750 A/SA789, A/SA790 1.4410 Z3 CN 25.06 Az X 2 Cr Ni MoN 25.7.4 F53 1.4410 2328

Super duplex 2507 pipe physical properties

Property Units 200°C 300°C 100°C 20°C
Poissons ratio - - - - 0.3
Thermal conductivity W/m°C 17 18 16 15
- Btu/h ft°F - - - 8.7
Modulus of elasticity GPa 186 180 194 200
psi x 10-6 - - - 29
Density g/cm³ - - - 7.8
lb/in³ - - - 0.28
Linear expansion (RT ➞ T)°C x 10-6/°C 13.5 14 13 -
Electric resistivity µΩm 0.9 1 0.85 0.8
Thermal capacity J/kg°C 560 590 530 500

Application of 2507 stainless steel pipe

  • Power generation
  • Marine
  • Pulp and paper
  • Chemical, pharmaceutical
  • Pollution control
  • Flue-gas desulfurization
  • Mining and mineral
  • Oil and gas industry
  • Desalination
Leading Super duplex pipe manufacturers in India.Check 2507 Super Duplex EFW pipe sizes, weight chart and dimensions

Weight chart of alloy 2507 pipe

Pipe OD
milimeter 		Pipe WT
milimeter 		Nominal size Weight, kg/m
60.33 2.77 2" 10S 3.99
60.33 3.91 2" 40S 5.52
73 3.05 2 1/2" 10s 5.35
73 5.16 2 1/2" 40S 8.77
88.90 2.11 3" 5S 4.58
88.90 3.05 3" 10S 6.56
88.90 5.49 3" 40S 11.47
101.60 3.05 3 1/2" 10s 7.53
114.30 2.11 4" 5S 5.93
114.30 3.05 4" 10S 8.50
114.30 6.02 4" 40S 16.32
141.3 3.4 5" 10S 11.74
141.3 6.55 5" 40S 22.1
168.3 2.77 6" 5S 11.48
168.3 3.4 6" 10S 14.04
168.3 7.11 6" 40S 28.69
21.34 2.11 1/2" 10S 1.02
21.34 2.77 1/2" 40S 1.29
26.67 2.11 3/4" 10S 1.30
26.67 2.87 3/4" 40S 1.71
33.40 1.65 1" 5S 1.31
33.40 2.77 1" 10S 2.13
33.40 3.38 1" 40S 2.54
42.16 1.65 1 1/4" 5S 1.67
42.16 2.77 1 1/4" 10S 2.73
42.16 3.56 1 1/4" 40s 3.44
48.26 1.65 1 1/2" 5S 1.92
48.26 2.77 1 1/2" 10S 3.16
48.26 3.68 1 1/2" 40S 5.49
60.33 1.65 2" 5S 2.42
219.1 2.77 8" 5S 15.0
219.1 3.76 8" 10S 20.27
219.1 8.18 8" 40S 43.2
273 3.40 10" 5S 22.95
273 4.19 10" 10S 28.2
273 9.27 10" 40S 61.22
323.9 3.96 12" 5S 31.72
323.9 4.57 12" 10S 36.54
323.9 9.53 12" 40S 75.02
355.6 4.78 14" 10S 41.99
355.6 9.53 14" STD 82.583
406.4 9.53 16" STD 94.706
406.4 4.78 16" 10S 48.07
457.2 4.78 18" 10S 54.151
508.0 5.54 20" 10S 69.702
610.0 6.35 *24" 10S 95.919

Super duplex 2507 pipe sizes

Pipe WT
mm 		Pipe OD
mm 		Kg/m Sch in.0
3.091 26.067 2.023 80S 3/4
2.077 33.040 2.013 10S 1
3.038 33.040 2.054 40S 1
4.055 33.040 3.029 80S 1
6.0352) 33.040 4.030 160 1
2.077 42.016 2.073 10S 1¼
3.056 42.016 3.044 40S 1¼
4.085 42.016 4.053 80S 1¼
6.0352) 42.016 5.069 160 1¼
2.077 48.026 3.016 10S 1½
3.068 48.026 4.011 40S 1½
5.008 48.026 5.049 80S 1½
2.077 60.033 3.099 10S 2
1.065 13.072 0.050 10S 1/4
2.024 13.072 0.064 40S 1/4
3.002 13.072 0.081 80S 1/4
1.065 17.015 0.064 10S 3/8
2.031 17.015 0.086 40S 3/8
3.020 17.015 1.012 80S 3/8
2.011 21.034 1.002 10S 1/2
2.077 21.034 1.029 40S 1/2
3.073 21.034 1.065 80S 1/2
2.011 26.067 1.030 10S 3/4
2.087 26.067 1.071 40S 3/4
3.091 60.033 5.052 40S 2
5.054 60.033 7.060 80S 2
8.0742) 60.033 11.029 160 2
3.005 73.003 5.035 10S 2½
5.016 73.003 8.077 40S 2½
7.001 73.003 11.059 80S 2½
3.005 88.090 6.056 10S 3
5.049 88.090 11.047 40S 3
7.062 88.090 15.051 80S 3
11.0132) 88.090 21.067 160 3
3.005 101.060 7.053 10S 3½
5.074 101.060 13.078 40S 3½
8.008 101.060 18.092 80S 3½
3.005 114.030 8.050 10S 4
6.002 114.030 16.032 40S 4
8.056 114.030 22.067 80S 4
13.0492) 114.030 34.005 160 4
6.055 141.030 22.010 40S 5
9.053 141.030 31.044 80S 5
15.0882) 141.030 49.087 160 5
3.04 168.028 14.004 10S 6
7.011 168.028 28.069 40S 6
10.097 168.028 43.021 80S 6
14.027 168.028 54.075 120 6
18.0262) 168.028 68.059 160 6
8.018 219.008 43.020 40S 8
12.07 219.008 65.063 80S 8
18.023 219.008 91.030 120 8
23.0012) 219.008 112.097 160 8

Super duplex 2507 ERW pipe dimensions

ominal size [inches] Outside diameter (OD) [mm] Wall thickness [inches] Outside diameter (OD) [inches] Weight [lb/ft] Wall thickness [mm] Weight [kg/m]
4" NPS 100 114.3 0.237 4.5 10.79 6.02 16.07
5" NPS 125 141.3 0.258 5.563 14.62 6.55 21.77
6" NPS 150 168.3 0.28 6.625 18.97 7.11 28.26
8" NPS 200 219.1 0.322 8.625 28.55 8.18 42.55
10" NPS 250 273.0 0.365 10.75 40.48 9.27 60.31
12" NPS 300 323.8 0.406 12.75 53.52 10.31 79.73
14" NPS 350 355.6 0.437 14.0 54.57 11.13 94.55
16" NPS 400 406.4 0.5 16.0 82.77 12.7 123.3
18" NPS 450 457.0 0.562 18.0 104.67 14.27 155.8
1/8" NPS 6 10.3 0.068 0.41 0.24 1.73 0.37
1/4" NPS 8 13.7 0.088 0.54 0.42 2.24 0.63
3/8" NPS 10 17.1 0.091 0.68 0.57 2.31 0.84
1/2" NPS 15 21.3 0.109 0.84 0.85 2.77 1.27
3/4" NPS 20 26.7 0.113 1.05 1.13 2.87 1.69
1" NPS 25 33.4 0.133 1.32 1.68 3.38 2.5
1 1/4" NPS 32 42.2 0.14 1.66 2.27 3.56 3.39
1 1/2" NPS 40 48.3 0.145 1.9 2.72 3.68 4.05
2" NPS 50 60.3 0.154 2.375 3.65 3.91 5.44
2 1/2" NPS 65 73.0 0.203 2.875 5.79 5.16 8.63
3" NPS 80 88.9 0.216 3.5 7.58 5.49 11.29
3 1/2" NPS 90 101.6 0.226 4.0 9.11 5.74 13.57
20" NPS 500 508.0 0.594 20.0 123.11 15.09 183.42
24" NPS 600 610.0 0.688 24.0 171.29 17.48 255.41
32" NPS 800 813.0 0.688 32.0 230.08 17.48 342.91

Alloy steel 2507 pipe temperature range

ASME BPVC German VdTÜV
2507 316°C/ 600°F 250°C/ 482°F

2507 super duplex stainless steel pipe wall thickness

Nominal 10 40s & Std O.D. Inches 10s 40 80 80s & E.H. 160
2 .109 .154 2.375 .109 .154 .218 .218 .343
2 1/2 .120 .203 2.875 .120 .203 .276 .276 .375
3 .120 .216 3.500 .120 .216 .300 .300 .437
3 1/2 .120 .226 4.000 .120 .226 .318 .318
4 .120 .237 4.500 .120 .237 .337 .337 .531
4 1/2 .247 5.000 .355
5 .134 .258 5.563 .134 .258 .375 .375 .625
6 .134 .280 6.625 .134 .280 .432 .432 .718
7 .301 7.625 .500
8 .148 .322 8.625 .148 .322 .500 .500 .906
1/8 .049 .068 .405 .049 .068 .095 .095
1/4 .065 .088 .540 .065 .088 .119 .119
3/8 .065 .091 .675 .065 .091 .126 .126
1/2 .083 .109 .840 .083 .109 .147 .147 .187
3/4 .083 .113 1.050 .083 .113 .154 .154 .218
1 .109 .133 1.315 .109 .133 .179 .179 .250
1 1/4 .109 .140 1.660 .109 .140 .191 .191 .250
1 1/2 .109 .145 1.900 .109 .145 .200 .200 .281
9 .342 9.625 .500
10 .165 .365 10.750 .165 .365 .593 .500 1.125
11 .375 11.750 .500
12 .180 .375 12.750 .180 .406 .687 .500 1.312
14 .250 .375 14.000 .188 .437 .750 .500 1.406
16 .250 .375 16.000 .188 .500 .843 .500 1.593
18 .250 .375 18.000 .188 .562 .937 .500 1.781
