Hastelloy C276 pipe suppliers

Hastelloy C276 pipe suppliers in India

Check Alloy C276 seamless pipe specification and sizes as per ASME B36.19/ ASME SB622 standards

Table of Contents

Alloy C276 pipe in hot and cold drawn, Check ASTM B622 UNS N10276 welded pipes weight chart and dimension

Hastelloy c276 pipe specification

01

Seamless OD Sizes

0.25” – 6”

02

Welded OD Sizes

0.25” – 12”

03

ASTM Specification

ASTM B622, ASME SB622



04

Swg & Bwg

  • 12 Swg
  • 16 Swg
  • 14 Swg
  • 10 Swg
  • 20 Swg
  • 18 Swg

05

Testing

  • Micro and MacroTest
  • PMI Testing
  • Hardness Test
  • Flaring Test
  • Flattening Test
  • Pitting Resistance Test

06

Test Certificates

  • Raw Materials Certificate
  • EN 10204/3.1B
  • Third Party Inspection Report, etc
  • 100% Radiography Test Report



07

Processing

ERW, Seamless, welded

08

Services

Beveling, Threading, Welding

09

Trade names

Haynes C276, Nickelvac HC276, Alloy C-276, and Nicrofer 5716

Types of Alloy C276 pipe

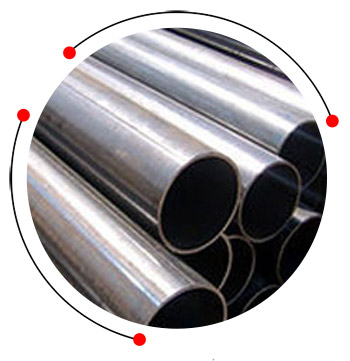

Hastelloy C276 pipe

Hastelloy C276 pipe

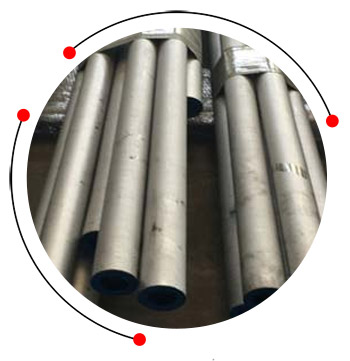

ASTM B622 UNS N10276 welded pipes

ASTM B622 UNS N10276 welded pipes

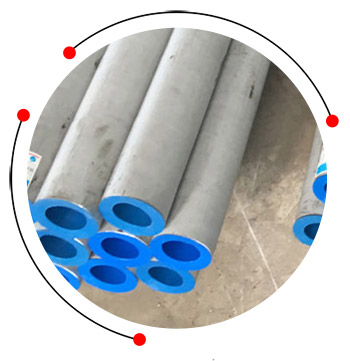

Hastelloy C276 seamless pipe

Hastelloy C276 seamless pipe

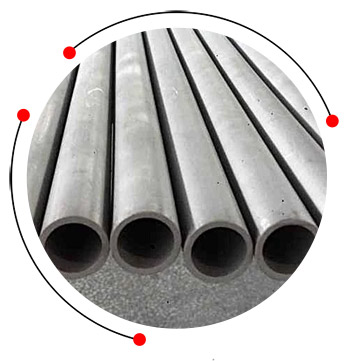

ASTM B619 N10276 ERW pipe

ASTM B619 N10276 ERW pipe

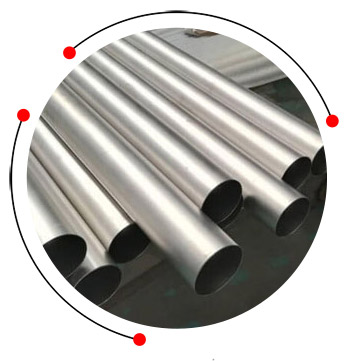

DIN 2.4819 round pipes

DIN 2.4819 round pipes

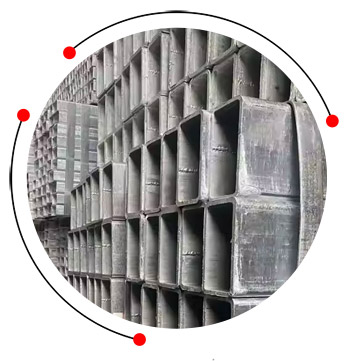

Nickel Alloy C276 rectangular pipe

Nickel Alloy C276 rectangular pipe

ASTM B622 UNS N10276 welded pipes weight chart

NPS Wall Thickness Weight Outside Diameter Weight
Sched in mm Lb/ft in mm kg/Mtr
6″ 0.188 4.775 12.924 6.625 168 19.252
0.219 5.563 14.983 22.318
0.250 6.350 17.021 25.354
0.203 5.516 13.923 20.739
0.312 7.925 21.036 31.334
40 STD 0.280 7.112 18.974 58.263
80 XHY 0.432 10.973 28.573 42.561
0.375 9.525 25.031 37.285
0.500 12.700 32.708 48.719
4″ 0.237 6.020 10.790 4.500 114 16.073
0.337 8.560 14.983 22.318
8″ 0.188 4.775 16.940 8.625 219 25.233
0.219 5.563 19.661 29.286
0.203 5.156 18.259 27.198
30 0.277 7.036 24.696 36.786
20 0.250 6.350 22.361 33.308
40 0.322 8.179 28.554 42.352
60 0.406 10.312 35.638 53.085
0.375 9.525 33.041 49.216
80 XHY 0.500 12.700 43.388 64.627
3/4″ 40 STD 0.113 2.870 1.131 1.050 27 1.684
80 STD 0.154 3.912 1.474 2.195
1/2″ 40 STD 0.109 2.769 0.851 0.840 21 1.268
80 STD 0.147 3.734 1.088 1.621
1 1/4″ 40 STD 0.140 3.556 2.273 1.660 42 3.385
80 STD 0.191 4.851 2.997 4.464
1″ 40 STD 0.133 3.378 1.679 1.315 33 2.501
80 STD 0.179 4.547 2.172 3.325
2″ 40 STD 0.154 3.912 3.653 2.375 60 5.441
80 STD 0.218 5.537 5.022 7.480
1 1/2″ 40 STD 0.145 3.683 2.718 1.900 48 4.048
80 STD 0.200 5.080 3.361 5.409
3″ 40 STD 0.216 5.486 7.576 3.500 89 11.284
80 STD 0.300 7.620 10.253 15.272
2 1/2″ 40 STD 0.203 5.516 5.793 2.875 73 8.629
80 STD 0.276 7.010 7.661 11.411
10″ 0.188 4.775 21.207 10.750 273 31.588
20 0.250 6.350 28.035 41.759
0.219 5.563 24.631 36.689
30 0.307 7.798 34.240 51.002
40 STD 0.365 9.271 40.483 63.301
0.344 8.738 38.231 56.946
60 XHY 0.500 12.700 54.735 81.530
0.438 11.125 48.238 71.852
80 0.594 15.088 64.429 95.969

Hastelloy c276 pipe dimensions

Sizes OD Wall Manufacture Method Specification
3/8 X .035 WA 0.3750 0.0350 Welded & Drawn ASTM B626 ASME SB626
.375 OD X .065 WA 0.3750 0.0360 Seamless & Drawn ASME SB622
.500 OD X .065W 0.5000 0.0650
3/8 X .035 WA 0.3750 0.0350
1/4 OD X .035 WA 0.2500 0.0350 Welded & Drawn ASTM B626 ASME SB626
.250 OD X .065W 0.2500 0.0650 Seamless & Drawn ASME SB622
1/2 X .035 WA 0.5000 0.0350
1/4 X .035 WA 0.2500 0.0350
1/2 X .035 WA 0.5000 0.0350 Welded & Drawn ASTM B626 ASME SB626
1/2 X .049 WA 0.5000 0.0490 Seamless & Drawn ASME SB622

Hastelloy C276 seamless pipe and ASTM B619 N10276 ERW pipe are available in sizes ranging from 1/8" to 16"

Hastelloy C276 seamless pipe sizes

kg/m Size mm kg/m Size mm
7.07 75 x 75 x 3.0 7.22 80 x 80 x 3.0
8.59 80 x 80 x 3.6 11.70 80 x 80 x 5.0
9.72 90 x 90 x 3.6 13.30 90 x 90 x 5.0
21.30 120 x 120 x 6.0 22.30 120 X 120 X 6.3
28.30 150 X 150 X 6.3 35.40 150 X 150 X 8.0
122.00 400 x 400 x 10 141.00 400 x 400 x 12
8.96 100 x 100 x 3.0 12.00 100 x 100 x 4.0
21.10 140 X 140 X 5.0 26.30 140 X 140 X 6.3
1.68 30 X 30 X 2.0 2.14 30 X 30 X 2.5
1.06 25 x 25 x 1.5 1.43 25 x 25 x 2.0
2.93 50 x 50 x 2.0 3.71 50 x 50 x 2.5
1.12 20 x 20 x 2.0 1.35 20 x 20 x 2.5
2.31 40 x 40 x 2.0 2.92 40 x 40 x 2.5
6.97 60 x 60 x 4.0 8.54 60 x 60 x 5.0
7.46 70 x 70 x 3.6 10.11 70 x 70 x 5.0
27.40 180 X 180 X 5 34.20 180 X 180 X 6.3
30.50 200 X 200 X 5 35.8 200 X 200 X 6
85.70 350 x 350 x 8 106.00 350 x 350 x 10
60.50 250 x 250 x 8 75.00 250 x 250 x 10
57.90 300 x 300 x 6.3 73.10 300 x 300 x 8

ASTM B619 N10276 ERW pipe standards

UNS: N10276
Specifications: ASTM B775,ASTM B619, ASTM B516, ASTM B622, ASTM B626
International Specifications: ISO 6207, DIN 17751, VdTüV 400/12.98

DIN 2.4819 round pipes application

Pharmaceutical Equipment Gas Processing Chemical Equipment
Heat Exchangers Pharmaceuticals Pulp and Paper Industry
Petrochemicals Specialty Chemicals Sea Water Equipment
Off-Shore Oil Drilling Companies Condensers Power Generation

Heat capacity of Nickel Alloy C276 rectangular pipe

Physical Property Metric Units British Units
Specific Heat RT 427 J/kg.°C RT 0.102 Btu/lb.°F
Check DIN 2.4819 round pipes and Nickel Alloy C276 rectangular pipe price per kg in Mumbai

Hastelloy c276 pipe price

Description Price in USD Price in Kilogram (INR)
Hastelloy C276 Pipe, Diameter: 1 Inch $ 23.23 ₹ 2000
C276 Hastelloy Pipes, For Drinking Water, Diameter: 3 Inch $ 2.32 ₹ 200
Hastelloy C276 Pipe,3 Inch For Utilities Water $ 52.27 ₹ 4500

Surface finish of Hastelloy C276 EFW pipe

CSI Surface Finish Code BPE Surface Finish Code Product Contact Surface Finish Treatment (ID) Non-Product Contact Surface Finish Treatment (OD) Tolerances & Dimensions (BPE) or (CSI) Non-Product Contact Surface (Max Ra) Product Contact Surface (Max Ra)*
PL SF1 Mechanical Polish/As Drawn Mechanical Polish BPE 32 µ-inch (0.81 µm) 20 µ-inch (0.51 µm)
P25 SF6 Electropolished Mechanical Polish BPE 32 µ-inch (0.81 µm) 25 µ-inch (0.64 µm)
PO SF5 Electropolished Mechanical Polish BPE 32 µ-inch (0.81 µm) 20 µ-inch (0.51 µm)
PU N/A Unpolished/Mill Unpolished/Mill CSI Mill Finish Mill Finish

ASME SB 619 UNS N10276 pipe tolerance chart

Alloy(s) O.D. Tol. (over(+)/under(-)) Spec. O.D., in.
C276 Seamless +0.004", -0.005" 0.250 to 0.500
From the Specified Wall Tolerance Wall Thickness is +/- 15%

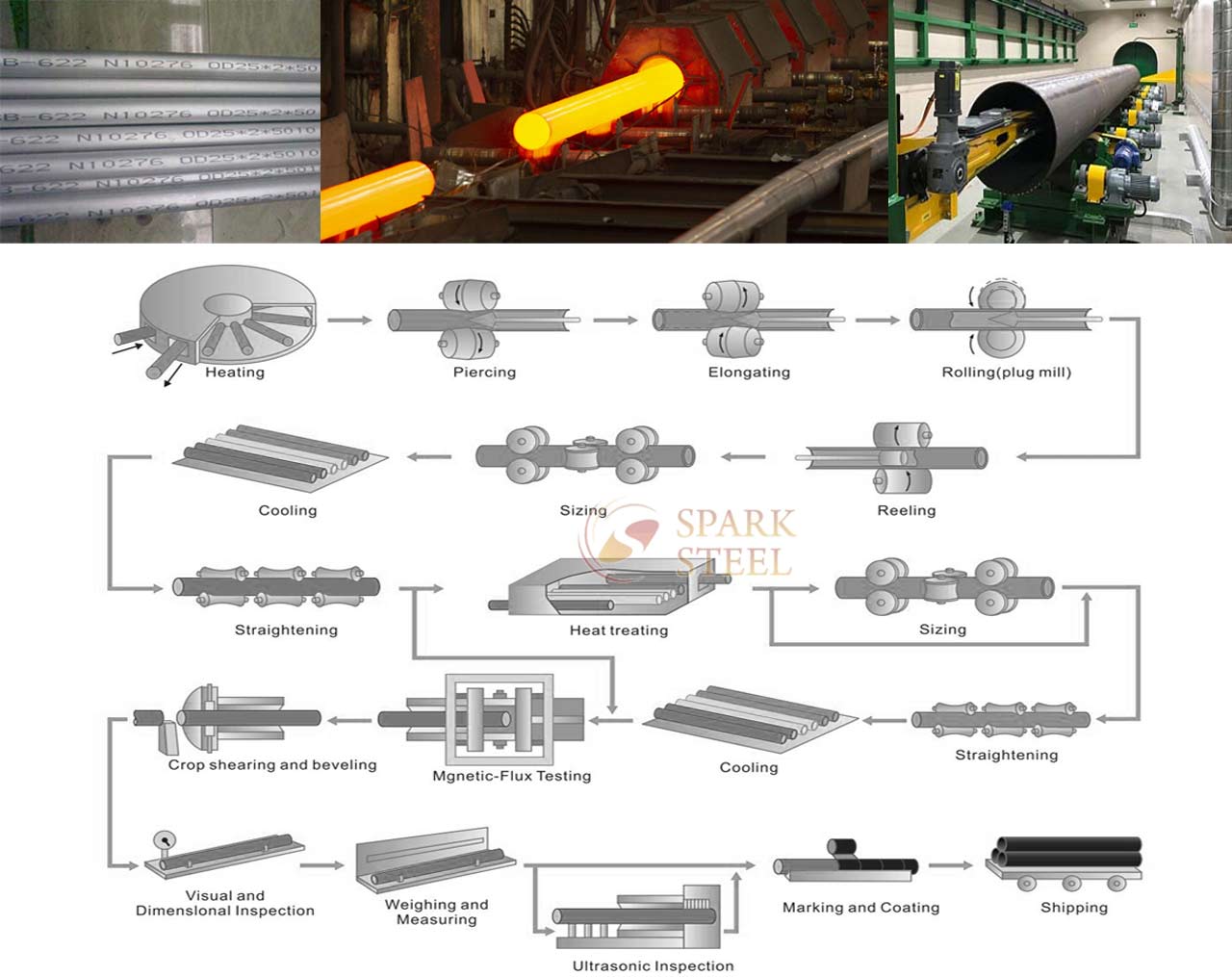

Manufacturing process of Alloy C276 pipe

>Manufacturing process of Alloy C276 pipe

Wnr 2.4819 welded pipe hsn code

Product HS Code
Alloy C276 75071200
Stockist of Hastelloy C276 EFW pipe and ASME SB 619 UNS N10276 pipe in India

Chemical composition of C276 hastelloy pipe

Grade Mn Si Ni C Mo Fe P S Co W Cr V
Hastelloy C276 1.0 max 0.08 max Balance 0.01 max 15–17 4–7 0.04 max 0.03 max 2.5 max 3–4.5 14.5–16.5 0.35 max

Mechanical properties of NW 0276 square pipe

Grade Tensile Strength Melting Point Density Yield Strength (0.2%Offset) Elongation
Alloy C276 Psi – 1,15,000 , MPa – 790 1370 °C (2500 °F) 8.89 g/cm3 Psi – 52,000 , MPa – 355 40 %

Nickel alloy c276 exhaust pipe equivalent grades

STANDARD OR UNS AFNOR WERKSTOFF NR. EN JIS GOST
Hastelloy C276 ЭП760 N10276 – 2.4819 NiMo16Cr15W NW 0276 ХН65МВУ

Werkstoff nr. 2.4819 annealed pipe physical properties

Temp Coeff. of
Expansiona 		Young’s Modulus Thermal Conductivity Electrical Resistivity
°F 10-6 in/in•°F 103 ksi Btu•in./ft2•h°F ohm•cmil/ft
200 6.8 29.5 77 743.8
100 - - 71 -
400 7.0 28.6 90 749.3
800 7.4 26.7 117 760.3
-100 - - 60 0
-270 - - 50 -
77 - 29.8 - 739.2
0 - - 65 -
600 7.2 27.8 104 757.7
1200 7.7 24.8 145 781.5
1000 7.5 25.7 132 772.5
2000 - 19.1 195 757.7
1600 8.5 22.0 173 768.3
1400 8.1 23.5 159 773.9
1800 - 20.6 185 766.2

Temperature range of Nickel c276 hot finished pipe

in/in/°F °F cm/cm°C °C
7.4 x 10-6 800 13.32 x 10-6 427
8.8 x 10-6 1600 15.8 x 10-6 871
8.2 x 10-6 1200 14.8 x 10-6 649
6.8 x 10-6 200 12.24 x 10-6 93
7.0 x 10-6 400 12.60 x 10-6 204
7.2 x 10-6 600 12.96 x 10-6 316
8.5 x 10-6 1400 15.3 x 10-6 760
7.8 x 10-6 1000 14.0 x 10-6 538
9.0 x 10-6 1700 16.2 x 10-6 927

Haynes alloy c276 cold drawn pipe thickness chart

NPS Wall Thickness Outside Diameter
in mm mm in
3″ 0.216 5.486 89 3.500
0.300 7.620
2 1/2″ 0.203 5.516 73 2.875
0.276 7.010
6″ 0.188 4.775 168 6.625
0.219 5.563
0.203 5.516
0.500 12.700
0.280 7.112
0.250 6.350
0.375 9.525
0.312 7.925
0.432 10.973
3/4″ 0.113 2.870 27 1.050
0.154 3.912
1/2″ 0.109 2.769 21 0.840
0.147 3.734
1 1/4″ 0.140 3.556 42 1.660
0.191 4.851
1″ 0.133 3.378 33 1.315
0.179 4.547
2″ 0.154 3.912 60 2.375
0.218 5.537
1 1/2″ 0.145 3.683 48 1.900
0.200 5.080
4″ 0.237 6.020 114 4.500
0.337 8.560
8″ 0.188 4.775 219 8.625
0.219 5.563
0.203 5.156
0.250 6.350

Pressure rating of Alloy c276 bright annealed pipe

OD Wall Thickness (Inches)
.065 .012 .010 .016 .035 .028 .020 .120 .049 .095 .083 .109
1/2 7,255 3,707 5,317 9,570
3/4 4,655 2,425 9,175 3,447 7,047 6,070 8,222
5/8 5,672 2,932 4,182 8,652 7,430
1/8 16,890 13,322 9,175
1/16 11,245 9,175 15,382 19,262
1 3,427 1,800 6,637 2,550 5,140 4,445 5,970
3/16 10,900 8,480 5,830 15,722
3/8 10,042 5,042 7,295
1/4 15,637 7,882 6,150 11,505
7/8 3,950 2,065 7,702 2,932 5,945 5,132 6,917

Alloy C276 pipe schedule chart

Schedule 5C Schedule 10S Schedule 80S Schedule 40S
Nominal O.D. (Inches) Nominal Pipe Size Wall (Inches) Pressure (PSI) Wall (Inches) Pressure (PSI) Wall (Inches) Pressure (PSI) Wall (Inches) Pressure (PSI)>
4 3 1/2 .083 3100 .12 4500 .226 8475
5.563 5 .109 2950 .134 3625 .258 6950
8.625 8 .109 1900 .148 2575 322 5600
24 24 .218 1375 .25 1550
6.625 6 .109 2475 .134 3050 .28 6350
.540 1/4 .065 18050 .119 33050 .088 24450
.405 1/8 .049 18150 .095 35175 .068 25175
.675 3/8 .065 14450 .126 28000 .091 20225
1.05 3/4 .065 9275 .083 11850 .154 2200 .113 16150
.84 1/2 .065 11600 .083 14825 .147 26250 .109 19475
1.315 1 .065 7425 .109 12450 .179 20425 .133 15175
1.900 1 1/2 .065 5125 .109 8600 .20 15800 .145 11450
1.66 1 1/4 .065 5875 .109 9850 .191 17250 .14 12650
2.875 2 1/2 .083 4325 .12 6250 .276 14400 .203 10600
2.375 2 .065 4100 .109 6875 .218 13775 .154 9750
3.5 3 .083 3550 .12 5150 .216 9250
4.5 4 .083 2750 .12 4000 .237 7900
1.75 10 .134 1875 .165 2300 .365 5100
14 14 .156 1675 .188 2025
12.75 12 .156 1825 .18 2125 .375 4400
18 18 .165 1375 .188 1575
16 16 .165 1550 .188 1775
20 20 .188 1400 .218 1625
30 30 .25 1250 .312 1550
