Hastelloy C22 pipe

Hastelloy C22 pipe manufacturer in India

ASTM B622 Alloy C22 seamless pipe supplier in India

Table of Contents

Looking for Alloy C22 pipe manufacturer In Mumbai? Check price and available sizes of ASME SB622 UNS N06022 welded pipes in Mumbai

Specification of Hastelloy C22 pipe

01

Manufacturing methods

Hot formed, Precision rolled, Cold drawn, Cold formed

02

Sizes

15NB TO 150 NB IN

03

Standard

ASME SB622, ASTM B622



04

Testing

PMI, Ultrasonic, Chemical, Mechanical

05

Coating

3LPE / FBE/ 3LPP/ DFBE/ PP

06

Trade name

Inconel 22, Nickel 22, Alloy 22, Nicrofer 5621

Alloy C22 pipe types

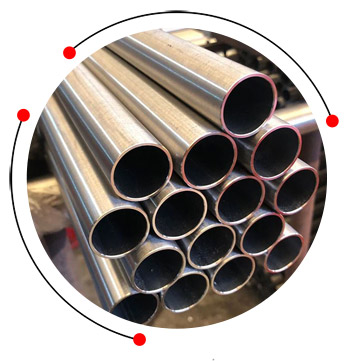

Hastelloy C22 pipe

Hastelloy C22 pipe

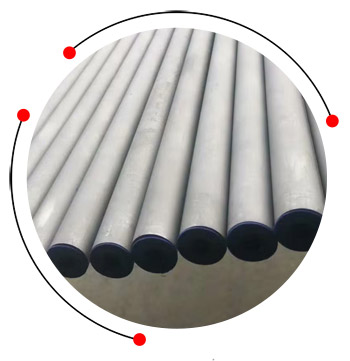

ASTM B622 Alloy C22 seamless pipe

ASTM B622 Alloy C22 seamless pipe

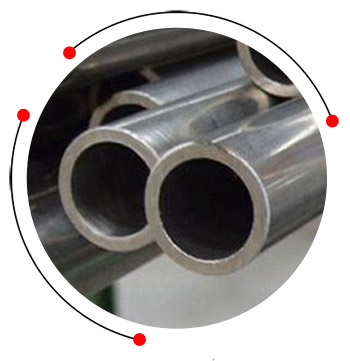

ASME SB622 UNS N06022 welded pipes

ASME SB622 UNS N06022 welded pipes

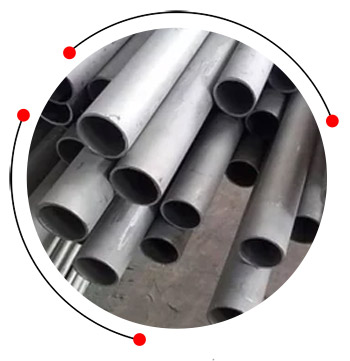

Nickel Alloy C22 ERW pipes

Nickel Alloy C22 ERW pipes

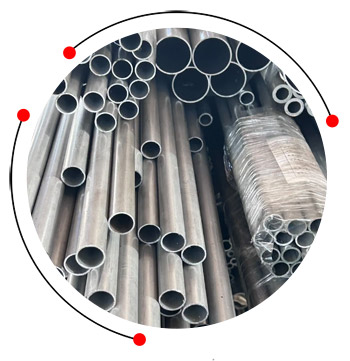

DIN 2.4602 EFW Pipe

DIN 2.4602 EFW Pipe

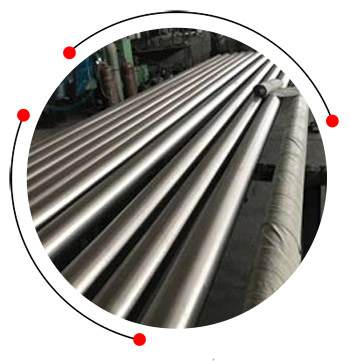

ASTM B619 C22 alloy round pipes

ASTM B619 C22 alloy round pipes

Hastelloy C22 pipe price list

Description Price in USD Price in Kilogram (INR)
Hastelloy C 22 Pipe, Size/Diameter: 1/2 Inch $ 46.46 ₹ 4,000
Alloy C22 Seamless Pipe, Size : Upto 10 Inches $ 23.23 ₹ 2,000

Hastelloy C22 seamless pipe and Nickel Alloy C22 ERW pipes with beveled, plain or threaded ends

ASTM B622 Alloy C22 seamless pipe sizes

OD (millimeter) Pipe WT(millimeter) Kg-meter inches Sch
88.90 3.05 6.56 3 10S
48.26 2.77 3.16 1½ 10S
13.72 1.65 0.50 1/4 10S
60.33 2.77 3.99 2 10S
88.90 5.49 11.47 3 40S
17.15 2.31 0.86 3/8 40S
88.90 7.62 15.51 3 80S
219.08 8.18 43.20 8 40S
26.67 2.11 1.30 3/4 10S
114.30 3.05 8.50 4 10S
42.16 2.77 2.73 1¼ 10S
33.40 4.55 3.29 1 80S
141.30 6.55 22.10 5 40S
60.33 3.91 5.52 2 40S
33.40 6.352 4.30 1 160
21.34 2.11 1.02 1/2 10S
17.15 3.20 1.12 3/8 80S
219.08 18.23 91.30 8 120
168.28 10.97 43.21 6 80S
219.08 23.012 112.97 8 160

ASME SB622 UNS N06022 welded pipes weight chart

OD WT Weight Weight
in milimeter Lb/ft mm kg/m
1.315 1″ 0.179 4.546 33 3.324
0.133 3.377 2.502
1.660 1 1/4″ 0.191 4.851 42 4.464
0.140 3.556 3.585
1.900 1 1/2″ 0.200 5.080 48 5.409
0.145 3.683 4.348
1.050 3/4″ 0.154 3.912 27 2.195
0.113 2.870 1.684
0.840 1/2″ 0.147 3.734 21 1.621
0.109 2.769 1.268
6.625 6″ 0.203 5.517 168 21.739
0.188 4.775 15.252
0.250 6.350 26.354
0.219 5.564 22.318
0.280 7.113 54.262
0.375 9.524 31.286
0.312 7.924 31.334
0.500 12.701 48.718
0.432 10.971 42.562

Heat treatment of Hastelloy C22 seamless pipe

Alloy Solution-annealing Temperature* Type of Quench
°F °C -
C-22 2050 1121 WQ or RAC

Nickel Alloy C22 ERW pipes pressure rating

Pipe O.D.
(in.) 		Wall Thk of Pipe (inches)
Working Pressure (psig)
.065 .028 .083 .035 .109 .049 .120 .095
3/8 6100 3100 4400
1/4 9500 3700 4800 7000
5/16 7300 3700 5400
1/8 7900 10100
3/4 3000 4000 2200 4600
1/2 4400 2300 3200
1 2200 2900 3900 4300 3400

DIN 2.4602 EFW pipe pre number

Alloy PREN INDEX PRE INDEX
22 46 65
View dimensions and specification of DIN 2.4602 EFW Pipe and ASTM B619 C22 alloy round pipes

ASTM B619 C22 alloy round pipes dimensions

Inch C22 Pipe Pipe (mm) SCH Kg/m
3/4 26.68 2.12 10S 1.30
1/4 13.72 3.02 80S 0.81
1/4 13.72 2.23 40S 0.64
1/4 13.72 1.64 10S 0.50
3/8 17.15 1.65 10S 0.64
3/8 17.15 3.20 80S 1.12
3/8 17.15 3.20 80S 1.12
1/2 21.34 3.73 80S 1.64
1/2 21.34 2.11 10S 1.02
1/2 21.34 2.77 40S 1.29
3/4 26.67 2.87 40S 1.71
3/4 26.66 3.91 80S 2.23
3/8 17.14 2.31 40S 0.85
1 33.40 3.37 40S 2.54
1 33.40 2.77 10S 2.13
1 33.40 6.352 160 4.30
1 33.41 4.55 80S 3.28
1¼ 42.16 3.56 40S 3.44
1¼ 42.16 2.76 10S 2.72

Hastelloy C22 pipe standards

UNS: N06022
International Specifications: DIN 17751, ISO 6207
Specifications: ASTM B619, B622, B775, B626, B516, B751

Schedule chart of Hastelloy C22 rectangular pipe

NPS DN mm OD inches (mm) XXS SCH 160 SCH 140 SCH 80s SCH 60 SCH 40/STD SCH 40s SCH 120 SCH 100 SCH 80 SCH 30 SCH 20 SCH 10 SCH 10s SCH 5 SCH 5s
10 250 10.75" (273.05) - 1.125" (28.575) 1.000" (25.400) 0.500" (12.700) 0.500" (12.700) 0.365" (9.271) 0.365" (9.271) 0.843" (21.412) 0.718" (18.237) 0.593" (15.062) 0.307" (7.798) 0.250" (6.350) 0.165" (4.191) 0.165" (4.191) 0.134" (3.404) 0.134" (3.404)
8 200 8.625" (219.08) - 0.906" (23.01) 0.812" (20.62mm) - 0.406" (10.312) 0.322" (8.179) - 0.718" (18.2 6mm) 0.593" (15.09) 0.500" (12.70) 0.277" (7.036) 0.250" (6.35) 0.148" (3.759) - 0.109" (2.769) -
6 150 6.625" (168.27) - 0.719" (18.263) - - - 0.280" (7.112) - 0.562" (14.27) - 0.432" (10.973) - - 0.134" (3.404) - 0.109" (2.769) -
5 125 5.563" (141.30) - 0.625 " (15.875) - - - 0.258" (6.553) - 0.500" (12.70) - 0.375" (9.525) - - 0.134" (3.404) - 0.109" (2.769) -
4½ 115 5.000" (127.00) - - - - - 0.247" (6.274) - - - 0.355" (9.017) - - - - - -
4 100 4.500" (114.30) - 0.531" (13.49) - - 0.281" (7.137) 0.237" (6.02) - 0.437" (11.13) - 0.337" (8.560) 0.188 in(4.775) - 0.120" (3.048) - 0.083" (2.108) -
3½ 90 4.000" (101.60) 0.636" (16.154) - - - - 0.226" (5.740) - - - 0.318" (8.077) 0.188" (4.775) - 0.120" (3.048) - 0.083" (2.108) -
20 500 20.00" (508.00) - 1.968" (49.987) 1.750" (44.450) 0.500" (12.700) 0.812" (20.625) 0.593" (15.062) 0.375" (9.525) 1.500" (38.100) 1.280" (32.512) 1.031" (26.187) 0.500" (12.700) 0.375" (9.525) 0.250" (6.350) 0.218" (5.537) 0.188" (4.775) 0.188" (4.775)
18 450 18.00" (457.20) - 1.781" (45.237) 1.562" (39.675) 0.500" (12.700) 0.750" (19.050) 0.562" (14.275) 0.375" (9.525) 1.375" (34.925) 1.156" (29.362) 0.937" (23.800) 0.437" (11.100) 0.312" (7.925) 0.250" (6.350) 0.188" (4.775) 0.165" (4.191) 0.165" (4.191)
16 400 16.00" (406.40) - 1.593" (40.462) 1.437" (36.500) 0.500" (12.700) 0.656" (16.662) 0.500" (12.700) 0.375" (9.525) 1.218" (30.937) 1.031" (26.187) 0.843" (21.412) 0.375" (9.525) 0.312" (7.925) 0.250" (6.350) 0.188" (4.775) 0.165" (4.191) 0.165" (4.191)
14 350 14.00" (355.60) - 1.406" (35.712) 1.250" (31.750) 0.500" (12.700) 0.593" (15.062) 0.437" (11.100) 0.375" (9.525) 1.093" (27.762) 0.937" (23.800) 0.750" (19.050) 0.375" (9.525) 0.312" (7.925) 0.250" (6.350) 0.188" (4.775) 0.156" (3.962) 0.156" (3.962)
12 300 12.75" (323.85) - 1.312" (33.325) 1.125" (28.575) 0.500" (12.700) 0.500" (12.700) 0.406" (10.312) 0.375" (9.525) 1.000" (25.400) 0.843" (21.412) 0.687" (17.450) 0.330" (8.382) 0.250" (6.350) 0.180" (4.572) 0.180" (4.572) 0.165" (4.191) 0.156" (3.962)
3 80 3.500" (88.90) 0.600" (15.240) 0.438" (11.13) - - - 0.216" (5.486) - 0.350" (8.890) - 0.300" (7.620) 0.188" (4.775) - 0.120" (3.048) - 0.083" (2.108) -
2½ 65 2.875" (73.02) 0.552" (14.021) 0.344" (8.738) - - - 0.203" (5.156) - 0.300" (7.620) - 0.276" (7.010) 0.188" (4.775) - 0.120" (3.048) - 0.083" (2.108) -
2 50 2.375" (60.33) 0.436" (11.074) 8.74mm - - - 0.154" (3.912) - 0.250" (6.350) - 0.218" (5.537) 0.125" (3.175) - 0.109" (2.769) - 0.065" (1.651) -
1½ 40 1.900" (48.26) 0.400" (10.160) 7.14mm - - - 0.145" (3.683) - - - 0.200" (5.080) 0.125" (3.175) - 0.109" (2.769) - 0.065" (1.651) -
1¼ 32 1.660" (42.16) 0.382" (9.703) 6.35mm - - - 0.140" (3.556) - - - 0.191" (4.851) 0.117" (2.972) - 0.109" (2.769) - 0.065" (1.651) -
½ 15 0.840" (21.34) 0.294" (7.47) 4.78mm - - - 0.109" (2.769) - - - 0.147" (3.734) - - 0.083" (2.108) - 0.065" (1.651) -
1 25 1.315" (33.40) 0.358" (9.093) 6.35mm - - - 0.133" (3.378) - - - 0.179" (4.547) 2.90mm - 0.109" (2.769) - 0.065" (1.651) -
¾ 20 1.050" (26.67) 0.308" (7.823) 5.56mm - - - 0.113" (2.870) - - - 0.154" (3.912) 2.41mm - 0.083" (2.108) - 0.065" (1.651) -
⅜ 10 0.675" (17.15) - - - - - 0.091" (2.311) - - - 0.126" (3.200) 0.073" (1.854) - 0.065" (1.651) - 0.049" (1.245) -
⅛ 6 0.405" (10.29) - - - - - 0.068" (1.727) - - - 0.095" (2.413) 0.057" (1.448) - 0.049" (1.245) - 0.035" (0.889) -

Alloy C22 square pipe gauge chart

Gauge No. U.S.G B.W.G
inch mm inch mm
15 0.0703 1.79 0.072 1.829
35 0.0078 0.198 0.005 0.127
16 0.0625 1.59 0.065 1.651
17 0.0563 1.43 0.058 1.473
24 0.0250 0.635 0.022 0.559
28 0.0156 0.396 0.014 0.356
12 0.1094 2.78 0.109 2.769
21 0.0344 0.873 0.032 0.813
20 0.0375 0.953 0.035 0.889
22 0.0313 0.794 0.028 0.711
10 0.1406 3.57 0.134 3.404
19 0.0438 1.11 0.042 1.067
29 0.0141 0.358 0.013 0.330
27 0.0172 0.437 0.016 0.406
30 0.0125 0.318 0.012 0.305
23 0.0218 0.714 0.025 0.635
11 0.1250 3.18 0.120 3.048
18 0.0500 1.27 0.049 1.245
34 0.0086 0.218 0.007 0.178
13 0.0938 2.38 0.095 2.413
31 0.0109 0.277 0.010 0.254
25 0.0219 0.556 0.020 0.508
33 0.0094 0.239 0.008 0.203
32 0.0102 0.259 0.009 0.229
26 0.0188 0.478 0.018 0.457
14 0.0781 1.98 0.083 2.108

Alloy C22 pipe hsn code

Hs Code Product
75062000 Alloy C22
View Hastelloy C22 rectangular pipe and Alloy C22 square pipe chemical composition and mechanical properties

Chemical composition of UNS N06022 clad pipe

Hastelloy C22 P C Fe Ni Co Mo Mn S Si Cr
0.04 max 0.01 max 4 – 7 Balance 2.5 max 15 – 17 1.0 max 0.03 max 0.08 max 14.5 – 16.5

Alloy C22 exhaust pipe mechanical properties

Element Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Density
Hastelloy c22 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 % 8.69 g/cm3

Nickel C22 annealed pipe equivalent grades

STANDARD JIS UNS EN GOST WERKSTOFF NR. OR
Hastelloy c22 NW 6022 N06022 NiCr21Mo14W – 2.4602 –

Nicrofer 5621 cold drawn pipe physical properties

1000°F 400°F 200°F 800°F 600°F 70°F
Thermal Expansion X10-6/°F 7.7 6.9 6.9 7.4 7 -
Density lbs/in3 - - - - - 0.314
Elastic Modulus 102 ksi 25.7 28.5 29.4 26.6 27.6 29.9
Poisson Ratio - - - - - - 0.3
Specific Heat Btu/lb·°F 0.118 0.106 0.101 0.114 0.111 0.098
Thermal Conductivity Btu-in/h·ft2·°F 139 94 76 125 110 69

Nickel Alloy C22 welded pipe surface finish

Code Finish Contact Surface of product
(Max Ra)* 		Contact Surface of Non-Product
(Max Ra)
-SF Sanitary Finish* Mill Finish
-PL 20 µ-inch (0.5 µm) 32 µ-inch (0.8 µm)
-PU Mill Finish Mill Finish
