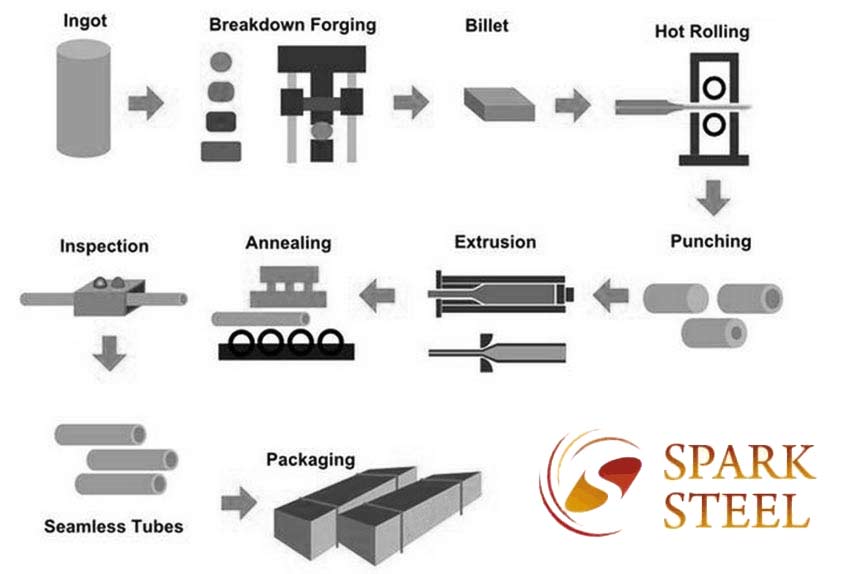

- Gr2 Titanium ERW pipes manufacturing process
- Schedule chart of Titanium Alloy Gr 2 EFW pipes
- CP Gr 2 square pipe temperature range
- Heat treatment of ASTM B338 UNS R50400 hexagonal pipe
- DIN 3.7035 hollow pipe elastic modulus
- Titanium Grade 2 pipe price
- Weight chart of Grade 2 Ti round pipe
- CP Ti Gr 2 welded pipe testing
- Ti Gr 2 seamless pipe corrosion resistance
- Titanium Grade 2 pipe sizes
- ASTM B861 Grade 2 rectangular pipe wall thickness
- Chemical composition of UNS R50400 exhaust pipe
- WNR 3.7035 annealed pipe mechanical properties
- Equivalent grade of ASME SB 861 Gr 2 hot finished pipe
- Physical properties of Titanium alloy Grade 2 cold finished pipe
- Grade 2 titanium pipe hs code
Grade 2 Titanium Pipe manufacturers in Mumbai. Check Titanium Grade 2 welded Pipe with EN 10204 3.1 and 3.2 test certificates
01
Cutting techniques
- Tapping
- Laser, Sawing
- Water-Jet
02
Seamless pipe size
- Outside Diameter: 4 219mm
- Wall Thickness:0.5 - 20mm
03
Welded pipe size
- Outside Diameter: 5.0 - 1219.2 mm
- Wall Thickness:0.5 - 20mm
04
Finish
Polished, Annealing, Bright
05
Benefits
- Good Weldability
- Excellent Corrosion Resistance
- High Strength
06
Method
Precision Rolled, Cold Formed, Hot Formed

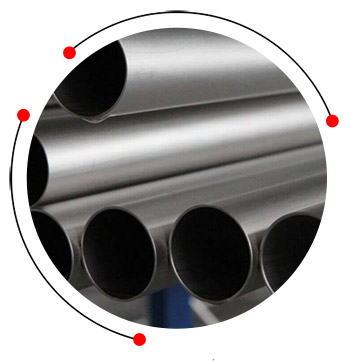

Titanium Grade 2 pipe

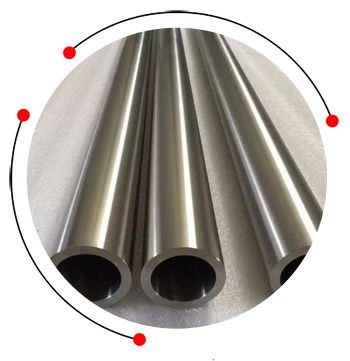

ASTM B337 UNS R50400 seamless pipe

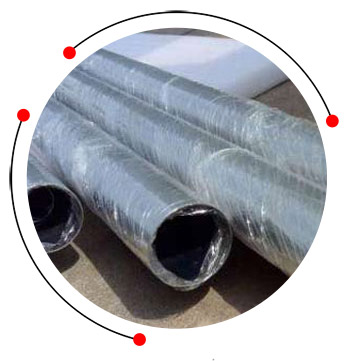

Grade 2 Titanium Pipe

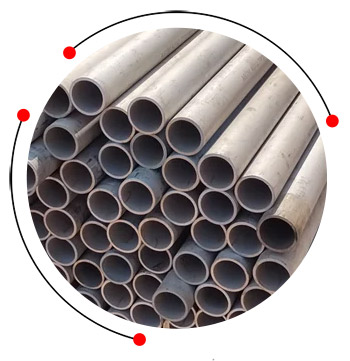

Titanium Grade 2 welded Pipe

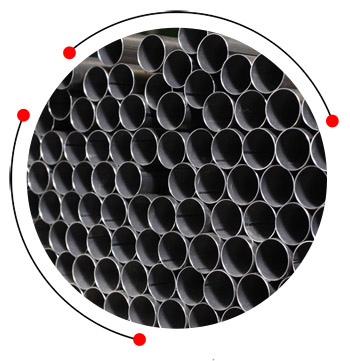

Gr2 Titanium ERW pipes

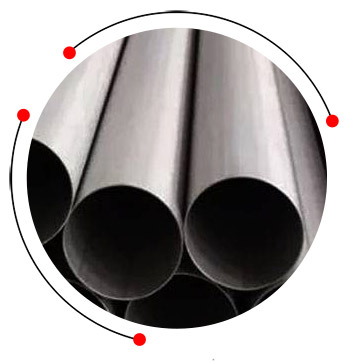

Titanium Alloy Gr 2 EFW pipes
Gr2 Titanium ERW pipes and Titanium Alloy Gr 2 EFW pipes in aerospace, marine, chemical industries
| Petrochemicals | Pharmaceuticals | Specialty Chemicals |
| Chemical Equipment | Pharmaceutical Equipment | Heat Exchangers |
| Power Generation | Off-Shore Oil Drilling Companies | Gas Processing |
| Sea Water Equipment | Pulp and Paper Industry | Condensers |
| UNS: | R50400 |
|---|---|
| Specifications: | ASME SB337, ASTM B337 / ASME SB338, ASTM B338 |
| International Specifications: | VdTÜV 230/2, NACE MRO 175-94 |
Cp Gr 2 square pipe and ASTM B338 UNS R50400 hexagonal pipe in schedule range of SCH 10, SCH 40, SCH 80, and SCH 160
| Nominal Pipe Size (NPS) | Schedule 10s (in) | Schedule 40 (in) | Outside Diameter (in) | Schedule 80 (in) | Schedule 160 (in) |
|---|---|---|---|---|---|
| 1/8" | 0.049 | 0.068 | 0.405 | 0.095 | - |
| 3" | 0.120 | 0.216 | 3.500 | 0.300 | 0.437 |
| 3 1/2" | 0.120 | 0.226 | 4.000 | 0.318 | - |
| 4" | 0.120 | 0.237 | 4.500 | 0.337 | 0.531 |
| 5" | 0.134 | 0.258 | 5.563 | 0.375 | 0.625 |
| 6" | 0.134 | 0.280 | 6.625 | 0.432 | 0.718 |
| 8" | 0.148 | 0.322 | 8.625 | 0.500 | 0.906 |
| 10" | 0.165 | 0.365 | 10.750 | 0.593 | 1.125 |
| 1/4" | 0.065 | 0.088 | 0.540 | 0.119 | - |
| 3/8" | 0.065 | 0.091 | 0.675 | 0.126 | - |
| 1/2" | 0.083 | 0.109 | 0.840 | 0.147 | 0.187 |
| 3/4" | 0.083 | 0.113 | 1.050 | 0.154 | 0.218 |
| 1" | 0.109 | 0.133 | 1.315 | 0.179 | 0.250 |
| 1 1/4" | 0.109 | 0.140 | 1.660 | 0.191 | 0.250 |
| 1 1/2" | 0.109 | 0.145 | 1.900 | 0.200 | 0.281 |
| 2" | 0.109 | 0.154 | 2.375 | 0.218 | 0.343 |
| 2 1/2" | 0.120 | 0.203 | 2.875 | 0.276 | 0.375 |
| 12" | 0.180 | 0.406 | 12.750 | 0.687 | 1.312 |
| 14" | 0.188 | 0.437 | 14.000 | 0.750 | 1.406 |
| 16" | 0.188 | 0.500 | 16.000 | 0.843 | 1.593 |
| 18" | 0.188 | 0.562 | 18.000 | 0.937 | 1.781 |
The Temperature Range for Titanium Grade 2 is Upto 540°C.
| Anneal | 1290°F (700°C) 1 hour / Air Cool |
|---|---|
| Stress Relieve | 932°F (500°C) 30 mins / Air Cool |
| Elastic Modulus | psi | GPa |
|---|---|---|
| Tension (E) | 15.0 x 106 | 103 |
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| Titanium Grade 2 Round Pipe, Wall Thickness 0.5 mm To 6 mm | $ 23.36 | ₹ 2,000 |
| Grade 2 Titanium Pipe, Size/Diameter: 1/2 to 4 Inch | $ 6.13 | ₹ 525 |
DIN 3.7035 hollow pipe and Grade 2 Ti round pipe weight chart available for different sizes and wall thicknesses
| NPS | OD (in) | Schedule | Weight (kg/m) | Wall Thickness (in) | Weight (lb/ft) |
|---|---|---|---|---|---|
| 1″ | 1.315 | 80 STD | 3.325 | 0.179 | 2.172 |
| 1¼″ | 1.660 | 40 STD | 3.385 | 0.140 | 2.273 |
| 1¼″ | 1.660 | 80 STD | 4.464 | 0.191 | 2.997 |
| 1/2″ | 0.840 | 40 STD | 1.268 | 0.109 | 0.851 |
| 1/2″ | 0.840 | 80 STD | 1.621 | 0.147 | 1.088 |
| 3/4″ | 1.050 | 40 STD | 1.684 | 0.113 | 1.131 |
| 3/4″ | 1.050 | 80 STD | 2.195 | 0.154 | 1.474 |
| 1″ | 1.315 | 40 STD | 2.501 | 0.133 | 1.679 |
| 1½″ | 1.900 | 40 STD | 4.048 | 0.145 | 2.718 |
| 1½″ | 1.900 | 80 STD | 5.409 | 0.200 | 3.361 |
| 2″ | 2.375 | 40 STD | 5.441 | 0.154 | 3.653 |
| 2″ | 2.375 | 80 STD | 7.480 | 0.218 | 5.022 |
- Flattening Test
- Chemical Analysis – Spectro Analysis
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Hardness Test
- Positive Material Identification – PMI Testing
- Flaring Test
- Mechanical Testing Such as Tensile of Area
- Micro and MacroTest
| Type of Corrosion | Resistance Level |
|---|---|
| Sea Water | Excellent |
| Acetic Acid | Excellent |
| Sodium Hydroxide | Moderate |
| Humidity | Excellent |
| Sulfuric Acid | Moderate |
| Sour Oil / Gas | Moderate |
| Salt Spray (NaCl) | Excellent |
| NPS | WT | OD | ||
|---|---|---|---|---|
| mm | inch | mm | inch | |
| 12" | 4.775 | 0.188 | 324 | 12.750 |
| 10" | 4.775 | 0.188 | 273 | 10.750 |
| 14" | 4.775 | 0.188 | 356 | 14.000 |
| 18" | 5.563 | 0.219 | 457 | 18.000 |
| 16” | 4.775 | 0.188 | 406 | 16.000 |
| 20" | 6.350 | 0.250 | 508 | 20.000 |
| 30" | 6.350 | 0.250 | 762 | 30.000 |
| 24" | 6.350 | 0.250 | 610 | 24.000 |
| 36" | 6.350 | 0.250 | 914 | 36.000 |
| 3/4" | 2.870 | 0.113 | 27 | 1.050 |
| 1 1/4" | 3.556 | 0.140 | 42 | 1.660 |
| 1" | 3.378 | 0.133 | 33 | 1.315 |
| 1 1/2" | 3.683 | 0.145 | 48 | 1.900 |
| 1/2" | 2.769 | 0.109 | 21 | 0.840 |
| 2 1/2" | 5.516 | 0.203 | 73 | 2.875 |
| 2" | 3.912 | 0.154 | 60 | 2.375 |
| 3" | 5.486 | 0.216 | 89 | 3.500 |
| 6" | 4.775 | 0.188 | 168 | 6.625 |
| 4" | 6.020 | 0.237 | 114 | 4.500 |
| 8" | 4.775 | 0.188 | 219 | 8.625 |
| 48" | 9.525 | 0.375 | 1219 | 48.000 |
| 42" | 7.925 | 0.312 | 1067 | 42.000 |
| NB | O.D. Inches | 40 | 40s & Std | 10 | 160 | 80 | 80s & E.H. | 10s |
|---|---|---|---|---|---|---|---|---|
| 3 1/2 | 4.000 | .226 | .226 | .120 | - | .318 | .318 | .120 |
| 4 1/2 | 5.000 | - | .247 | - | - | - | .355 | - |
| 6 | 6.625 | .280 | .280 | .134 | .718 | .432 | .432 | .134 |
| 5 | 5.563 | .258 | .258 | .134 | .625 | .375 | .375 | .134 |
| 7 | 7.625 | - | .301 | - | - | - | .500 | - |
| 9 | 9.625 | - | .342 | - | - | - | .500 | - |
| 8 | 8.625 | .322 | .322 | .148 | .906 | .500 | .500 | .148 |
| 10 | 10.750 | .365 | .365 | .165 | 1.125 | .593 | .500 | .165 |
| 12 | 12.750 | .406 | .375 | .180 | 1.312 | .687 | .500 | .180 |
| 1/4 | .540 | .088 | .088 | .065 | - | .119 | .119 | .065 |
| 1/2 | .840 | .109 | .109 | .083 | .187 | .147 | .147 | .083 |
| 3/8 | .675 | .091 | .091 | .065 | - | .126 | .126 | .065 |
| 3/4 | 1.050 | .113 | .113 | .083 | .218 | .154 | .154 | .083 |
| 1 1/4 | 1.660 | .140 | .140 | .109 | .250 | .191 | .191 | .109 |
| 1 | 1.315 | .133 | .133 | .109 | .250 | .179 | .179 | .109 |
| 1 1/2 | 1.900 | .145 | .145 | .109 | .281 | .200 | .200 | .109 |
| 1/8 | .405 | .068 | .068 | .049 | - | .095 | .095 | .049 |
| 2 1/2 | 2.875 | .203 | .203 | .120 | .375 | .276 | .276 | .120 |
| 2 | 2.375 | .154 | .154 | .109 | .343 | .218 | .218 | .109 |
| 3 | 3.500 | .216 | .216 | .120 | .437 | .300 | .300 | .120 |
| 4 | 4.500 | .237 | .237 | .120 | .531 | .337 | .337 | .120 |
| 11 | 11.750 | - | .375 | - | - | - | .500 | - |
| 14 | 14.000 | .437 | .375 | .250 | 1.406 | .750 | .500 | .188 |
| 18 | 18.000 | .562 | .375 | .250 | 1.781 | .937 | .500 | .188 |
| 16 | 16.000 | .500 | .375 | .250 | 1.593 | .843 | .500 | .188 |
| Ti Gr 2 | C | N | Ti | Fe | O | H | V | Al |
|---|---|---|---|---|---|---|---|---|
| 0.1 max | 0.03 max | 99.2 min | 0.3 max | 0.25 max | 0.015 max | – | – |
| Property | English | Metric |
|---|---|---|
| Tensile Strength, min | 50 ksi | 345 MPa |
| Yield Strength (0.2% Offset), min | 40 ksi | 275 MPa |
| Reduction of Area, min | 30% | |
| Elongation in 4D, min | 20 % | |
| STANDARD | Specifications | WERKSTOFF NR. | UNS |
|---|---|---|---|
| Titanium Gr. 2 Pipe | ASME SB-265, AMS 4902 | W. NR. 3.7035, W. NR. 3.7034 | R50400 |
| Property | English Value | SI Value |
|---|---|---|
| Density | 0.163 lb/in3 | 4.51 g/cm3 |
| Beta Transus | 1680 °F | 915 °C |
| Thermal Conductivity | 12.60 Btu / (hr ft °F) | 21.79 W / (m °K) |
| Electrical Resistivity | 21 µΩ*in | 0.53 µΩ*m |
| Magnetic Permeability | Nonmagnetic | Nonmagnetic |
| Material | HS code |
|---|---|
| Grade 2 Ti | 81089090 |
