We are certified SS 304 T profile manufacturer in India
Table of Contents
SS decorative T profile and Stainless steel T profile with mirror and brushed finishes
01
Size of profile
T6 - T25
02
Length
8 feet, 10 Feet
03
Color
Gold, Black, Rose Gold, Bronze
04
Material
304/316 Stainless Steel
05
Thickness
0.3 MM to 3 MM
06
Surface Finish
Mirror, Etching, Hairline, Bead Blast, Embossed, Vibration Finish

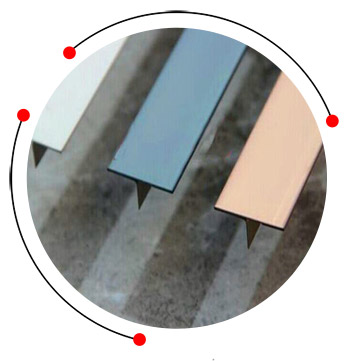

Stainless steel decorative T profile

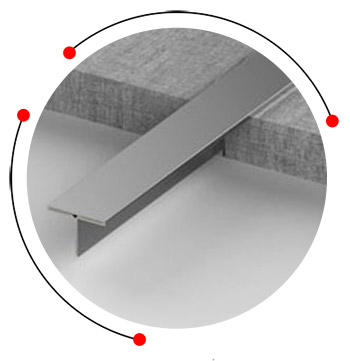

SS decorative T profile

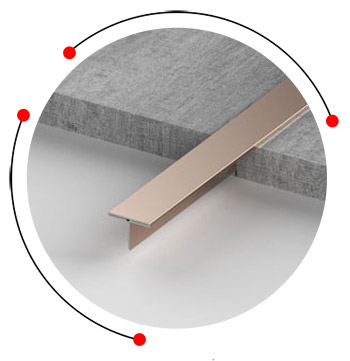

Stainless steel T profile

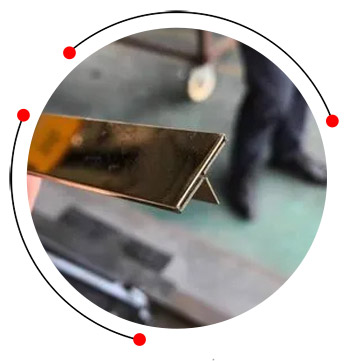

SS 304 T profile

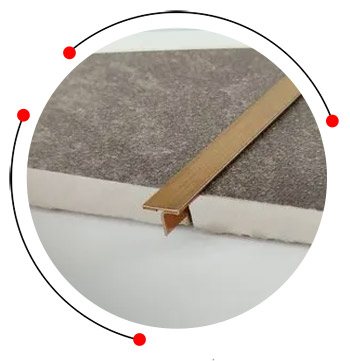

Stainless steel inlay T patti

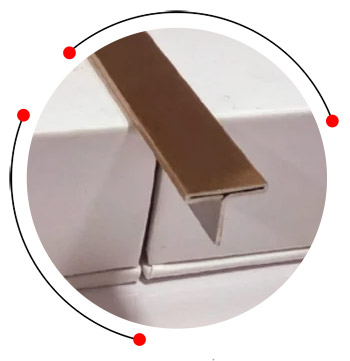

SS T profile
Stainless steel inlay T patti and SS T profile available from 6mm to 100mm dimensions
- Preparing the Surface
- Measuring and Marking
- Cutting the Profile
- Securing the Profile in Place

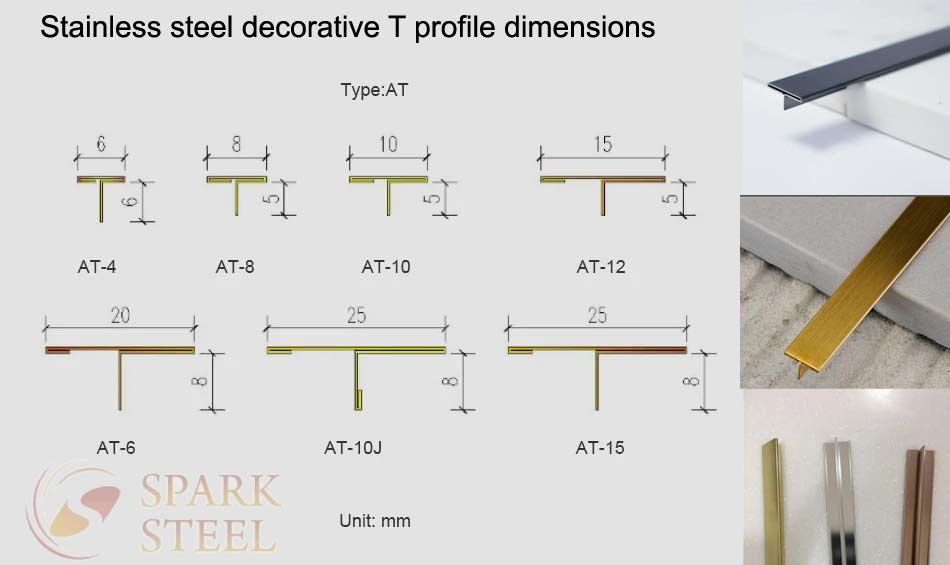

| Top Width (mm) | Thickness (mm) | Vertical Leg Height (mm) |
|---|---|---|
| 6 | 0.8 | 10 |
| 10 | 1.0 | 12 |
| 15 | 1.2 | 15 |
| 20 | 1.5–2.0 | 20 |
Stainless steel T patti and SS 316 decorative T profile available in gold and black color
| Element | SS304 | SS316 |
|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Chromium (Cr) | 18–20% | 16–18% |
| Nickel (Ni) | 8–10.5% | 10–14% |
| Molybdenum (Mo) | — | 2–3% |
| Manganese (Mn) | ≤ 2% | ≤ 2% |
| Silicon (Si) | ≤ 1% | ≤ 1% |
Decorative stainless steel T profile and T shaped ss profiles are used for Exterior and Interior designing
| Property | SS304 | SS316 |
|---|---|---|
| Tensile Strength | 515–750 MPa | 515–760 MPa |
| Yield Strength | 205 MPa | 205 MPa |
| Elongation | 40% | 40% |
| Hardness (HRB) | ≤ 90 | ≤ 95 |
| Standard | SS304 | SS316 |
|---|---|---|
| UNS | S30400 | S31600 |
| EN | 1.4301 | 1.4401 / 1.4404 |
| JIS | SUS304 | SUS316 |
| ASTM | 304 | 316 |
| Category | T Profile (T-Shaped) | U Profile (Channel / U-Shaped) |
|---|---|---|
| Cross-Section | T-shaped | U or channel-shaped |
| Strength Direction | Stronger in vertical support | Stronger in edge protection and lateral support |
| Structural Role | Used as dividers or light support | Used for framing, guiding, edge holding |
| Load Bearing | Light to medium | Medium strength |
| Applications | Joint line between panels or tiles | Capping edges, tracks, frames, panel supports |
| Installation Method | Insert between two materials | Material slides into the channel |
| Typical Material | SS304 or SS316 (for corrosion resistance) | SS304 or SS316 |
| Thickness Range | Usually 0.8mm – 2.0mm | 0.6mm – 2.5mm depending on use |
- Gold
- Rose Gold
- Champagne
- Black
- Bronze / Copper
- Silver
- Blue (custom)
- Many size and color options
- High corrosion resistance
- Elegant, modern joint finish
- Durable in wet and dry interiors
- Easy to install
Yes! Manufacturers offer custom PVD finishes, colors, and textures for bulk orders.
