Stainless steel decorative L profile

Stainless steel decorative L profile manufacturer in India

ISO certified SS 304 L profile manufacturer in India

Table of Contents

Custom length SS L profile and Stainless steel L shape profile in 8ft, 10ft & 12ft sizes

Specification chart of stainless steel decorative L profile

01

Grade

SS 304, SS 316 & SS 202

02

Thickness

0.6 ~ 2.0 mm

03

Sizes

10×10, 20×20, 25×25, 30×30, 50×50



04

Color

Silver, Rose Gold, Gold, Black, Champagne, Bronze, Antique

05

Surface Finish

Mirror, Etching, Hairline, Embossed, Bead Blast

06

Length

2440mm | 3050mm

SS L profile types

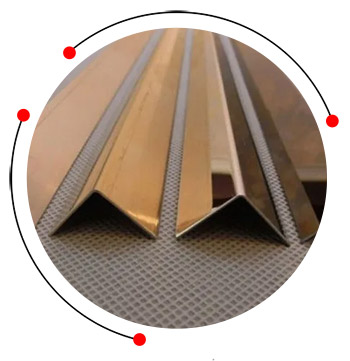

Stainless steel decorative L profile

Stainless steel decorative L profile

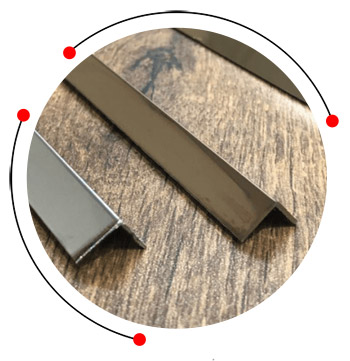

SS L profile

SS L profile

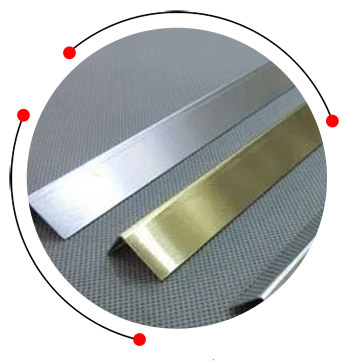

SS 304 L profile

SS 304 L profile

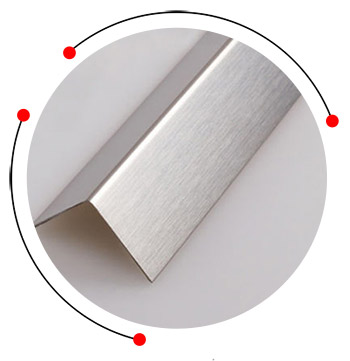

Stainless steel L shape profile

Stainless steel L shape profile

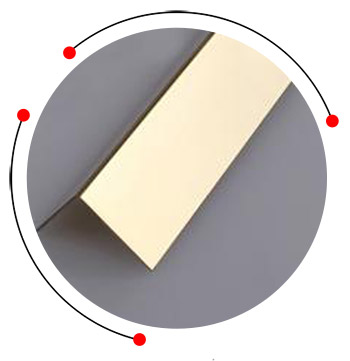

SS decorative L profile

SS decorative L profile

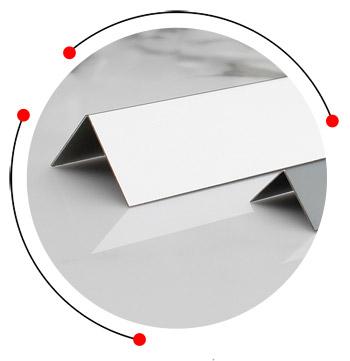

Stainless steel L profile trim

Stainless steel L profile trim

SS 304 L profile sizes

Size (mm) Thickness Range (mm)
10 × 10 0.5 – 1.0
15 × 15 0.6 – 1.0
20 × 20 0.8 – 1.2
25 × 25 1.0 – 1.5
30 × 30 – 50 × 50 1.0 – 2.0

SS decorative L profile and Stainless steel L profile trim for residential, commercial & industrial applications

Stainless steel L shape profile application

  • Edge Protection
  • Decorative Trim
  • Floor and Wall Transitions
  • Framing
  • Hygienic Surfaces
  • Structural Support

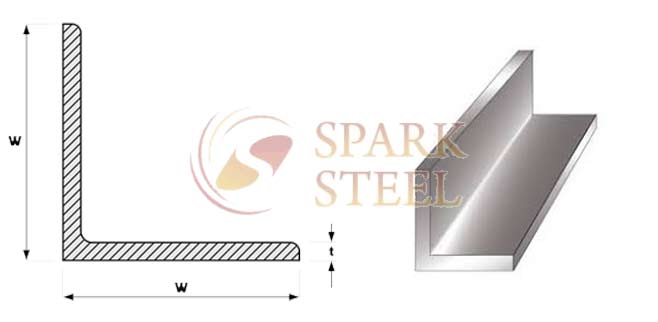

SS decorative L profile dimensions

SS decorative L profile dimensions



Size (mm) Weight (kg/m) Thickness (mm)
20 x 20 0.89 3
25 x 25 1.12 3
30 x 30 1.36 3
35 x 35 2.09 4
40 x 40 1.84 3
40 x 40 2.42 4
45 x 45 3.38 5
50 x 50 3.06 4
50 x 50 3.77 5
60 x 60 4.58 5
60 x 60 5.42 6
70 x 70 7.38 7
80 x 80 9.66 8
90 x 90 12.2 9
100 x 100 15.1 10
120 x 120 21.6 12
SS 304 L shape profiles and Stainless steel L profile with mirror, brushed & pvd coatings

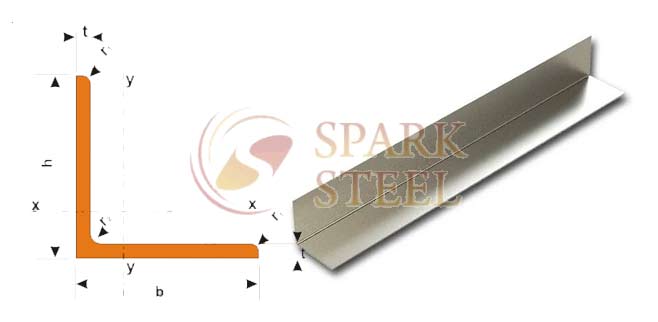

Weight chart of stainless steel L profile trim

Weight chart of stainless steel L profile trim



Nominal dimensions Cross-section Section properties, static data

Nominal weight 1m
mm A Ix=Iy Wx=Wy ix=iy
h=b
 t r2 r1 d cm2 cm4 cm3 cm kg/m
15 3 3,5 2,0 ? 0,82 0,15 0,15 0,43 0,64
20 3,0 3,5 2,0 0,6 1,11 0,40 0,28 0,59 0,88
25 3,0 3,5 2,0 0,7 1,41 0,79 0,45 0,75 1,11
25 4,0 3,5 2,0 0,8 1,84 1,01 0,58 0,74 1,45
25 5,0 3,5 2,0 0,8 2,27 1,20 0,71 0,75 1,78
30 3,0 5,0 2,5 0,8 1,73 1,41 0,65 0,90 1,36
30 4,0 5,0 2,5 0,9 2,26 1,81 0,85 0,89 1,78
30 5,0 5,0 2,5 0,9 2,78 2,16 1,04 0,88 2,18
35 3,0 5,0 2,5 1,0 2,03 2,30 0,90 1,06 1,60
35 3,5 5,0 2,5 1,0 2,35 ? 1,05 1,05 1,85
35 4,0 5,0 2,5 1,0 2,66 2,96 1,18 1,05 2,09
35 5,0 5,0 2,5 1,0 3,28 3,56 1,45 1,04 2,57
40 3,0 6,0 3,0 1,1 2,34 3,46 1,18 1,21 1,84
40 4,0 6,0 3,0 1,1 3,07 4,49 1,55 1,20 2,42
40 5,0 6,0 3,0 1,2 3,78 5,45 1,91 1,19 2,97
40 6,0 6,0 3,0 1,2 4,48 6,31 2,26 1,19 3,52
45 3,0 7,0 3,5 1,2 2,66 4,96 1,49 1,36 2,09
45 4,0 7,0 3,5 1,2 3,49 6,47 1,97 1,36 2,75
45 4,5 7,0 3,5 1,3 3,89 7,17 2,21 1,36 3,06
45 5,0 7,0 3,5 1,3 4,30 7,88 2,44 1,35 3,39
45 6,0 7,0 3,5 1,3 5,09 9,16 2,88 1,34 4,00
45 7,0 7,0 3,5 ? 5,86 10,70 3,31 1,33 4,60
50 3,0 7,0 3,5 1,3 2,96 6,86 1,86 1,52 2,33
50 4,0 7,0 3,5 1,4 3,89 9,01 2,47 1,52 3,07
50 5,0 7,0 3,5 1,4 4,80 11,00 3,05 1,51 3,77
50 6,0 7,0 3,5 1,4 5,69 12,90 3,62 1,50 4,47
50 7,0 7,0 3,5 1,5 6,57 14,60 4,15 1,49 5,15
50 8,0 7,0 3,5 1,5 7,41 16,30 4,68 1,48 5,82
50 9,0 7,0 3,5 ?. 8,24 17,90 5,20 1,47 6,47
55 5,0 8,0 4,0 1,5 5,31 14,80 3,71 1,66 4,18
55 6,0 8,0 4,0 1,6 6,30 17,40 4,40 1,65 4,95
55 8,0 8,0 4,0 ? 8,23 22,10 5,72 1,64 6,45
60 4,0 8,0 4,0 1,6 4,71 15,80 3,58 1,83 3,70
60 5,0 8,0 4,0 1,6 5,84 19,40 4,45 1,82 4,57
60 6,0 8,0 4,0 1,7 6,90 22,90 5,25 1,81 5,42
60 8,0 8,0 4,0 1,8 9,02 29,20 6,90 1,79 7,09
60 10,0 8,0 4,0 1,9 11,10 34,90 8,41 1,78 8,69
65 6,0 9,0 4,5 1,8 7,52 29,30 6,23 1,97 5,91
65 7,0 9,0 4,5 1,9 8,70 33,40 7,18 1,96 6,83
65 8,0 9,0 4,5 1,9 9,84 37,60 8,14 1,95 7,73
65 9,0 9,0 4,5 ? 11,00 41,30 9,04 1,94 8,62
70 6,0 9,0 4,5 1,9 8,14 36,90 7,27 2,13 6,39
70 7,0 9,0 4,5 2,0 9,41 42,40 8,43 2,12 7,39
70 8,0 9,0 4,5 2,0 10,66 47,50 9,49 2,10 8,41
70 9,0 9,0 4,5 2,1 11,90 52,60 10,60 2,10 9,34
70 10,0 9,0 4,5 2,09 13,10 57,20 11,70 2,09 10,30
75 6,0 9,0 4,5 2,1 8,73 45,80 8,41 2,28 6,85
75 7,0 9,0 4,5 2,1 10,10 52,40 9,67 2,28 7,94
75 8,0 9,0 4,5 2,1 11,50 58,90 11,00 2,26 9,03
75 10,0 10,0 5,0 ? 14,10 71,40 13,50 2,25 11,10
80 6,0 10,0 5,0 2,2 9,34 56,00 9,59 2,44 7,34
80 8,0 10,0 5,0 2,3 12,26 72,50 12,60 2,43 9,63
80 10,0 10,0 5,0 2,3 15,10 87,70 15,50 2,40 11,86
90 6,0 11,0 5,0 2,4 10,54 80,90 12,30 2,77 8,28
90 7,0 11,0 5,0 2,5 12,24 92,50 14,30 2,75 9,60
90 8,0 11,0 5,0 2,5 13,86 105,20 16,20 2,75 10,89
90 9,0 11,0 5,0 2,5 15,52 115,80 17,93 2,73 12,20
90 10,0 11,0 5,0 2,6 17,10 128,10 19,90 2,73 13,43
90 11,0 12,0 6,0 ? 18,70 138,00 21,60 2,72 14,20
90 12,0 12,0 6,0 2,7 20,30 148,00 23,30 2,70 15,90
100 6,0 12,0 6,0 2,6 11,79 111,00 15,10 3,07 9,26
100 8,0 12,0 6,0 2,7 15,51 145,00 20,00 3,06 12,18
100 10,0 12,0 6,0 2,8 19,15 177,00 24,70 3,04 15,04
100 12,0 12,0 6,0 2,9 22,71 207,00 29,20 3,01 17,83
100 15,0 12,0 6,0 3,0 ? 249,00 35,60 2,98 21,90
110 8,0 12,0 6,0 3,0 17,11 196,00 24,40 3,38 13,43
110 10,0 12,0 6,0 3,1 21,15 239,00 30,20 3,36 16,61
110 12,0 13,0 6,5 ? 25,14 279,10 35,54 3,33 19,70
120 8,0 13,0 6,5 3,2 18,74 256,00 29,20 3,69 14,71
120 10,0 13,0 6,5 3,3 23,18 314,00 36,10 3,67 18,20
120 11,0 13,0 6,5 ? 25,37 340,60 39,41 3,66 19,90
120 12,0 13,0 6,5 3,4 27,54 368,00 42,80 3,65 21,62
120 13,0 13,0 6,5 ? 29,69 394,00 46,01 3,64 23,30
120 15,0 13,0 6,5 3,5 33,96 444,90 52,43 3,62 26,60
130 12,0 14,0 7,0 3,6 29,97 473,00 50,50 3,97 23,53
130 14,0 14,0 7,0 3,7 34,65 541,00 58,30 3,95 27,20
140 10,0 15,0 7,5 3,8 27,24 506,00 49,50 4,30 21,38
140 12,0 15,0 7,5 3,9 32,40 596,00 58,70 4,28 25,44
140 13,0 15,0 7,5 ? 34,95 568,50 63,37 4,27 27,40
140 14,0 15,0 7,5 4,0 37,48 683,00 68,00 4,26 29,42
150 10,0 16,0 8,0 4,0 29,27 624,00 56,91 4,62 23,00
150 12,0 16,0 8,0 4,1 34,83 736,90 67,75 4,60 27,30
150 14,0 16,0 8,0 ? 40,31 845,40 78,33 4,58 31,60
150 15,0 16,0 8,0 4,3 43,02 898,10 83,52 4,57 33,80
150 18,0 16,0 8,0 4,4 51,03 1050,00 98,74 4,54 40,01
160 10,0 17,0 8,5 4,3 31,31 763,00 65,00 4,93 24,58
160 12,0 17,0 8,5 4,4 37,27 902,00 77,50 4,91 29,26
160 14,0 17,0 8,5 4,4 43,15 1036,00 89,60 4,89 34,87
160 15,0 17,0 8,5 4,5 46,03 1099,00 95,47 4,88 36,20
160 16,0 17,0 8,5 4,5 48,95 1165,00 101,50 4,87 38,43
160 17,0 17,0 8,5 ? 51,82 1225,00 107,20 4,86 40,70
180 12,0 18,0 9,0 4,9 42,10 1300,00 98,80 5,55 33,05
180 14,0 18,0 9,0 4,9 48,78 1496,00 114,50 5,37 38,30
180 16,0 18,0 9,0 5,0 55,39 1682,00 129,70 5,51 43,50
180 18,0 18,0 9,0 5,1 61,91 1866,00 144,70 5,49 48,60
200 14,0 18,0 9,0 5,4 54,38 2078,00 142,70 6,18 42,69
200 16,0 18,0 9,0 5,5 61,78 2344,00 161,90 6,15 48,50
200 18,0 18,0 9,0 5,6 69,11 2600,00 180,60 6,13 54,20
200 20,0 18,0 9,0 5,7 76,34 2854,00 199,30 6,11 59,93
200 24,0 18,0 9,0 5,84 90,59 3331,00 235,20 6,06 71,70
250 25,0 20,0 10,0 7,1 119,00 6975,00 390,00 7,65 93,60
250 28,0 18,0 9,0 7,2 133,00 7697,00 433,00 7,62 104,00
250 32,0 20,0 10,0 7,4 150,00 8597,00 488,00 7,57 118,00
250 35,0 18,0 9,0 7,5 163,00 9264,00 529,00 7,54 228,00

SS 304 L shape profiles finish

  • PVD Coated (Gold, Rose Gold, Black, Bronze, etc.)
  • Hairline Finish
  • Bead Blasted Finish
  • Brushed Finish (No. 4)
  • Mirror Finish (No. 8)
  • Matte Finish

Stainless steel L profile chemical composition

Standard State P % S % N % C % Mn % Cu % CEV %
SE EN 10056 S235JR max 0.04 max 0.04 max 0.012 max 20 max 1.4 max 0.55 max 0.38
Supplier of SS 316 decorative L profile in mumbai. Check L shape stainless steel profile specifications

SS 316 decorative L profile mechanical properties

State Thickness Rm N/mm2 Rp 0,2 A5 (%)
S235JR <16 360-510 235 26
16-40 360-510 225 26
40-63 360-510 215 25
63-80 360-510 215 24
80-100 360-510 215 24
100-125 350-500 195 22

L shape SS profile equivalent grades

Standard Equivalent Grade
JIS (Japan) SUS 304
BS (British Standard) 304S31
UNS (Unified Numbering System) S30400
EN / DIN (Europe / Germany) 1.4301
GOST (Russia) 08Х18Н10
AFNOR (France) Z7CN18-09

Stainless steel decorative L profile characteristics

  • Thermal Resistance
  • Flexibility
  • Ease of Installation
  • Finish Options
  • Symmetry
  • Shape
  • Aesthetic Appeal
  • Durability
  • Corrosion Resistance

FAQ

What is the main difference between equal and unequal SS decorative L profiles?

Feature Equal L Profile Unequal L Profile
Shape Both legs are the same length (e.g., 20×20 mm) Legs are of different lengths (e.g., 25×15 mm)
Usage Furniture edges, clean framing, glass corners Wall corners, floor trims, edge detailing
Finish Options Mirror, Hairline, PVD (gold, black, bronze) Mirror, Hairline
Common Sizes 10×10, 20×20, 25×25, 30×30, 50×50 20×10, 25×15, 30×20, 40×20
Material Grades SS304 , SS316 SS304, SS316
Application Areas Furniture, partitions, counters Tiles, wall-to-wall, flooring connections

What are the common sizes available for SS 304 L shape profiles?

SS L profiles are commonly available in sizes like 20×20 mm, 10×10 mm, 25×25 mm, and can be customized in thickness and length

What finishes are available for SS 304 L profile?

Finishes include hairline, mirror polish,brushed, and PVD coatings such as gold, bronze, black, and rose gold.

What materials are used for SS L profiles?

SS 304 and SS 316 materials are commonly used.
