Leading PVD coated SS sheet manufacturer in India
Spark Steel is Mumbai based manufacturer and stockist of PVD coated stainless steel sheets. Over the years, we've built a steady supply chain for architects, interior designers, OEMs, contractors, and traders, both within India and for export markets. Our PVD coated SS sheets bring together two things: the toughness of austenitic stainless steel and a Physical Vapour Deposition coating that holds colour far longer than paint or electroplating ever could. The finish doesn't just look premium, it actually holds up.
Need just one sheet for a custom interior job? Or a full mill-run for a commercial project? We keep ready stock of Grade 304 and 316 PVD sheets in standard sizes and thicknesses. Custom dimensions, colours, and surface finishes can be arranged on order.
Table of Contents
SS PVD sheets, Mirror finish PVD coated sheet and PVD stainless steel sheet available in sizes from 0.8mm to 3mm thickness
PVD (Physical Vapour Deposition) is a vacuum coating process. Inside a high vacuum chamber, a target material (usually titanium nitride, titanium carbonitride, or chromium nitride) is vaporised and deposited onto the steel surface, literally one atom at a time. The coating ends up being 0.17 µm to 3.0 µm thick, and unlike paint or plating, it doesn't just sit on the surface. It bonds into the steel itself at a metallurgical level.
Here's what that means practically:
- Scratch resistance: the coating is harder than the base steel itself
- Chemical resistance: sweat, moisture, mild acids, cleaning agents — none of it affects the surface
- Colour stability: UV resistant, no fading or yellowing even after 10+ years outdoors
- Clean process: no heavy metals, no hazardous waste; far greener than electroplating
- Tight tolerances: the coating is thin enough that it doesn't change the sheet's dimensions
| Standards | ASTM A240, EN 10088, JIS G4304 |
|---|---|
| Available Grade | AISI 304, AISI 304L, AISI 316, AISI 316L |
| Coating Process | Physical Vapour Deposition (PVD) |
| Coating Thickness | 0.17 µm – 3.0 µm |
| Glossiness | 600 – 700 GU (Gloss Units) |
| Sheet Thickness | 0.5 mm – 3.0 mm (Gauge 26 to Gauge 14) |
| Width | Up to 1500 mm (custom slit widths available) |
| Length | Up to 4000 mm (custom cut-to-length available) |
| Standard Sheet Sizes | 1000×2000, 1219×2438, 1250×2500, 1500×3000 mm |
| Surface Finishes | Mirror, Hairline, Brushed, Vibration, Bead Blast, Satin, Matte, Scotch Brite, 3D Textured, Etched |
| Colour Range | Gold, Rose Gold, Black, Titanium Black, Coffee Gold, Brown, Violet, Sapphire, Red, Green, Copper, Antique Copper, Red Copper, Bronze, Silver + combinations |
| Hardness (Base Sheet) | ≤ 95 HRB |
| Form | Sheets, Coils, Strips, Custom Cut Pieces |

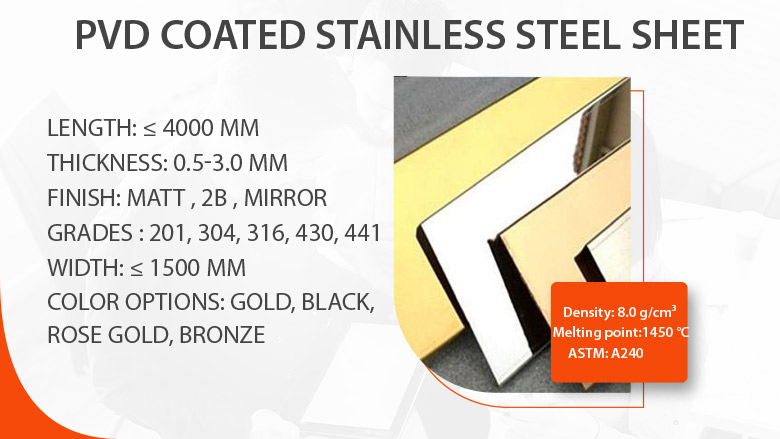

PVD coated stainless steel sheet

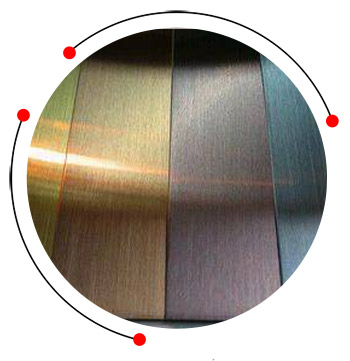

PVD coated SS sheet

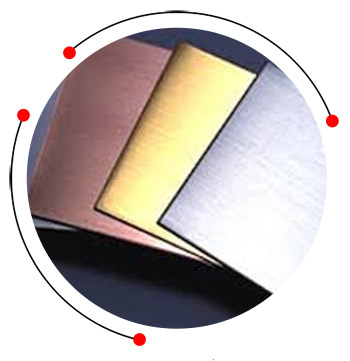

SS PVD sheets

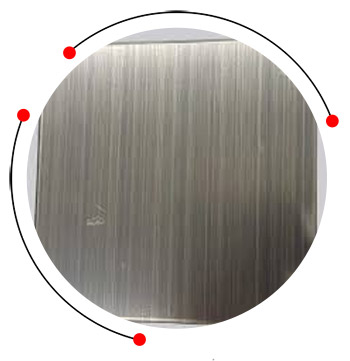

PVD stainless steel sheet

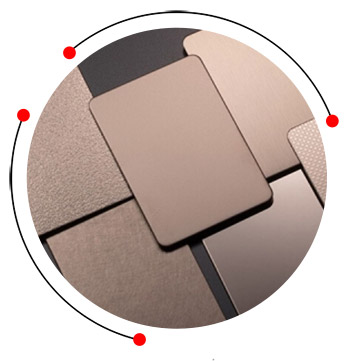

Stainless steel PVD sheets

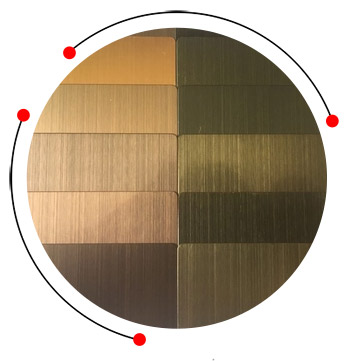

SS PVD coated sheet
| Gauge | Inch | mm | Width | Length |
|---|---|---|---|---|
| 26 | 0.0177 | 0.45 | 1000–1500 mm | 2000–4000 mm |
| 24 | 0.0236 | 0.6 | 1000–1500 mm | 2000–4000 mm |
| 22 | 0.0315 | 0.8 | 1000–1500 mm | 2000–4000 mm |
| 20 | 0.0394 | 1 | 1000–1500 mm | 2000–4000 mm |
| 18 | 0.0472 | 1.2 | 1000–1500 mm | 2000–4000 mm |
| 16 | 0.0591 | 1.5 | 1000–1500 mm | 2000–4000 mm |
| 14 | 0.0787 | 2 | 1000–1500 mm | 2000–4000 mm |
- Vibrant color options
- Eco-friendly coating
- Corrosion-resistant
- Scratch-resistant finish
- Easy to maintain
Explore Stainless steel PVD sheets and SS PVD coated sheet in hairline, brushed and mirror finishes
| Finish | Description |
|---|---|
| Mirror (No. 8) | High-reflectivity, glass-like surface. Ra < 0.05 µm |
| Hairline (No. 4) | Parallel fine lines, semi-matte. Ra 0.1–0.5 µm |
| Brushed | Directional satin brush texture |
| Vibration | Swirling circular grain pattern |
| Bead Blast | Uniform matte, non-directional |
| Scotch Brite | Fine random scratch pattern |
| Matte | Low-gloss, anti-fingerprint-friendly |
| Etched | Chemical-etched patterns on surface |
| 3D Art Textured | Embossed pattern + PVD colour |
- Needs special tools
- Higher cost
- Not heat-resistant
- Prone to deep scratch damage
| Gauge | Inch | mm |
|---|---|---|
| 26 | 0.0177 | 0.45 |
| 24 | 0.0236 | 0.60 |
| 22 | 0.0315 | 0.80 |
| 20 | 0.0394 | 1.00 |
| 18 | 0.0472 | 1.20 |
| 16 | 0.0591 | 1.50 |
| 14 | 0.0787 | 2.00 |
Get 304 & 316 grades Stainless steel PVD coating and PVD coated SS sheet for architectural applications
| Interior | Commercial | Architecture |
|---|---|---|
| Ceilings | Retail fixtures | Cladding |
| Wall panels | Elevator doors | Facades |
| Furniture accents | Signage | Handrails |
| Colour Family | Standard Options | Finish Compatibility |
|---|---|---|
| Gold Tones | Gold, Rose Gold, Coffee Gold, Champagne Gold | Mirror, Hairline, Satin |
| Dark / Black | Black, Titanium Black, Jet Black | Mirror, Hairline, Bead Blast |
| Copper / Bronze | Copper, Red Copper, Antique Copper, Bronze | Mirror, Brushed, Vibration |
| Warm / Earth | Brown, Violet, Coffee | Mirror, Hairline, Etched |
| Cool / Neutral | Silver, Sapphire, Blue | Mirror, Matte, Scotch Brite |
| Vivid / Special | Red, Green, Red Rose, Combination Colours | Mirror, 3D Textured |
- Rust Resistance
- Long Service Life
- Low Maintenance
- Perfect finishing
Supplier and stockist of Stainless steel PVD coated sheet in India. Check PVD SS sheets specification
| Element | 316 (%) | 304 (%) |
|---|---|---|
| S | ≤ 0.030 | ≤ 0.030 |
| Cr | 16.0–18.0 | 18.0–20.0 |
| C | ≤ 0.08 | ≤ 0.08 |
| Mn | ≤ 2.00 | ≤ 2.00 |
| Si | ≤ 1.00 | ≤ 1.00 |
| P | ≤ 0.045 | ≤ 0.045 |
| Ni | 10.0–14.0 | 8.0–10.5 |
| Mo | 2.0–3.0 | — |
| Property | AISI 316 | AISI 304 |
|---|---|---|
| Tensile Strength | 515–700 MPa | 515–750 MPa |
| Yield Strength | ≥ 205 MPa | ≥ 205 MPa |
| Elongation (50mm) | ≥ 40% | ≥ 40% |
| Hardness (HRB) | ≤ 95 | ≤ 95 |
| Country | 316 | 304 |
|---|---|---|
| China (GB) | 06Cr17Ni12Mo2 | 06Cr19Ni10 |
| Germany (DIN) | 1.4401 | 1.4301 |
| Japan (JIS) | SUS316 | SUS304 |
| UK (BS) | 316S31 | 304S31 |
| Property | Value |
|---|---|
| Melting Range | 1400–1450 °C |
| Density | 7.93 g/cm³ |
| Thermal Conductivity | 16.2 W/m·K |
| Electrical Resistivity | 0.72 µΩ·m |
| Specific Heat | 500 J/kg·K |
