Nickel 200 Pipe

Nickel 200 Pipe manufacturer in India

Leading ASTM B161 Alloy 200 seamless pipe supplier in India

Table of Contents

Check the latest price list, properties & equivalent of ASME SA161 UNS N02200 Welded Pipe and Alloy 200 pipe

Nickel 200 pipe specification

01

Seamless pipe sizes

  • Outside Diameter: 4- 219 mm
  • Wall Thickness:0.5-20 mm

02

Welded pipe sizes

  • Outside Diameter: 5 - 1219 mm
  • Wall Thickness: 1.0 - 15 mm

03

EFW pipe sizes

  • Outside Diameter: 5- 1219 mm
  • Wall Thickness: 1-15 mm



04

Services

  • Beveling
  • Welding
  • Threading

05

Form

  • Round
  • Hydraulic

06

End

  • End
  • Beveled
  • Treaded

ASTM B161 alloy 200 seamless pipe types

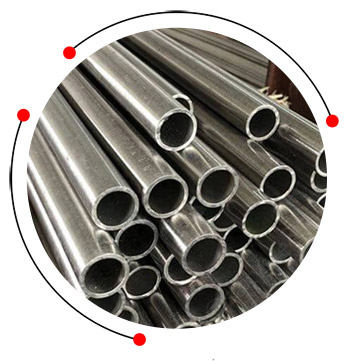

Nickel 200 pipe

Nickel 200 pipe

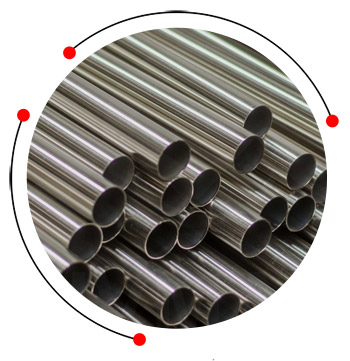

Astm B161 Alloy 200 seamless pipe

Astm B161 Alloy 200 seamless pipe

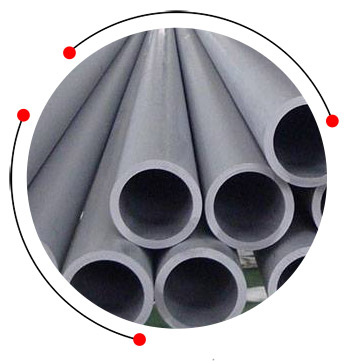

ASME SA161 UNS N02200 welded pipe

ASME SA161 UNS N02200 welded pipe

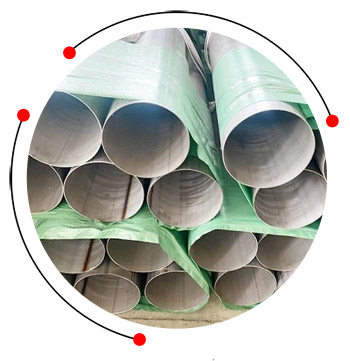

Pure 200 Nickel EFW pipe

Pure 200 Nickel EFW pipe

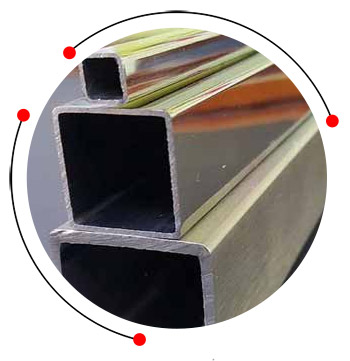

Alloy UNS No 2200 square pipes

Alloy UNS No 2200 square pipes

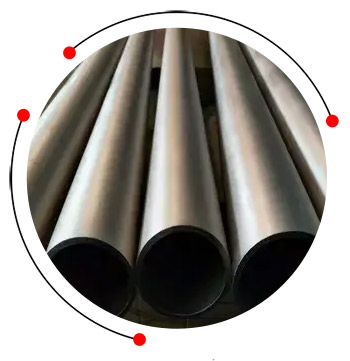

Ni Grade 200 ERW pipe

Ni Grade 200 ERW pipe

Price list of Alloy 200 pipe

Description Price in USD Price in Kilogram (INR)
3 inch Nickel Alloy 200 Pipes $ 58.11 ₹ 5,000
Round Alloy 200 Pipes, Size: 1-2 $ 46.49 ₹ 4,000
3 inch Nickel 200 pipe $ 23.24 ₹ 2,000

ASME SA161 UNS N02200 welded pipe mechanical properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

Alloy UNS NO 2200 square pipes equivalent grades

STANDARD UNS AFNOR EN WERKSTOFF NR. JIS GOST BS
Nickel 200 N02200 N-100M Ni 99.2 2.4066 NW 2200 НП-2 NA 11

Pure 200 Nickel EFW pipe and Nickel Alloy 200 Pipe in various dimensions and custom length

Ni Grade 200 ERW pipe chemical comosition

Nickel 200 Ni Mn Si C Mo Fe P Cu S
99.0 min 0.35 min 0.1 maximum 0.15 maximum – 0.4 min – 0.25 min 0.01 maximum

Dimensions of Alloy 200 pipe

Nominal Pipe Size (NPS) Wall Thickness (in) Outer Diameter (OD) Schedule Inner Diameter (ID)
1-1/2" 0.145" 1.900" 10 1.610"
0.200" 40 1.500"
0.281" 80 1.338"
1/8" 0.049" 0.405" 10 0.307"
0.068" 40 0.269"
0.095" 80 0.215"
1/4" 0.065" 0.540" 10 0.410"
0.088" 40 0.364"
0.119" 80 0.302"
1/2" 0.083" 0.840" 10 0.674"
0.109" 40 0.622"
0.147" 80 0.546"
1" 0.109" 1.315" 10 1.097"
0.133" 40 1.049"
0.179" 80 0.957"
2" 0.154" 2.375" 10 2.067"
0.218" 40 1.939"
0.307" 80 1.811"
3" 0.216" 3.500" 10 3.068"
0.300" 40 2.900"
0.438" 80 2.624"

Pure 200 nickel EFW pipe sizes

OD
mm 		Pipe WT
mm 		Sch in. Kg/m
33.40 6.352) 160 1 4.30
42.16 2.77 10S 1¼ 2.73
42.16 3.56 40S 1¼ 3.44
42.16 4.85 80S 1¼ 4.53
42.16 6.352) 160 1¼ 5.69
48.26 2.77 10S 1½ 3.16
48.26 3.68 40S 1½ 4.11
48.26 5.08 80S 1½ 5.49
60.33 2.77 10S 2 3.99
60.33 3.91 40S 2 5.52
60.33 5.54 80S 2 7.60
60.33 8.742) 160 2 11.29
73.03 3.05 10S 2½ 5.35
73.03 5.16 40S 2½ 8.77
73.03 7.01 80S 2½ 11.59
88.90 3.05 10S 3 6.56
88.90 5.49 40S 3 11.47
88.90 7.62 80S 3 15.51
13.72 1.65 10S 1/4 0.50
13.72 2.24 40S 1/4 0.64
13.72 3.02 80S 1/4 0.81
17.15 1.65 10S 3/8 0.64
17.15 2.31 40S 3/8 0.86
17.15 3.20 80S 3/8 1.12
21.34 2.11 10S 1/2 1.02
21.34 2.77 40S 1/2 1.29
21.34 3.73 80S 1/2 1.65
26.67 2.11 10S 3/4 1.30
26.67 2.87 40S 3/4 1.71
26.67 3.91 80S 3/4 2.23
33.40 2.77 10S 1 2.13
33.40 3.38 40S 1 2.54
33.40 4.55 80S 1 3.29
88.90 11.132) 160 3 21.67
101.60 3.05 10S 3½ 7.53
101.60 5.74 40S 3½ 13.78
101.60 8.08 80S 3½ 18.92
114.30 3.05 10S 4 8.50
114.30 6.02 40S 4 16.32
114.30 8.56 80S 4 22.67
114.30 13.492) 160 4 34.05
141.30 6.55 40S 5 22.10
141.30 9.53 80S 5 31.44
141.30 15.882) 160 5 49.87
168.28 3.4 10S 6 14.04
168.28 7.11 40S 6 28.69
168.28 10.97 80S 6 43.21
168.28 14.27 120 6 54.75
168.28 18.262) 160 6 68.59
219.08 8.18 40S 8 43.20
219.08 12.7 80S 8 65.63
219.08 18.23 120 8 91.30
219.08 23.012) 160 8 112.97

Nickel alloy 200 pipe thermal properties

Temperature Thermal Conductivity Electrical Resistivity Coefficient of Expansiona
°F Btu•in/ft2•h•°F ohm•circ mil/ft 10-6 in/in•°F
400 426 113 7.7
200 463 76 7.4
600 389 164 8.0
1000 404 228 8.5
2000 – 323 9.5
-300 – 16 5.8
-423 – – 4.7
-200 533 26 6.2
0 499 48 –
-100 516 36 6.3
70 487 58 –
800 389 204 8.3
1200 421 248 8.7
1600 455 289 9.1
1400 437 269 8.9
1800 472 306 9.3
Check Alloy UNS No 2200 Square Pipes and Ni Grade 200 ERW Pipe specification and schedule chart

Schedule chart of Ni-200 exhaust pipe

Nominal Pipe Size (NPS) Outer Diameter (OD) Wall Thickness Schedule Inner Diameter (ID)
1/2" 0.840" 0.065" 5 0.710"
0.083" 10 0.674"
0.109" 40 0.622"
0.147" 80 0.546"
0.187" 160 0.466"
0.294" XXH 0.252"
3/4" 1.050" 0.083" 10 0.884"
0.113" 40 0.824"
0.154" 80 0.742"
0.218" 160 0.614"
0.308" XXH 0.434"
1/8" 0.405" 0.049" 10 0.307"
0.068" 40 0.269"
0.095" 80 0.215"
1/4" 0.540" 0.065" 10 0.410"
0.088" 40 0.364"
0.119" 80 0.302"
3/8" 0.675" 0.065" 10 0.545"
0.091" 40 0.493"
0.126" 80 0.423"
1" 1.315" 0.109" 5 1.097"
0.133" 10 1.049"
0.179" 40 0.957"
0.250" 80 0.815"
0.358" 160 0.599"
0.358" XXH 0.599"
1-1/4" 1.660" 0.140" 10 1.380"
0.191" 40 1.278"
0.250" 80 1.160"
0.382" 160 0.896"
0.382" XXH 0.896"
2-1/2" 2.875" 0.203" 10 2.469"
0.276" 40 2.323"
0.375" 80 2.125"
0.552" 160 1.771"
0.552" XXH 1.771"
3" 3.500" 0.125" 5 3.250"
0.250" 10 3.000"
0.300" 40 2.900"
0.438" 80 2.624"
0.600" 160 2.300"
0.600" XXH 2.300"
1-1/2" 1.900" 0.145" 10 1.610"
0.200" 40 1.500"
0.281" 80 1.338"
0.400" 160 1.100"
0.400" XXH 1.100"
2" 2.375" 0.109" 5 2.157"
0.154" 10 2.067"
0.218" 40 1.939"
0.307" 80 1.811"
0.436" 160 1.503"
0.436" XXH 1.503"
3-1/2" 4.000" 0.226" 10 3.548"
0.318" 40 3.364"
0.438" 80 3.124"

Nickel 2.4066 hexagonal pipes hs code

Material HS code
Nickel 200 75071200

Applications of Alloy 200 seamless pipes

  • Reactors and vessels
  • Marine and offshore engineering
  • Combustion boats
  • Caustic evaporators
  • Salt production
  • Food processing equipment

Physical properties of Nickel 200 ERW pipe

Modulus of Elasticity Coefficient of Expansion Density Melting Point Modulus of Rigidity
204 kN/mm² 13.3 μm/m °C (20 - 100 °C) 8.89 g/cm³ 1446 °C 81 kN/mm²
29588 ksi 7.4 x 10-6 in/in °F (70 - 212 °F) 0.321 lb/in³ 2635 °F 11748 ksi

200 nickel alloy polished pipe testing

  • Flattening Test
  • Micro and MacroTest
  • Positive Material Identification – PMI Testing
  • Intergranular Corrosion (IGC) Test
  • Chemical Analysis – Spectro Analysis
  • Pitting Resistance Test
  • Flaring Test
  • Hardness Test
View Ni-200 Exhaust Pipe weight chart, stockist of Nickel 2.4066 Hexagonal pipes in India

Nickel alloy 200 thick wall pipe weight chart

NPS Wall Thickness Outside Diameter Weight Weight
in mm in mm Sched Lb/ft Lb/ft
1/2″ 0.109 2.769 0.840 21 40 STD 0.851 0.851
0.147 3.734 80 STD 1.088 1.088
3/4″ 0.113 2.870 1.050 27 40 STD 1.131 1.131
0.154 3.912 80 STD 1.474 1.474
1″ 0.133 3.378 1.315 33 40 STD 1.679 1.679
0.179 4.547 80 STD 2.172 2.172
1 1/4″ 0.140 3.556 1.660 42 40 STD 2.273 2.273
0.191 4.851 80 STD 2.997 2.997
1 1/2″ 0.145 3.683 1.900 48 40 STD 2.718 2.718
0.200 5.080 80 STD 3.361 3.361
2″ 0.154 3.912 2.375 60 40 STD 3.653 3.653
0.218 5.537 80 STD 5.022 5.022
2 1/2″ 0.203 5.516 2.875 73 40 STD 5.793 5.793
0.276 7.010 80 STD 7.661 7.661
3″ 0.216 5.486 3.500 89 40 STD 7.576 7.576
0.300 7.620 80 STD 10.253 10.253
4″ 0.237 6.020 4.500 114 10.790 10.790
0.337 8.560 14.983 14.983
6″ 0.188 4.775 6.625 168 12.924 12.924
0.203 5.516 13.923 13.923
0.219 5.563 14.983 14.983
0.250 6.350 17.021 17.021
0.280 7.112 40 STD 18.974 18.974
0.312 7.925 21.036 21.036
0.375 9.525 25.031 25.031
0.432 10.973 80 XHY 28.573 28.573
0.500 12.700 32.708 32.708
8″ 0.188 4.775 8.625 219 16.940 16.940
0.203 5.156 18.259 18.259
0.219 5.563 19.661 19.661
0.250 6.350 20 22.361 22.361
0.277 7.036 30 24.696 24.696
0.322 8.179 40 28.554 28.554
0.375 9.525 33.041 33.041
0.406 10.312 60 35.638 35.638
0.500 12.700 80 XHY 43.388 43.388
10″ 0.188 4.775 10.750 273 21.207 21.207
0.219 5.563 24.631 24.631
0.250 6.350 20 28.035 28.035
0.307 7.798 30 34.240 34.240
0.344 8.738 38.231 38.231
0.365 9.271 40 STD 40.483 40.483
0.438 11.125 48.238 48.238
0.500 12.700 60 XHY 54.735 54.735
0.594 15.088 80 64.429 64.429
12″ 0.188 4.775 12.750 324 25.222 25.222
0.219 5.563 29.309 29.309
0.250 6.350 33.375 33.375
0.281 7.137 37.420 37.420
0.312 7.925 41.445 41.445
0.375 9.525 49.562 49.562
0.406 10.312 53.525 53.525
0.500 12.700 65.415 65.415
0.562 14.275 73.154 73.154
14″ 0.188 4.775 14.000 356 27.732 27.732
0.219 5.563 32.233 32.233
0.250 6.350 20 36.713 36.713
0.281 7.137 41.172 41.172
0.312 7.925 45.611 45.611
0.375 9.525 STD 54.568 54.568
0.438 11.125 40 63.441 63.441
0.500 12.700 XHY 72.090 72.090
0.625 15.875 89.278 89.278
16” 0.188 4.775 16.000 406 21.748 21.748
0.219 5.563 36.910 36.910
0.250 6.350 10 42.053 42.053
0.281 7.137 47.174 47.174
0.312 7.925 20 52.275 52.275
0.344 8.738 57.519 57.519
0.375 9.525

30

STD

 62.578 62.578
0.438 11.125 72.797 72.797
0.500 12.700

40

XHY

 82.770 82.770
18″ 0.219 5.563 18.000 457 41.588 41.588
0.250 6.350 47.393 47.393
0.281 7.137 53.176 53.176
0.312 7.925 20 58.939 58.939
0.375 9.525 STD 70.588 70.588
0.438 11.125 30 82.152 82.152
0.500 12.700 XHY 93.450 93.450
0.562 14.275 40 104.666 104.666
0.625 15.875 115.978 115.978
20″ 0.250 6.350 20.000 508 52.733 52.733
0.282 7.163 59.386 59.386
0.312 7.925 65.604 65.604
0.375 9.525 20 STD 78.598 78.598
0.438 11.125 91.508 91.508
0.500 12.700 30 XHY 104.130 104.130
0.594 15.088 40 123.110 123.110
0.625 15.875 129.328 129.328
0.688 17.475 141.901 141.901
24″ 0.250 6.350 24.000 610 63.413 63.413
0.281 7.137 71.183 71.183
0.312 7.925 18.932 18.932
0.375 9.525 20 STD 64.618 64.618
0.438 11.125 110.219 110.219
0.500 12.700 XHY 125.490 125.490
0.625 15.875 156.028 156.028
0.688 17.475 40 171.293 171.293
0.750 19.050 186.233 186.233
36″ 0.250 6.350 36.000 914 95.453 95.453
0.281 7.137 107.196 107.196
0.312 7.925 10 118.918 118.918
0.375 9.525 STD 142.678 142.678
0.438 11.125 166.353 166.353
0.500 12.700 20 XHY 198.570 198.570
0.625 15.875 236.128 236.128

0.688

 17.475 259.467 259.467

0.750

 19.050 282.353 282.353
30″ 0.250 6.350 30.000 762 79.433 79.433
0.281 7.137 89.189 89.189
0.312 7.925 10 98.925 98.925
0.375 9.525 STD 118.648 118.648
0.438 11.125 138.286 138.286
0.500 12.700 20 XHY 157.530 157.530
0.625 15.875 30 196.078 196.078
0.688 17.475 215.380 215.380
0.750 19.050 234.293 234.293
42″ 0.312 7.925 42.000 1067 138.911 138.911
0.375 9.525 STD 166.708 166.708
0.500 12.700 XHY 221.610 221.610
0.750 19.050 330.413 330.413
48″ 0.375 9.525 48.000 1219 STD 190.738 190.738
0.438 11.125 222.487 222.487
0.500 12.700 XHY 253.650 253.650
0.750 19.050 378.473 378.473
0.875 22.225 440.383 440.383

Nickel 200 thin wall pipe surface finish

  • Pickled
  • Polished
  • Bright Annealed
  • Mill
  • Annealed

Pressure rating of Alloy 200 hollow pipe

Pipes O.D.
(in.) 		Wall Thickness of Pipes (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
3/8 3100 4400 6100
1/2 2300 3200 4400
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16 3700 5400 7300
3/4 2200 3000 4000 4600
1 2200 2900 3400 3900 4300

Nickel 200 welded pipe standards

  • ASTM B 730
  • DIN 17740
  • ASTM B 725
  • ASME SB-160 - SB-163
  • DIN 17750-17754
  • BS 3072-3076
  • ASTM B 160 - B 163

UNS N02200 bright annealed pipe modulus of elasticity

Poisson’s Ratio Young’s Modulus Shear Modulus Temperature Poisson’s Ratio Young’s Modulus Shear Modulus Temperature
103 ksi 103 ksi °F GPa GPa °C
0.29 28.3 11.00 400 0.29 195 75.8 200
0.29 27.4 10.66 600 0.29 190 73.8 300
0.29 29.7 11.55 78 0.29 205 79.6 26
0.29 29.1 11.30 200 0.28 200 77.9 100
0.29 26.4 10.27 800 0.28 183 71.4 400
0.29 25.2 9.80 1000 0.28 177 69.0 500

WhatsApp Chat
