Monel 400 pipe suppliers

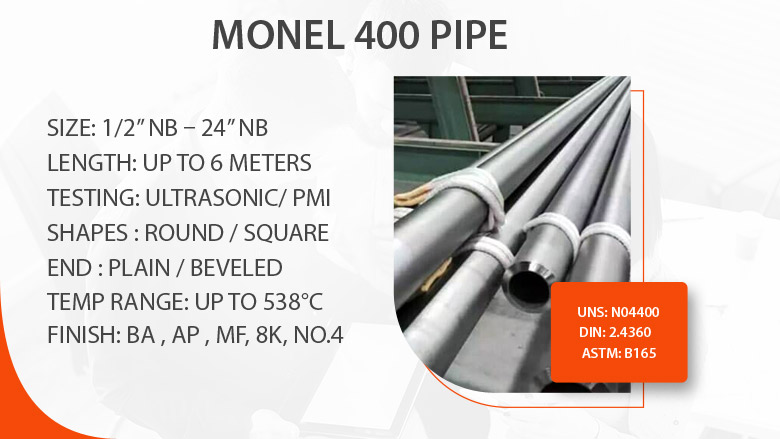

Monel 400 pipe suppliers in India

ASTM B165 Alloy 400 seamless pipe manufacturers in India

Table of Contents

Alloy 400 pipe and ASTM B165 UNS N04400 welded pipe suitable for oil, chemical and marine industry

Specification of Alloy 400 pipe

01

ERW pipes sizes

1/2″ NB – 16″ NB

02

Seamless pipes sizes

1/2″ NB – 24″ NB

03

EFW pipes sizes

6″ NB – 100″ NB



04

Pipe end

TBE, Plain, PBE, Beveled, BLE, BOE, TOE, POE, BSE, BE, Treaded, BBE, BOE

05

Forms

Square, Round, Hollow

06

Temperature range

1,000°F (538°C)



07

Welding methods

  • FCAW
  • TIG
  • Submerged arc welding
  • SMAW
  • GMAW including both MIG and MAG

08

Manufacturing methods

  • Precision Rolled
  • Hot formed
  • Cold Formed
  • Cold drawn

09

Delivery condition

  • Pickled
  • Annealed
  • Polished
  • Normalized

Monel alloy 400 efw pipe types

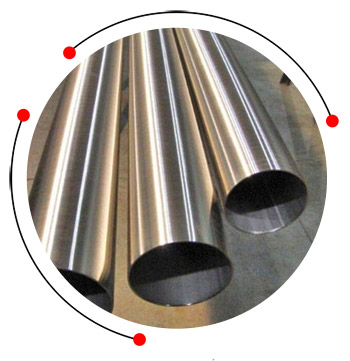

Monel 400 pipe

Monel 400 pipe

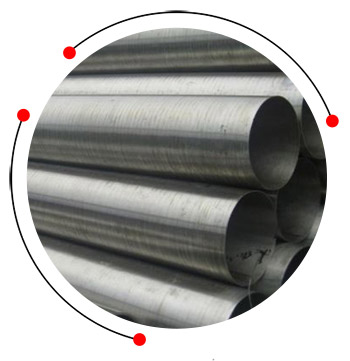

ASTM B165 UNS N04400 welded pipe

ASTM B165 UNS N04400 welded pipe

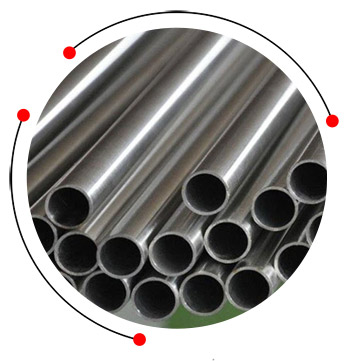

Monel 400 seamless pipe

Monel 400 seamless pipe

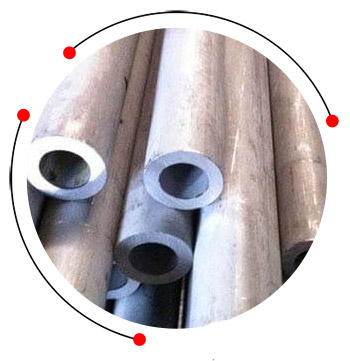

Nickel alloy 400 ERW pipes

Nickel alloy 400 ERW pipes

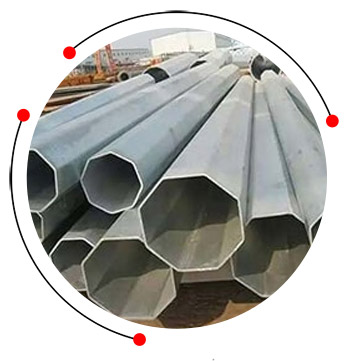

DIN 2.4360 hexagonal pipe

DIN 2.4360 hexagonal pipe

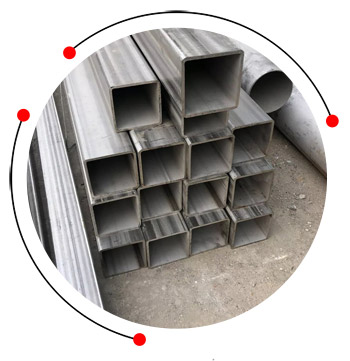

B165 N04400 rectangular pipe

B165 N04400 rectangular pipe

Alloy 400 seamless pipe application

  • Oil and gas industry
  • Power plants
  • Dairy and food processing
  • Synthetic fiber
  • Modern architecture
  • Textile machinery
  • Heat exchanger
  • Pulp and paper industry
  • Fluid piping
  • Energy industries

Buy Monel 400 seamless pipe and Nickel alloy 400 ERW pipes in various size and wall thickness at factory price

Sizes of Nickel alloy 400 erw pipes

Size (in.) WT (mm) OD (mm) OD (in.) WT (in.)
1 1/2" NPS 40 3.68 48.3 1.9 0.145
6" NPS 150 7.11 168.3 6.625 0.28
2 1/2" NPS 65 5.16 73 2.875 0.203
4" NPS 100 6.02 114.3 4.5 0.237
3 1/2" NPS 90 5.74 101.6 4 0.226
3" NPS 80 5.49 88.9 3.5 0.216
5" NPS 125 6.55 141.3 5.563 0.258
8" NPS 200 8.18 219.1 8.625 0.322
12" NPS 300 10.31 323.8 12.75 0.406
1/8" NPS 6 1.73 10.3 0.41 0.068
3/8" NPS 10 2.31 17.1 0.68 0.091
1/4" NPS 8 2.24 13.7 0.54 0.088
1/2" NPS 15 2.77 21.3 0.84 0.109
1" NPS 25 3.38 33.4 1.32 0.133
3/4" NPS 20 2.87 26.7 1.05 0.113
1 1/4" NPS 32 3.56 42.2 1.66 0.14
2" NPS 50 3.91 60.3 2.375 0.154
10" NPS 250 9.27 273 10.75 0.365
14" NPS 350 11.13 355.6 14 0.437
18" NPS 450 14.27 457 18 0.562
16" NPS 400 12.7 406.4 16 0.5
20" NPS 500 15.09 508 20 0.594
32" NPS 800 17.48 813 32 0.688
24" NPS 600 17.48 610 24 0.688

DIN 2.4360 hexagonal pipe wall thickness

Types Wall thickness Out diameter Length
NB Sizes (in stock) SCH 5 / SCH 40 / SCH 10 / SCH 80 / SCH 160 1/8” ~ 8” Upto 6 Meters
Seamless Pipe (Custom Sizes) As per requirement 5.0mm ~ 203.2mm
Welded Pipe (in Stock + Custom Sizes) 1.0 ~ 15.0 mm 5.0mm ~ 1219.2mm

Monel 400 pipe price

Description Price in USD Price in Kilogram (INR)
Monel 400 Pipe, Size/Dia: 15 NB TO 150 NB $ 11.61 ₹ 1,000
Monel K400 Welded Pipe And Tube, 6 meter For Chemical Handling, $ 23.23 ₹ 2,000
Monel 400 Pipes, Size/Dia: 15"NB TO 150"NB IN, 6 meter, $ 28.46 ₹ 2,450
Check weight chart and specifications of DIN 2.4360 hexagonal pipe and B165 N04400 rectangular pipe as per ASME SB 751, ASME SB725 standards

B165 N04400 rectangular pipe weight chart

NPS Outside Diameter Weight Wall Thickness Weight
in mm Sched kg/Mtr in mm Lb/ft
8″ 8.625 219 25.233 0.188 4.775 16.940
27.198 0.203 5.156 18.259
29.286 0.219 5.563 19.661
20 33.308 0.250 6.350 22.361
30 36.786 0.277 7.036 24.696
40 42.352 0.322 8.179 28.554
49.216 0.375 9.525 33.041
60 53.085 0.406 10.312 35.638
80 XHY 64.627 0.500 12.700 43.388
10″ 10.750 273 31.588 0.188 4.775 21.207
36.689 0.219 5.563 24.631
20 41.759 0.250 6.350 28.035
30 51.002 0.307 7.798 34.240
56.946 0.344 8.738 38.231
40 STD 63.301 0.365 9.271 40.483
71.852 0.438 11.125 48.238
60 XHY 81.530 0.500 12.700 54.735
80 95.969 0.594 15.088 64.429
12″ 12.750 324 37.570 0.188 4.775 25.222
43.657 0.219 5.563 29.309
49.713 0.250 6.350 33.375
55.739 0.281 7.137 37.420
61.735 0.312 7.925 41.445
73.824 0.375 9.525 49.562
79.727 0.406 10.312 53.525
97.438 0.500 12.700 65.415
108.966 0.562 14.275 73.154
14″ 14.000 356 41.308 0.188 4.775 27.732
48.012 0.219 5.563 32.233
20 54.685 0.250 6.350 36.713
61.327 0.281 7.137 41.172
67.939 0.312 7.925 45.611
STD 81.281 0.375 9.525 54.568
40 94.498 0.438 11.125 63.441
XHY 107.381 0.500 12.700 72.090
132.983 0.625 15.875 89.278
1/2″ 0.840 21 40 STD 1.268 0.109 2.769 0.851
80 STD 1.621 0.147 3.734 1.088
3/4″ 1.050 27 40 STD 1.684 0.113 2.870 1.131
80 STD 2.195 0.154 3.912 1.474
1″ 1.315 33 40 STD 2.501 0.133 3.378 1.679
80 STD 3.325 0.179 4.547 2.172
1 1/4″ 1.660 42 40 STD 3.385 0.140 3.556 2.273
80 STD 4.464 0.191 4.851 2.997
1 1/2″ 1.900 48 40 STD 4.048 0.145 3.683 2.718
80 STD 5.409 0.200 5.080 3.361
2″ 2.375 60 40 STD 5.441 0.154 3.912 3.653
80 STD 7.480 0.218 5.537 5.022
2 1/2″ 2.875 73 40 STD 8.629 0.203 5.516 5.793
80 STD 11.411 0.276 7.010 7.661
3″ 3.500 89 40 STD 11.284 0.216 5.486 7.576
80 STD 15.272 0.300 7.620 10.253
4″ 4.500 114 16.073 0.237 6.020 10.790
22.318 0.337 8.560 14.983
6″ 6.625 168 19.252 0.188 4.775 12.924
20.739 0.203 5.516 13.923
22.318 0.219 5.563 14.983
25.354 0.250 6.350 17.021
40 STD 58.263 0.280 7.112 18.974
31.334 0.312 7.925 21.036
37.285 0.375 9.525 25.031
80 XHY 42.561 0.432 10.973 28.573
48.719 0.500 12.700 32.708
16” 16.000 406 47.290 0.188 4.775 21.748
54.980 0.219 5.563 36.910
10 62.639 0.250 6.350 42.053
70.268 0.281 7.137 47.174
20 77.866 0.312 7.925 52.275
85.677 0.344 8.738 57.519

30

STD

 93.213 0.375 9.525 62.578
108.433 0.438 11.125 72.797

40

XHY

 123.289 0.500 12.700 82.770
18″ 18.000 457 61.948 0.219 5.563 41.588
70.593 0.250 6.350 47.393
79.208 0.281 7.137 53.176
20 87.792 0.312 7.925 58.939
STD 105.144 0.375 9.525 70.588
30 122.369 0.438 11.125 82.152
XHY 139.198 0.500 12.700 93.450
40 155.904 0.562 14.275 104.666
172.754 0.625 15.875 115.978
20″ 20.000 508 78.547 0.250 6.350 52.733
88.458 0.282 7.163 59.386
97.719 0.312 7.925 65.604
20 STD 117.075 0.375 9.525 78.598
136.305 0.438 11.125 91.508
30 XHY 155.106 0.500 12.700 104.130
40 183.378 0.594 15.088 123.110
192.640 0.625 15.875 129.328
211.368 0.688 17.475 141.901
24″ 24.000 610 94.456 0.250 6.350 63.413
106.029 0.281 7.137 71.183
117.573 0.312 7.925 18.932
20 STD 140.938 0.375 9.525 64.618
164.176 0.438 11.125 110.219
XHY 186.923 0.500 12.700 125.490
232.410 0.625 15.875 156.028
40 255.148 0.688 17.475 171.293
277.401 0.750 19.050 186.233
30″ 30.000 762 118.318 0.250 6.350 79.433
132.851 0.281 7.137 89.189
10 147.353 0.312 7.925 98.925
STD 176.731 0.375 9.525 118.648
205.983 0.438 11.125 138.286
20 XHY 234.647 0.500 12.700 157.530
30 292.066 0.625 15.875 196.078
320.817 0.688 17.475 215.380
348.988 0.750 19.050 234.293
36″ 36.000 914 142.180 0.250 6.350 95.453
159.672 0.281 7.137 107.196
10 177.133 0.312 7.925 118.918
STD 215.525 0.375 9.525 142.678
247.790 0.438 11.125 166.353
20 XHY 282.372 0.500 12.700 198.570
351.723 0.625 15.875 236.128
386.487

0.688

 17.475 259.467
420.576

0.750

 19.050 282.353
42″ 42.000 1067 206.914 0.312 7.925 138.911
STD 248.319 0.375 9.525 166.708
XHY 33.097 0.500 12.700 221.610
492.163 0.750 19.050 330.413
48″ 48.000 1219 STD 284.112 0.375 9.525 190.738
331.404 0.438 11.125 222.487
XHY 377.822 0.500 12.700 253.650
563.750 0.750 19.050 378.473
655.969 0.875 22.225 440.383

International standards of ASTM B165 UNS N04400 welded pipe

ASTM B163 ASTM B725
ASTM B730 ASTM B751
UNS N04400 ASTM B165
ASTM B829 ASTM B775
AMS 4574 DIN 17752
VdTUV 2635 -

Schedule chart of Monel 400 seamless pipe

Nominal O.D. Inches 160 80 40s & Std 10 80S & E.H. 40 10s
1 1/2 1.900 .281 .200 .145 .109 .200 .145 .109
2 1/2 2.875 .375 .276 .203 .120 .276 .203 .120
2 2.375 .343 .218 .154 .109 .218 .154 .109
3 3.500 .437 .300 .216 .120 .300 .216 .120
4 4.500 .531 .337 .237 .120 .337 .237 .120
3 1/2 4.000 .318 .226 .120 .318 .226 .120
4 1/2 5.000 .247 .355
6 6.625 .718 .432 .280 .134 .432 .280 .134
5 5.563 .625 .375 .258 .134 .375 .258 .134
7 7.625 .301 .500
1/4 .540 .119 .088 .065 .119 .088 .065
1/2 .840 .187 .147 .109 .083 .147 .109 .083
3/8 .675 .126 .091 .065 .126 .091 .065
1/8 .405 .095 .068 .049 .095 .068 .049
3/4 1.050 .218 .154 .113 .083 .154 .113 .083
1 1/4 1.660 .250 .191 .140 .109 .191 .140 .109
1 1.315 .250 .179 .133 .109 .179 .133 .109
9 9.625 .342 .500
8 8.625 .906 .500 .322 .148 .500 .322 .148
10 10.750 1.125 .593 .365 .165 .500 .365 .165
12 12.750 1.312 .687 .375 .180 .500 .406 .180
11 11.750 .375 .500
14 14.000 1.406 .750 .375 .250 .500 .437 .188
18 18.000 1.781 .937 .375 .250 .500 .562 .188
16 16.000 1.593 .843 .375 .250 .500 .500 .188

B165 UNS N04400 schedule 40 pipe testing

  • Hardness Test
  • Mechanical Testing Such as Tensile of Area
  • Chemical Analysis – Spectro Analysis
  • Flaring Test
  • Flattening Test
  • Intergranular Corrosion (IGC) Test
  • Pitting Resistance Test
  • Positive Material Identification – PMI Testing
  • Micro and MacroTest

WNR 2.4360 solution annealed pipe hsn code

Product HSN Code
Monel 400 Pipe 7507

Nicorros 400 square pipe tolerance

OD OD Toleracne WT Tolerance
in. mm %
Up to 1/2" +/-0.13 +/-15
1-1/2" to 3-1/2" , excl +/-0.25 +/-10
1/4" +/-0.10 +/-10
1/8" +0.08/-0 +/-10
1/2" to 1-1/2" , excl +/-0.13 +/-10

Nickel alloy 400 pipe certificates

EN 10204 3.1 EN 10204 3.2 NACE TM-0284
ISO 15156 NORSOK IBR
NACE MR0175 NACE MR0103
Ready stock of Monel alloy 400 EFW pipe in Mumbai, View B165 UNS N04400 schedule 40 pipe size chart and properties

Chemical composition of UNS N04400 round pipe

Grade Si S C Mn Cu Fe Ni Cr
Monel 400 0.50 max 0.24max 0.30 max 2.00 max 28.0-34.0 2.50 max 63.00 min –

AMS 4574 pipe mechanical properties

Element Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Density
Monel 400 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 % 8.8 g/cm3

Niccorros 400 bright annealed pipe equivalent grades

STANDARD UNS EN AFNOR WERKSTOFF NR. BS JIS GOST
Monel 400 N04400 NiCu30Fe NU-30M 2.4360 NA 13 NW 4400 МНЖМц 28-2,5-1,5

Alloy 400 hot finished pipe physical properties

Property Value (Metric) Value (Imperial)
Density 8.80*103 kg/m3 549 lb/ft3
Modulus of Elasticity 179 GPa 26,000 ksi
Thermal Expansion (20ºC) 13.9*10-6º C-1 7.7*10-6 in/(in*ºF)
Specific Heat Capacity 427 J/(kg*K) 0.102 BTU/(lb*ºF)
Thermal Conductivity 21.8 W/(m*K) 151 BTU*in/(hr*ft2*ºF)
Electric Resistivity 54.7*10-8 Ohm*m 54.7*10-6 Ohm*cm

Pressure rating of Werkstoff Nr. 2.4360 clad pipe

OD (in.) Wall Thickness (in.)
.028 .035 .049 .065 .083 .095 .109 .120
Pressure (PSIG)
1/8 – – – – – – 10100 7900
1/4 – – – – 9500 7000 4800 3700
5/16 – – – – 7300 5400 3700 –
3/8 – – – – 6100 4400 3100 –
3/4 – – 4600 4000 3000 2200 – –
1/2 – – – – 4400 3200 2300 –
1 4300 3900 3400 2900 2200 – – –

Nickel alloy 400 exhaust pipe conditions

Cold Worked Hot Finished Seamless
Annealed Welded Heat Treatment
