Inconel 625 pipe suppliers

Inconel 625 pipe suppliers in India

Alloy 625 seamless pipe manufacturer in India

Table of Contents

Wall thickness for Inconel 625 welded pipe and ASTM B167 UNS N06625 ERW pipes varies from 0.5 mm to 20 mm for precision applications

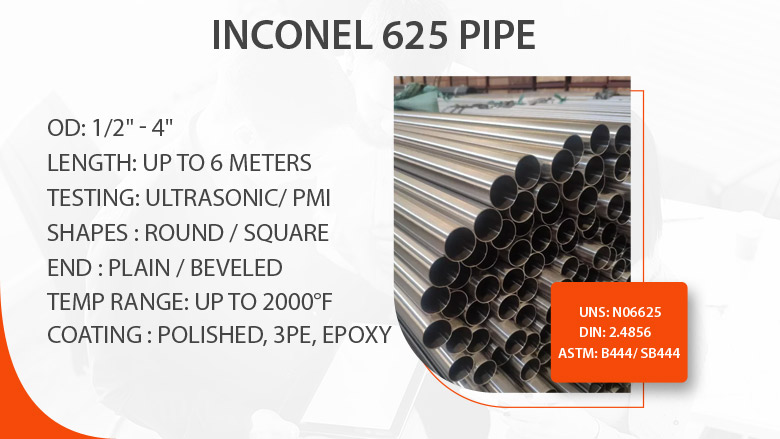

Inconel 625 pipe specification

01

Size range

  • OD : 1/2" through 4"
  • Wall Thk: SCH 10 - SCH 80

02

Specifications

ASTM B444, ASME SB444

03

Types

Cold Drawn / Welded / ERW/ Seamless



04

Delivery conditions

Rolled, Hot Finish, Cold Drawn, Stress Relieved, Hardened, Annealed, Tempered

05

Coating

Electropolish, Satin Finish, Mechanical Polish, Passivated

06

Value added services

Shot Blasting /Draw / Machining / Expansion / Sand Blasting / Heat Treatment

Types of Alloy 625 seamless pipe

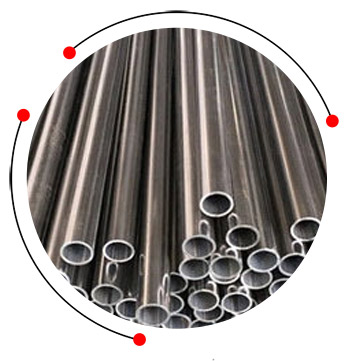

Inconel 625 pipe

Inconel 625 pipe

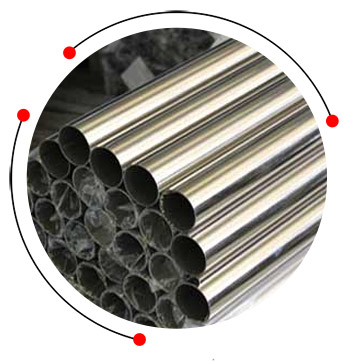

Alloy 625 seamless pipe

Alloy 625 seamless pipe

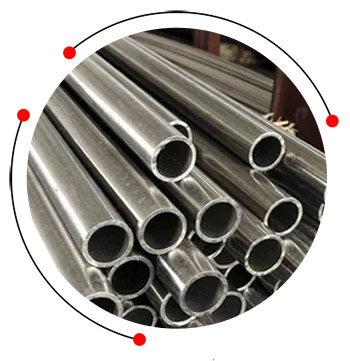

Inconel 625 welded pipe

Inconel 625 welded pipe

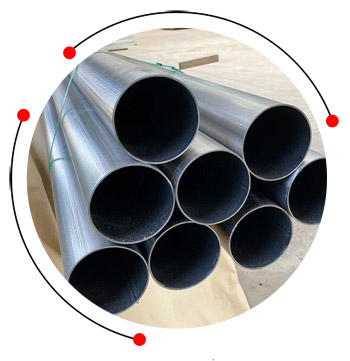

ASTM B167 UNS N06625 ERW pipes

ASTM B167 UNS N06625 ERW pipes

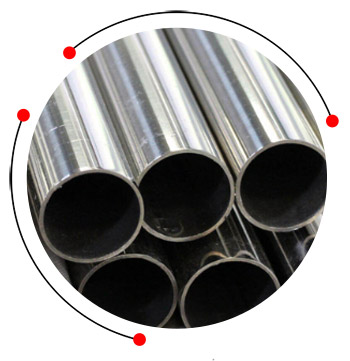

Inconel 625 clad pipe

Inconel 625 clad pipe

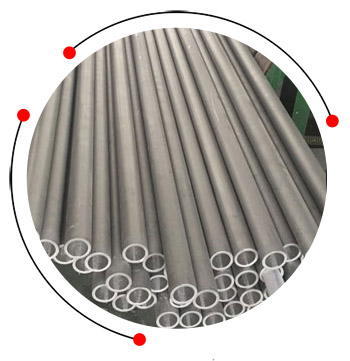

Nickel Alloy 625 hot rolled pipes

Nickel Alloy 625 hot rolled pipes

Wall thickness of Alloy 625 pipe

NPS (in) Outside Diameter (in) Wall Thickness (mm) Wall Thickness (in)
3 3.5 5.49 0.216
4 4.5 6.02 0.237
6 6.625 7.11 0.280
1/2 0.84 2.77 0.109
1 1.315 3.38 0.133
2 2.375 3.91 0.154
8 8.625 8.18 0.322
10 10.75 9.27 0.365

Leading Alloy 625 pipe suppliers in Mumbai. Check specification of Inconel 625 seamless pipe as per ASTM B517/ ASME SB 517 standards

Inconel 625 welded pipe applications

  • Gas Processing
  • Petrochemicals
  • Pharmaceuticals
  • Specialty Chemicals
  • Oil and Gas Industry
  • Pulp and Paper Industry
  • Research and Development

Inconel 625 pipe standard

UNS: N06625
International Specifications: ISO 6207, BS 3074NA21, VdTüV 499, DIN 17751, WERKSTOFF Nr 2.4856
Specifications: ASTM B751, ASTM B444, ASTM B829, ASTM B705, ASTM B704, ASTM B775, AMS 5581

ASTM b167 UNS N06625 erw pipes chemical composition

Grade Si Fe C Mn S Cr2 Ni Al-Ti
625 min. – – – – – 20.0 58.0 –
max. 0.50 5.0 0.10 0.50 0.015 23.0 – 0.40

Inconel 625 seamless pipe mechanical properties

Grade Yield Strength 0.2% Proof (MPa) min Tensile Strength (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
625 Psi – 75,000 , MPa – 517 Psi – 1,35,000 , MPa -930 42.5 – –
View Inconel 625 clad pipe and Nickel Alloy 625 hot rolled pipes price List and pressure rating

Inconel 625 pipe price

Description Price in USD Price in Kilogram (INR)
Inconel 625 Seamless Pipe, Size 6MM TO 400 MM $ 23.12 ₹ 2,000
Inconel 625 Welded Pipe, Size 4 inch $ 34.68 ₹ 3,000

Equivalent grades of SB 444 UNS N06625 square pipe

Grade UNS No Euronorm Old British GOST Japanese JIS
No AFNOR BS En
Inconel 625 N06625 2.4856 NC22DNB4M NA 21 NiCr22Mo9Nb ХН75МБТЮ NCF 625

Werkstoff Nr. 2.4856 efw pipes physical properties

Properties Value
Density lb / in.3 0.305
g / cm3 8.44
Melting Range °C 1290 – 1350
°F 2350 – 2460

Inconel 625 clad pipe weight chart

NPS Outside Diameter Wall Thickness Weight Weight
in mm in mm Sched Lb/ft kg/Mtr
6″ 6.625 168 0.188 4.775 12.924 19.252
0.203 5.516 13.923 20.739
0.219 5.563 14.983 22.318
0.250 6.350 17.021 25.354
0.280 7.112 40 STD 18.974 58.263
0.312 7.925 21.036 31.334
0.375 9.525 25.031 37.285
0.432 10.973 80 XHY 28.573 42.561
0.500 12.700 32.708 48.719
8″ 8.625 219 0.188 4.775 16.940 25.233
0.203 5.156 18.259 27.198
0.219 5.563 19.661 29.286
0.250 6.350 20 22.361 33.308
0.277 7.036 30 24.696 36.786
0.322 8.179 40 28.554 42.352
0.375 9.525 33.041 49.216
0.406 10.312 60 35.638 53.085
0.500 12.700 80 XHY 43.388 64.627
1/2″ 0.840 21 0.109 2.769 40 STD 0.851 1.268
0.147 3.734 80 STD 1.088 1.621
3/4″ 1.050 27 0.113 2.870 40 STD 1.131 1.684
0.154 3.912 80 STD 1.474 2.195
1″ 1.315 33 0.133 3.378 40 STD 1.679 2.501
0.179 4.547 80 STD 2.172 3.325
1 1/4″ 1.660 42 0.140 3.556 40 STD 2.273 3.385
0.191 4.851 80 STD 2.997 4.464
1 1/2″ 1.900 48 0.145 3.683 40 STD 2.718 4.048
0.200 5.080 80 STD 3.361 5.409
2″ 2.375 60 0.154 3.912 40 STD 3.653 5.441
0.218 5.537 80 STD 5.022 7.480
2 1/2″ 2.875 73 0.203 5.516 40 STD 5.793 8.629
0.276 7.010 80 STD 7.661 11.411
3″ 3.500 89 0.216 5.486 40 STD 7.576 11.284
0.300 7.620 80 STD 10.253 15.272
4″ 4.500 114 0.237 6.020 10.790 16.073
0.337 8.560 14.983 22.318
10″ 10.750 273 0.188 4.775 21.207 31.588
0.219 5.563 24.631 36.689
0.250 6.350 20 28.035 41.759
0.307 7.798 30 34.240 51.002
0.344 8.738 38.231 56.946
0.365 9.271 40 STD 40.483 63.301
0.438 11.125 48.238 71.852
0.500 12.700 60 XHY 54.735 81.530
0.594 15.088 80 64.429 95.969
12″ 12.750 324 0.188 4.775 25.222 37.570
0.219 5.563 29.309 43.657
0.250 6.350 33.375 49.713
0.281 7.137 37.420 55.739
0.312 7.925 41.445 61.735
0.375 9.525 49.562 73.824
0.406 10.312 53.525 79.727
0.500 12.700 65.415 97.438
0.562 14.275 73.154 108.966
14″ 14.000 356 0.188 4.775 27.732 41.308
0.219 5.563 32.233 48.012
0.250 6.350 20 36.713 54.685
0.281 7.137 41.172 61.327
0.312 7.925 45.611 67.939
0.375 9.525 STD 54.568 81.281
0.438 11.125 40 63.441 94.498
0.500 12.700 XHY 72.090 107.381
0.625 15.875 89.278 132.983
18″ 18.000 457 0.219 5.563 41.588 61.948
0.250 6.350 47.393 70.593
0.281 7.137 53.176 79.208
0.312 7.925 20 58.939 87.792
0.375 9.525 STD 70.588 105.144
0.438 11.125 30 82.152 122.369
0.500 12.700 XHY 93.450 139.198
0.562 14.275 40 104.666 155.904
0.625 15.875 115.978 172.754
20″ 20.000 508 0.250 6.350 52.733 78.547
0.282 7.163 59.386 88.458
0.312 7.925 65.604 97.719
0.375 9.525 20 STD 78.598 117.075
0.438 11.125 91.508 136.305
0.500 12.700 30 XHY 104.130 155.106
0.594 15.088 40 123.110 183.378
0.625 15.875 129.328 192.640
0.688 17.475 141.901 211.368
16” 16.000 406 0.188 4.775 21.748 47.290
0.219 5.563 36.910 54.980
0.250 6.350 10 42.053 62.639
0.281 7.137 47.174 70.268
0.312 7.925 20 52.275 77.866
0.344 8.738 57.519 85.677
0.375 9.525

30

STD

 62.578 93.213
0.438 11.125 72.797 108.433
0.500 12.700

40

XHY

 82.770 123.289
24″ 24.000 610 0.250 6.350 63.413 94.456
0.281 7.137 71.183 106.029
0.312 7.925 18.932 117.573
0.375 9.525 20 STD 64.618 140.938
0.438 11.125 110.219 164.176
0.500 12.700 XHY 125.490 186.923
0.625 15.875 156.028 232.410
0.688 17.475 40 171.293 255.148
0.750 19.050 186.233 277.401
30″ 30.000 762 0.250 6.350 79.433 118.318
0.281 7.137 89.189 132.851
0.312 7.925 10 98.925 147.353
0.375 9.525 STD 118.648 176.731
0.438 11.125 138.286 205.983
0.500 12.700 20 XHY 157.530 234.647
0.625 15.875 30 196.078 292.066
0.688 17.475 215.380 320.817
0.750 19.050 234.293 348.988
36″ 36.000 914 0.250 6.350 95.453 142.180
0.281 7.137 107.196 159.672
0.312 7.925 10 118.918 177.133
0.375 9.525 STD 142.678 215.525
0.438 11.125 166.353 247.790
0.500 12.700 20 XHY 198.570 282.372
0.625 15.875 236.128 351.723

0.688

 17.475 259.467 386.487

0.750

 19.050 282.353 420.576
42″ 42.000 1067 0.312 7.925 138.911 206.914
0.375 9.525 STD 166.708 248.319
0.500 12.700 XHY 221.610 33.097
0.750 19.050 330.413 492.163
48″ 48.000 1219 0.375 9.525 STD 190.738 284.112
0.438 11.125 222.487 331.404
0.500 12.700 XHY 253.650 377.822
0.750 19.050 378.473 563.750
0.875 22.225 440.383 655.969

Inconel 625 pipe pressure rating

Size
milimeter 		Max. internal pressure, ksi
100°F 200°F 300°F 400°F 500°F 600°F 700°F
1.59 x 0.36 19.21 19.21 19.02 18.83 18.54 18.15 17.77
3 x 0.5 940 940 930 921 907 888 869
6 x1 940 940 930 921 907 888 869
8x1 681 681 675 668 658 644 630
8x2 1476 1476 1462 1447 1425 1395 1366
10x1 534 534 529 524 516 505 494
12x1 440 440 435 431 424 415 407
16x1 324 324 321 318 313 307 300
Ready stock of Inconel 625 exhaust pipe and WERKSTOFF NR. 2.4856 EFW pipes in various sizes

Sizes of Nickel alloy 625 hot rolled pipes

OD
milimeter 		in. Sch Pipe WT
milimeter 		Kg/m
26.67 3/4 40S 2.87 1.71
26.67 3/4 80S 3.91 2.23
33.40 1 10S 2.77 2.13
33.40 1 40S 3.38 2.54
33.40 1 80S 4.55 3.29
33.40 1 160 6.352) 4.30
42.16 1¼ 10S 2.77 2.73
42.16 1¼ 40S 3.56 3.44
42.16 1¼ 80S 4.85 4.53
42.16 1¼ 160 6.352) 5.69
13.72 1/4 10S 1.65 0.50
13.72 1/4 40S 2.24 0.64
13.72 1/4 80S 3.02 0.81
17.15 3/8 10S 1.65 0.64
17.15 3/8 40S 2.31 0.86
17.15 3/8 80S 3.20 1.12
21.34 1/2 10S 2.11 1.02
21.34 1/2 40S 2.77 1.29
21.34 1/2 80S 3.73 1.65
26.67 3/4 10S 2.11 1.30
48.26 1½ 10S 2.77 3.16
48.26 1½ 40S 3.68 4.11
48.26 1½ 80S 5.08 5.49
60.33 2 10S 2.77 3.99
60.33 2 40S 3.91 5.52
60.33 2 80S 5.54 7.60
60.33 2 160 8.742) 11.29
73.03 2½ 10S 3.05 5.35
73.03 2½ 40S 5.16 8.77
73.03 2½ 80S 7.01 11.59
88.90 3 10S 3.05 6.56
88.90 3 40S 5.49 11.47
88.90 3 80S 7.62 15.51
88.90 3 160 11.132) 21.67
101.60 3½ 10S 3.05 7.53
101.60 3½ 40S 5.74 13.78
141.30 5 160 15.882) 49.87
168.28 6 10S 3.4 14.04
168.28 6 40S 7.11 28.69
168.28 6 80S 10.97 43.21
168.28 6 120 14.27 54.75
168.28 6 160 18.262) 68.59
219.08 8 40S 8.18 43.20
101.60 3½ 80S 8.08 18.92
114.30 4 10S 3.05 8.50
114.30 4 40S 6.02 16.32
114.30 4 80S 8.56 22.67
114.30 4 160 13.492) 34.05
141.30 5 40S 6.55 22.10
141.30 5 80S 9.53 31.44
219.08 8 80S 12.7 65.63
219.08 8 120 18.23 91.30
219.08 8 160 23.012) 112.97

Inconel 625 exhaust pipe testing

Intergranular Corrosion (IGC) Test Flattening Test Flaring Test
Micro and Macro Test Positive Material Identification Testing Pitting Resistance Test
Hardness Test Spectro Analysis

UNS N06625 hot finished pipe hsn code

Grade HS Code
625 75071200

Temperature range of Alloy 625 rectangular pipe

Grades Operating temperature
Inconel 625 Up to 982°C (1800°F)

Inconel 625 pipe schedule chart

SCH Size WT (in.) OD (in.)
80 1/2 0.300 0.840
1 1.315
2 2.375
160 1/2 0.500 0.840
1 1.315
2 2.375
40 1/2 0.200 0.840
1 1.315
2 2.375
10 1/2 0.109 0.840
1 1.315
2 2.375

Inconel 625 round pipe dimension

OD (milimeter) inches WT(mm)
42.16 1¼ 6.352
60.33 2 2.77
60.33 2 8.742
48.26 1½ 3.68
73.03 2½ 7.01
13.72 1/4 3.02
88.90 3 3.05
17.15 3/8 2.31
219.08 8 12.7
88.90 3 5.49
168.28 6 7.11
33.40 1 2.77
26.67 3/4 3.91
114.30 4 6.02
42.16 1¼ 2.77
33.40 1 6.352
114.30 4 3.05
219.08 8 8.18
42.16 1¼ 4.85
88.90 3 7.62
48.26 1½ 5.08
48.26 1½ 2.77
60.33 2 3.91
88.90 3 11.132
42.16 1¼ 3.56
101.60 3½ 3.05
168.28 6 14.27
33.40 1 4.55
114.30 4 8.56
168.28 6 18.262
21.34 1/2 2.11
60.33 2 5.54
219.08 8 18.23
17.15 3/8 1.65
141.30 5 6.55
101.60 3½ 5.74
26.67 3/4 2.87
26.67 3/4 2.11
101.60 3½ 8.08
13.72 1/4 2.24
73.03 2½ 5.16
168.28 6 3.4
13.72 1/4 1.65
114.30 4 13.492
17.15 3/8 3.20
141.30 5 15.882
21.34 1/2 2.77
21.34 1/2 3.73
33.40 1 3.38
168.28 6 10.97
141.30 5 9.53
219.08 8 23.012
73.03 2½ 3.05

Welding process of 2.4856 inconel solution annealed pipe

Welding Process

MIG Welding
Submerged Arc Welding
TIG Welding
Stick Welding

Preparation

Preheat
Material Cleaning
Fit-Up

Post Weld Treatment Inspection
Cooling
Cleaning
Documentation Welder Qualification
Welding Procedure Specification
