Inconel 600 pipe suppliers

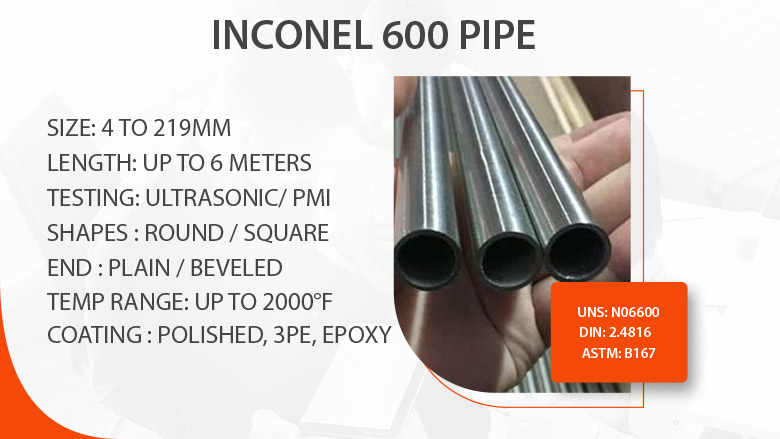

Inconel 600 pipe suppliers in India

ASTM B167 Alloy 600 seamless pipe manufacturer in India

Table of Contents

Nickel Alloy 600 ERW pipe and ASTM B167 UNS N06600 welded pipe is available in OD sizes ranging from 4 mm to 219 mm.

Specification of Inconel 600 pipe

01

Seamless pipe size

4 to 219mm

02

Welded pipe size

5.0 - 1219.2 mm

03

Forms

Hydraulic, Round



04

ASTM Specification

ASTM B 829 ASME SB 829 / ASME SB 167 ASTM B 167 / ASTM B 517 ASME SB 517

05

Schedule

SCH160, SCH5, SCH10, SCH40, STD, SCH80

06

Type

Welded / Fabricated / Seamless / ERW /LSAW

ASTM B167 Alloy 600 seamless pipe types

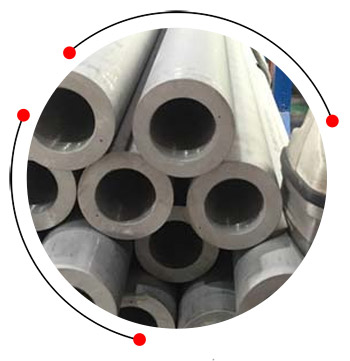

Inconel 600 pipe

Inconel 600 pipe

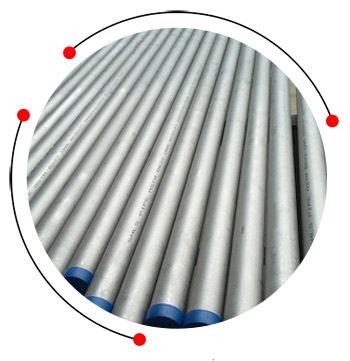

ASTM B167 Alloy 600 seamless pipe

ASTM B167 Alloy 600 seamless pipe

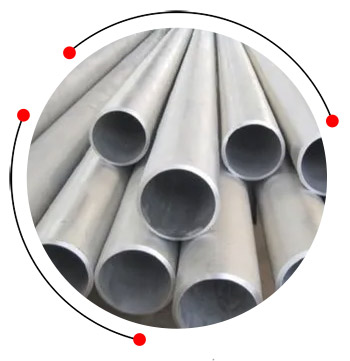

Nickel Alloy 600 ERW pipe

Nickel Alloy 600 ERW pipe

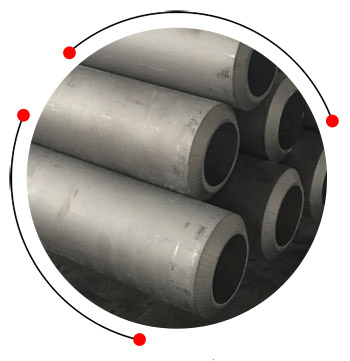

ASTM B167 UNS N06600 welded pipe

ASTM B167 UNS N06600 welded pipe

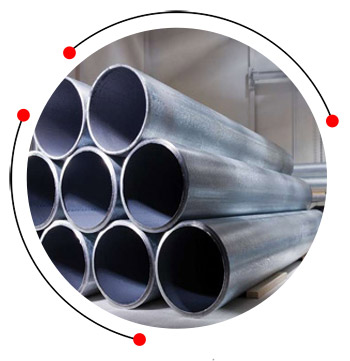

ASTM B516 DIN 2.4816 hot rolled pipes

ASTM B516 DIN 2.4816 hot rolled pipes

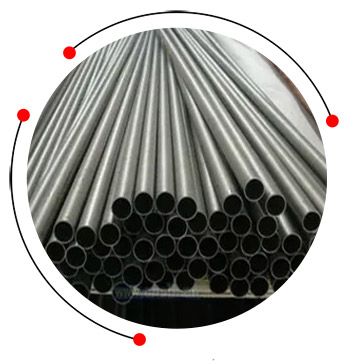

UNS N06600 round pipe

UNS N06600 round pipe

Size chart of Nickel Alloy 600 ERW pipe

Size (in.) WT (in.) OD (mm) OD (in.) WT (mm)
2" 0.154 60.3 2.375 3.91
1 1 / 2" 0.145 48.3 1.9 3.68
1 1 / 4" 0.14 42.2 1.66 3.56
1" 0.133 33.4 1.32 3.38
3/4" 0.113 26.7 1.05 2.88
1 / 2" 0.109 21.3 0.84 2.77
3/8" 0.091 17.1 0.68 2.31
20" 0.594 508.0 20.0 15.09
18" 0.562 457.0 18.0 14.27
16" 0.5 406.4 16.0 12.7
14" 0.437 355.6 14.0 11.13
12" 0.406 323.8 12.75 10.31
10" 0.365 273.0 10.75 9.27
8" 0.322 219.1 8.625 8.18
6" 0.28 168.3 6.625 7.11
5" 0.258 141.3 5.563 6.55
4" 0.237 114.3 4.5 6.02
3 1 / 2" 0.226 101.6 4.0 5.74
3" 0.216 88.9 3.5 5.49
2 1 / 2" 0.203 73.0 2.885 5.16
1 / 4" 0.088 13.7 0.54 2.24
1/8" 0.068 10.3 0.41 1.73

We maintain a stock of Inconel 600 seamless pipe and ASTM B516 DIN 2.4816 hot rolled pipes for High-temperature Environments

Temperature range of ASTM B167 UNS N06600 welded pipe

Parameter Range
Temperature Range (-320°F to 2000°F) -196°C to 1093°C

Inconel 600 seamless pipe pressure rating

OD
(In.) 		Wall Thickness (Inches)
.065 .035 .028 .049 .095 .083 .120 .109
Working Pressure
5/16 7300 3700 5400
3/4 3000 2200 4600 4000
1 / 4 9500 4800 3700 7000
1/8 10100 7900
3/8 6100 3100 4400
1 / 2 4400 2300 3200
1 2200 3400 2900 4300 3900

ASTM B516 DIN 2.4816 hot rolled pipes dimensions

Pipe Size
(in) 		Diameter
(in)
MM
 Number of Threads per inch of Screw Nominal Thickness
(in)
MM 		Length of Pipe
(ft per sq. foot of surface) 		Transverse Areas
(in2)
MM2 		Volume
(ft3/ft) 		Weight
External Internal External Surface
(ft) 		Internal Surface
(ft) 		External Internal Steel (lb/ft) (kg/m)
2 ½ 2.875 2.47 8 0.20 1.33 1.55 6.49 4.79 1.70 0.0333 5.79 8.62
3 3.500 3.07 8 0.22 1.09 1.25 9.62 7.39 2.23 0.0513 7.58 11.27
3 ½ 4.000 3.55 8 0.23 0.95 1.08 12.56 9.89 2.68 0.0687 9.11 13.56
4 4.500 4.03 8 0.24 0.85 0.95 15.90 12.73 3.17 0.0884 10.79 16.06
5 5.563 5.05 8 0.26 0.69 0.76 24.30 20.00 4.30 0.1389 14.61 21.74
6 6.625 6.07 8 0.28 0.58 0.63 34.47 28.89 5.58 0.2006 18.97 28.23
8 8.625 7.98 8 0.32 0.44 0.48 58.42 50.02 8.40 0.3552 28.55 42.49
1/8 0.405 0.27 27 0.07 9.43 14.20 0.13 0.06 0.07 0.0004 0.24 0.36
¼ 0.540 0.36 18 0.09 7.07 10.49 0.23 0.10 0.13 0.0007 0.42 0.63
3/8 0.675 0.49 18 0.09 5.66 7.75 0.36 0.19 0.17 0.0013 0.57 0.84
½ 0.840 0.62 14 0.11 4.55 6.14 0.55 0.30 0.25 0.0021 0.85 1.26
¾ 1.050 0.82 14 0.11 3.64 4.64 0.87 0.53 0.33 0.0037 1.13 1.68
1 1.315 1.05 11 ½ 0.13 2.90 3.64 1.36 0.86 0.49 0.0060 1.68 2.50
1 ¼ 1.660 1.38 11 ½ 0.14 2.30 2.77 2.16 1.50 0.67 0.0104 2.27 3.38
1 ½ 1.900 1.61 11 ½ 0.15 2.01 2.37 2.84 2.04 0.80 0.0141 2.72 4.04
2 2.375 2.07 11 ½ 0.15 1.61 1.85 4.43 3.36 1.08 0.0233 3.65 5.43
10 10.750 10.02 8 0.37 0.36 0.38 90.76 78.85 11.90 0.5476 40.48 60.24
12 12.750 11.94 8 0.41 0.30 0.32 127.64 111.90 15.74 0.7763 53.60 79.77
14 14.000 13.13 8 0.44 0.27 0.28 153.94 135.30 18.64 0.9354 63.00 93.75
16 16.000 15.00 8 0.50 0.24 0.25 201.05 176.70 24.35 1.2230 78.00 116.08
18 18.000 16.88 8 0.56 0.21 0.23 254.85 224.00 30.85 1.5550 105.00 156.26
20 20.000 18.81 8 0.59 0.19 0.20 314.15 278.00 36.15 1.9260 123.00 183.05
24 24.000 22.63 8 0.69 0.16 0.17 452.40 402.10 50.30 2.7930 171.00 254.48

Alloy 600 pipe schedule chart

O.D. Inches Nominal 40s & Std 80 10 80s & E.H. 160 10s 40
1.660 1 1 / 4 .140 .191 .109 .191 .250 .109 .140
2.375 2 .154 .218 .109 .218 .343 .109 .154
3.500 3 .216 .300 .120 .300 .437 .120 .216
2.885 2 1 / 2 .203 .276 .120 .276 .375 .120 .203
4.000 3 1 / 2 .226 .318 .120 .318 .120 .226
5.000 4 1 / 2 .247 .355
4.500 4 .237 .337 .120 .337 .531 .120 .237
5.563 5 .258 .375 .134 .375 .625 .134 .258
.540 1 / 4 .088 .119 .065 .119 .065 .088
.405 1/8 .068 .095 .049 .095 .049 .068
.675 3/8 .091 .126 .065 .126 .065 .091
1.050 3/4 .113 .154 .083 .154 .218 .083 .113
.840 1 / 2 .109 .147 .083 .147 .187 .083 .109
1.315 1 .133 .179 .109 .179 .250 .109 .133
1.900 1 1 / 2 .145 .200 .109 .200 .281 .109 .145
7.625 7 .301 .500
6.625 6 .280 .432 .134 .432 .718 .134 .280
8.625 8 .322 .500 .148 .500 .906 .148 .322
18.000 18 .375 .937 .250 .500 1.781 .188 .562
10.750 10 .365 .593 .165 .500 1.125 .165 .365
9.625 9 .342 .500
12.750 12 .375 .687 .180 .500 1.312 .180 .406
14.000 14 .375 .750 .250 .500 1.406 .188 .437
11.750 11 .375 .500
16.000 16 .375 .843 .250 .500 1.593 .188 .500
Looking for Alloy 600 pipe suppliers in India? Check price and available sizes of WERKSTOFF NR. 2.4816 hexagonal pipe in Mumbai

Inconel 600 pipe price

Description Price in USD Price in Kilogram (INR)
Round Inconel 600 Pipe, Size/Diameter: 1 inch $ 6.95 ₹ 600
Inconel 600 Pipe, Size/Diameter: 3 inch $ 21.67 ₹ 1,870
Inconel 600 Welded Pipe, 3 inch $ 40.56 ₹ 3,500

Chemical composition of Inconel 600 welded pipe

Grade Si Fe C Mn S Cr Ni Cu
600 min. – 6.0 – – – 14.0 72.0 –
max. 0.5 10.0 0.15 1.0 0.015 17.0 – 0.5

WERKSTOFF NR. 2.4816 hexagonal pipe mechanical properties

Element Tensile Strength Yield Strength (0.2%Offset) Melting Point Density Elongation
Inconel 600 Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 1413 °C (2580 °F) 8.47 g/cm3 40 %

ASTM B167 UNS N06600 round pipe equivalent

GRADE OLD BRITISH JIS UNS G0ST AFNOR OR
Inconel 600 EN BS NCF 600 N0600 XH60BT NC15FE11M ЭИ868
Check specification, weight chart of ASTM B167 UNS N06600 round pipe and UNS 6600 cold Drawn pipe as per ASME SB 167 standards

Alloy 600 pipe standards

UNS: N06600
Specifications: ASTM B829, ASTM B167, ASTM B517, ASTM B751, ASTM B163, ASTM B775, ASTM B516, AMS 5580
International Specifications: BS 3072-3076 (NA14) DIN 17750, DIN 17742, DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe

Applications of UNS N06600 pipe

  • High-temperature Environments
  • Oil & Gas
  • Aerospace
  • Chemical Processing
  • Food Processing
  • Electronics
  • Nuclear Power Generation

UNS 6600 cold drawn pipe physical properties

Inconel 600 200°F 400°F 800°F 70°F 600°F 1000°F
Elastic Modulus 103 ksi 30.5 29.7 27.8 31.1 28.8 25.7
Thermal Conductivity Btu-in/h·ft2 ·°F 109 121 145 103 133 139
Yield Strength ksi 26 24 21 35 23 34
Thermal Expansion X10-6/°F 7.4 7.7 8.1 5.8 7.9 7.7
Density lbs/inch3 - - - 0.306 - -
Poisson Ratio - 0.319 0.312 0.301 0.327 0.307 -
Specific Heat Btu/lb·°F 0.111 0.116 0.126 0.106 0.121 0.118
Tensile Strength ksi 75 73 69 80 70 88

Nickel alloy 600 polished pipe welding material

  • AWS A5.14 ERNiCr-3
  • AWS A5.11 ENiCrFe-3

Weight chart of Inconel 600 ERW pipe

NPS Outside Diameter Weight Wall Thickness Weight
in mm Sched kg/Mtr in mm Lb/ft
8″ 8.625 219 25.233 0.188 4.775 16.940
27.198 0.203 5.156 18.259
29.286 0.219 5.563 19.661
20 33.308 0.250 6.350 22.361
30 36.786 0.277 7.036 24.696
40 42.352 0.322 8.179 28.554
49.216 0.375 9.525 33.041
60 53.085 0.406 10.312 35.638
80 XHY 64.627 0.500 12.700 43.388
10″ 10.750 273 31.588 0.188 4.775 21.207
36.689 0.219 5.563 24.631
20 41.759 0.250 6.350 28.035
30 51.002 0.307 7.798 34.240
56.946 0.344 8.738 38.231
40 STD 63.301 0.365 9.271 40.483
71.852 0.438 11.125 48.238
60 XHY 81.530 0.500 12.700 54.735
80 95.969 0.594 15.088 64.429
12″ 12.750 324 37.570 0.188 4.775 25.222
43.657 0.219 5.563 29.309
49.713 0.250 6.350 33.375
55.739 0.281 7.137 37.420
61.735 0.312 7.925 41.445
73.824 0.375 9.525 49.562
79.727 0.406 10.312 53.525
97.438 0.500 12.700 65.415
108.966 0.562 14.275 73.154
1/2″ 0.840 21 40 STD 1.268 0.109 2.769 0.851
80 STD 1.621 0.147 3.734 1.088
3/4″ 1.050 27 40 STD 1.684 0.113 2.870 1.131
80 STD 2.195 0.154 3.912 1.474
1″ 1.315 33 40 STD 2.501 0.133 3.378 1.679
80 STD 3.325 0.179 4.547 2.172
1 1/4″ 1.660 42 40 STD 3.385 0.140 3.556 2.273
80 STD 4.464 0.191 4.851 2.997
1 1/2″ 1.900 48 40 STD 4.048 0.145 3.683 2.718
80 STD 5.409 0.200 5.080 3.361
2″ 2.375 60 40 STD 5.441 0.154 3.912 3.653
80 STD 7.480 0.218 5.537 5.022
2 1/2″ 2.875 73 40 STD 8.629 0.203 5.516 5.793
80 STD 11.411 0.276 7.010 7.661
3″ 3.500 89 40 STD 11.284 0.216 5.486 7.576
80 STD 15.272 0.300 7.620 10.253
4″ 4.500 114 16.073 0.237 6.020 10.790
22.318 0.337 8.560 14.983
6″ 6.625 168 19.252 0.188 4.775 12.924
20.739 0.203 5.516 13.923
22.318 0.219 5.563 14.983
25.354 0.250 6.350 17.021
40 STD 58.263 0.280 7.112 18.974
31.334 0.312 7.925 21.036
37.285 0.375 9.525 25.031
80 XHY 42.561 0.432 10.973 28.573
48.719 0.500 12.700 32.708
14″ 14.000 356 41.308 0.188 4.775 27.732
48.012 0.219 5.563 32.233
20 54.685 0.250 6.350 36.713
61.327 0.281 7.137 41.172
67.939 0.312 7.925 45.611
STD 81.281 0.375 9.525 54.568
40 94.498 0.438 11.125 63.441
XHY 107.381 0.500 12.700 72.090
132.983 0.625 15.875 89.278
16” 16.000 406 47.290 0.188 4.775 21.748
54.980 0.219 5.563 36.910
10 62.639 0.250 6.350 42.053
70.268 0.281 7.137 47.174
20 77.866 0.312 7.925 52.275
85.677 0.344 8.738 57.519

30

STD

 93.213 0.375 9.525 62.578
108.433 0.438 11.125 72.797

40

XHY

 123.289 0.500 12.700 82.770
18″ 18.000 457 61.948 0.219 5.563 41.588
70.593 0.250 6.350 47.393
79.208 0.281 7.137 53.176
20 87.792 0.312 7.925 58.939
STD 105.144 0.375 9.525 70.588
30 122.369 0.438 11.125 82.152
XHY 139.198 0.500 12.700 93.450
40 155.904 0.562 14.275 104.666
172.754 0.625 15.875 115.978
24″ 24.000 610 94.456 0.250 6.350 63.413
106.029 0.281 7.137 71.183
117.573 0.312 7.925 18.932
20 STD 140.938 0.375 9.525 64.618
164.176 0.438 11.125 110.219
XHY 186.923 0.500 12.700 125.490
232.410 0.625 15.875 156.028
40 255.148 0.688 17.475 171.293
277.401 0.750 19.050 186.233
30″ 30.000 762 118.318 0.250 6.350 79.433
132.851 0.281 7.137 89.189
10 147.353 0.312 7.925 98.925
STD 176.731 0.375 9.525 118.648
205.983 0.438 11.125 138.286
20 XHY 234.647 0.500 12.700 157.530
30 292.066 0.625 15.875 196.078
320.817 0.688 17.475 215.380
348.988 0.750 19.050 234.293
20″ 20.000 508 78.547 0.250 6.350 52.733
88.458 0.282 7.163 59.386
97.719 0.312 7.925 65.604
20 STD 117.075 0.375 9.525 78.598
136.305 0.438 11.125 91.508
30 XHY 155.106 0.500 12.700 104.130
40 183.378 0.594 15.088 123.110
192.640 0.625 15.875 129.328
211.368 0.688 17.475 141.901
36″ 36.000 914 142.180 0.250 6.350 95.453
159.672 0.281 7.137 107.196
10 177.133 0.312 7.925 118.918
STD 215.525 0.375 9.525 142.678
247.790 0.438 11.125 166.353
20 XHY 282.372 0.500 12.700 198.570
351.723 0.625 15.875 236.128
386.487

0.688

 17.475 259.467
420.576

0.750

 19.050 282.353
42″ 42.000 1067 206.914 0.312 7.925 138.911
STD 248.319 0.375 9.525 166.708
XHY 33.097 0.500 12.700 221.610
492.163 0.750 19.050 330.413
48″ 48.000 1219 STD 284.112 0.375 9.525 190.738
331.404 0.438 11.125 222.487
XHY 377.822 0.500 12.700 253.650
563.750 0.750 19.050 378.473
655.969 0.875 22.225 440.383

DIN NR. 2.4816 square pipe testing

  • Intergranular Corrosion (IGC) Test
  • Moisture Testing
  • PMI (Positive Material Identification) Test
  • Flattening Test
  • Micro and Macro Test
  • Hydrostatic Test
  • Eddy Current Test
  • Pitting Resistance Test
  • Hardness Test
  • Spectro Analysis
  • Flaring Test
  • Visual Inspection

WhatsApp Chat
