ASTM A312 pipe

ASTM A312 stainless steel pipe supplier in India

Table of Contents

SA312 pipe specification
ASTM A312 SS pipe types
ASTM A312 stainless steel pipe dimensions
ASTM A312 pipe weight
A312 TP316L pipe application
ASTM A312 stainless steel pipe pressure rating
A312 EFW pipe price
ASTM A312 pipe tolerances

ASTM A312 pipe sizes
A312 304 pipe chemical composition
Mechanical properties of SA312 TP304 pipe
Testing and inspection of A312 ERW pipe
ASTM A312 pipe od tolerance
ASTM A312 seamless pipe equivalent
ASTM A312 TP304 pipe tensile strength
SA312 TP316L seamless pipe services
ASTM A312 pipe schedule

Check SA 312 pipe and ASTM A312 seamless stainless steel pipe dimension, weight and pressure rating

Outer Diameter

1/8" NPS to 30" NPS

Thickness

0.6 mm to 12.7 mm

Length

Double Random, Single Random & Cut Length

End

Plain, Beveled

Types

Seamless/ ERW / Welded / EFW / Fabricated Pipe

Schedules

SCH. 10, 5, 20, 40, 30, 60, 100, 80, 120, 160, 140, XXS

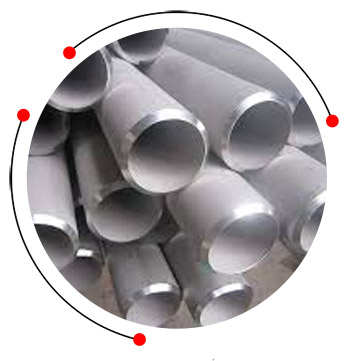

ASTM A312 pipe

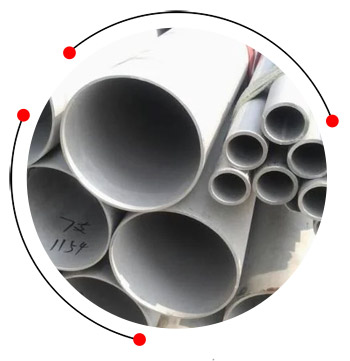

ASTM A312 stainless steel pipe

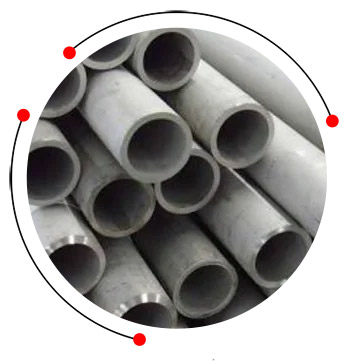

SA 312 pipe

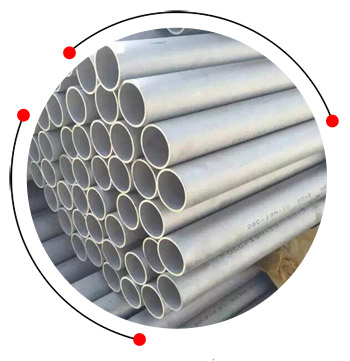

ASTM A312 seamless stainless steel pipe

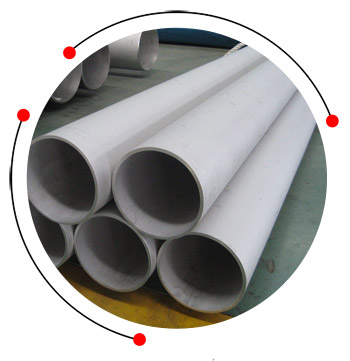

A312 welded pipe

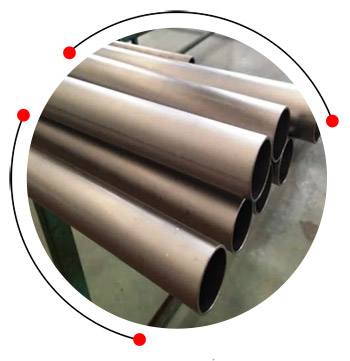

A312 stainless pipe

NPS, inch	OD, mm	Max. Length, м	Wall Thickness, milimeter
1/8	10,3	12	1,73; 2,11
1/4	13,7		2,24; 3,02
3/8	17,1		2,31; 3,20
1/2	21,3		2,11; 3,73
3/4	26,7		2,87; 3,91
1	33,4	10	3,38; 4,55; 6,35
1 1/4	42,4		3,56; 4,85; 6,35
1 1/2	48,3		3,68; 5,03; 7,14
2	60,3		3,58; 3,91; 4,37; 4,78; 6,35; 6,94; 7,14
2 1/2	73,0		3,58; 3,95; 4,37; 4,78; 5,16; 5,49; 6,35; 7,01

Nominal Pipe Size	Schedule	Wall Thickness (mm)	OD (mm)	Weight (kg/m)
2"	SCH 40	3.91	60.33	6.17
2 1/2"	SCH 40	5.16	73.03	9.37
3"	SCH 40	5.49	88.90	12.40
4"	SCH 40	6.02	114.30	16.38
6"	SCH 40	7.11	168.28	28.26
8"	SCH 40	8.18	219.08	42.69
1/2"	SCH 40	2.77	21.34	1.27
3/4"	SCH 40	2.87	26.67	1.71
1"	SCH 40	3.38	33.40	2.55
1 1/4"	SCH 40	3.56	42.16	3.69
1 1/2"	SCH 40	3.68	48.26	4.55
10"	SCH 40	9.27	273.05	60.33
12"	SCH 40	9.53	323.85	75.52

Oil and Gas Processing	Construction	Energy industries
Pulp and Paper	Pharmaceuticals	Chemicals
Food Processing	Automotive Industry	Power Plants

Pressure Rating(psig)
Pipe Size (inches)	Pipe Schedule	Temperature(oF)
Pipe Size (inches)	Pipe Schedule	100	200	300	400	500	600	650	700	750
5"	40	1342	1158	1040	956	889	847	822	805	797
	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
6"	40	1219	1052	945	869	808	770	747	732	724
	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
1"	40	3168	2629	2362	2171	2019	1924	1867	1824	1810
	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
1 1/2"	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
2"	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
3"	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
	160	3840	3312	2976	2736	2544	2424	2352	2316	2280
4"	40	1531	1321	1187	1091	1014	967	938	919	909
	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
8"	40	1073	926	832	765	711	678	657	644	637
	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
10"	40	974	840	755	694	645	615	596	584	578
	80	1609	1388	1247	1147	1066	1016	986	966	956
	160	3147	2714	2439	2242	2085	1986	1927	1880	1868

Buy A312 stainless pipe, ASTM A312 ss pipe and A312 welded pipe at best price in Mumbai

Description	Price in USD	Price in Kilogram (INR)
ASTM A 312 Seamless Pipes, Size: 1/2 Inch, 3/4 Inch	$ 4.67	₹ 400
Hot Rolled ASTM A312 TP316 SS Pipe, Thickness: 3-4 MM	$ 7.24	₹ 620
Astm A312 SS Pipes, Grade: SS304, Size: 2 inch	$ 2.93	₹ 251
Welded ASTM A312 TP 904L SS Pipe, Size: 1/4" NB to 36" NB	$ 11.68	₹ 1000

NPS	ASTM A312 WT Tolerance, %
NPS	+	–
≥ 20, welded	17.5	12.5
≥ 20, seamless, t/D≤ 5%	22.5	12.5
1/8-2 1 /2	20.0	12.5
3~18, t/D≤ 5%	22.5	12.5
3~18, t/D> 5%	15.0	12.5
≥ 20, seamless, t/D> 5%	15.0	12.5

EIL approved ASTM A312 tp304 pipe stockist in India, Check A312 tp316 pipe tolerances and sizes

Outer Diameter	Wall Thickness Schedule					Nominal Size
mm	5S	10S	40S	STD	80S	Nominal Pipe Size	DN
660.4	–	–	–	9.53	–	26	650
33.4	1.65	2.77	3.38	3.38	4.55	1	25
48.3	1.65	2.77	3.68	3.68	5.08	1 1∕2	40
60.3	1.65	2.77	3.91	3.91	5.54	2	50
73	2.11	3.05	5.16	5.16	7.01	2 1∕2	65
558.8	4.78	5.54	–	9.53	–	22	550
42.2	1.65	2.77	3.56	3.56	4.85	1 1∕4	32
88.9	2.11	3.05	5.49	5.49	7.62	3	80
101.6	2.11	3.05	5.74	5.74	8.08	3 1∕2	90
114.3	2.11	3.05	6.02	6.02	8.56	4	100
13.7	–	1.65	2.24	2.24	3.02	1∕4	8
141.3	2.77	3.4	6.55	6.55	9.53	5	125
508	4.78	5.54	–	9.53	–	20	500
17.2	–	1.65	2.31	2.31	3.2	3∕8	10
10.3	–	1.24	1.73	1.73	2.41	1∕8	6
21.3	1.65	2.11	2.77	2.77	3.73	1∕2	15
273.1	3.4	4.19	9.27	9.27	12.7	10	250
26.7	1.65	2.11	2.87	2.87	3.91	3∕4	20
609.6	5.54	6.35	–	9.53	–	24	600
168.3	2.77	3.4	7.11	7.11	10.97	6	150
219.1	2.77	3.76	8.18	8.18	12.7	8	200
323.9	3.96	4.57	9.53	9.53	12.7	12	300
355.6	3.96	4.78	–	9.53	–	14	350
406.4	4.19	4.78	–	9.53	–	16	400
457.2	4.19	4.78	–	9.53	–	18	450
711.2	–	–	–	9.53	–	28	700
762	6.35	7.92	–	9.53	–	30	750

Grade	Sulfur	Carbon	Silicon	Chromium	Manganese	Nickel	Molybdenum	Phosphorous
TP316	0,03	0,08	1,0	16.0 – 18.0	2.00	10.0 – 14.0	2.00 – 3.00	0,045
TP304	0,03	0,08	1,0	18.0 – 20.0	2.00	8.0 – 11.0	–	0,045
TP304L	0,03	0,035	1,0	18.0 – 20.0	2.00	8.0 – 13.0	–	0,045
TP316L	0,03	0,035	1,0	16.0 – 18.0	2.00	10.0 – 15.0	2.00 – 3.00	0,045
TP321	0,03	0,08	1,0	17.0 – 19.0	2.00	9.0 – 12.0	–	0,045

Grade	UNS	Yield Strength Min, Ksi [MPa]	Tensile Strength Min, Ksi [MPa]
TP309S	S30908	30 [205]	75 [515]
TP310S	S31008	30 [205]	75 [515]
TP316	S31600	30 [205]	75 [515]
TP316L	S31603	25 [170]	70 [485]
TP316H	S31609	30 [205]	75 [515]
TP304	S30400	30 [205]	75 [515]
TP304L	S30403	25 [170]	70 [485]
TP304H	S30409	30 [205]	75 [515]
TP304N	S30451	35 [240]	80 [550]
TP304LN	S30453	30 [205]	75 [515]
TP316N	S31651	35 [240]	80 [550]
TP316LN	S31653	30 [205]	75 [515]
TP317	S31700	30 [205]	75 [515]
TP317L	S31703	30 [205]	75 [515]

Radiographic Examination (option)	Transverse or Longitudinal Tension Test
Weld Decay Tests	Grain Size Determinations
Flattening Test (option)	Intergranular Corrosion Test (option)
Mechanical Tests	Hydrostatic or Nondestructive Electric Test
Weld Decay Test (option)

Check specifications, wall thickness of ASTM A312 seamless pipe and A312 efw pipe available in grade TP304, TP304L, TP316, TP316L

NPS	SA312 pipe OD Tolerance
	+		–
	inch	milimeter	inch	milimeter
1/8~1 1 /2 > 1 1 /2~4 > 4~8 > 8~18 > 18~26 > 26~34 > 34~48	1/64(0.015) 1/32(0.031) 1/16(0.062) 3/32(0.093) 1/8(0.125) 5/32(0.156) 3/16(0.187)	0.4 0.8 1.6 2.4 3.2 4.0 4.8	1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031)	0.8 0.8 0.8 0.8 0.8 0.8 0.8

ASTM	UNS NO.	KOREA/JAPANES			GERMAN				BRITISH			FRENCH			ITALIAN
STAND ARD	UNS NO.	KS/JIS Symbol	KS/JIS Numbe	Remarks	DIN Type	DIN Number	Material Number	Remarks	B.S Number	B.S Grade	Remarks	AFNOR Type	NF Number	Ramarks	UNI Type	UNI Number	Ramarks
A 312 Smls and Welded Austenitic SS Pipe
TP 316H	S34609	310STP	D3576 / G3459	-16				-3	3605	316S59		TUZ6CND17- 12	A 49-230		X8 CrNiNb 17 12	6904	(3b)
TP 316L	S31603	STS 316TP / SUS 316TP	D3576 / G3459	-16	X2 CrNiMo 18 10	17440	1.4404	(3b)	3605	316S14		TUNZ2CND1 7-12	A 49-230		X2 CrNiMo 17 12	6904	Dalmine 941(3b)
TP 321	S32100	STS 316HTP /SU	D3576 / G3459	-16	x10 CrNiTi 18 9	17440	1.4541	(3b)	3605	321S18		Z6 CNT 18.11	A 49-230		X6 CrNiTi 18 11	6904	(3b)
TP 304	S30400	STS 304TP / SUS 304 TP	D3576 / G3459	-16	X5CrNi 18 9	17440	1.4301	(3b)	3605	304S18		TU Z6 CN19- 10	A 49-230		X5 CrNi 18 10	6904	(3b)
TP 304H	S30409	STS 304HTP / SUS 304HTP	D3576 / G3459	-16				-3	3605	304S59		TU Z6 CN19- 10	A 49-214		X8 CrNi 19 10	6904	(3b)
TP 304L	S30403	STS 304LTP/SU	D3576 / G3459	-16	X2 CrNi 19 9	17440	1.4306	(3b)	3605	304S14		TU Z2 CN19- 11	A 49-230		X2 CrNi 18 11	6904	(3b)
TP 310	S31000	304LTP	D3576 / G3459	-16				-3							X22 Cr Ni 25 20	6904	(3b)(11)
TP 316	S31600	STS 310STP/SU	D3576 / G3459	-16	X5 CrNiMo 18 10	17440	1.4401	(3b)	3605	316S18		Z 6 CND 17.11	A 35-573	(3b)	X5 CrNiMo 17 12	6904	(3b)
TP 347	S34700	316HTP	D3576 / G3459	-16	X5 CrNiNb 18 9		1.4543	(3b)	3605	347S18		Z6 CNNb 18.11	A 35-573	(3b)	X6 CrNiNb 18 11	6904	(3b)
TP 347H	S34709	STS 316LTP /SU	D3576 / G3459	-16				-3							X6 CrNiNb 18 11	6904	(3b)
		321LTP
		STS 321TP / SUS 321TP
		STS 347TP / SUS 347TP
		STS 347HTP / SUS 347HTP

SS Pipes Grade	Yield Strength, N/mm2 (min)	Tensile Strength, N/mm2 (min)	Elongation, % (min)
TP316	205	515	35
TP316L	170	485	35
TP304	205	515	35
TP304L	170	485	35
TP321	OD < 17,1 mm – 205;	OD < 17,1 mm – 515;	35
TP321	OD > 17,1 mm – 170	OD > 17,1 mm – 485	35

Bending	Sand Blasting	Draw
Pickled	Heat Treatment	Machining Etc
Annealed	Polish

NPS	OD	SCH 40S	SCH 10S	SCH 5S	SCH 80S
22	558.8	–	5.54	4.78	–
1	33.4	3.38	2.77	1.65	4.55
10	273.05	9.27	4.19	3.4	12.7
2.5	73.03	5.16	3.05	2.11	7.01
1.25	42.16	3.56	2.77	1.65	4.85
18	457.2	9.53	4.78	4.19	12.7
8	219.08	8.18	3.76	2.77	12.7
1.5	48.26	3.68	2.77	1.65	5.08
6	168.28	7.11	3.4	2.77	10.97
4	114.3	6.02	3.05	2.11	8.56
1/2	21.34	2.77	2.11	1.65	3.73
1/4	13.72	2.24	1.65	–	3.02
14	355.6	9.53	4.78	3.96	12.7
24	609.6	9.53	6.35	5.54	12.7
3/4	26.67	2.87	2.11	1.65	3.91
3/8	17.15	2.31	1.65	–	3.2
12	323.85	9.53	4.57	3.96	12.7
20	508	9.53	5.54	4.78	12.7
2	60.33	3.91	2.77	1.65	5.54
3.5	101.6	5.74	3.05	2.11	8.08
16	406.4	9.53	4.78	4.19	12.7
5	141.3	6.55	3.4	2.77	9.53
3	88.9	5.49	3.05	2.11	7.62
