ASTM A179 tube

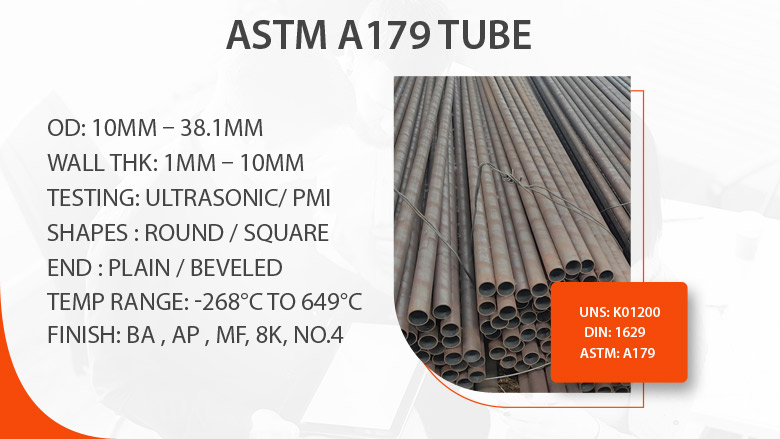

ASTM A179 tube manufacturer in India

SA 179 tubes manufacturer in India

Table of Contents

Check ASTM A179 seamless steel tube and SA 179 material specification and chemical composition

SA 179 tube specification

01

Wall Thickness

1mm – 10mm

02

Outer Diameter

10mm – 38.1mm

03

American Standard

ASTM A179 / ASME SA179



04

Process

Cold Drawn / Cold Rolled / Hot Rolled

05

Coating

Epoxy / Colour Paint / 3LPE

06

Schedule

SCH 40, SCH 160, SCH 80, SCH XS, SCH XXS

Types of SA 179 tubes

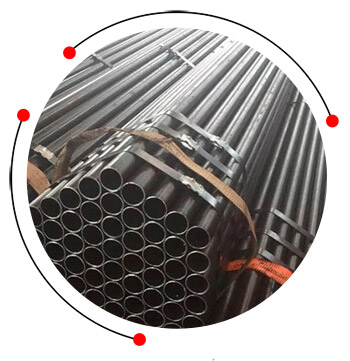

ASTM A179 tube

ASTM A179 tube

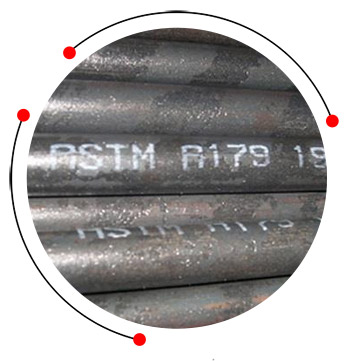

SA 179 tubes

SA 179 tubes

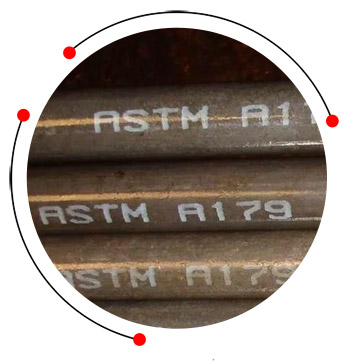

ASTM A179 seamless steel tube

ASTM A179 seamless steel tube

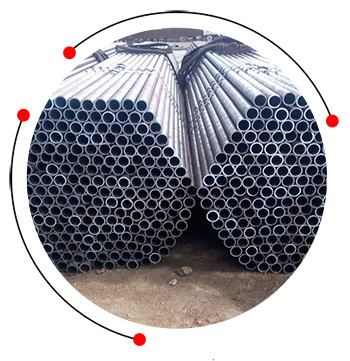

ASTM A179 boiler tube

ASTM A179 boiler tube

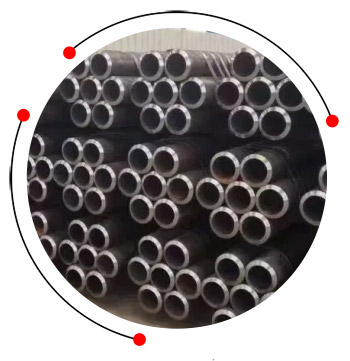

ASTM A179 Tubing

ASTM A179 Tubing

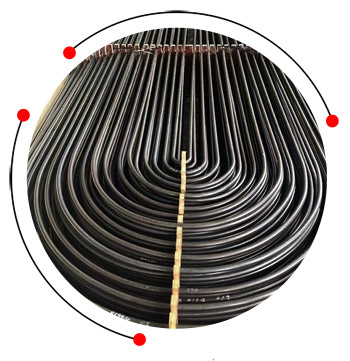

ASTM A179 heat exchanger tubes

ASTM A179 heat exchanger tubes

Chemical composition of ASTM A179 seamless steel tube

Element A/SA 179
P ≤0.035 max
C 0.06-0.18
Mn 0.27-0.63
S ≤0.035 max

Suppliers of ASTM A179 boiler tube in Mumbai. Check SA 179 seamless tube properties, dimensions and weight chart

ASTM A179 boiler tube mechanical properties

Element A/SA 179
Yield Strength KSI (MPa) 47 (325)
Tensile Strength KSI (MPa) 47 (325)
Elongation min. % 35

Equivalent grades of SA 179 seamless tube

ASTM
STANDARD 		UNS NO. GERMAN KOREA/JAPANES BRITISH FRENCH BELGIAN ITALIAN
DIN Type DIN
Number 		Materiral
Number 		Re
marks 		KS/JIS Symbol KS/JIS Numbe Re marks B.S
Number 		B.S Grade Re marks AFNOR Type NF
Number 		Re marks NBN Type NBN Grade Re marks UNI Type UNI Number Re marks
A 179
Seamless Cold Drawn Low-C Steel Heat Exchanger and Conderser Tubes 		K01200 St 35.4 1629 1.0309 STBH 340 / STB 35 D3563 / G3461 3606 CFS 320 TU 37 C A49-215 (3a) D 37-2 629 (3b) C 14 5462
St 35.8 17175 1.0305 Plus DIN 2391 (18) Gutegard C.NBK

SA 179 tube weight chart

Size NPS Tubes O.D. Weight per Foot Standard to XXHY Wall Thickness Tubes I.D. Schedule
Tubes # 		Section Modulus Gallon Capacity Per Linear Foot
1 1/2 1.90 2.72 STD 0.145 1.610 40 .3262 .1058
3.63 XHY 0.200 1.500 80 .4118 .0918
4.86 0.281 1.338 160 .5079 .0730
6.41 0.400 1.100 .5977 .0494
2 2.375 2.64 0.109 2.157 10 .4205 .1898
3.66 STD 0.154 2.067 40 .5606 .1743
5.03 XHY 0.218 1.939 80 .7309 .1534
5.68 0.250 1.875 .8045 .1434
6.29 0.281 1.813 .8666 .1344
7.47 0.344 1.687 160 .9806 .1161
9.04 XXHY 0.436 1.503 1.1043 .0922
2 1/2 2.875 3.53 0.120 2.635 10 .6870 .2833
5.80 STD. 0.203 2.469 40 1.0640 .2487
6.14 0.216 2.443 1.1169 .2435
7.02 0.250 2.375 1.2468 .2301
7.67 XHY 0.276 2.323 80 1.3386 .2202
10.02 0.375 2.125 160 1.6371 .1842
13.71 XXXHY 0.552 1.771 1.9971 .1280
1/2 0.84 0.85 STD 0.109 0.622 40 .0407 .0158
1.09 XHY 0.147 0.546 80 .0478 .0122
1.31 0.188 0.464 160 .0528 .0088
1.72 XXHY 0.294 0.252 .0577 .0026
3/4 1.05 1.13 STD 0.113 0.824 40 .0705 .0277
1.48 XHY 0.154 0.742 80 .0853 .0225
1.95 0.219 0.612 160 .1006 .0153
2.44 XXHY 0.308 0.434 .1103 .0077
1 1.315 1.68 STD 0.133 1.049 40 .1328 .0449
2.17 XHY 0.179 0.957 80 .1606 .0374
2.85 0.250 0.815 160 .1904 .0271
3.66 XXHY 0.358 0.599 .2136 .0146
1 1/4 1.66 2.27 STD 0.140 1.380 40 .2346 .0777
3.00 XHY 0.191 1.278 80 .2913 .0666
3.77 0.250 1.160 160 .3421 .0549
5.22 0.382 0.896 .4110 .0328
3 3.50 4.34 0.120 3.260 1.0411 .4336
5.58 0.156 3.188 1.3122 .4147
6.12 0.172 3.156 1.4265 .4064
6.66 0.188 3.124 1.5342 .3984
7.58 STD. 0.216 3.068 40 1.7241 .3840
8.69 0.250 3.000 1.9372 .3672
9.67 0.281 2.938 2.1207 .3521
10.26 XHY 0.300 2.900 80 2.2253 .3431
14.34 0.438 2.624 160 2.8774 .2811
18.6 XXHY 0.600 2.300 3.4243 .2158
3 1/2 4.0 4.98 0.120 3.760 10 1.3776 .5768
9.12 STD. 0.226 3.548 140 2.3939 .5136
10.02 0.250 3.500 2.6001 .4998
11.17 0.281 3.438 2.8562 .4821
12.52 XHY 0.318 3.364 80 3.1400 .4617
22.87 XXHY 0.636 2..728 4.8795 .3085
12.51 0.219 5.125 4.7279 1.0716
14.63 STD. 0.258 5.047 40 5.4500 1.0391
15.87 0.281 5.001 5.8644 1.0204
17.51 0.312 4.939 6.4074 .99647
19.19 0.344 4.875 6.9358 .9696
20.80 XHY 0.375 4.813 80 7.4300 .9449
27.06 0.500 4.563 120 9.2534 .8495
32.99 0.625 4.313 160 10.7976 .7590
38.59 XXHY 0.750 4.063 12.0954 .6734
4 4.5 5.62 0.120 4.260 10 1.7612 .7404
7.24 0.156 4.188 2.2354 .7156
8.67 0.188 4.124 2.6296 .6942
9.32 0.203 4.094 2.8173 .6838
10.02 0.219 4.062 3.0184 .6725
10.80 STD. 0.237 4.026 40 3.2145 .6613
11.36 0.250 4.000 3.3611 .6528
12.67 0.281 3.938 60 3.7021 .6326
13.97 0.312 3.876 4.0273 .6126
15.00 XHY 0.337 3.826 80 4.2713 .5972
19.02 0.438 3.624 120 5.1790 .5361
22.53 0.531 3.438 160 5.8997 .4822
27.57 XXHY 0.674 3.152 6.7927 .4054
5 5.563 10.80 0.188 5.187 4.1161 1.0979
6 6.625 7.59 0.109 6.407 5 3.5769 1.6748
9.30 0.134 6.357 10 4.3475 1.6488
10.79 0.156 6.313 5.0107 1.6260
12.94 0.188 6.249 5.9351 1.5937
13.94 0.203 6.219 6.3804 1.5780
15.00 0.219 6.187 6.8261 1.5620
17.04 0.250 6.125 7.6905 1.5306
18.99 STD. 0.280 6.065 40 8.4958 1.5008
21.06 0.312 6.001 9.3416 1.4688
23.10 0.344 5.937 10.111 1.4391
25.05 0.375 5.875 10.893 1.4082
28.60 XHY 0.432 5.761 80 12.224 1.3541
32.74 0.500 5.625 13.711 1.2909
36.43 0.562 5.501 120 14.9806 1.2346
40.09 0.625 5.375 16.1821 1.1787
45.39 0.719 5.187 160 17.8243 1.0977
53.21 XXHY 0.864 4.897 20.025 .9784
60.13 1.000 4.625 21.7719 .8727
66.14 1.125 4.375 23.1237 .7809

SA 179 tubes dimensions

Outside Dia (OD) mm Standard Length (m) Wall Thickness (mm)
15.88 5.0 - 12.0 1.65
19.05 5.0 - 12.0 2.0
25.4 5.0 - 12.0 2.11
12.7 5.0 - 12.0 1.2
31.75 5.0 - 12.0 2.77
38.1 5.0 - 12.0 2.77
Looking For ASTM A179 Tubing stockist In India? Buy ASTM A179 heat exchanger tubes at best price in India

SA 179 tube price

Description Price in USD Price in Kilogram (INR)
Astm A179 Tubing, Size: 3 inch $ 1.75 ₹ 150
A179 Tube, Size: 1/2 inch $ 1.05 ₹ 90
ASTM SA 179 Black Pipes, Size: 1/2 inch $ 4.09 ₹ 350

ASTM A179 tubing wall thickness tolerance

Outside Dia Wall thickness Tolerance %
In. (mm) Over (+) Under (-)
Over 1½ (38.1) 22 0
1 ½ (38.1) 20 0
and under

Application of SA 179 material

Air Preheater Unit Steam Generating Boiler Power Generation
Economiser Heat Exchangers Electric Power Plants
Fossil Fuel Plants Water Supply Systems Waste Heat Plants

Diameter tolerance of ASTM A179 heat exchanger tubes

OD
In. (mm) 		Permissible Variations In. (mm)
Over (+) Under (-)
1 to 1 ½ (25.4 to 38.1), Incl 0.006 (0.15) 0.006 (0.15)
Under 1 (25.4) 0.004 (0.1) 0.004 (0.1)
Over 11⁄2 to 2 [38.1 to 50.8], Excl 0.008 (0.2) 0.008 (0.2)
21⁄2 to 3 [63.5 to 76.2], Excl 0.012 (0.3) 0.012 (0.3)
2 to 21⁄2 [50.8 to 63.5], Excl 0.010 (0.25) 0.010 (0.25)
SA179 carbon steel condenser tubes and A179 carbon steel tubes available in OD from 1/8" to 3" (3.2 mm to 76.2 mm)

A179 carbon steel tubes sizes

OD (mm) WT (mm) OD (mm) WT (mm) OD (mm) WT (mm)
25.4 2.108 15.875 2.108 38.1 2.9
25.4 2.11 15.875 2.413 38.1 3.05
25.4 2.41 15.88 1.65 38.1 3.403
25.4 2.7 16 1.2 40 1.5
25.4 2.76 16 2 44.45 2.1
25.4 2.769 19.05 1.22 50.8 2.413
25.4 2.77 19.05 1.651 50.8 3.05
25.4 3.048 19.05 2 50.8 3.404
25.4 3.15 19.05 2.1 57.15 3.048
19.05 3.404 6.35 0.91 31.75 2.769
20 2 9.53 1.22 31.75 3.7
20 2.2 12.7 1.22 32 X 22 3.404
25 2 12.7 1.245 36 X 14 1.8
25 2.77 12.7 1.65 38 2.77
25.4 1.6 15.875 1.245 38 3.2
25.4 1.651 15.875 1.65 38.1 2.41
25.4 2 15.875 1.651 38.1 2.769
25.4 3.4 19.05 2.108 60.3 2
31.75 2.108 19.05 2.11 63.5 3.76
31.75 2.11 19.05 2.64 63.5 8
19.05 2.769

ASTM A179 cold drawn tube test certificate

  • DIN 50049, - 2.2, 3.1. B
  • ASTM / ASME A450
  • EN 10204: for EN 10297

Hydrostatic test pressures of SA179 carbon steel condenser tubes

OD of Tube, in. [mm] Hydrostatic Test Pressure, psi [Mpa]
1 to 11⁄2 [25.4 to 38.1], excl 1500 [10]
Under 1 [25.4] 1000 [7]
2 to 3 [50.8 to 76.2], excl 2500 [17]
11⁄2 to 2 [38.1 to 50.8], excl 2000 [14]

Features of SA179 heat exchanger tubes

  • Anti-corrosion
  • Higher stability
  • Anti-wear
  • Lower contact resistance
  • Anti-fouling ability

Length tolerance of ASTM A179 SAE J524 cold-drawn seamless tube

OD,
In.(mm) 		Cut Length, in.(mm)
Over(+) Under(-)
2 [50.8] and over 3⁄16 [5] 0 [0]
All Sizes 3⁄16 [5] 0 [0]
Under 2 [50.8] 1⁄8 [3] 0 [0]
2 [50.8] and over 3⁄16 [5] 0 [0]
Under 2 [50.8] 1⁄8 [3] 0 [0]
