254 SMO pipe suppliers

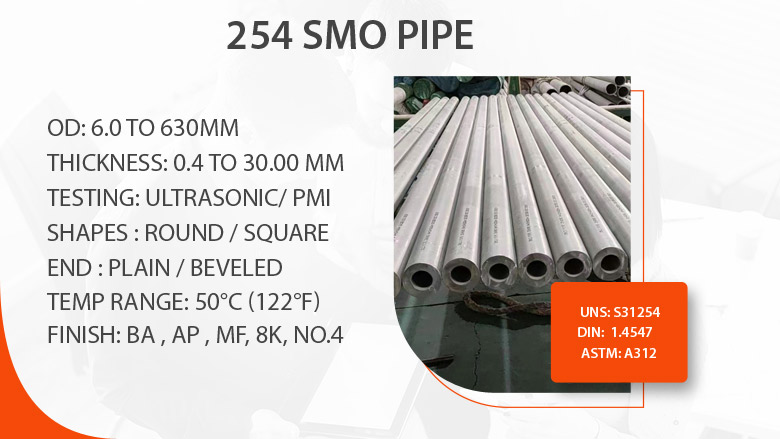

254 SMO pipe suppliers in India

ASTM A312 UNS S31254 seamless pipe manufacturer in India

Table of Contents

6mo ERW pipe and A312 S31254 welded pipe pressure ratings and dimensions comply with ASME, ANSI and ASTM standards

Specification of SMO 254 pipe

01

Thickness

0.4 to 30.00 mm

02

Delivery condition

solution annealed and white pickled

03

Critical pitting temperature

50°C (122°F)



04

Roughness factor

between 0.1 to 1 µm or higher

05

Trade name

Sandvik 254 SMO

06

Pipe End

Beveled, Plain



07

ERW pipe sizes

  • OD: 10 to 600mm
  • Length: 0.5 to 12 meter
  • WT: 2.5 to 100mm

08

Technique

  • Cold Formed
  • Hot Formed
  • Precision Rolled

09

Welded pipe sizes

  • WT: 0.3 to 50 mm
  • Length: up to 26 Meters
  • OD: 6.0 to 630mm



10

Seamless pipe sizes

  • Length: Double Random, Single & Cut Length
  • OD: 6.0 to 630mm
  • WT:0.3 to 50 mm

11

Manufacturing process

  • ERW
  • Fabricated
  • Welded
  • Seamless

12

Specifications standard

  • ASTM A312
  • ASME SA 312

254 SMO pipe types

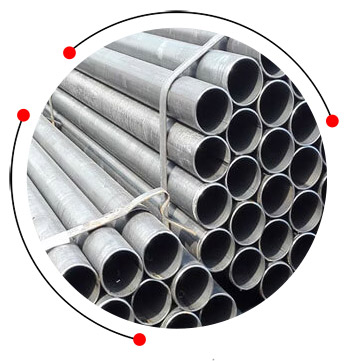

254 SMO pipe

254 SMO pipe

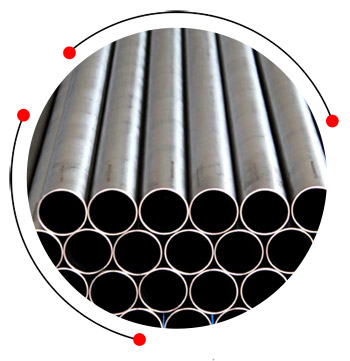

ASTM A312 UNS S31254 seamless pipe

ASTM A312 UNS S31254 seamless pipe

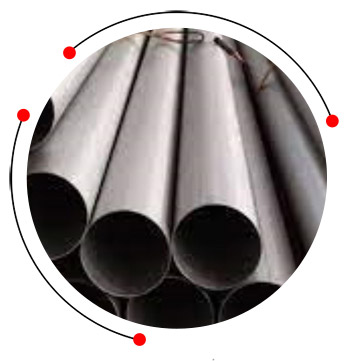

6mo ERW pipe

6mo ERW pipe

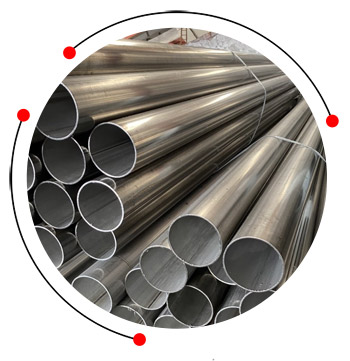

A312 S31254 welded pipe

A312 S31254 welded pipe

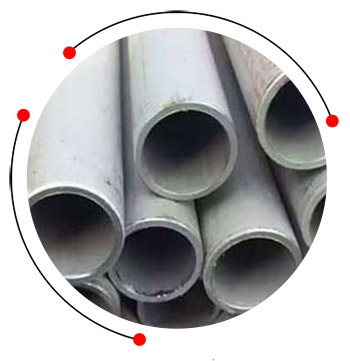

254 SMO EFW pipe

254 SMO EFW pipe

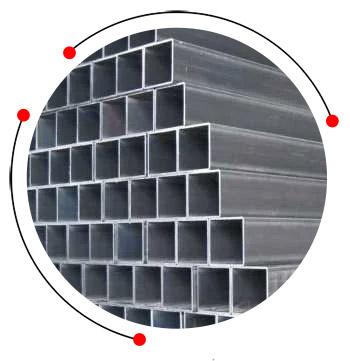

ASTM A312 S31254 square pipes

ASTM A312 S31254 square pipes

ASTM A312 UNS S31254 seamless pipe pressure rating

OD (in.) Wall Thickness (in.)
0.120 0.109 0.095 0.065 0.049 0.083 0.035 0.028
- Pressure (psig)
5/16 - - - 7300 5400 - 3700 -
1/2 - - - 4400 3200 - 2300 -
1 4300 3900 3400 2200 - 2900 - -
1/4 - - - 9500 7000 - 4800 3700
1/8 - - - - - - 10100 7900
3/8 - - - 6100 4400 - 3100 -
3/4 - - 4600 3000 2200 4000 - -

Dimension of 6MO ERW pipe

Outside Diameter (OD) mm Standard Length (m) Wall Thickness (mm)
48.3 6.0 3.2
60.3 6.0 3.6
73.0 6.0 4.0
21.3 6.0 2.0
26.7 6.0 2.3
33.4 6.0 2.6
42.2 6.0 2.9
88.9 6.0 5.5
101.6 6.0 5.7
114.3 6.0 6.0

Check 254 SMO seamless pipe sizes and specifications. Buy S31254 pipe at best price in Mumbai

A312 S31254 welded pipe sizes

Nominal Pipe Size in Inch THK in MM Volume (ft3/ft) Diameter in Milimeter Length of Pipe (ft per sq. foot of Surface) Weight Transverse Areas (in2) MM2 NO of Threads per inch of Screw
Internal External Internal Surface (ft) External Surface (ft) (kg/meter) (lb/ft) Steel Internal External
18" 0.56 1.5550 16.88 18 0.23 0.21 156.26 105.00 30.85 224.00 254.85 8
¼" 0.09 07 0.36 0.540 10.49 7.07 0.63 0.42 0.13 0.10 0.23 18
½" 0.11 0.0021 0.62 0.840 6.14 4.55 1.26 0.85 0.25 0.30 0.55 14
1" 0.13 0.0060 1.05 1.315 3.64 2.90 2.50 1.68 0.49 0.86 1.36 11 ½
20" 0.59 1.9260 18.81 20 0.20 0.19 183.05 123.00 36.15 278.00 314.15 8
16" 0.50 1.2230 15.00 16 0.25 0.24 116.08 78.00 24.35 176.70 201.05 8
12" 0.41 0.7763 11.94 12.750 0.32 0.30 79.77 53.60 15.74 111.90 127.64 8
8" 0.32 0.3552 7.98 8.625 0.48 0.44 42.49 28.55 8.40 50.02 58.42 8
5" 0.26 0.1389 5.05 5.563 0.76 0.69 21.74 14.61 4.30 20.00 24.30 8
1/8" 0.07 04 0.27 0.405 14.20 9.43 0.36 0.24 0.07 0.06 0.13 27
3/8" 0.09 0.0013 0.49 0.675 7.75 5.66 0.84 0.57 0.17 0.19 0.36 18
¾" 0.11 0.0037 0.82 1.050 4.64 3.64 1.68 1.13 0.33 0.53 0.87 14
1 ¼" 0.14 0.0104 1.38 1.660 2.77 2.30 3.38 2.27 0.67 1.50 2.16 11 ½
2" 0.15 0.0233 2.07 2.375 1.85 1.61 5.43 3.65 1.08 3.36 4.43 11 ½
3" 0.22 0.0513 3.07 3.500 1.25 1.09 11.27 7.58 2.23 7.39 9.62 8
4" 0.24 0.0884 4.03 4.500 0.95 0.85 16.06 10.79 3.17 12.73 15.90 8
6" 0.28 0.2006 6.07 6.625 0.63 0.58 28.23 18.97 5.58 28.89 34.47 8
10" 0.37 0.5476 10.02 10.750 0.38 0.36 60.24 40.48 11.90 78.85 90.76 8
14" 0.44 0.9354 13.13 14 0.28 0.27 93.75 63.00 18.64 135.30 153.94 8
1 ½" 0.15 0.0141 1.61 1.900 2.37 2.01 4.04 2.72 0.80 2.04 2.84 11 ½
3 ½" 0.23 0.0687 3.55 4 1.08 0.95 13.56 9.11 2.68 9.89 12.56 8
2 ½" 0.20 0.0333 2.47 2.875 1.55 1.33 8.62 5.79 1.70 4.79 6.49 8
24" 0.69 2.7930 22.63 24 0.17 0.16 254.48 171.00 50.30 402.10 452.40 8

254 SMO seamless pipe price list

Description Price in USD Price in Kilogram (INR)
Round Smo 254 Pipe, 6 meter $ 21.02 ₹ 1,800
Round Stainless Steel SMO 254 Pipe, 3 meter $ 4.09 ₹ 350

S31254 pipe testing

  • 100% PMI
  • Flaring
  • Flange
  • Hardness
  • Reverse flattening
  • Tension

Weight chart of 254 SMO EFW pipe

Nominal Size Weight Weight Schedule Weight OutSide Diamter (O.D)
kg/Mtr Inch MM Lb/ft MM Inch
1 1/4" 3.0385 0.0140 3.0556 40 2.0273 42 1.0660
3" 11.0284 0.0216 5.0486 40 7.0576 89 3.0500
36" 142.0180 0.0250 6.0350 – 95.0453 914 36
4" 16.0073 0.0237 6.0020 – 10.0790 114 4.0500
2" 5.0441 0.0154 3.0912 40 3.0653 60 2.0375
14" 41.0308 0.0188 4.0775 – 27.0732 356 14
18" 61.0948 0.0219 5.0563 – 41.0588 457 18
2 1/2" 8.0629 0.0203 5.0516 40 5.0793 73 2.0875
1 1/2" 4.0048 0.0145 3.0683 40 2.0718 48 1.0900
42" 206.0914 0.0312 7.0925 – 138.0911 1067 42
12" 37.0570 0.0188 4.0775 – 25.0222 324 12.0750
48" 284.0112 0.0375 9.0525 – 190.0738 1219 48
1/2" 1.0268 0.0109 2.0769 40 0.0851 21 0.0840
20" 78.0547 0.0250 6.0350 – 52.0733 508 20
6" 19.0252 0.0188 4.0775 – 12.0924 168 6.0625
3/4" 1.0684 0.0113 2.0870 40 1.0131 27 1.0050
30" 118.0318 0.0250 6.0350 – 79.0433 762 30
8" 25.0233 0.0188 4.0775 – 16.0940 219 8.0625
1" 2.0501 0.0133 3.0378 40 1.0679 33 1.0315
254 SMO EFW pipe and ASTM A312 S31254 square pipes stock available with third-party inspections and mill test certificates for quality assurance

Test certificates of ASTM A312 S31254 square pipes

Desalination Plants Marine and Offshore Equipment Heat Exchangers and Condensers
Chemical Processing Industry Oil and Gas Refineries Pulp and Paper Industry
Seawater Cooling Systems Pollution Control Equipment Food and Beverage Processing

Chemical composition of SMO 254 pipe

C Cr Mn Si P Cr S Ni Mo Cr Cu
≤0.020 20 ≤1.00 ≤0.80 ≤0.030 20 ≤0.010 18 6.1 20 0.7

A312 UNS S31254 rectangle pipes mechanical properties

Density Yield Strength (0.2%Offset) Melting Point Tensile Strength Elongation
8.0 g/cm3 300 1320-1390 ℃ 650 35 %

254 SMO Welded pipe equivalent grades

STANDARD UNS WERKSTOFF NR. AFNOR SIS EN JIS GOST
SMO 254 S31254 1.4547 Z1 CNDU 20.18.06Az 2378 X1CrNiMoCuN20-18-7 – –

UNS S31254 pipe physical properties

Modulus of Elasticity psi x106 26 25 27 29 28
Temperature °F 572 752 392 68 212
Electrical Resistivity Ωin x 10-6 40.6 43.3 37.4 33.5 35.4
Heat Capacity Btu/lb°F 0.133 0.136 0.129 0.12 0.124
Thermal Conductivity Btu/h ft°F 9.8 10.4 8.7 7.5 8.1
Magnetic Permeability 1.003 - - - 1.003 -
Density lb/in³ - - - 0.287 -

Temperature range of 254 SMO seamless pipe

Temperature Proof strength
°C Rp1.0 Rp0.2
MPa MPa
min. min.
400 190 160
300 200 170
200 225 190
100 270 230
500 180 148
SMO 254 Pipe and A312 UNS S31254 rectangle pipes suitable for seawater systems and heat exchangers

254 SMO pipe application

Mill Test Certificate (EN 10204 3.1/3.2) Raw Material Certificate Third Party Inspection Report
Heat Treatment Chart Hydrostatic Test Certificate Radiographic Test Report
Ultrasonic Test Report Mechanical Testing Report Visual Inspection Report
Dimensional Inspection Report PMI Test Report (Positive Material Identification) Certificate of Origin

Alloy 254 rectangular pipe corrosion resistance

Sandvik 254 SMO 425
ASTM TP316 105
'904L' 225

254 SMO stainless steel pipe thermal properties

W/m o C Temperature, o C Btu/ft h o F Temperature, o F
16 300 9.5 600
18 400 10.5 800
20 500 11.5 1000
10 20 6 68
12 100 7 200
14 200 8 400
21 600 12.5 1200
23 700 13 1300

6MO round pipe modulus of elasticity

MPa Temperature, °C ksi Temperature, °F
174 300 25.1 600
166 400 23.8 800
195 20 28.3 68
190 100 27.6 200
182 200 27.5 400
158 500 22.5 1000

Heat treatment of SMO 254 EFW pipe

Temperature, °C J/kg °C Btu/ft h °F Temperature, °F
400 585 0.14 800
500 600 0.14 1000
600 615 0.15 1200
20 485 0.12 68
100 510 0.12 200
200 535 0.13 400
300 565 0.14 600
700 625 0.15 1400

254 SMO tubing hsn code

Grade HSN Code
SMO 254 Pipe 73063000

A269 S31254 Erw pipes surface finish

Solution annealed Cold Drawn Mirror
600 grit 400 grit BA polishing
No.4 2B 320 grit
180 grit polished Matt finish Annealed & Pickled
