API 5L ERW Pipe Price in India, API 5L Seamless Pipe Supplier
Stock for sale of API 5L Line Pipe in wide Sizes, Dimensions & Specifications, Stockist of API 5L Welded pipe in PSL1 & PSL2
API 5L Pipe is one of the best and reasonable material for transportation of petroleum liquid fuels & natural gases on high temperature & Low pressure, Spark Steel is one of the prominent manufacturers of API 5l Pipe in India. API 5L Pipe is produced in two different qualities PSL1 & PSL2, API 5L pipe is a type of Carbon Steel Pipe which is manufacture as per criteria of API, The API 5L shows the specifications of seamless and welded carbon steel line pipe. We are one of the leading Supplier of API steel Pipe in different grades to renowned LNG projects and pipeline industries worldwide.
We are one of the leading suppliers and distributors of API Line Pipe in Petronas, Malaysia. Spark Steel stock API Steel Pipe in different sizes, Dimensions & Specifications to the quick supply of API 5L Carbon steel pipe for urgent requirements or Oil pipe replacement, We can deliver API pipe material anywhere in South Asia in 7-8 days, East Asia within 10-15 days and to Central Asia in 15-25 days,

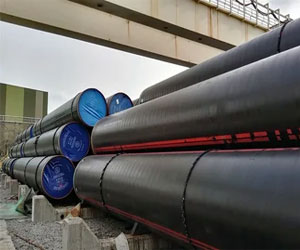

API 5L PSL2 Pipe
API 5L Seamless Pipe

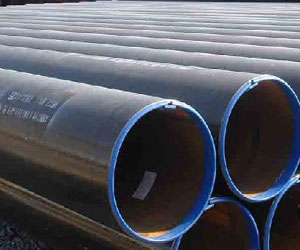

API 5L ERW Pipe
Spark Steel also provide you complete information about pipe in Stock like Mill test report, Origin of material, Raw material details, etc. We are one of the leading Supplier of API 5L Seamless Pipe. we have also supplied Large diameter Seamless pipe to Abadi liquefied natural gas (LNG) project in Indonesia, Kosmos Energy in West Africa. Spark Steel is proud to publish that Qatar - Turkey pipeline project from the Iranian - Qatari South Pass we have supplied 300 ton API 5L ERW pipe in the Year 2008 and after 10 years of supply there is no complaint in Piping material and we are receiving repeat orders from the same customer.
ANSI / API 5L material is best to make Sour service pipe because it performs resistance in corrosive environments, Sour service steel pipe is used in oil and gas pipelines, if wrong material is used to manufacture this pipe so it may cause leakage of Oil, Gas, and water those are natural resources and also seen explosion in certain conditions. So, it is very important to choose the right material for Oil and gas pipelines. API Tubular products are tested in different environments and very harsh conditions. Line pipes are fully certified material around the globe for transportation of oil, gas & water. Spark Steel has become India's No. 1 exporter of Din en iso 3183 Welded Pipe and currently supplying to Kuwait, KSA, Egypt, UAE, Qatar, Jordan and many more countries in Gulf Countries.
Spark Steel has become a reputed brand in the Middle East for their piping needs, In API 5L LSAW Pipe & Dsaw Pipe we have wide size range and thickness in our ready stock. Our Sales team will be happy to provide quick quote and FOB price per ton as well all useful Information about Casing & Tubing, Carbon steel API pipes, Line Pipes also used for boring purpose & drilling and comes under API Spec 5D Specifications, Because of High Pressure these API 5L DSAW Pipe outside diameters (ODs) start from 2 3/8” to 6 5/8”.
We are one of the leading stockists of Grade E-75 drill pipe to Grade S-135, These pipes are available in accordance with API Specification 5D and API Spec 7, As per customer requirement we supply API 5l Steel Pipe complying with NACE MR0175, Call now for latest & Updated Price list of API 5l hfw Pipe. Spark Steel having 60000 square feet Stockyard in Mumbai and Gujarat, where we stock around 1200 ton Pipes & tubing of regular grades and most common sizes, you can contact us for our stock list and can find your pipe grade & size available in stock, if it is there in ready stock you may get the best price in India, in fact, better than China and fastest delivery to your country. All pipes in Stock deliver with proper documents and Third-party Inspections, Cut to size also possible in API 5L ERW Pipes which save your money and wastage also. Please ask for Sample and all required documents of Steel pipe before buying genuine API 5l material from INDIA or China. API 5L Line Pipe may also be certified to the ASTM A-1024 specification.
API 5L Pipe specification
Hot-Dipped Galvanizing | May be ordered galvanized. |
Kinds of Steel Permitted For For Pipe Material | Open-hearth Electric-furnace Basic-oxygen |
Specification | API 5L, ASTM A1024 / A1024M, ISO 3183 |
Scope | Covers WELDED and SEAMLESS pipe suitable for use in conveying gas, water, and oil in both the oil and natural gas industries. |
Manufacturing techniques | Welded Pipe
Seamless Pipe SAW Pipe ERW Pipe |
Hot rolled seamless pipe | upto 20 inch (508 mm) Seamless pipe (hot expanding processes) : upto 40 inch 1016 mm. |
API Line Pipe Length | Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths |
Product Specification Level (PSL) | API 5L PSL 1 API 5L PSL 2 |
Standard | API 5L (Specification for Line Pipe - ANSI/API specification 5L - 44th Edition, October 1, 2007) |
Sizes | Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness - Schedule 10 through 160, STD, XS, XXS. |
Origin | Korean Origin, European Origin, Indian Origin, Japanese Origin, US Origin, Ukraine Origin, Russian Origin |
Value added service |
|
Thickness | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
Applications | Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes |
Pipe End | Plain, Bevel, Screwed, Threaded |
API 5L Pipes Type | Seamless / Welded / ERW / Fabricated / CDW |
Testing and Inspection Reports | Visual Inspection Reports, EN 10204 3.1, PMI Test Reports, Third Party Inspection Reports, Destructive Test Report, Non Destructive Test Reports, Mill TC EN 10204 3.1, NABL Approved Lab, Chemical and Mechanical Reports, India Boiler Regulations (IBR) Test Certificate |
Packing | API 5L GR. B Pipe Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
Finishes | FBE, FBE Dual, 3LPE, Bare, Oiled, Mill Varnish, Galv,3LPP, Coal Tar, Concrete Coating and Tape Wrap.End Finishes:Beveled, Square Cut, Threaded & Coupled. |
Application & uses |
|
Other manufacturers of API Seamless steel pipe | MSL, JSL, ISMT, USL, BAO, Lontrin, SMTM, TNRS, V&M and Wuxi |
HS Code |
|
BS EN 10208-2:2009 | Steel pipes for pipelines for combustible fluids. Technical delivery conditions. Pipes of requirement class B. Suitable to use in maximum operating pressure over 16 bar. |
Test Methods |
|
API 5L Pipe Length
Threaded & Coupled Pipe | Shortest Length in Entire Shipment | Shortest Length in 95% of Entire Shipment | Minimum Average Length of Entire Shipment |
---|---|---|---|
Single Random | 16' 0" | 18' 0" | -- |
Double Random | 22' 0" | -- | 35' 0" |
API Line Pipes for oil & gas
Government recognised API 5L Pipe stockist and exporter in India
API 5L PSL2 Pipe
API 5L Welded Pipe
API 5L Schedule 40 Pipe
API Drill Pipe
API 5L DSAW Pipe
API 5L Steel Pipe
API 5L Pipe Line
API 5L Seamless Line Pipe
API 5L Pipe Suppliers in India
API 5L ERW Pipe
API 5L Galvanized Pipe
API 5L LSAW Pipe
API 5L Pipe Material
API 5L PSL1 Pipe
API 5L Seamless Pipes
API 5L Schedule 80 Pipe
API 5L Pipe grades & Basic Properties:
Grade L290 / X42 | 290 MPa (42.1 ksi) YS 415 MPa (60.2 ksi) UTS |
Grade L320 / X46 | 320 MPa (46.4 ksi) YS 435 MPa (63.1 ksi) UTS |
Grade L360 / X52 | 360 MPa (52.2 ksi) YS 460 MPa (66.7 ksi) UTS |
Grade L175 / A25 | 175 MPa (25.4 ksi) YS 310 MPa (45.0 ksi) UTS |
Grade L210 / A | 210 MPa (30.5 ksi) YS 335 MPa (48.6 ksi) UTS |
Grade L415 / X60 | 415 MPa (60.2 ksi) YS 520 MPa (75.4 ksi) UTS |
Grade L450 / X65 | 450 MPa (65.3 ksi) YS 535 MPa (77.6 ksi) UTS |
Grade L245 / B | 245 MPa (35.5 ksi) YS 415 MPa (60.2 ksi) UTS |
Grade L390 / X56 | 390 MPa (56.6 ksi) YS 490 MPa (71.1 ksi) UTS |
Grade L485 / X70 | 485 MPa (70.3 ksi) YS 570 MPa (82.7 ksi) UTS |
Grade L555 / X80 | |
Grade X100 and X120 |
API 5L Pipe Coating
Elastomeric Polyurethane Coating | PTFE Coating |
Fusion Bonded Epoxy Coating (FBE Coating) | 3LPE Coating |
Food Grade Epoxy Coatings | Phenolic Epoxy Coating |
Any Liquid Epoxy Coating | Glass Flake Coatings |
Halar Coatings | Internal & External Coating |
PSL1 vs PSL2 Pipe
Manufacturing difference between API 5L PSL1 & PSL2 Pipes
PSL is the abbreviation of product specification level.
PARAMETER | PSL1 | PSL2 |
---|---|---|
Material Grade | PLS1 pipes are available in grade A25 through X70 | PSL2 pipes are available in Grade B through X80 |
Size range | 0.405" through 80" | 4.5" through 80" |
Seam welding | All methods: continuous welding limited to A25 | All methods: except continuous welding and laser welding |
Type of Pipe ends | Plain end, Threaded end,Bevelled end special coupling pipes | Plain end |
Electric welds: welder frequency | No minimum | kHz minimum 100 |
Heat treatment of electric welds | Required for grades >X42 | Required for all grades (B through X80) |
Non-destructive inspection of Seamless | Only when purchaser specifies SR4 | SR4 mandatory |
Repair by welding of pipe body plate, and skelp | Permitted | Prohibited |
Repair by welding of weld seams without filler metal | Permitted by agreement | Prohibited |
Certification | Traceable only until all tests are passed | Certificates (SR15.1) mandatory |
Traceability | Only until all tests are passed unless SR15 is specified | After completion of tests (SR15.2) mandatory |
Permissible Variations in Wall Thickness
Grade A, B, A25 Pipe | X42 through X80 | |
---|---|---|
NPS 2 1/2 and smaller -- Seamless and welded, % | +20 -- 12.5 | +15 -- 12.5 |
NPS 3 -- Seamless and welded, % | +18 -- 12.5 | +15 -- 12.5 |
NPS 4 through 18 -- Seamless and welded, % | +15 -- 12.5 | +15 -- 12.5 |
NPS 20 and larger -- Welded, % | +17.5 -- 10.0 | +19.5 -- 8.0 |
NPS 20 and larger -- Seamless, % | +15.0 -- 12.5 | +17.5 -- 10.0 |
Types of API Line Pipes
API 5L DSAW Pipe | API 5L Line Pipe |
API 5L Steel Pipe | API 5L ERW Pipe |
API 5L Pipe Fittings | API 5L Galvanized Pipe |
API 5L Pipe Line | API 5L LSAW Pipe |
API 5L Seamless Line Pipe | API 5L Pipe Material |
API 5L PSL2 Pipe | API 5L PSL1 Pipe |
API 5L Welded Pipe | API 5L Seamless Pipes |
API 5L Schedule 40 Pipe | API 5L Schedule 80 Pipe |
API Drill Pipe | Grade a25 pipe |
General Information about API 5L lsaw line pipe
Supplementary Requirements available when specified.
SR3 | Color Identification. |
SR4 | Nondestructive Inspection of Seamless Pipe. |
SR5 | Charpy impact Testing - Welded Pipe 20" & larger - Grade X52 or higher. |
SR6 | Drop Weight Tear Testing - Welded Pipe 20" & larger -Grade X52 or higher. |
SR8 | Fracture Tough ness Testing of Line Pipe. |
Required Markings on Each Length (On Tags attached to each Bundle in case of Bundled Pipe)
- Type of steel
- Grade
- Spec 5L, size
- Length (NPS 4 and larger only)
- Manufacturer's name or mark
- Weight per foot
- Process of manufacture
- Paint Stenciled or Die Stamped (by agreement)
- Test pressure when higher than tabulated (NPS 2 and larger only)
- Heat treat symbols, as applicable -- HN, HS, HA or HQ
API 5l Seamless Line Pipe Yield and Tensile Strength
API 5L Seamless Steel Pipes, API 5L Welded Pipes Mechanical Properties
Mechanical Properties PSL 1
Elongation :E=1944 A 0.2 /U 0.9
Grade |
Yield Strength(Min.) |
Tensile Strength(Min.) |
||
---|---|---|---|---|
Ksi |
MPa |
Ksi |
MPa |
|
B |
35 |
241 |
60 |
414 |
X42 |
42 |
290 |
60 |
414 |
X46 |
46 |
317 |
63 |
434 |
X52 |
52 |
359 |
66 |
455 |
X56 |
56 |
386 |
60 |
414 |
X60 |
60 |
414 |
63 |
434 |
X65 |
65 |
448 |
66 |
455 |
Mechanical Properties PSL 2
Elongation
E=1944 A 0.2 / U 0.9
Grade |
Yield Strength |
Tensile Strength |
||||||
---|---|---|---|---|---|---|---|---|
Min |
Max |
Min |
Max |
|||||
Ksi |
MPa |
Ksi |
MPa |
Ksi |
MPa |
Ksi |
MPa |
|
B |
35 |
241 |
65 |
448 |
60 |
414 |
110 |
758 |
X42 |
42 |
290 |
72 |
496 |
60 |
414 |
110 |
758 |
X46 |
46 |
317 |
76 |
524 |
63 |
434 |
110 |
758 |
X52 |
52 |
359 |
77 |
531 |
66 |
455 |
110 |
758 |
X56 |
56 |
386 |
79 |
544 |
71 |
490 |
110 |
758 |
X60 |
60 |
414 |
82 |
565 |
75 |
517 |
110 |
758 |
X65 |
65 |
448 |
87 |
600 |
77 |
531 |
110 |
758 |
API 5L Pipe Price List
DIN en ISO 3183 Seamless Pipe price per Kg in India
INR: 92.48/Kg approx
DIN en ISO 3183 Welded Pipe price per Kg in India
INR: 82/Kg approx
SIZE in Inch | JSL | MSL | BAO | ISMT | USL | Lontrin | SMTM | TNRS | V&M | Wuzi |
---|---|---|---|---|---|---|---|---|---|---|
1/2 | 1,330.88 | 1,323.53 | 1,029.41 | 1,316.18 | - | 1,036.76 | 1,470.59 | 1,397.06 | 1,426.47 | 1,022.06 |
3/4 | 1,110.29 | 1,102.94 | 955.88 | 1,095.59 | - | 963.24 | 1,250.00 | 1,176.47 | 1,205.88 | 948.53 |
1 | 963.24 | 955.88 | 882.35 | 948.53 | - | 889.71 | 1,102.94 | 1,029.41 | 1,058.82 | 875.00 |
1.25 | 919.12 | 911.76 | 852.94 | 904.41 | - | 860.29 | 1,058.82 | 985.29 | 1,014.71 | 845.59 |
1.5 | 816.18 | 808.82 | 808.82 | 801.47 | - | 816.18 | 955.88 | 882.35 | 911.76 | 801.47 |
2 | 801.47 | 794.12 | 617.65 | 786.76 | - | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
2.5 | 801.47 | 794.12 | 617.65 | 786.76 | - | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
3 | 801.47 | 794.12 | 617.65 | 786.76 | - | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
3.5 | 801.47 | 794.12 | 617.65 | 786.76 | - | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
4 | 801.47 | 794.12 | 617.65 | 786.76 | 735.29 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
5 | 801.47 | 794.12 | 617.65 | 786.76 | 735.29 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
6 | 801.47 | 794.12 | 617.65 | 786.76 | 735.29 | 625.00 | 941.18 | 867.65 | 897.06 | 610.29 |
8 | 801.47 | 794.12 | 647.06 | 786.76 | 735.29 | 654.41 | 941.18 | 867.65 | 897.06 | 639.71 |
10 | - | 794.12 | 647.06 | 786.76 | 735.29 | 654.41 | 941.18 | 867.65 | 897.06 | 639.71 |
12 | - | 852.94 | 647.06 | - | 735.29 | 654.41 | 1,000.00 | 926.47 | 955.88 | 639.71 |
14 | - | 852.94 | 661.76 | - | 735.29 | 669.12 | 1,000.00 | 926.47 | 955.88 | 654.41 |
16 | - | 882.35 | 661.76 | - | - | 669.12 | 1,029.41 | 955.88 | 985.29 | 654.41 |
18 | - | 882.35 | 676.47 | - | - | 683.82 | 1,029.41 | 955.88 | 985.29 | 669.12 |
20 | - | 882.35 | 676.47 | - | - | 683.82 | 1,029.41 | 955.88 | 985.29 | 669.12 |
22 | - | - | 705.88 | - | - | 713.24 | 1,176.47 | 1,029.41 | 1,132.35 | 698.53 |
24 | - | - | 705.88 | - | - | 713.24 | 1,176.47 | 1,029.41 | 1,132.35 | 698.53 |
Please note: Price in USD/Ton. This is an approx price list. For final price please contact.
Delivery Condition of API 5L pipe
a. The letter L followed by the specified minimum yield strength in Mpa. For example, L290 (X42) means the minimum yield strength is 290 Mpa. In case of PSL2 pipe, Suffix letter (R, N, Q or M) shall be added to describe the delivery condition;
b. The letter X followed by a two or three digital number equal to the minimum yield strength in 1000 psi rounded down to the nearest integer and, for PSL2 pipe, the letter describing the delivery condition (R, N, Q, or M) consist with the above formats.
Letter R: As rolled
Letter N: Normalizing rolled, Normalized formed, Normalized
Letter Q: Tempered and quenched
Letter M: Thermomechanical rolled or thermomechanical formed

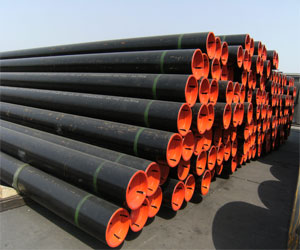

Mechanical Properties for API 5L Sour Service Pipe
API 5L Pipe purchase information
OD (Outside diameter) and WT (pipe wall thickness) |
Length and length type (Double random length / Single random length / Fixed length / Approximate length) |
Quantity in meters or in tons. For example total meters or total pieces. |
PSL1 or PSL2 |
Pipe Types (Seamless or welded, EW, HFW, SAW) |
Reference documents to API 5L. |
Steel Grade |
Individual annexes applicability of confirmation |
API 5L Pipe Schedule Chart
NPS (in) |
Outside Diameter (in) |
API 5l Pipe Schedule | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
Wall Thickness (in) | ||||||||||||||
1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 |
