Stainless Steel 304L Tubing Manufaturer, ASTM A213 TP 304L SS Seamless Tubes, Stainless Steel 304L Cold Drawn Tubes, SS 304L Tubing Stockholder In India.
Stainless Steel DIN 1.4306/1.4307 Seamless Tubes Stockist, SS UNS S30403 Seamless Tubing, Stainless Steel 304L Cold Drawn Tubes, JIS SUS 304L Seamless Tubes, Stainless Steel 304L Seamless Tubing In India.
Spark Steel supply Stainless Steel 304L Tubing, these Stainless Steel Seamless 304L Tube after all quality parameters checks by experienced and good knowledgeable staff. We have a huge inventory of Stainless Steel 304L Tubes in both forms Seamless and welded. Our inventories primarily consist of 304L Stainless Steel Welded Tube in a size range from 1/2" to 8" NB. We are one of the most reliable and trusted Stainless Steel 304L Seamless Tubes Supplier. 304L Stainless Steel Tube Suppliers have exhibited excellent corrosion resistance to a wide range of corrosive environments. Stainless Steel Tube Type 304L exhibit good machinability and SS 304L Tube have excellent weld-ability characteristics with or without the addition of filler metals. Spark Steel can also supply stainless steel Tube with an abrasive polished finish and Polish Grit 600 -1200 suitable for architectural applications. Stainless Steel 304L Seamless Tubing is supplied in the annealed condition to facilitate fabrication and ensure best corrosion resistance. SS UNS S30403 Seamless Tubing may be furnished bare or coated and with capped ends. In order to prevent rust during sea shipment, bundles of 304L SS Tubing may be wrapped with polypropylene sheets, and secured with flat steel bands. Over 3" OD will be supplied loose.

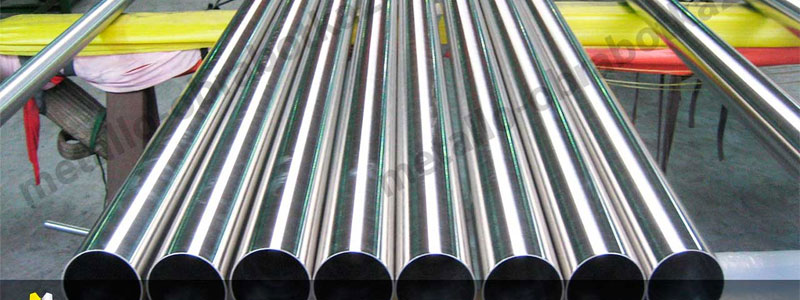

Stainless Steel 304L Seamless Tubes Supplier in India
304L Stainless Steel Seamless Tube Specification
|
ASTM A213 TP304L Stainless Steel Seamless Tube
|
||||
|---|---|---|---|---|
|
Material
|
Size
|
Sch.
|
Specification
|
Manufacturer
|
|
ASTM A213 TP304L Stainless Steel Seamless Tube
|
15 NB
To 300 NB |
Sch. 5s
Sch. 10s Sch. 40s Sch. 80s Sch. 160s Sch. XXS |
ASTM A-213
|
Imported
Choksi Remi & Ratnamani |
| Note:- | ||||
|---|---|---|---|---|
|
SS Pipe Grades
|
TP304/ SS 304
TP304H/ SS304H TP304L/ SS 304L TP304LN/ SS 304LN TP 316/ SS316 |
TP 316H/ SS 316H
TP 316L/ SS 316L TP 316LN/ SS 316LN TP 316Ti/ SS 316Ti TP 309/ SS 309 |
TP 310/ SS 310
TP 317L/ SS 317L TP 321/ SS 321 TP 347/ SS 347 TP 409/ SS 409 |
TP 410/ SS 410
TP 420/ SS 420 TP 430/ SS 430 TP 446/ SS 446 TP 202/ SS 202 etc. |
| ASTM A213 TP304L Stainless Steel Seamless Pipe Specification | ASTM A 269/A 213 / EN 10216-5 / NACE MR0175/PED 97/23 EC | |||
| Outside Diameter: | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock | |||
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS | |||
| Type | Seamless / ERW / Welded / Fabricated / CDW Type: SS 304L Seamless Pipes | SS 304L ERW Pipes | SS 304L Welded Pipes | SS 304L Fabricated Pipes | SS 304L CDW Tubes, SS 304L Hydraulic and Instrumentation Tubes, SS 304L Coiled Tubing, SS 304L Capillary Tubes, SS 304L Hydraulic and Instrumentation Tubes, SS 304L Coiled Tubing, SS 304L Capillary Tubes |
|||
| End | Plain End, Beveled End, Threaded | |||
| End Protection | Plastic Caps | |||
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements | |||
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn | |||
| Brand/ Origin | European Origin, Japanese Origin, Korea Origin, US Origin, Russia Origin, Indian Origin | |||
| SS 304L Seamless Pipe Manufacturer | Posco Korea, VDM Germany, Tubacex, Nippon Steel Corporation, Sumitomo Japan, Indian Mills, Walsin | |||
| Form | SS 304L Round Pipes/Tubes, SS 304L Square Pipes/Tubes, SS 304L Rectangular Pipe/Tubes, SS 304L Coiled Tubes, SS 304L “U” Shape, SS 304L Pan Cake Coils, SS 304L Hydraulic Tubes | |||
| Special Pipes | Stainless Steel 304L Fabricated Pipe (with radiography) | |||
| In Length of | Single Random, Double Random , Standard & Cut length | |||
| Value Added Service | Draw & Expansion as per required Size & Length Polish (Electro & Commercial) Heat Treatment Bending Annealed & Pickled Sand Blasting Machining Etc. |
|||
| Test Certificate | Manufacturer Test Certificate/ Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection, Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
|||
| Specialize | Stainless Steel 304L Fabricated Pipe Stainless Steel 304L Square & Rectangle & Other Odd Size SS Pipe Sizes and Specifications other than above can be manufactured on request |
|||
| UNSPSC Code | 40171621 (Industrial welded stainless steel 304 pipe) 40171622 (Industrial seamless stainless steel 304 pipe) |
|||
| Other Pipes & Tubes |
|
|||
304L Stainless Steel Seamless Tube Range
| Specification | ASTM A269, ASTM A213, ASTM A312, ASME SA269, ASME SA213, ASME SA312 |
| Grades | 202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC. |
| Type | SEAMLESS / WELDED / ERW / EFW / COLD DRAW / HOT FINISH / COLD FINISH |
| Outer Diameter Size |
SEAMLESS - 1/2" NB TO 18" NB WELDED / ERW- 1" NB TO 16" NB EFW - 8" NB TO 110" NB |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| Material Test Certificate |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Ready stock available:top 10 Manufacturers of ASTM A213 TP304L Stainless Steel Seamless Tube under one roof at most attractive price offer
Stainless Steel 310 Seamless Tubes |
Stainless Steel 304L Seamless Tubes |
Stainless Steel 304H Seamless Tube |
Stainless Steel 316 Seamless Tube |
Stainless Steel 310s Seamless Tube |
Stainless Steel 310h Seamless Tube |
Stainless Steel 304 Seamless Tube |
Stainless Steel 316L Seamless Tube |
Stainless Steel 316H Seamless Tube |
Stainless Steel 317 Seamless Tube |
Stainless Steel 317L Seamless Tube |
Stainless Steel 321 Seamless Tube |
Stainless Steel 321H Seamless Tube |
Stainless Steel 347 Seamless Tube |
Stainless Steel 347H Seamless Tube |
Stainless Steel 904L Seamless Tube |
Spark steel is one of the oldest Manufacturer, Distributors and Supplier of High Quality Stainless Steel TP 304L Seamless Tubes. We provide a wide range of Stainless Steel TP 304L Seamless Tubes in Seamless, Welded, SAW, LSAW, DSAW etc. Our range comprises of Stainless Steel TP 304L Seamless Tubes. Available in different dimensions & grades, these Stainless Steel TP 304L Seamless Tubes are widely used in different industries like Dairy, Food processing, engineering, construction and many more. We also offer competitive range of Stainless Steel TP 304L Seamless Tubes as per client’s requirement. Spark Steel is Approved Manufacturer & supplier of Stainless Steel TP 304L Seamless Tubes by GASCO, KNPC, SAUDI ARAMCO, SABIC, ORPIC, NIORDC & PIDMCO.
Stainless Steel 304L Seamless Tubes Specification
-
Stainless Steel 304L Seamless Tubing manufacturers in india
Tube Range : 1/2" OD - 12" OD, Guage: 25 SWG - 10 SWG
Outer Diameter : 3.00 mm - 219.10 mm
Outer Diameter : 3.00 mm - 219.10 mm
Wall Thickness : 0.40 mm - 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, "U" Shape, Hydraulic & Honed Tubes
SS 304L Seamless Tubes Grade specifications
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
|---|---|---|---|---|---|---|---|
| SS 304L | S30403 | 1.4306/1.4307 | SUS 304L | Z3CN18‐10 | 304S11 | 03Х18Н11 | X2CrNi18-9 / X2CrNi19-11 |
| Other ASTM A213 Stainless Steel Seamless Tube | |
|---|---|
| Stainless Steel 310 Seamless Tubes | Stainless Steel 310H Seamless Tubes |
| Stainless Steel 316 Seamless Tubes | Stainless Steel 316L Seamless Tubes |
| Stainless Steel 316H Seamless Tubes | Stainless Steel 316Ti Seamless Tubes |
| Stainless Steel 317 Seamless Tubes | Stainless Steel 317L Seamless Tubes |
| Stainless Steel 304 Seamless Tubes | Stainless Steel 304L Seamless Tubes |
| Stainless Steel 304H Seamless Tubes | Stainless Steel 310S Seamless Tubes |
| Stainless Steel 321 Seamless Tubes | Stainless Steel 321H Seamless Tubes |
| Stainless Steel 347 Seamless Tubes | Stainless Steel 347H Seamless Tubes |
| Stainless Steel 904L Seamless Tubes |
Stainless Steel DIN 1.4306/1.4307 Seamless Tubes Stockist, Stainless Steel 304L Seamless Tubes Supplier, SS UNS S30403 Seamless Tubing, Stainless Steel 304L Cold Drawn Tubes, JIS SUS 304L Seamless Tubes, Stainless Steel 304L Seamless Tubing In India.
304L Stainless Steel Seamless Tubes Chemical Composition
| Stainless Steel | Tradename | UNS no. | Werkstoff No. | Density (g/cm3) |
|---|---|---|---|---|
| 304 | 304 Stainless | S30400 | 1.4301 | 8 |
| 304L | 304L Stainless | S30403 | 1.4307 | 8 |
| 304H | 304H Stainless | S30409 | 1.4948 | 8 |
| 304LN | 304LN Stainless | S30453 | 1.4311 | 8 |
| SS | 304 | 304h | 304LN |
|---|---|---|---|
| Ni | 8 – 11 | 8 – 11 | 8 – 11 |
| Fe | Balance | ||
| Cr | 18 – 20 | 18 – 20 | 18 – 20 |
| C | 0.08 max | 0.08 max | 0.035 max |
| Si | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max |
| P | 0.040 max | 0.040 max | 0.040 max |
| S | 0.030 max | 0.030 max | 0.030 max |
| N | 0.10 – 0.16 | 0.10 – 0.16 | |
304L Stainless Steel Seamless Tube Mechanical Properties
| Grade | 304L |
|---|---|
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
SS 304L Seamless Tubes Grade specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304L | S30403 | 304S11 | - | 1.4306 | X2CrNi19-11 | 2352 | SUS 304L |
SS 304L Seamless Tubes Physical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
SS 304L Seamless Tubes size & stock range
| Pipe/ Tube Type | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
|---|---|---|---|---|---|---|
| Stainless Steel 304L Seamless Tube | 1/2 |
 |
|
|
|
|
| Stainless Steel 304L Seamless Tubes | 3/4 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubing | 1 |
|
|
|
|
|
| SS 304L Seamless Tubes | 1.25 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tube | 1.5 |
|
|
|
|
|
| SS 304L Seamless Tubing | 2 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tube | 2.5 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubes | 3 |
|
|
|
|
|
| SS 304L Seamless Tubing | 3.5 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubes | 4 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tube | 5 |
|
|
|
|
|
| SS 304L Seamless Tubes | 6 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubing | 8 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubes | 10 |
|
|
|
|
|
| SS 304L Seamless Tube | 12 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubing | 14 |
|
|
|
|
|
| SS 304L Seamless Tubes | 16 |
|
|
|
|
|
| SS 304L Seamless Tubing | 18 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tube | 20 |
|
|
|
|
|
| SS 304L Seamless Tubes | 22 |
|
|
|
|
|
| Stainless Steel 304L Seamless Tubing | 24 |
|
|
|
|
Stainless Steel 304L Seamless Tubes Price List
-
sa213 304 seamless Tube
US $1.5-9 / Kilogram (FOB Price)
-
304 seamless Tube manufacturer
US $850-2200 / Metric Ton (FOB Price)
-
ASTM A213 Gr. 304 Seamless Tube
US $500-1000 / Ton (FOB Price)
-
304L seamless steel Tube
US $800-1600 / Ton (FOB Price)
-
Seamless Tube 304L
US $1-100 / Piece (FOB Price)
-
304 seamless stainless steel Tubes
US $2500-4100 / Ton (FOB Price)
-
seamless Tube astm a213 304
US $600-1200 / Ton (FOB Price)
-
stainless steel seamless Tube 304
US $500-2000 / Ton (FOB Price)
-
ASTM A213 304 stainless seamless steel Tube
US $850-2200 / Metric Ton (FOB Price)
-
ASTM A213 304L Seamless Tube for Fluid Transportation
US $500-820 / Ton (FOB Price)
-
satin No.4 No.8 astm a213 304l seamless Tube hot sale!!!
US $2000-6500 / Ton (FOB Price)
- austenitic 304L seamless Tubes for high pressure
US $2660-7680 / Ton (FOB Price)
-
coated Ni Stainless steel seamless Tube 304L
US $4400-9300 / Ton (FOB Price)
-
304l stainless steel seamless Tube
US $3000-6000 / Metric Ton (FOB Price)
-
2 inch Stainless Steel Seamless Tubes A213 GR 304L
US $3400-11000 / Ton (FOB Price)
-
304L Stainless seamless Steel Tubes with different sizes
US $3.8-5 / Kilogram (FOB Price)
-
304 304L stainless steel seamless Tube
US $3000-8000 / Metric Ton (FOB Price)
-
Prime quality 304l stainless steel seamless Tubes
US $2000-3000 / Ton (FOB Price)
-
ASTM A213 304l cold drawn seamless stainless Tube
US $40-120 / Kilogram (FOB Price)
-
cold drawn ASTM A269 304L seamless stainless Tube
US $3000-5000 / Metric Ton (FOB Price)
-
High Precision 304L Stainless Steel Seamless Tube
US $6000-15000 / Ton (FOB Price)
-
304H Stainless Steel Seamless Tube
US $500-2000 / Ton (FOB Price)
-
ASME SA213 304H seamless Tube
US $1-9999 / Kilogram (FOB Price)
-
Prime quality 304h stainless steel seamless Tube
US $2000-3000 / Ton (FOB Price)
-
sa213 304h seamless Tube
US $2100-2400 / Ton (FOB Price)
Stainless Steel TP304L Seamless Tubes Exporters in India, 304L Stainless Steel Tube Suppliers in india, ASTM A213 TP304L Stainless Steel Seamless Tube Manufacturers in India, ASTM A213 TP304L Stainless Steel Seamless Tube Suppliers in India, ASTM A213 TP304L
Types Of Stainless Steel TP 304L Seamless Tubing
-
ASTM A213 TP304L Stainless Steel Seamless Tube Exporters in india
-
- Stainless Steel 304L Seamless Tubes
- SS TP 304L Seamless Tubes
- Stainless Steel 304L Tubes
- SS 304L Tubes
- Stainless Steel 304L Cold Drawn Tubes
- ASTM A 213 304L Stainless Steel Seamless Tubes
-
- SS TP 304L Cold Drawn Tubes
- AISI SS TP 304L Tubing
- Stainless Steel 304L Tubing
- SS UNS S30400 Seamless Tubing
- Stainless Steel 304L Seamless Tubing
- DIN 1.4306 Stainless Steel 304L Seamless Tubes
| ASTM A213 TP304L Stainless Steel Seamless Tube | ||
|---|---|---|
|
|
|
| ASTM A213 TP304L Stainless Steel Seamless Tube Outside Diameter & Tolerance |
|---|
Range of ASTM A213 TP304L Stainless Steel Seamless Tube according to ANSI/ASME 36.19M - Stainless Steel Tube.
| Nominal Pipe Size (inches) |
Outside Diameter |
Schedule | ||||||||
| 5S | 10S | 40S | 80S | |||||||
| (mm) | (inches) | Wall Thickness and Weight | ||||||||
| mm (in) |
kg/m | mm (in) |
kg/m | mm (in) |
kg/m | mm (in) |
kg/m | |||
| 1/8 | 10.3 | 0.405 | - | - | 1.25 (0.049) |
0.28 | 1.73 (0.068) |
0.37 | 2.42 (0.095) |
0.47 |
| 1/4 | 13.7 | 0.540 | - | - | 1.66 (0.065) |
0.49 | 2.24 (0.088) |
0.63 | 3.03 (0.119) |
0.80 |
| 3/8 | 17.2 | 0.675 | - | - | 1.66 (0.065) |
0.63 | 2.32 (0.091) |
0.85 | 3.20 (0.126) |
1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 (0.065) |
0.81 | 2.11 (0.083) |
1.00 | 2.77 (0.109) |
1.27 | 3.74 (0.147) |
1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 (0.065) |
1.02 | 2.11 (0.083) |
1.28 | 2.87 (0.113) |
1.68 | 3.92 (0.154) |
2.20 |
| 1 | 33.4 | 1.315 | 1.65 (0.065) |
1.30 | 2.77 (0.109) |
2.09 | 3.38 (0.133) |
2.50 | 4.55 (0.179) |
3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 (0.065) |
1.66 | 2.77 (0.109) |
2.69 | 3.56 (0.140) |
3.39 | 4.86 (0.191) |
4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 (0.065) |
1.91 | 2.77 (0.109) |
3.11 | 3.69 (0.145) |
4.06 | 5.08 (0.200) |
5.41 |
| 2 | 60.3 | 2.375 | 1.65 (0.065) |
2.40 | 2.77 (0.109) |
3.93 | 3.92 (0.154) |
5.45 | 5.54 (0.218) |
7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 (0.083) |
3.69 | 3.05 (0.120) |
5.26 | 5.16 (0.203) |
8.64 | 7.01 (0.276) |
11.4 |
| 3 | 88.9 | 3.500 | 2.11 (0.083) |
4.52 | 3.05 (0.120) |
6.46 | 5.49 (0.216) |
11.3 | 7.62 (0.300) |
15.3 |
| 3 1/2 | 101.6 | 4.000 | 2.11 (0.083) |
5.18 | 3.05 (0.120) |
7.41 | 5.74 (0.226) |
13.6 | 8.08 (0.318) |
18.6 |
| 4 | 114.3 | 4.500 | 2.11 (0.083) |
5.84 | 3.05 (0.120) |
8.37 | 6.02 (0.237) |
16.1 | 8.56 (0.337) |
22.3 |
| 5 | 141.3 | 5.563 | 2.77 (0.109) |
9.46 | 3.41 (0.134) |
11.6 | 6.56 (0.258) |
21.8 | 9.53 (0.375) |
31.0 |
| 6 | 168.3 | 6.625 | 2.77 (0.109) |
11.3 | 3.41 (0.134) |
13.9 | 7.12 (0.280) |
28.3 | 10.98 (0.432) |
42.6 |
| 8 | 219.1 | 8.625 | 2.77 (0.109) |
14.8 | 3.76 (0.148) |
20.0 | 8.18 (0.322) |
42.5 | 12.70 (0.500) |
64.6 |
| 10 | 273.1 | 10.750 | 3.41 (0.134) |
22.7 | 4.20 (0.165) |
27.8 | 9.28 (0.365) |
60.4 | 12.70 (0.500) |
81.5 |
| 12 | 323.9 | 12.750 | 3.97 (0.156) |
31.3 | 4.58 (0.180) |
36.1 | 9.53 (0.375) |
73.9 | 12.70 (0.500) |
97.4 |
|
Stainless Steel 304L Tube Value Added Options
|
|
|---|---|
Stainless Steel 304L Tube Polishing |
ASTM A213 TP304L Stainless Steel Seamless Tube as per #4 Polish, #6 Polish, #7 Polish or a #8 mirror finish. Stainless steel polished pipes can also be cut to size. |
Stainless Steel 304L Tube Beveling |
Bevel ASTM A213 TP304L Stainless Steel Seamless Tube to prepare for welding or other processes. |
| Stainless Steel 304L Tube Honing/Turning | Hone pipe and tube, using a precision abrasion process in order to obtain a desired finish or close dimensional tolerance. |
Heatreating & Annealing |
Some grades of stainless steel pipe and tube can be heatreated to change the mechanical properties. Precipitation Hardening Stainless Steels such as 17-4PH can be heatreated. 410 stainless steel plate can also be heatreated. In some cases, secondary annealing 300 series stainless steel may be required depending on the application |
Positive Material Identification (PMI) |
PMI testing in house for most stainless steel grades, or we can work with independent labs to complete PMI in order to meet customer specifications. |
SS 304L Tube UT Testing |
In some cases, UT testing of the stainless steel pipe and tueb may be required. We can assist you with this requirement. |
Stainless Steel 304L Seamless Tubes Nominal Bore Sizes
- 5" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 6" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 8" NB in ThicknessSchedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 10" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 12" NB in ThicknessSchedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 14" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 16" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 18" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 1/2" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 3/4" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 1" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 1-1/4" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 1-1/2" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 2" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 2-1/2" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 3" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 3-1/2" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
- 4" NB in Thickness Schedule 10, Schedule 40, Schedule 80, Schedule 160, Schedule XXS
Stainless Steel 304L Seamless Tubes Value Added Services
- Draw & Expansion as per required Size & Length
- Annealed & Pickled
- Sand Blasting
- Machining Etc.
- Polish (Electro & Commercial) Heat Treatment
- Bending
SS 304L Seamless Tubes Advantages
- Resistant to high pressure
- Resistant to high temperature
- Good formability
- Reusable
- High strength
- Resistant to high mechanical stresses
ASTM A213 TP304L Stainless Steel Seamless Tube Marking of packages
Visit Our SS 304L Seamless Tube Manufacturer Factory, Check Stainless Steel 304L Welded Tubing Dimensions, Stainless Steel 304L ERW Tube Suppliers, Stainless Steel 304L Seamless Tubes Supplier, Buy UNS S30403 Tubing And 304L Stainless Steel Welded Tube At Attractive Price, Stainless Steel 304L Seamless Tubing Manufacturers In Mumbai, India.
-
ASTM A213 TP304L SS Seamless Tubes Packing
-
ASTM A213 TP304L SS Seamless Tubes Packing
